AGT-T-Pro blending processor
AGT-T-Pro is a professional image fusion processor that seamlessly displays projection images, meeting multiple display requirements for single-channel / dual-channel large-screen projection. It provides a unique, cost-effective solution for the exhibition industry, the hall displays in the announcement place, wide-screen movies, home audio-visual rooms and small and medium-sized large screen system environments.
Based on pure hardware FPGA Technology

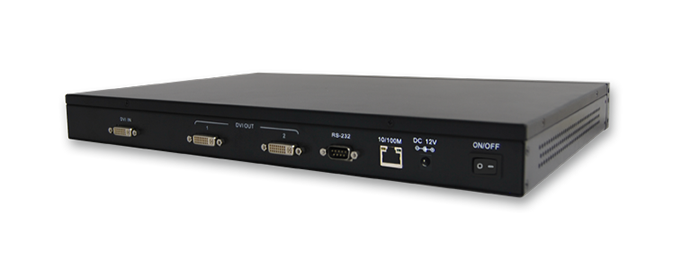

The AGT-T-Pro blending processor adopts a standard rack appearance design, and uses advanced FPGA pure hardware technology. Supports HDCP protocol, it can adapt to multiple formats of input signals, including DVI-D / HDMI and VGA signal input. What’s more, it also has EDID automatic detection and recognition function, supports all common display resolutions, and can automatically generate image resolution required by the system.

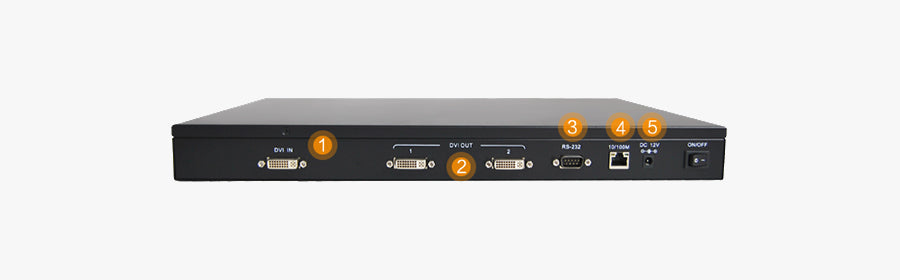

Input signal. 1 channel DVI-I (compatible with 1
channel DVI-D or HDMI or 1 channel VGA) input.
Output signal. 2 channel DVI-I output.
Control port 1. 2 RS232 control ports.
Control port 2. Support network control.
Power source. With mandatory heat dissipation
measures to ensure the stable operation of the system.
Support high-definition resolution, provide a wider display area

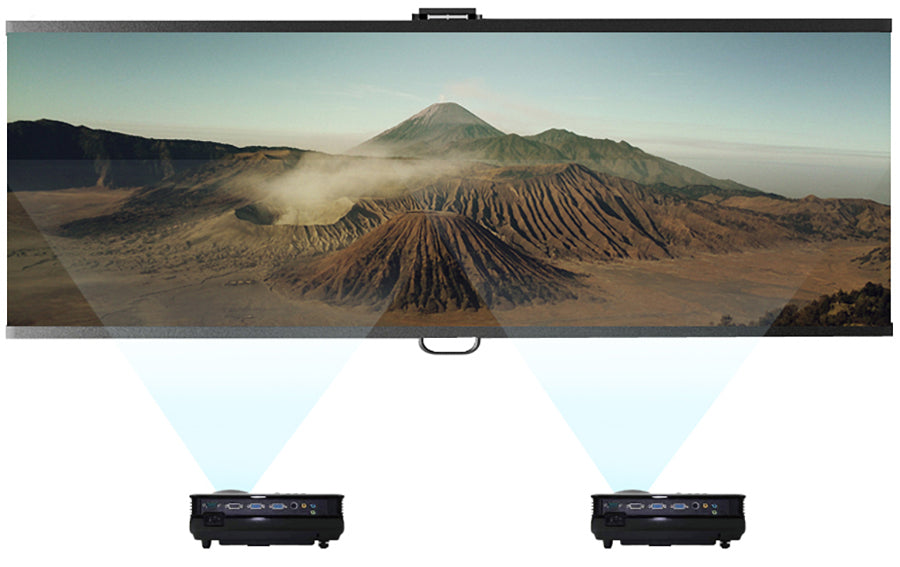

Support the seamless display of two projectors' large screen, which can achieve 3840 * 1200 @ 60HZ point-to-point HD without losing any pixels, making the image display more perfect. While providing users with a wider display area, it also provides a low-cost and ultra-high-definition image demonstration system.

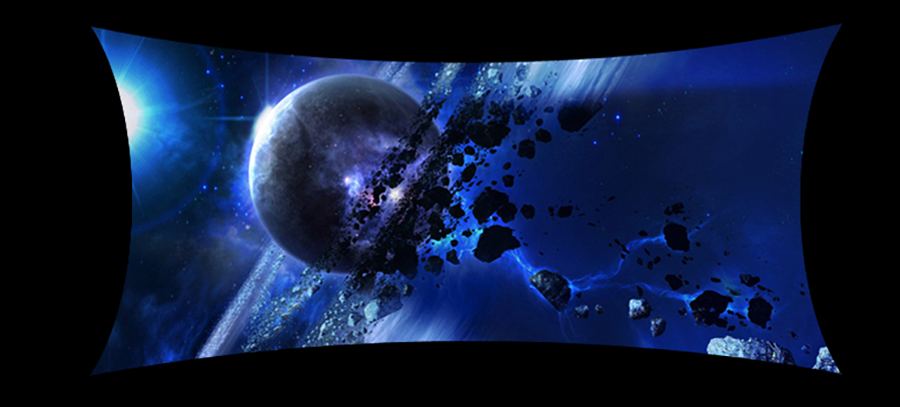

Geometric deformation correction
It can be fine-tuned according to different projection environments, allowing geometric, non-geometric, regular, and irregular deformation operations on various resolution images to correct geometric errors in images. At the same time, it can use the function of saving various forms of images to realize the dynamic change of various artistic graphics.
Dual projection overlay mode, low cost but high brightness display
Support dual projector brightness superposition to achieve the multiplicative effect of brightness of the projection picture, especially suitable for the display environment with strong light. Realize high-brightness and high-quality display effect at lower cost and reduce user cost.
Experience the immersive and realistic feeling
Create a low-cost 3D cinema system with two projectors to provide an immersive three-dimensional sensory effect. Automatically supports multiple formats of 3D film sources, such as 3D Blu-ray film sources in left and right formats, 3D Blu-ray film sources in top and bottom formats, etc., users can experience lifelike images personally.
Proprietary blending algorithm, professional in detail
AGT-T-Pro can compensate and improve the light leakage caused by various types of projection hardware such as DLP, LCD, LPT, LCOS, LED, etc., eliminate the light leakage phenomenon in the fusion area and the non-fusion area to ensure the perfect presentation of the image.
Light leakage phenomenon
Clear guided debugging method to improve work efficiency

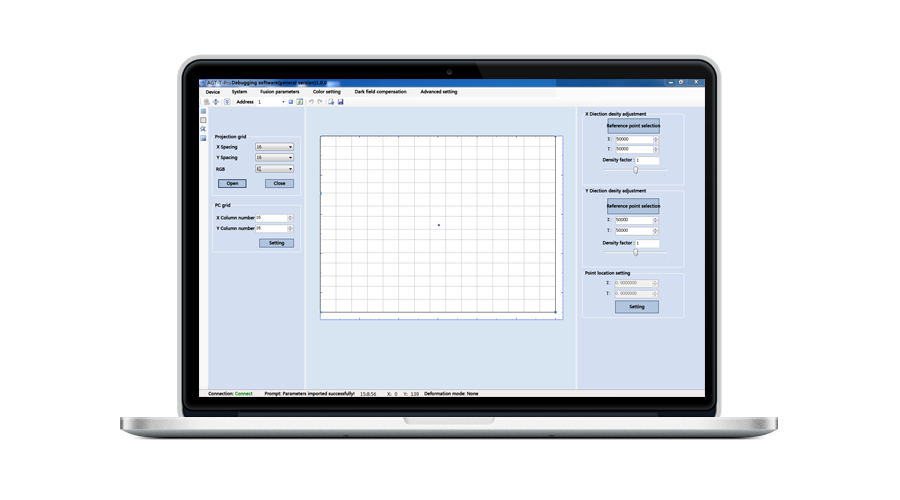

With wizard-type debugging software, the engineers and users can easily realize the debugging and setting of the display system, simplifying the implementation process. It not only supports the automatic debugging function of the fusion zone, but also supports the function of saving and importing the engineering debugging data to provide better service guarantee for the system.
Pure hardware Design
Using standard 1U rack structure makes it compact size. Power on and it will work, and the boot time is less than 5s. MTBF greater than 30,000 hours, no operating system, no crashes and other problems.
Low-resolution image analysis and conversion technology
Use the similarity of different images in high-frequency details, and obtain the relationship between high-resolution and low-resolution images by learning algorithms and applying complementary information between adjacent images for reconstruction.
Geometric image distortion
The built-in high-tech nonlinear distortion correction processing mathematical model corrects the geometry of the projected image, and performs similarity judgment, multi-dimensional space deformation analysis, deformation parameter calculation, and single-pixel geometric correction for images of multiple resolution formats to achieve horizontal, Longitudinal positioning adjustment and arbitrary geometric deformation.
Full digital point-to-point picture overlay
Support full-digital point-to-point applications, and can use self-combination, color super-resolution technology, overlapping images to achieve a clear display of point-to-point fusion.
Using the industry's most advanced multi-color and multi-grayscale color adjustment technology, the original four-color adjustment is upgraded to seven-color adjustment, which greatly improves the color correction effect and has wide applicability.
Image adjustment characteristics
You can adjust the content of the image including brightness, contrast, color, and horizontal and vertical positioning to ensure the best quality picture.
Input signal parallel processing
With the most advanced high-speed digital signal multi-bus parallel processing mechanism, the processing speed of each channel is fixed to ensure that the signal does not lose any frames and the real-time display of the image, so that the image reaches no trailing and no pause.
Optimizes video upscaling
Adopt the world's best video signal optimization solution, and allocate sufficient resources to perform a series of complex processing such as motion compensation and digital noise reduction on the input signal, which can ensure real-time processing of all videos, eliminate aliasing and jitter phenomenon and make picture more smooth and stable.
Equivalent bus bandwidth: 256GBPS
Equivalent advanced cache: 4M
Equivalent processing speed: 66.56GMIPS
Parallel computing chip: Single chip capacity 70,000LE
Video memory: Single output channel 256M
Input interface: 1 channel DVI-I (1 channel DVI-D compatible HDMI, 1 channel VGA)
Connector: 1 DVI-I socket
Resolution range: 800 * 600, 1920 * 1200 to 3840 × 1200
Horizontal frequency: 50kHz-100 kHz
Vertical frequency: 50Hz-85 Hz
Impedance: 75 ohm
Pixel clock: 165MHz
Color depth: 30bit / pixel
Zoom and display: scaling 0.3—10
Output interface: 2 DVI-I output
Connector: 2 DVI-I sockets
Resolution range: 1024 * 768, 1440 * 900, 1280 * 800, 1920 * 1080, 1920 * 1200
Color depth: 24bit / pixel
Pixel clock: 165MHz
Refresh rate: 60-120Hz
Management interface: Dual RS232 management port
Connector: 9 pin D socket
Serial control: RS-232 (9-pin D socket)
Wireless touch screen control: External wireless color touch screen (optional)
Program control: AGT-TS, AGT-XP control software
Product Dimension:11×5×3inches (L×M×H)
Power Source: 50V/10A/DC
Power Dissipation: 40W
Operating Temperature: 5~40℃
Operating Humidity: 15-85%(Non-condensing)
Operating Noise: <45dB
