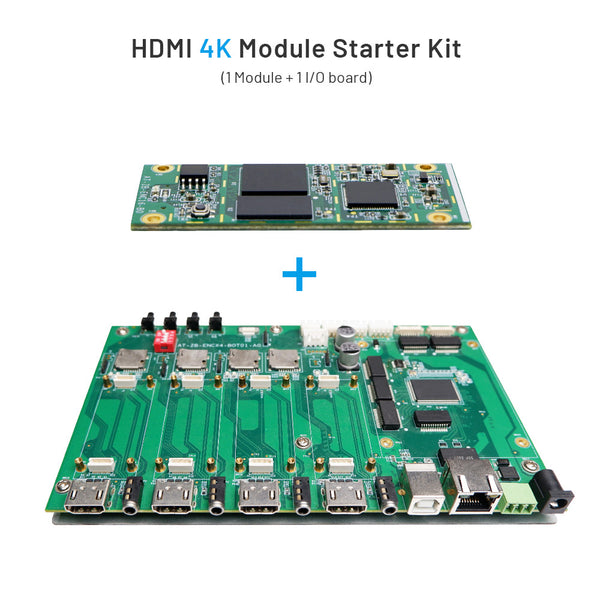

HDMI 4K Module Starter Kit(1 module + 1 I/O board)

$1,399.90 available: In Stock
Quick Overview:

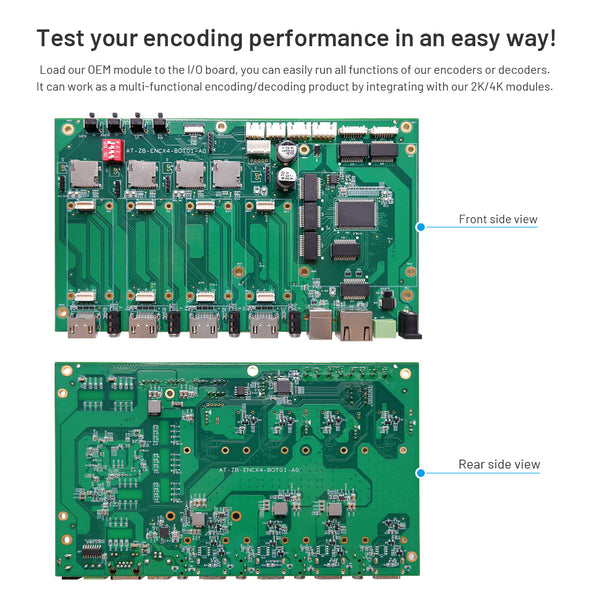

To help customer quickly debug and use the funcstions of our encoding module, and save total cost of ownership, DDMALL also developed corresponding debugging I/O board, which provides I/O interfaces of encoder module for A/V link and network connection etc. Users can run all of functions of encoding module by embedding the module into the I/O interface on the debugging board. One I/O board can load and debug 4 encoding modules simultaneously. Moreover, encoding module + I/O board can be put into use directly as a multi-channel A/V encoding device. We can also provide the developing circuit diagram of the board and related developing circuit diagram of the module to agile customer's workflow to the greatest extent.

Device Production

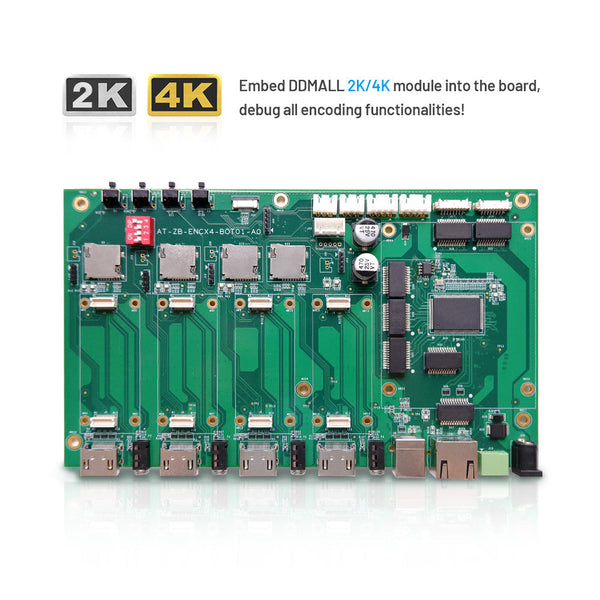

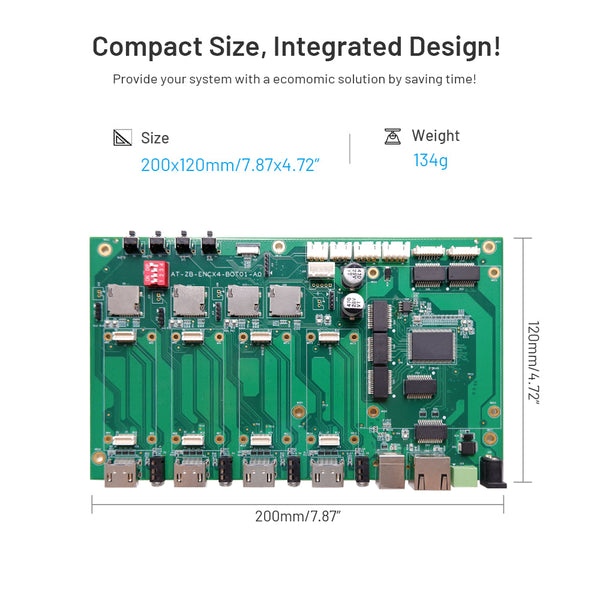

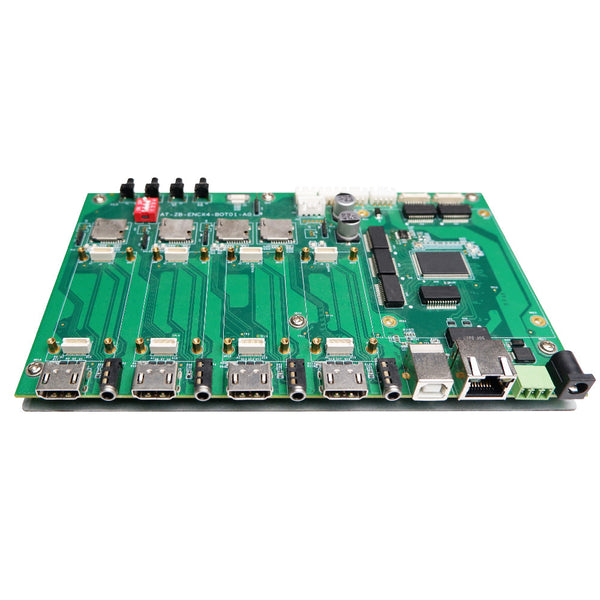

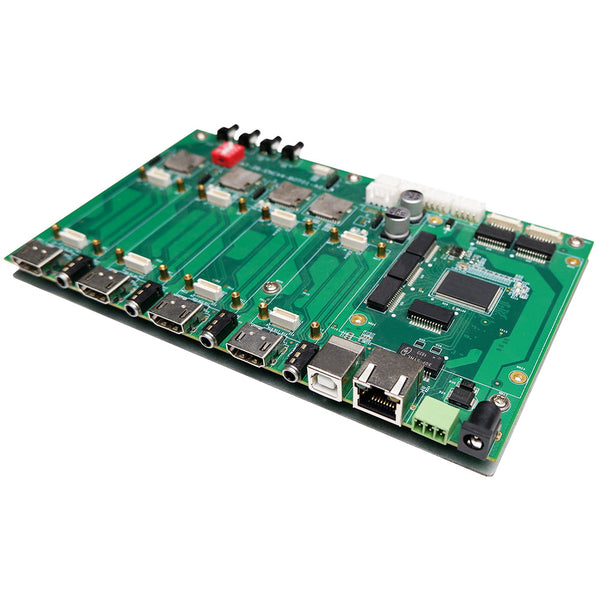

The I/O board provides 4 I/O interfaces for encoding modules. Meanwhile, it also provides HDMI input, Adio input, SD card, network, and power interfaces for encoding modules. Users can quickly run all functions of the encoding modules by embedding the module into the I/O interfaces on the debugging board, which dramatically saves the total cost of ownership.




Device Features

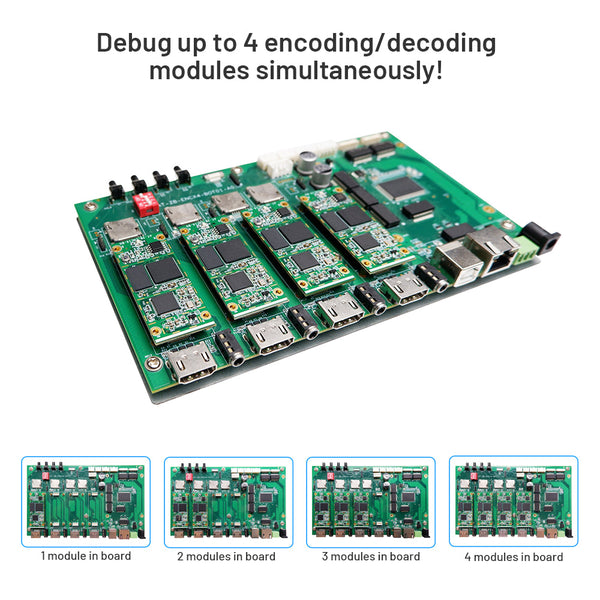

  • 4 * I/O interfaces are ready for encoding modules—support debugging and demonstration of 4 encoding modules simultaneously.
  • 4 * HDMI input interfaces are available—provide HDMI input signal for encoding modules.
  • 4 * 3.5mm analog audio input interfaces are in place—provide analog audio input singal for encoding modules.
  • 4 * SD card interfaces are on site—scalability to upgrade the recording function of encoding modules.
  • 1 * network connection interface is available—4 encoding modules can be controlled simultaneously through the network switching chip embedded inside I/O board for debugging and demonstration.



Purchase Reminder
The I/O board is a supportive product to test our module in an easy manner. It cannot be used independently. On this shopping link, our I/O board is only equipped with one module . If you want to test more, please click the link below to jump to our module shopping page.



Starter Kit

To help customer quickly debug and use the funcstions of our encoding module, and save total cost of ownership, DDMALL also developed corresponding debugging I/O board, which provides I/O interfaces of encoder module for A/V link and network connection etc. Users can run all of functions of encoding module by embedding the module into the I/O interface on the debugging board. One I/O board can load and debug 4 encoding modules simultaneously. Moreover, encoding module + I/O board can be put into use directly as a multi-channel A/V encoding device. We can also provide the developing circuit diagram of the board and related developing circuit diagram of the module to agile customer's workflow to the greatest extent.







  • 4 * I/O interfaces are ready for encoding modules—support debugging and demonstration of 4 encoding modules simultaneously.
  • 4 * HDMI input interfaces are available—provide HDMI input signal for encoding modules.
  • 4 * 3.5mm analog audio input interfaces are in place—provide analog audio input singal for encoding modules.
  • 4 * SD card interfaces are on site—scalability to upgrade the recording function of encoding modules.
  • 1 * network connection interface is available—4 encoding modules can be controlled simultaneously through the network switching chip embedded inside I/O board for debugging and demonstration.
