How the encoder uses SRT to push the stream
to vMix(Or other software)

First you need to know，SRT has three modes, namely Caller, Listener, Rendezvous.

Then, you have 3 ways to connect the encoder to vMix(Or other software).

When the encoder is set to Caller mode, the vMix(Or other software) needs to be set to Listener mode.

When the encoder is set to Listener mode, the vMix(Or other software) needs to be set to Caller mode.

When the encoder is set to Rendezvous mode, the vMix(Or other software) needs to be set to Rendezvous mode.

Please see the steps below

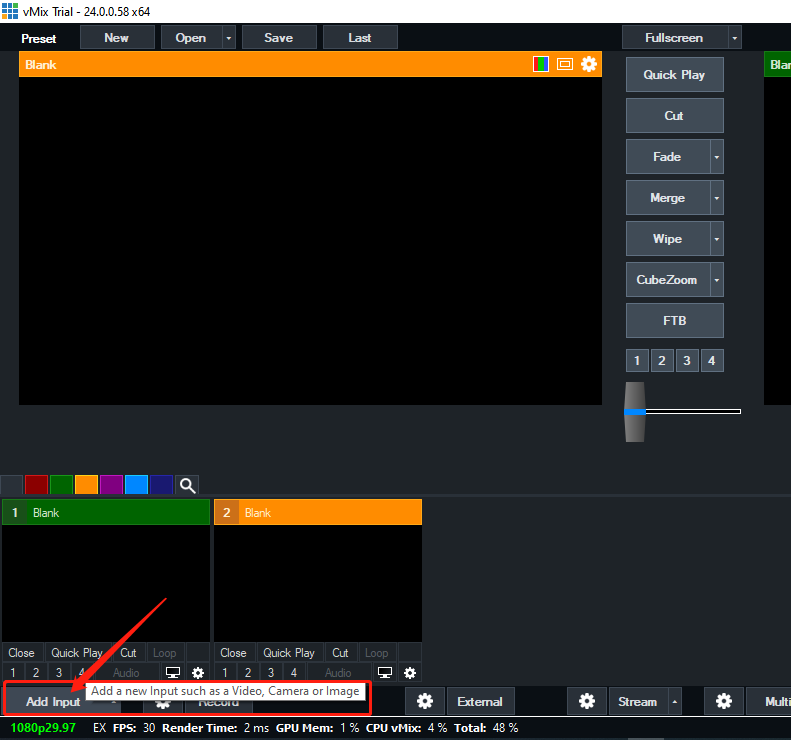

1.Open vMix and click "Add Input" in the lower left corner.

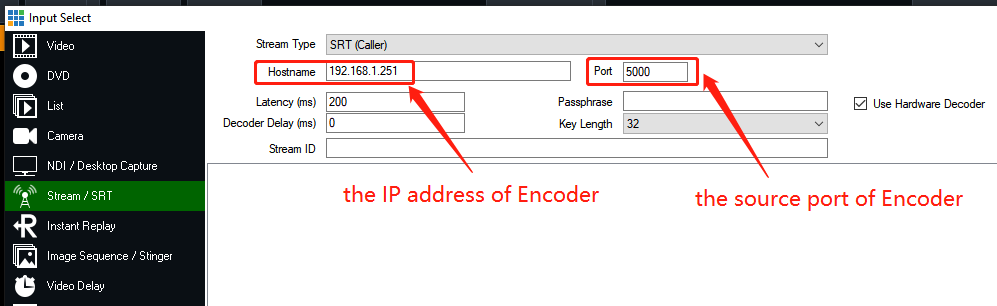

2.Select SRT (Caller), Hosthname fill in the IP address of your encoder. Fill in the source port (5000) of the encoder. Then click OK to complete the setting of vMix.

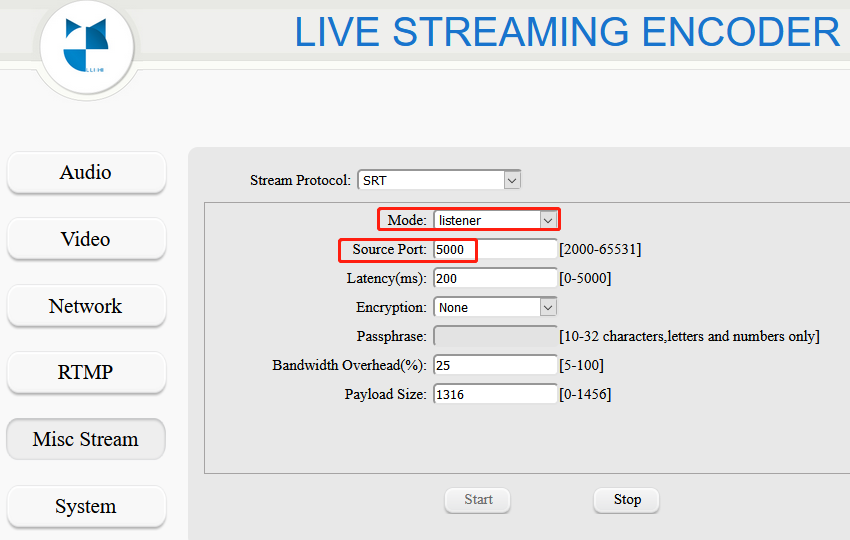

3.In the setting interface of the encoder, select SRT (Lstener), fill in 5000 for the source port (same as the port of vMix), and select the default values for others, and click "start".

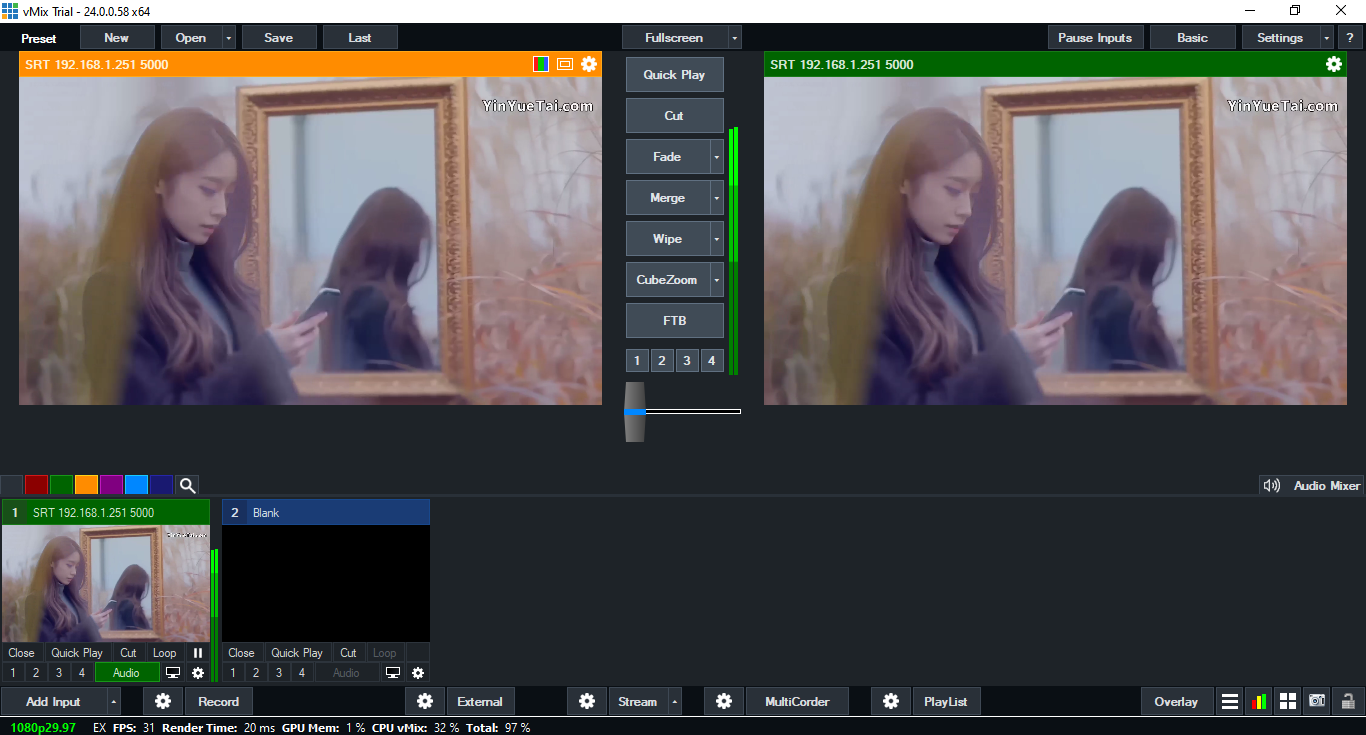

4.Then you will see the encoder's video pushed to vMix.

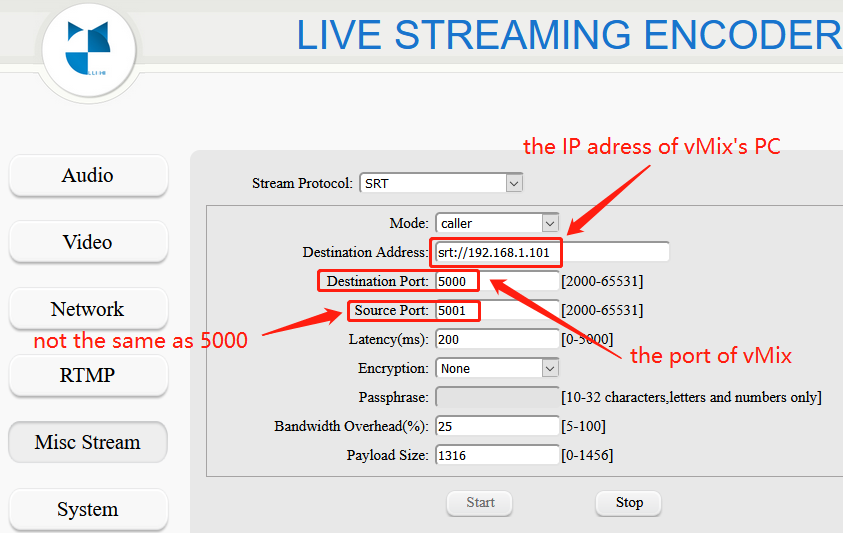

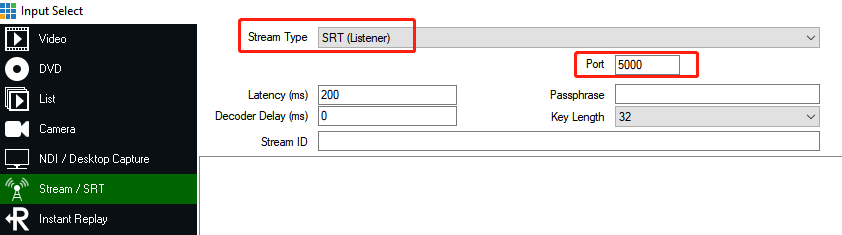

5.Next, vMix is set to Listener and encoder is set to Caller, please see the screenshot.

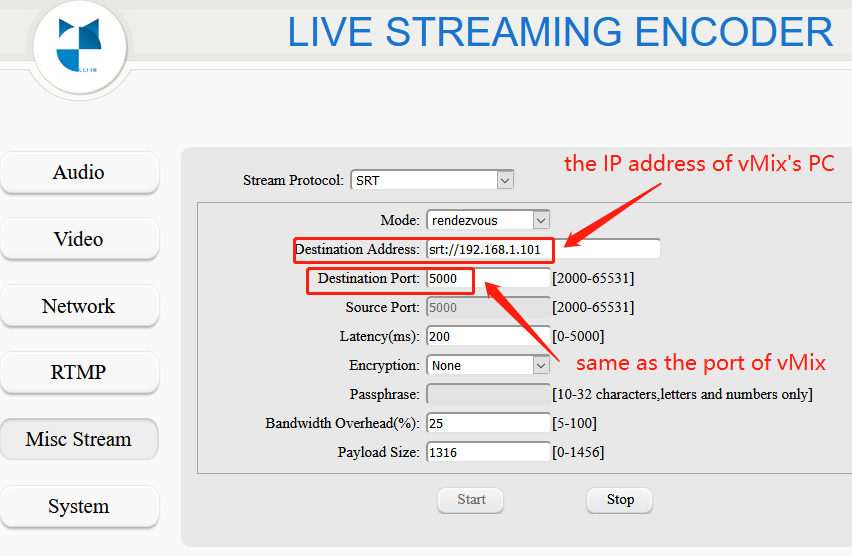

6.The following is the setting of both the encoder and vMix set to Rendezvous mode, please see the screenshot.
