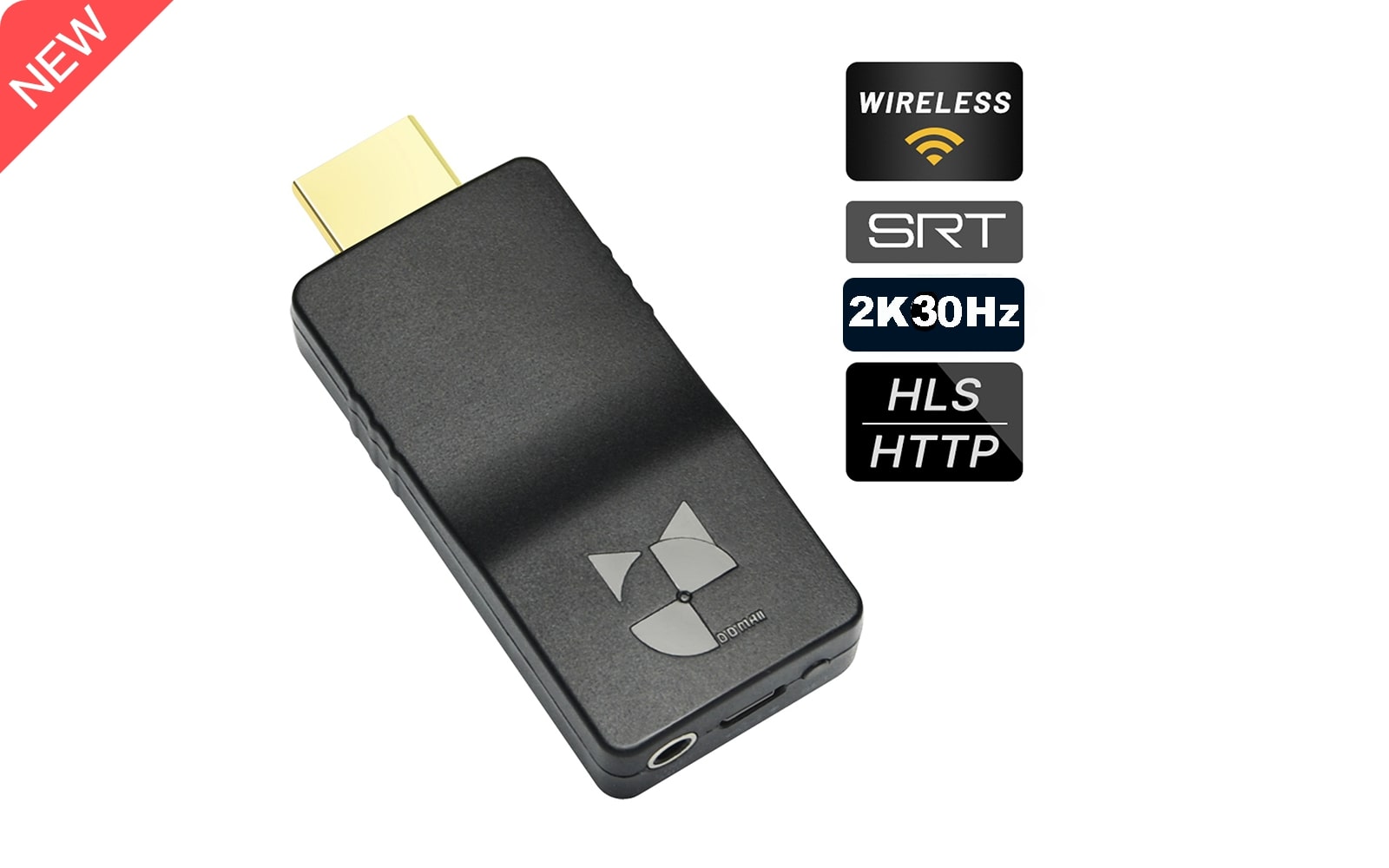

DDMALL HEV-2KWPlus Wireless HDMI Video Encoder for Live Streaming, 1080P SRT Encoder over Wifi on Facebook Youtube & More

DDMALL HEV-2KWPlus Wireless HDMI Video Encoder for Live Streaming, 1080P SRT Encoder over Wifi on Facebook Youtube & More


Prix habituel $499.00 USD
Prix habituel Prix promotionnel $499.00 USD
En vente Épuisé
Frais d'expédition calculés à l'étape de paiement.

39 en stock

Afficher tous les détails

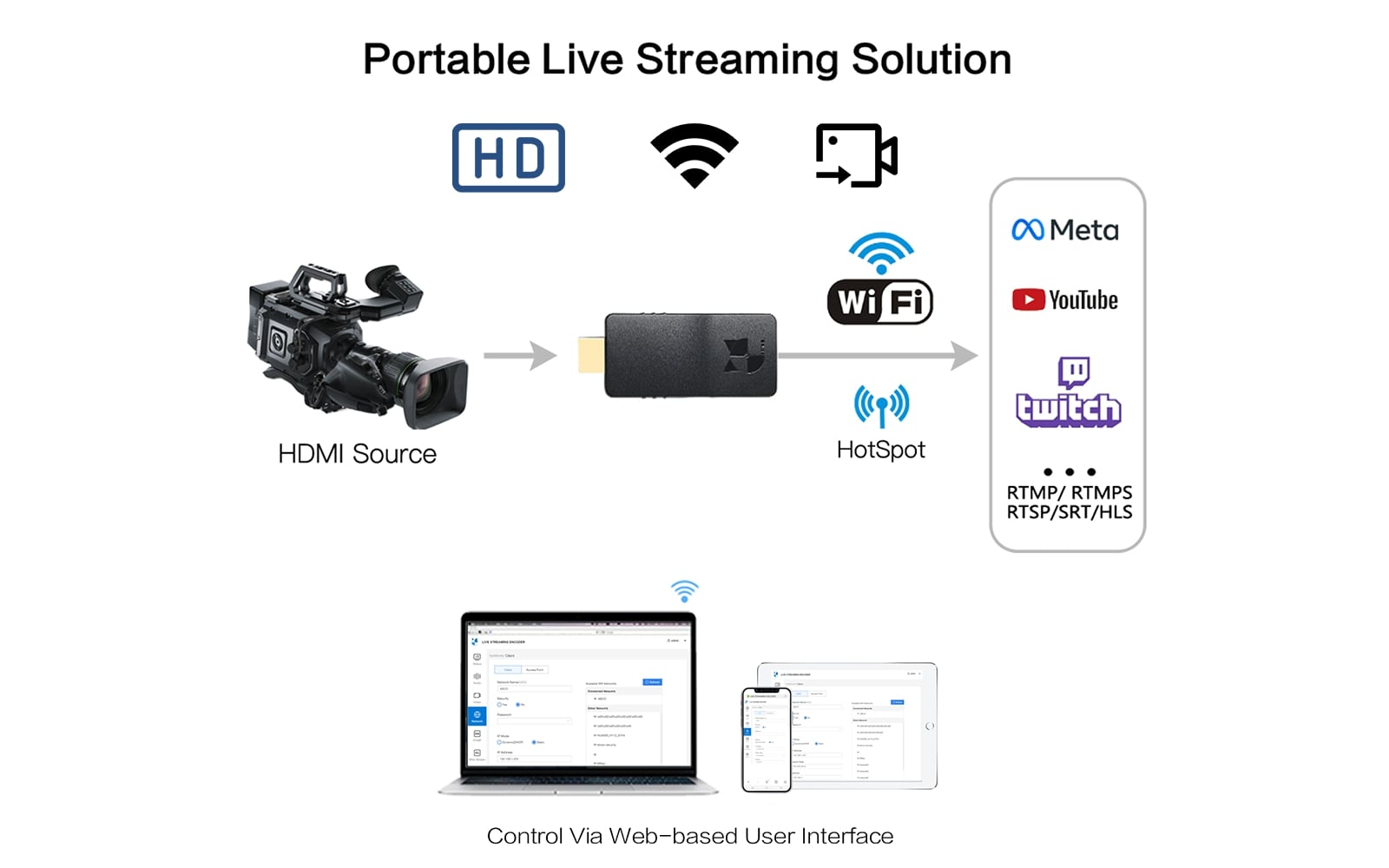

Portable HDMI Streaming Encoder: Ultra-mini size(75x32x15mm) & ultra-lightweight(25g) ideal for the live streaming applications with frequent move or tiny device installation space. With a 4G/5G mobile phone to provide Wifi hotspot for network connectivity, the IP encoder can go live anywher.

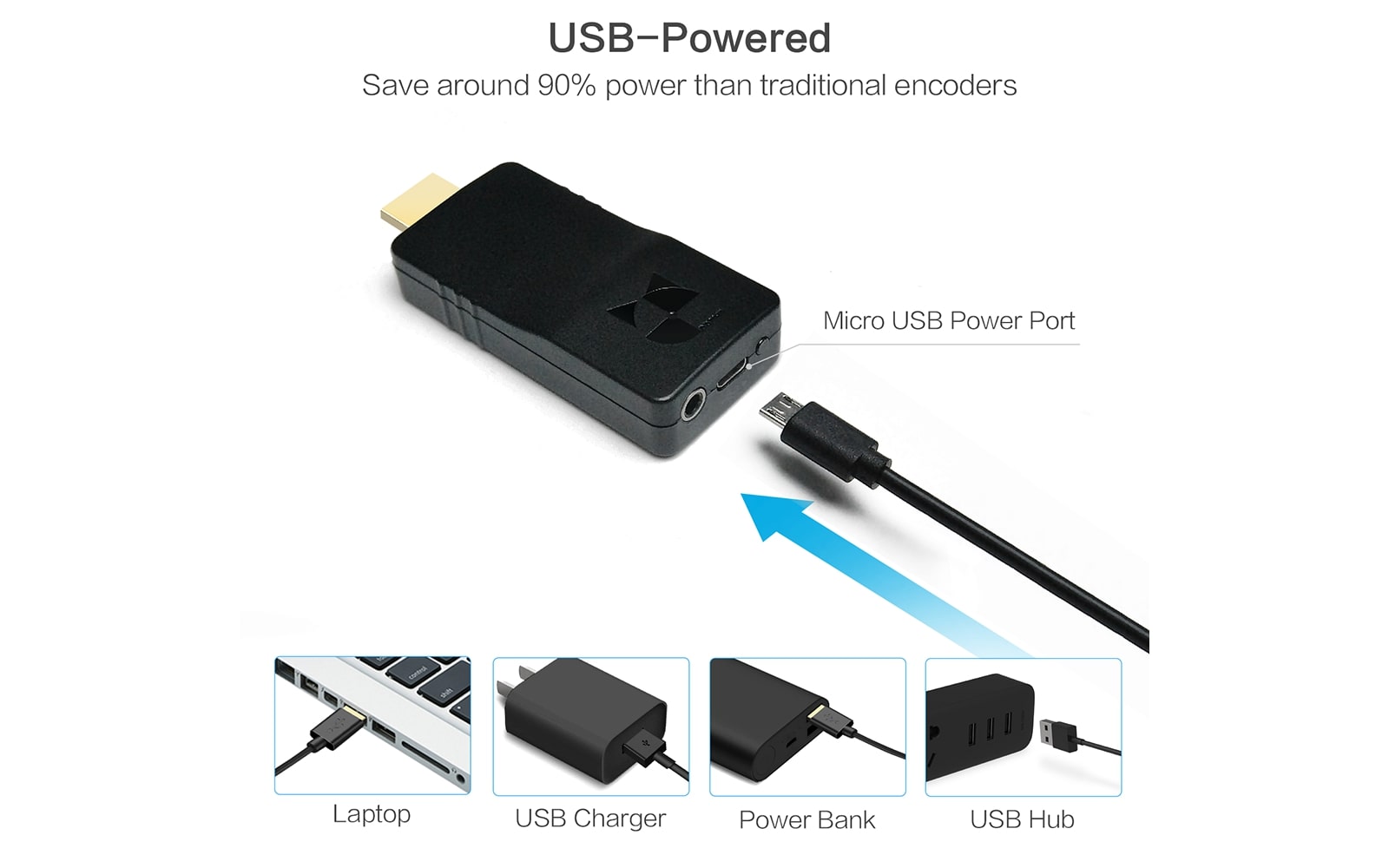

Energy-Efficient & USB-Powered: Ultra-low power consumption (2.6W). With micro USB port, the 2K Wifi encoder takes power by USB connection to portable power bank, suitable for the streaming applications that need long working time.

24Mbps Streaming Output: Up to 2K@60Hz HDMI input & 2K@30Hz encoding output at video bitrate up to 24Mbps for cystal clear video quality. The SRT supported encoder delivers secure, reliable and high-quality video in low latency; H.265 HLS supported for convenient playback of high-definition video.

One Click to Go Live: Start/stop your live with one click on the HDMI encoder set button. It is vital for those applications that require stop/resume streaming at any time. The wireless encoder supports to live on 4 platforms simultaneously like Facebook, YouTube, Twitch, Wowza, Vimeo etc.

More Versatile Features: Real-time OSD adding & modification during the streaming; preview input video status via browser; 1080@30Hz output at high bitrate up to 24Mbps; supported protocols such as SRT, HLS/HTTP, RTMP, RTMPS, RTSP, RTP, TCP, UDP, Multicast, Unicast.

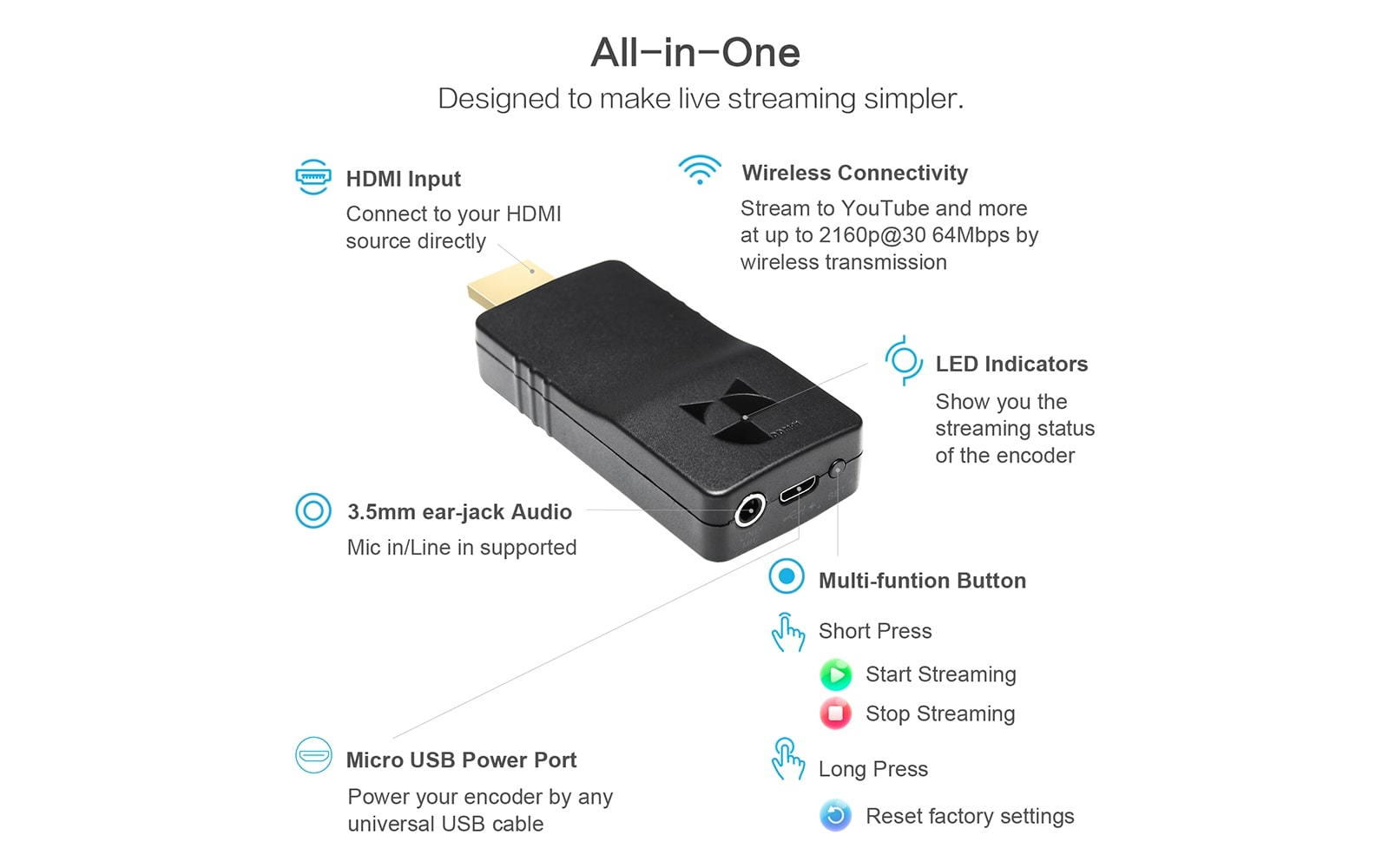

The DDMALL HEV-2KWPlus Wireless HDMI Video Encoder is perfect for live streaming, providing up to 2K@30Hz encoding output. It is ultra-lightweight, mini-size with micro USB port for power connection. With a type-A male HDMI connector, you can plug it directly into your HDMI source. The encoding output video bit rate is up to 24Mbps, supporting four platforms live streaming simultaneously. You can start/stop your streaming at any time with one click on the encoder set button. So no matter where you are, you can have your 4G/5G mobile phone to provide AP hotspot for the encoder network connectivity, and then you can go live. Custom your text/image overlay on your input video source in real-time for display in a breeze. with Built-in H.265/HEVC & H.264/AVC, the encoder performs video transmission with protocols such as SRT, HLS, RTMP, RTMPS, RTP, RTSP, UDP, TCP etc. Come on and stream with DDMALL, making your streaming simplier in charming HD quality.

Key Features

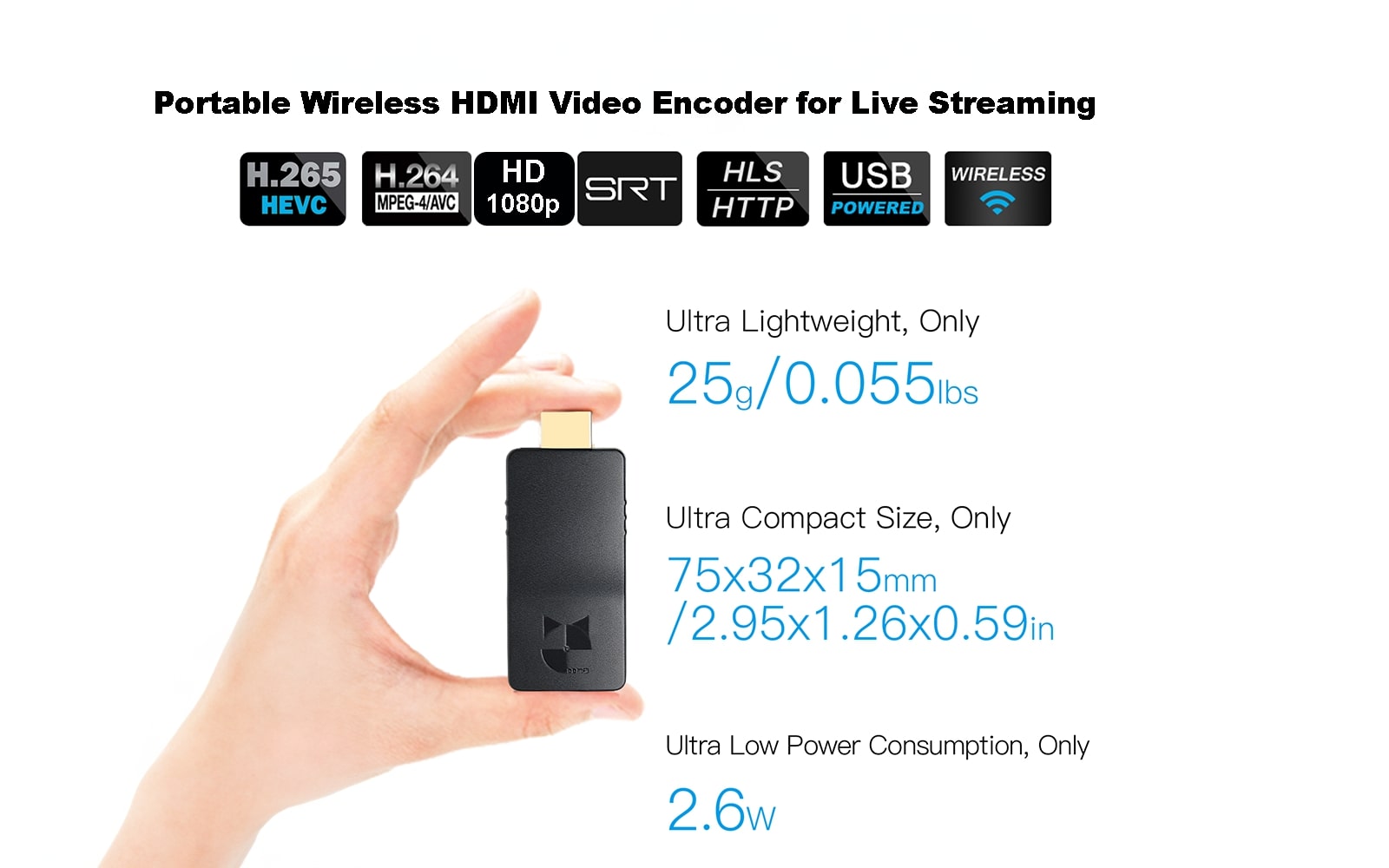

• Compact Size and USB-powered-- ultra-mini size (75x32x15mm/3.94×1.26× 0.59in) and ultra-lightweight (25g/ 0.055lbs), easy to carry anywhere; with ultra-low power consumption of only 2.6W, the HDMI video encoder is more adaptive to various applications.

• Wireless video solution--HEVC H.265 and AVC H.264 IP-based 5G+2.4G dual-band wireless video encoder enables a more stable and smooth video transmission.

• True HD video quality—HDMI inputs up to 2K@60 and encoding output up to 2K@30 with birate up to 24Mbps.

• Stream on multiple platforms—the live video encoder allows to simultaneously stream on 4 platforms like YouTbe, Facebook, Twitch, Wowza, IPTV, Livestreams, Microsoft stream and more.

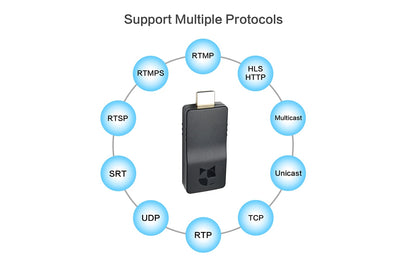

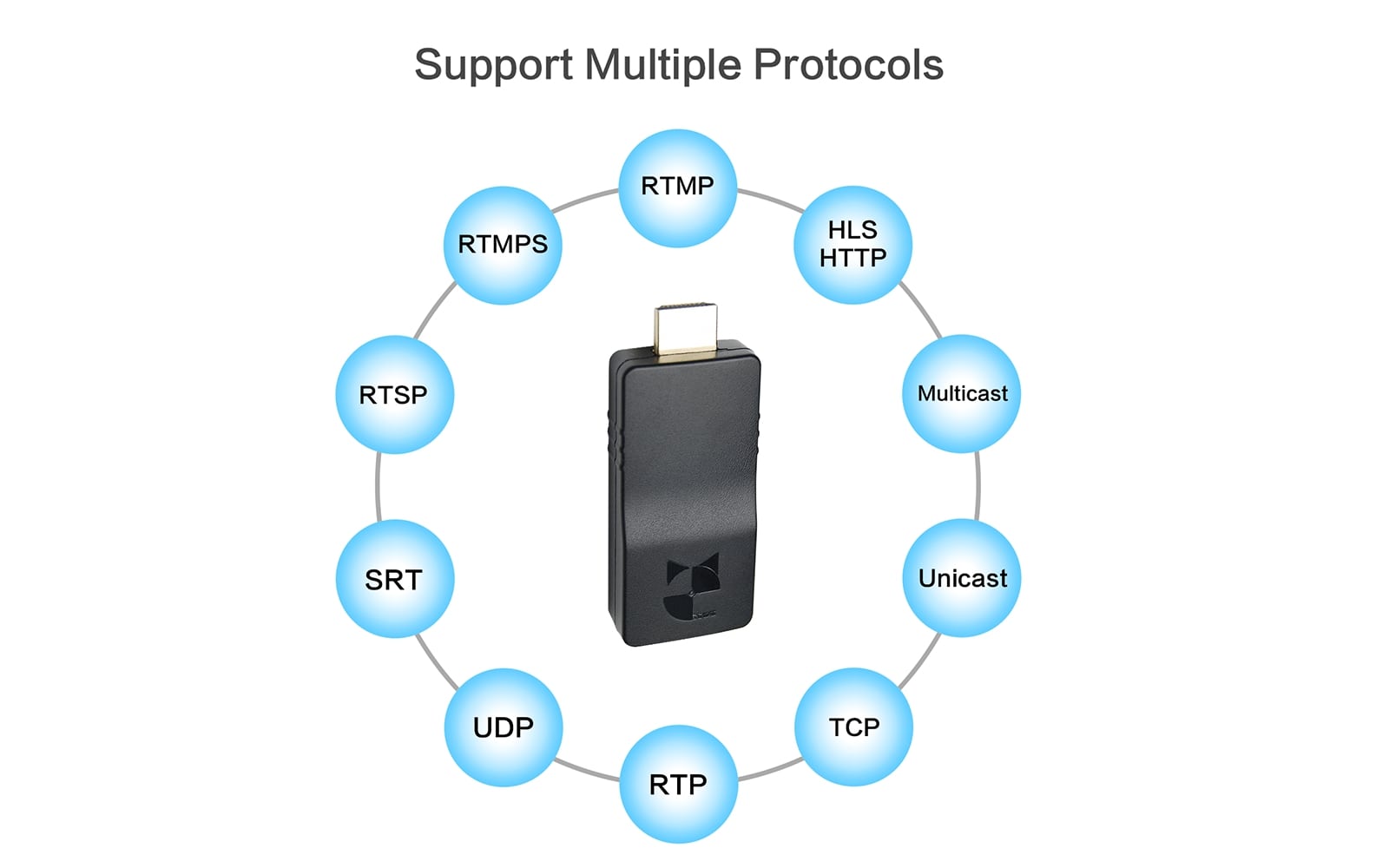

• Popular Protocols are on site-- SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast, Unicast; it works as SRT encoder to secure reliable video transmission in low latency; it works as IPTV encoder if you wish to integrate it into your IPTV system; it works as RTMP or RTMPS encoder if you wish to stream to live platforms like YouTube, Facebook, Twitch etc..

• Real-time OSD setting—customize your desired logo/text OSD label to any position of your video for output display.

• Live video preview —you can monitor your video status by previewing the video via web UI at any time during your streaming. No extra monitors are required.

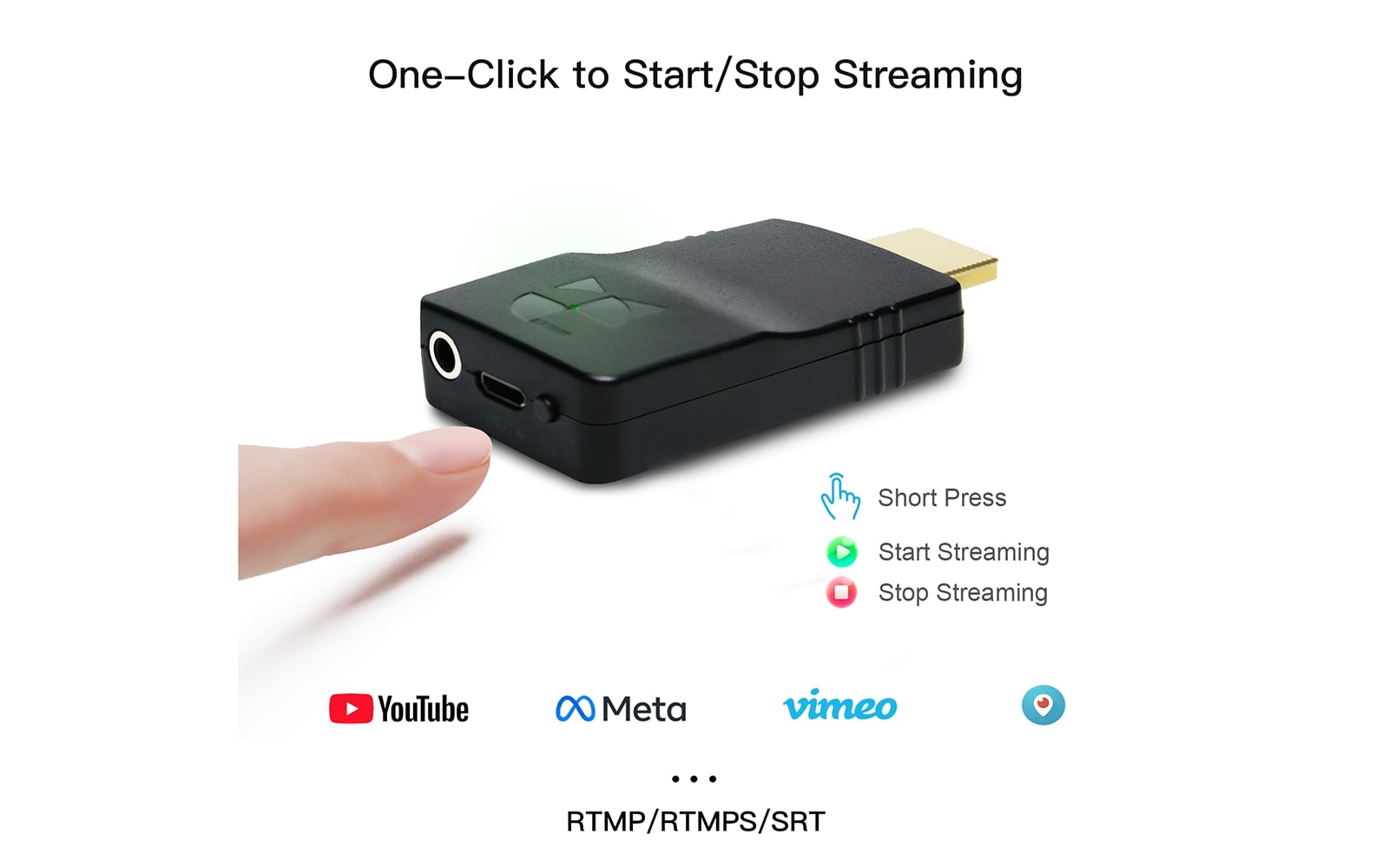

• One click for streaming—short press the encoder set button to start/stop your live streaming at any time during your streaming; agile your workflow to great extent.


Power Supply
5V/1 A (USB cable powered )
Power Consumption 2.6W
Work Temperature
-10~55℃ (14~149℉)
Storage Temperature -20~85℃ (-4~185℉)
Work Humidity
10%- 90%RH (Non-condensing)
Weight 25g/0.055lbs
75mm(L)*32mm(W)*15mm(H)/ 3.94×1.26× 0.59in
MTBF(mean time between failures) 30,000h
Video Input Standard
Video Codec H.265/HEVC and H.264/AVC
Supported Protocols
SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Low Latency, Multicast and Unicast.
Supported Input Resolution 1080p@60Hz, 720p@60Hz
Supported Output Resolution
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
Frame rate can be selected by yourself.
Video Bitrate 128Kbps~24Mbps
Audio Input Standard
HDMI, 3.5mm analog, Mic in, Line in
Audio Encoding Format G.711u, AAC
Audio Bitrate
Wireless Standard 802.11a/n/ac 5G,802.11b/g/n 2.4G
Control Method
Web UI
AP Mode Wi-Fi Info. SSID:HEV-2KWPlus;password:12345678
AP Mode Default IP
Default Web UI Login Credentials user/password: admin/admin
Compression Profile BaseLine, Main, High
