How to connect the control terminal to the HDMI encoder



1.Connection schematic diagram

Introduction：

① The default IP of HDMI encoder is 192.168.1.251。

② There are three ways to connect the control terminal to the HDMI encoder, which are direct connection, router/switch connection, and wireless connection through the wireless router, which are described in detail below.

Connection mode 1: direct connection

Introduction：

① connection mode: the control terminal and the HDMI encoder are directly connected by a network cable.

② Direct connection is carried out through the above methods, and the network address of the control terminal is set to 192.168.1.x to realize communication with the HDMI encoder. At this time, the HDMI encoder address is entered into the setting interface through the browser, and the required IP address modification and other parameter setting are performed on the network interface.

③ After setting the encoder parameters, restart and take effect, connect the encoder to the router/switch to enter the Internet, and live broadcast can be carried out on each live broadcast platform as well as push streaming service within the LAN.

③ After setting the encoder parameters, restart and take effect, connect the encoder to the router/switch to enter the Internet, and live broadcast can be carried out on each live broadcast platform as well as push streaming service within the LAN.

④ When the control terminal needs to communicate with the HDMI encoder again, it needs to connect the control terminal to the network where the encoder is located and modify the terminal address to be in the same domain segment as the current HDMI encoder to realize the communication again.

Connection mode 2: connection via router/switch

Introduction：

① Connection mode: the control terminal and the HDMI encoder are connected to the same router/switch via network cable.

② After connecting through the above methods, set the network address of the control terminal to 192.168.1.x to realize communication with the HDMI encoder. Then enter the HDMI encoder address into the setting interface through the browser, and modify the required IP address and other parameter Settings on the network interface.

③ After the encoder parameters are set, the network can broadcast live on each live broadcast platform and push the streaming service within the LAN after the restart takes effect.

④ When the control terminal needs to communicate with the HDMI encoder again, it needs to connect the control terminal to the network where the encoder is located and modify the terminal address to be in the same domain segment as the current HDMI encoder to realize the communication again.

Connection mode 3: wireless connection via wireless router

① Connection mode: the control terminal connects to the router wirelessly, and the HDMI encoder connects to the same router through the network cable.

② Wirelessly connected directly through the above ways, set the network address of the controlling terminal to 192.168.1. X (if the router LAN for 192.168.1.1 section, this control terminal can communicate with HDMI encoder) with direct wireless connection, can realize with the HDMI encoder connection communication, then enter the setting interface, through browser address input HDMI encoder in modifying the IP address and other network interface parameter Settings.

③ After the encoder parameters are set, the network can broadcast live on each live broadcast platform and push the streaming service within the LAN after the restart takes effect.

④ When the control terminal needs to communicate with the HDMI encoder again, it needs to connect the control terminal wirelessly to the network where the encoder is located to realize the communication again.

Notes：

① The HDMI encoder needs to restart to take effect after IP modification.

② When the HDMI encoder needs to modify the IP again, the control terminal needs to modify the IP and the current IP of the HDMI encoder to the same domain segment in order to set the parameters for communication again.

③ When connecting the MacBook and surface to the HDMI encoder, usb to rj45 converter is needed.

④ If the HDMI encoder is set to DHCP, the terminal needs to connect the route in the network where the HDMI encoder is located to check and confirm.

⑤ Terminal setting IP address reference:

Windows/Android/iOS：https://youtu.be/-FFlHOpAXzE

Window 7/10/MAC OS： https://youtu.be/uO5zGapkwtU

2.HDMI encoder IP setup interface

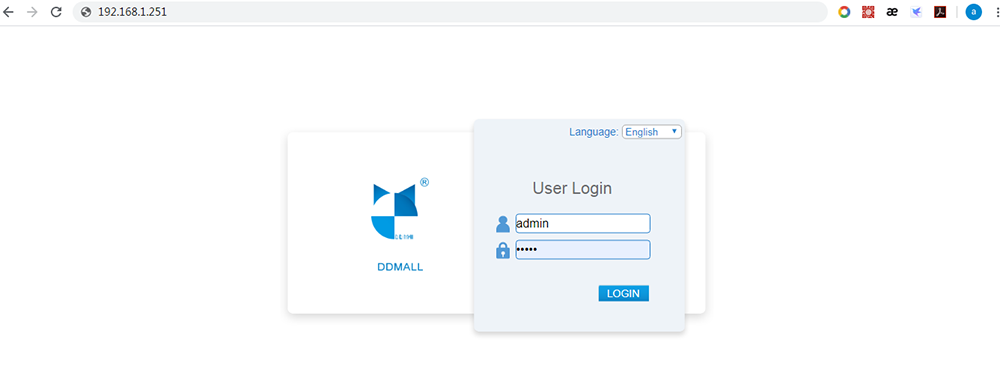

① Login interface: the browser enters 192.168.1.251, the initial user name is admin, and the password is admin

② Network setup interface
