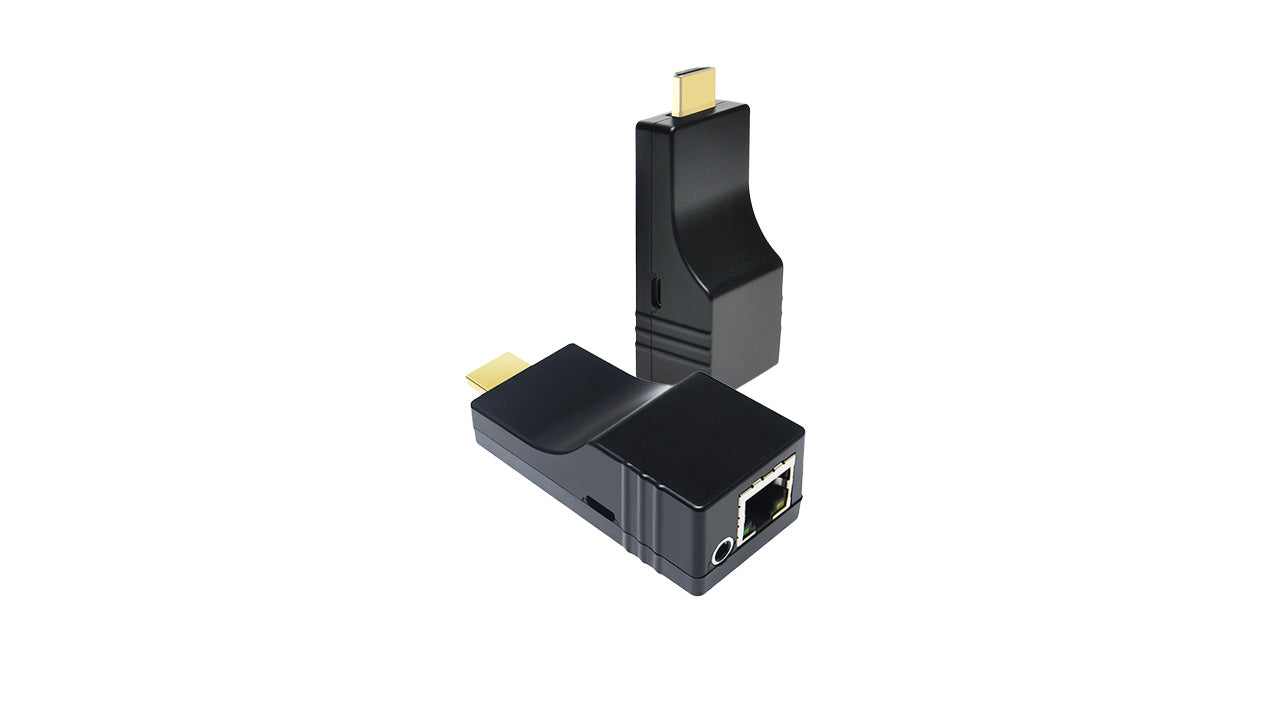

DDMALL HEV2K & HDD10 HDMI Encoder Decoder 2K Streaming in Low Latency

DDMALL HEV2K & HDD10 HDMI Encoder Decoder 2K Streaming in Low Latency

SKU:HEV2KHDD10

Regular price $369.00 USD
Regular price $399.00 USD Sale price $369.00 USD
Sale Sold out
Shipping calculated at checkout.

98 in stock

View full details

Overview

  • High-Efficiency 1080p Streaming: The video encoder max. HDMI input is 1080p@60Hz, and max, encoding output is 1080p@30Hz, 16M. The video decoder max. decoding is 1080p@60Hz, and max. HDMI output is 1080p@60Hz.

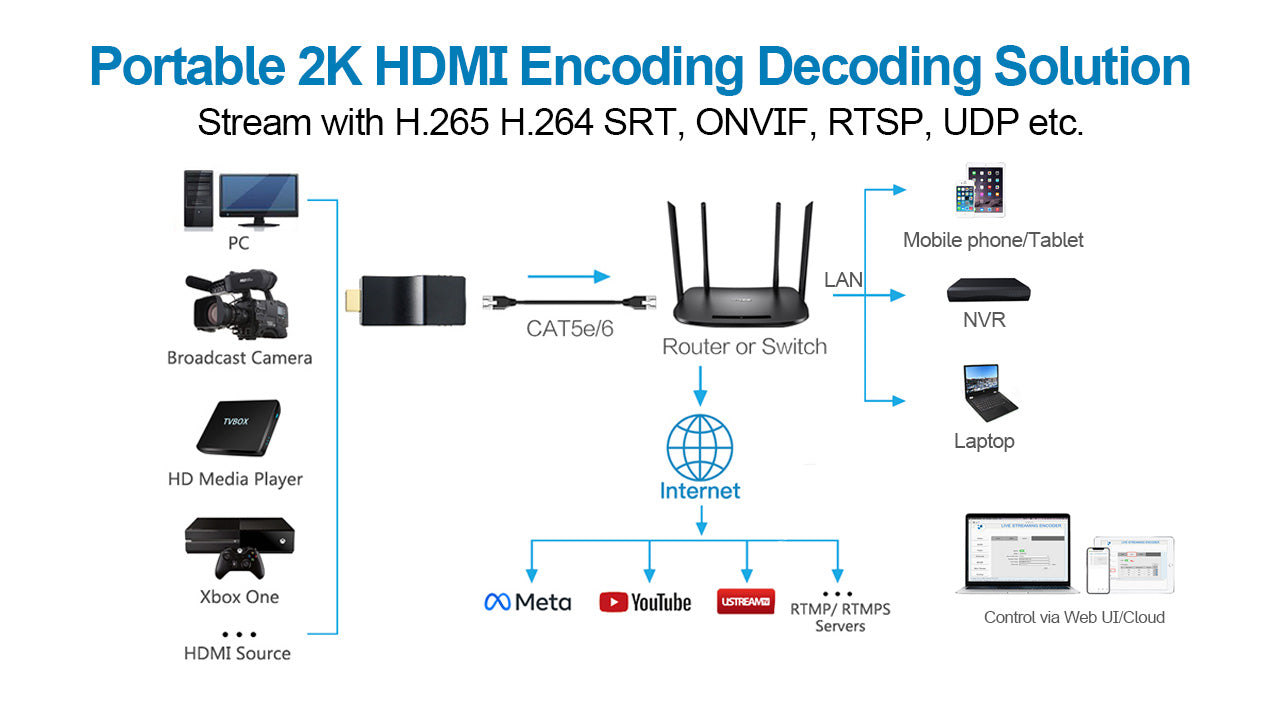

  • 80ms Low Latency: Both the encoder and decoder support HEVC and AVC codec. The encoder supports SRT, HLS, RTMP(S), RTSP, ONVIF, UDP, Low Latency. The decoder supports SRT, ONVIF, RTSP, UDP, Low Latency. When you use the Low Latency for video transmission in Lan, the latency is as less as 80ms. You can also use SRT to deliver end-to-end high quality video in low latency.
  • Low Power Streaming Solution: Both the encoder and decoder are mini, lightweight and USB-powered, easy and neat for setup. The encoder supports text/picture/time OSD, video preview and NTP sync. Both of them support online upgrading for more features.

The HEV-2K Parameters

 Power Supply  5V/1 A (USB cable powered ) Power Consumption 2.6W
Operate Temperature -10~65℃ (14~149℉) Storage Temperature -20~85℃ (-4~185℉)
Work Humidity 10%- 90%RH (Non-condensing) Product Weight 32g/0.07lbs
Product Dimension 75x32x22mm/2.95x1.26x0.87in MTBF(mean time between failure) 30,000h
Video Input Standard HDMI 1.3 Supported Protocols SRT, HLS, RTMP, RTMPS, RTSP, Onvif, RTP, UDP, TCP, Multicast, Unicast
Supported Input Resolution 1080p@60/50/30Hz; 1080i@60/50Hz; 720p@60/50/30Hz Supported Output Resolution 1080p@30Hz, 720p@60Hz, 720p@30Hz, 960×720@60Hz, 960×540@60Hz, 640×480@60Hz, 360×200@60Hz;  Primary stream at up to 16Mbps in1080p@30Hz; secondary stream at up to 2Mbps in 720p@30Hz
Video Bitrate 128Kbps~16Mbps(support CBR/VBR/AVBR/FixQP control mode) Audio Input Standard HDMI, Mic in, Line in
Audio Encoding Format G.711u, AAC Audio Bitrate 32kbps~256kbps
Control Method web UI Network Protocols Static IP/DHCP
Compression Profile Baseline, Main, High

The HDD-10 Parameters

 Power Supply  5V/1 A (USB cable powered ) Power Consumption 2W
Work Temperature 10~65℃ (14~149℉) Storage Temperature -20~85℃ (-4~185℉)
Work Humidity 10%- 90%RH (Non-condensing) Product Weight 32g/0.077lbs
Product Dimension 75x32x22mm/2.95x1.26x0.87in MTBF(mean time between failures) 30,000h
Video Input Standard HDMI 2.0 Video Codec H.265/HEVC and H.264/AVC
Supported Protocols  SRT, RTSP, ONVIF, UDP, TCP,      Supported Output Resolution

1920*1080p@60/50/30/25/24Hz,

1920*1080i@60/50Hz, 1280*720p@60/50Hz

Supported Stream Input Resolution

1920*1080p@60/30Hz, 1280*720p@60/30Hz,



Audio Input Standard HDMI embedded audio input, 3.5mm analog
Audio Encoding Format

G.711u, AAC

Compression Level BaseLine, Main, High
Control Method

Web UI
