DDMALL HIPM HDMI over IP Transmitter and Receiver Matrix, AV Matrix, Video Transmission and Distribution System

$1,799.99 $2,499.00 available: In Stock
Quick Overview: HIPM(HDMI over IP Matrix) is a LAN-based high flexible distributed HDMI audio video distribution system with stream media as the core. The H.265 extender matrix processes 2K or 4K audio video transmission, distribution and live broadcast based on LAN. The transmitter and receiver matrix is comprised of multiple TXs (up to 254) and RXs (up to 254). The TXs connect to signal sources such as computer, camcorder, set top box, HD players, NVR, DVD, game consoles, Blu-ray players etc. while the RXs connect to display terminals such as TV, monitor, projectors, multi-screens, large screens etc. all TXs and RXs interact and communicate with each other on LAN to transmit any A/V signal to any display terminal as you wish. with our HIPM switch matrix, you can easily transmit and distribute your video in an easy manner.



DDMALL Technology
DDMALL Technology is the proprietary brand of Atel Technologies Co., Ltd. As a company comprised of R&D and manufacture over 20 years, DDMALL is dedicated to providing customers with ultra-mini and lightweight HDMI A/V streaming products featured with low latency, low power consumption, easy installation and simple operation. Now, DDMALL have developed various H.265 H.264 HDMI wire and wireless 2K and 4K transmitters and receivers, live encoders and decoders. Beyond that, DDMALL supports online upgrading to add new functionalities or customized functionalities so that our products can meet diversified application requirements and financial budgets. At DDMALL, you are deserved with one-stop purchase and lifetime technical service.





HIPM (HDMI over IP Matrix) is a LAN-based high flexible distributed HDMI audio video distribution system with steam media as the core. The H.265 extender matrix performs 2K or 4K audio video transmission, distribution and live broadcast based on LAN. The transmitter and receiver matrix is comprised of multiple TXs (up to 25) and RXs (up to 254). The TXs connect to signal sources such as computer, camcorder, set top box, HD players, NVR, DVD, game consoles, Blu-ray players etc. while the RXs connect to display terminals such as TV, monitor, projectors, multi-screens, large screens etc. all TXs and RXs interact and communicate with each other on LAN to transmit any A/V signal to any display terminal as you wish.

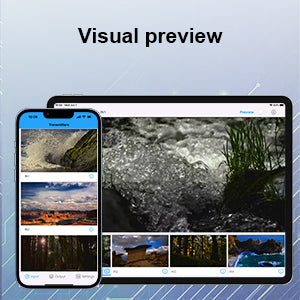

Visible Video Preview

You can perform input and output video preview via iOS APP in a simple manner.

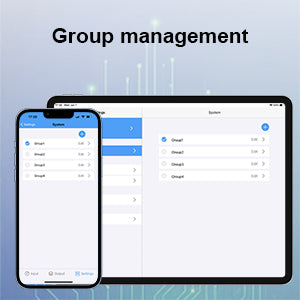

Group Management

A HIPM system can be divided into multiple HIPM subsystems. Each subsystem can be managed as independent group.

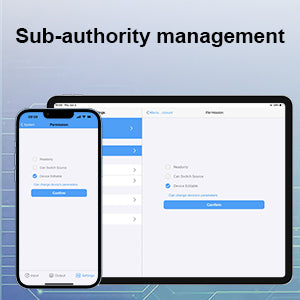

Multi-person Sub-Authority Management

 multiple persons can collaborative manage the HIPM system via sub-authority function.








Home Audio and Video Program Sharing

Integrate the program source devices such as laptops, iPads, play boxes, roku, amazon TV sticks etc. at home, and distribute any program source to the TV in each room for display and each room can also freely choose any program source for watching.

Packing List

4 * HIM10T

4 * HIM10R

8 * Micro USB cable

8 * HDMI male to female cable

8 * HDMI female to female adapter

8 * HDMI male to female adapter (90°)


Reminder: HIPM is a HDMI video over IP matrix system, you can add different styles of HIPM TXs and RXs to realize 2K or 4K video transmission and distribution. We will list the parameters of HIM10T and HIM10R for example as follows. If you wish for a style with other functions, please contact us.

Description

Transmitter (TX)

Receiver (RX)






Style

HIM10T

HIM10R

Power Supply

5V/1A USB-powered

5V/1A USB-powered

Power Consumption

2.5W

2.5W

Work Temperature

-10~50℃ (14~122℉)

-10~50℃ (14~122℉)

Storage Temperature

-20~85℃ (-4~185℉)

-20~85℃ (-4~185℉)

Work Humidity

10%- 90%RH (Non-condensing)

10%- 90%RH (Non-condensing)

Weight

32g/0.07lbs

32g/0.07lbs

Dimension

75*32*22mm/2.95*1.26*0.87”

75*32*22mm/2.95*1.26*0.87”

MTBF(mean time between failures)

30,000h



30,000h



Singal Input

HDMI 1.3 (HDCP1.4 compatible)

HDMI 2.0

Input Resolution

1080p@60Hz,1080p@50Hz,1080p@30Hz,

1080i@60Hz,1080i@50Hz, 1080i@30Hz ,720p@60Hz, 720p@50Hz

/

Codec

H.265

H.265

Output Resolution

1280*720,1920*1080

4096×2160P@60/50/30/25/24Hz 3840×2160P@60/50/30/25/24Hz
1920×1080P@60/50/30/25/24Hz
1920×1080i@60/50Hz 1280×720P@60/50

Audio Input

HDMI, Mic in, Line in

HDMI, line Out

Audio Codec

AAC

AAC

Audio Bitrate

64kbps~256Kbps

64kbps~256Kbps
