DDMALL AVC-2K H.264 HDMI over Ethernet 2K Live Video Encoder

$269.90 available: In Stock
Quick Overview:
• All-in-One Design Streaming Encoder: AVC-2K is a HDMI over IP streaming encoder, which features in ultra-mini size, extremely-light weight, low latency and ultra-low power consumption. It is a USB powered encoder without additional power adapter.

• H.264 HD Hardware Video Encoder: AVC-2K is a AVC H.264 live encoder, which can stream at 2K resolution over Ethernet. Ideal live broadcast video and audio to YouTube, Facebook, Twitch and more.

• Support Various Transmission Protocols: AVC-2K is a RTMP encoder, supporting various protocols such as RTMP, RTMPS, RTSP, RTP, UDP, Multicast, Unicast etc.

• OSD Setting & Firmware Upgrading: AVC-2K HDMI encoder allows to customize your own OSD on the video and lifetime firmware upgrading to add new functionalities

DDMALL Technology
DDMALL Technology is the proprietary brand of Atel Technologies Co., Ltd. As a company comprised of R&D and manufacture, we have been dedicated to hardware video codec products for over 20years. Foot on video over IP industry, we have developed a series of hardware HDMI over Ethernet transmitters, extenders, live video encoders, decoders, A/V processors, matrix switchers, HDMI cables etc. To meet the ever growing segmented market demands and keep our customers one-step ahead in the market, we will stay innovative and sharpen our technology to provide more versatile, reliable, stable but less cost and carbon footage solutions for video transmission, distribution and live streaming.
The DDMALL Advantages
• Leading Technologies in AV solution Field
• 20+ Years' Experience
• Strong R&D Capabilities
• ISO Certification
• OEM & ODM Specialist


DDMALL Professional H.264 Video Encoder

The DDMALL AVC-2K is the most dense, portable, all-in-one H.264 hardware encoder in the market. Featuring a maximum of 1080p60/1080i/60 HDMI input, it encodes video and audio from an HDMI source and delivers stable, high quality stream at up to 1080p with low encoding latency under 100ms over wired Ethernet.


Customize Logo or Text

When you are doing live streaming, you can add text, watermark and logo to the video stream to customize your output display. This allows you to add production value and enhance the viewer experience of your broadcast.


Energy-efficient

The DDMALL AVC-2K has a low power consumption of only 1.8W, it uses about 80% LESS power than traditional encoders. This means you are using less energy to do the same job. It is perfect for Drone/UAV and other mobile applications where power supply may be limited.

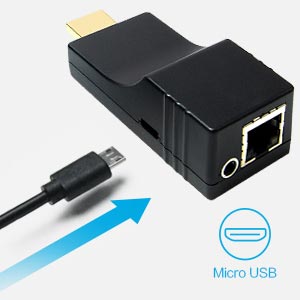

USB-Powered for Easy Powering

The AVC-2K can be powered from most HDMI sources directly, which means you can go live streaming without external power supply. For some devices with low power HDMI port, you can use any basic USB port (e.g. a USB port on PC, media box, USB hub, power bank, etc.) for its power. Forget about bulky AC power adapters, we've got you covered.



Easy Setup

This DDMALL AVC-2K encoder is simple to use. It is controlled via web-based user interface, which is accessible on any web-enabled devices, such as PC, tablet and smart phone. This allows you to mange your encoder without having to install external driver or software.






 Reminder: Generally, AVC-2K encoder can take power from almost HDMI sources directly. However, if the power voltage of some HDMI sources is too low to support the normal working of encoder, users can power the encoder by additional USB cable connecting to your power sources(e.g. PC USB port, media box, USB hub, power ban, laptop, tablet etc.), no proprietary AC power adapter is required any longer.



Key Features

✔ Portable Design: the encoder size is only 75x31x12mm/2.95x1.22x0.47in and weight 60g/0.132lbs, which agile users from installation and configuration.

✔ Power-Efficient Encoding Device: AVC-2K power consumption is only 2.5W so that it can take power from almost HDMI ports directly or be powered by USB cable to save 80% from traditional encoding devices.

✔ H.264 2K Live Streaming Encoder: AVC-2K is a hardware encoder over Ethernet, which can performs a HD video transmission and broadcast at 1080p or 1080i.

✔ Various Protocols for Streaming: users can choose different protocols for video transmission, such as RTP, RTMP, RTMP, RTSP, UDP, Multicast, Unicast etc.

✔OSD Customization & Firmware Upgrading: it supports customize your own OSD, such as text or graphic. At the same time it supports lifetime firmware free online upgrading to add more functionalities.

✔Ideal Video Transmission Solutions: simple installation and transmission at HD resolution over IP. It is ideal for various applications: engineering project, UAV/drone applications, aerial photography, video photography, outdoor sports, campus broadcast, leisure travel, outdoor sports etc.

✔Web Control User Interface:  the hardware encoder enables configurations on web controlled user interface, where users can quickly set all the parameters for live streaming.

Specifications & Parameters

Power Supply

5V/1 A (USB cable powered )

Power Consumption

2.5W

Work Temperature

-10~65℃ (14~139℉)

Storage Temperature

-20~85℃ (-4~185℉)

Work Humidity

10%- 90%RH (Non-condensing)

Weight

60g/0.132lbs

Dimension

75mm(L)*31mm(W)*12mm(H)/ 2.95×1.22× 0.47in

MTBF(mean time between failures)

30,000h

Video Input Standard

HDMI 1.3, HDCP1.4

Video Codec

H.264/MPEG-4 AVC

Supported Protocols

RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.

Supported Input Resolution

1080p@60Hz/50Hz/30Hz,

1080i@60Hz/50Hz,

720p@60Hz/50Hz/30Hz

Supported Output Resolution

1080p@30Hz, 720p@60Hz/30Hz,

960×720@60Hz, 960×540@60Hz,

640×480@60Hz, 360×200@60Hz

Video Bitrate

128Kbps~16Mbps

Pixel Clock

165MHz (max)

Audio Input Standard

HDMI embedded audio input, 3.5mm analog, Mic in, Line in

Audio Encoding Format

G.711u, AAC

Audio Bitrate

32kbps~256Kbps

Control Method

Web UI

WEB UI login credentials

Default user/password: admin/admin

GOP

Tunable

Compression Profile

BaseLine, Main, High

Compatibility

Compatible with VLC, Blue Iris, Orchid VMS and more







Reminder: Generally, AVC-2K encoder can take power from almost HDMI sources directly. However, if the power voltage of some HDMI sources is too low to support the normal working of encoder, users can power the encoder by additional USB cable connecting to your power sources(e.g. PC USB port, media box, USB hub, power ban, laptop, tablet etc.), no proprietary AC power adapter is required any longer.
