Overview

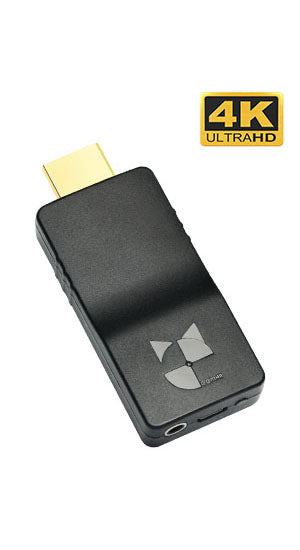

Mini & Low Power Decoder: The HDD-20W is mini(75x32x15mm), lightweight(25g), and USB-powered(2.4W). It is USB-powered to the USB port of the display or a power bank. With type-A male HDMI connector, you can dierctly plug the decoder to the HDMI port of display. With built-in 5G+2.4G dual-Wifi antenna, the decoder connects network wirelessly.
Portable 4K SRT Decoder: Decode up to 2160p@60Hz with H.265 SRT; the wireless HDMI decoder offers end-to-end IP video solution by pairing with DDMALL or third-party SRT encoders, providing secure, reliable, and high-quality low latency video transmission.
Wireless IP Decoding: The mini video decoder enables 2160p@60Hz decoding & output at high bitrate with H.265/HEVC & H.264/AVC SRT, ONVIF, RTSP, or UDP/TCP protocol wirelessly. Auto-match a best HDMI output resolution for display regarding the specific parameters of display terminals; Support video resolution up-scaling and down-scaling.
Camera Decoder: The IP decoder decodes IP streams from various brand IP cameras or NVRs to HDMI signal, providng the most portable hardware solutions for your IP video systems.
More Feeatures: Support adding up to 30 video sources into the decoding list, so you can select any of them for decoding output at any time. Support video preview and Cloud control. Support online upgrading to add new features.
Pro HDMI over Wifi IP Stream Decoding
The Ultra-mini size and lightweight form factor make it easy to carry the decoder anywhere. The Wifi decoder is USB-powered to displays or power bank without additional power adapter, & connects network through built-in 5G+2.4G Wifi antenna, agiling your setup to the greatest extent. Plug it to your display without any cable clutters, and it delivers 4K60Hz high-quality video as you wish.
Reliable Low-Power IP Decoding Solution
The HDD-20W video decoder supports 2160p@60Hz IP video decoding & output with H.265 H.264 SRT, RTSP, ONVIF, or UDP/TCP wirelessly. It supports one-click to start/stop decoding work. As a professional mini decoder, it supports 7/24 flawless working reliably at low cost. The IP video decoder can be controlled by web UI and Cloud. To facilitate users work efficiency, we are committed to helping users customize their private Cloud system on their own servers. Contact us to learn more.
Specifications
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 25g/0.055lbs |
| Product Dimension | 75x32x15mm/2.95x1.26x0.59in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP, TCP, | Supported Output Resolution |
3840*2160p@60/50/30/25/24Hz, 1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz |
| Supported Stream Input Resolution |
3840*2160@60/30Hz,1920*1080p@60/30Hz, 1280*720p@60/30Hz |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Profile | BaseLine, Main, High |
| Control Method |
Web UI/Cloud |
