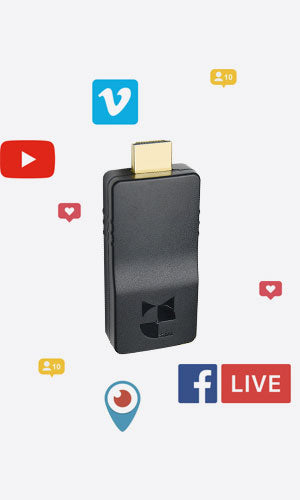

DDMALL HEV-2KW Wireless Streaming Encoder, H.265 H.264 HDMI Live Video Encoder, Stream 1080p to Facebook, YouTube Live, Twitch, IPTV and More

DDMALL HEV-2KW Wireless Streaming Encoder, H.265 H.264 HDMI Live Video Encoder, Stream 1080p to Facebook, YouTube Live, Twitch, IPTV and More

SKU:HEV-2KW

Regular price $429.00 USD
Regular price $429.00 USD Sale price $429.00 USD
Sale Sold out
Shipping calculated at checkout.

36 in stock

View full details

Overview

Portable HDMI Encoder: Ultra-mini size(75x32x15mm) and ultra-lightweight(25g); the live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space. It offers an ideal portable solution when a 4G/5G mobile phone works as Wi-Fi hotspot, providing network connection for the live streaming.

Energy-Efficient & USB-Powered: Ultra-low power consumption (2.6W). The wireless hdmi encoder can take power from most HDMI ports directly without extra power supply, or accept power from the USB port of signal sources or mobile power bank with power adapter-free, making it absolutely wonderful for the live streaming applications that require long working time, frequent move, or tiny installation space.

Easy to Setup: Type-A male HDMI connector, making it convenient to plug to the HDMI port of signal sources without HDMI cable; Type-C to HDMI converter included in the package, convenient for connection to laptops or tablets with Type-C interface.

One Click to Go Live: Support one-click to start or stop live streaming by pressing the encoder set button; it is vital to instantly start/stop the streaming at any time in many live broadcast events.

Versatile Features: One click to go live; compatible with YouTube, Facebook, Twitch and more; allow to modify OSD setting in real time during the streaming via web UI; the wifi encoder stream outputs at up to 8Mbps in1080p with HEVC compression; support protocols like RTMP, RTMPS, RTSP, RTP, TCP, UDP, Multicast, Unicast.


HEV-2KW is one of DDMALL ultra-mini and ultra-lightweight HDMI encoder with ultra-low power consumption. Benefiting from its ultra low power consumption, the video encoder can accept power from most HDMI ports directly without additional power supply. It also can accept power by USB connection to USB port of HDMI signal source or mobile power bank, making it perfect for the streaming applications with frequent move. HEVC/H.265 and AVC/H.264 compression support, the video encoder allows to live stream in 1080p; with internal 5G+2.4G dual-band wifi antenna, the wifi encoder offers more reliable live video streaming from any where you wish; the streaming encoder supports RTMP, RTMPS, RTSP, RTP, UDP, TCP; choose your desired protocol to go live to Facebook, YouTube, Twitch, Vimeo, Wowza and more. The wireless HDMI encoder offers one-click to go live, you can start/stop your streaming at any time by pressing the encoder set button, agiling your streaming to the most extent. Meanwhile, it is a web UI enabled HDMI encoder, accessible from any web-enabled device; you can configure the IP encoder by loading the web UI in a few seconds. Integrate the video encoder into your live production, megachurch, outdoor sports, stage performance, UAV/drone system, workshop, corporation and more, you will reset with ease while live streaming on the go.

live streaming encoder HD

Portable Wireless Video Encoder

Leveraging the ultracompact design--ultra-mini size(75x32x15mm/2.95x1.26x0.59in) and ultra-lightweight, the wifi decoder can be carried anywhere you wish to. Easy to set up, convenient to agile your workflow.





live video encoder



USB-Powered, Energy Efficient

Ultra-low power consumption of only 2.6W, the HDMI video encoder takes power from most HDMI signal sources directly, or it accepts power by USB connection to the signal source or power bank without any power adapter.





live streaming encoder



High Quality Video, Reliable Streaming

HEVC H.265 and AVC H.264 high profile live video encoder, HDMI inputs up to 1080p/1080i@60Hz and encoding outputs bitrate at up to 8Mbps. Secure your video in crytal clear quality. Perfect to go live to Facebook, Twitch, YouTube, Wowza, Vimeo, Microsoft streams and more.





streaming encoder



OSD Setting & Video Preview

You can add logo, image or text to your video for output display during your streaming at any time; you can also preview your video status lively. It is a web-enabled streaming encoder, you can load your web UI by any web-enabled device and configure the parameters easily.





One Click to Go Live

The 2K HDMI video encoder allows one button to start or stop your streaming at any time. Wonderful to control the streaming pace, making it convenient to agile your broadcast and interact with your audiences easily. Support RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast.









ip encoder


Portable Wireless Video Solution

The encoder supports 1080P video input and output with video bitrate up to 8Mbps; it offers a robust wireless video transmission solution for many applications such as remote live broadcast, wild shooting, UAV/drone application, aerial photography, airborne surveillance, outdoor activities, outdoor sports, church broadcast etc.

Specifications

Power Supply

5V/1 A (USB cable powered )

Power Consumption 2.6W

Work Temperature

-10~65℃ (14~149℉)

Storage Temperature -20~85℃ (-4~185℉)

Work Humidity

10%- 90%RH (Non-condensing)

Weight 25g/0.055lbs

Dimension

75mm(L)*32mm(W)*12mm(H)/ 2.95×1.26× 0.59in

MTBF(mean time between failures) 30,000h

Video Input Stanard

HDMI 1.3, HDCP1.4

Video Codec H.265/HEVC and H.264/AVC

Supported Protocols

RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.

Supported Input Resolution

1080p@60Hz/50Hz/30Hz, 1080i@60Hz/50Hz,

720p@60Hz/50Hz/30Hz

Supported Output Resolution

1080p@30Hz, 720p@60Hz/30Hz, 960×720@60Hz,

960×540@60Hz, 640×480@60Hz, 360×200@60Hz

Pixel Clock 165MHz (max)

Video Bitrate

128Kbps~8192Kbps

Audio Input Standard HDMI, 3.5mm analog Line in

Audio Encoding Format

G.711u, AAC

Audio Bitrate 32kbps~256Kbps

Wireless Standard

802.11a/n/ac 5G,802.11b/g/n 2.4G

Control Method

Web UI

AP Mode Wi-FI Info.

SSID:HEV-2KW;password:12345678

AP Mode Default IP 192.168.1.252

WEB UI login credentials

Default user/password:admin/admin

GOP Tunable

Compression Profile

BaseLine, Main, High

Quick Installation Manual
Download Here://cdn.shopify.com/s/files/1/0271/8515/2134/files/HEV-2KW_Quick_Installation_Manual.pdf?v=1703580455
