DDMall AGS-P-4K UHD Multi-Window Processor, Modular 4K Multi-Viewer Expandable with Cards Addition

DDMall AGS-P-4K UHD Multi-Window Processor, Modular 4K Multi-Viewer Expandable with Cards Addition

SKU:AGS-P-4K

Regular price $9,999.00 USD
Regular price Sale price $9,999.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

View full details

Overview

Pure FPGA Hardware Technology: standard meal rack-mountable chassis design, Easy for installation.

Modular Desigan for System Expansion: With modular design, the multi-window processor allows to add cards(we provide a lot of options) for system scaling.

True Ultra HD Video Multi-Viewer: Support wide range of of signal inputs in up to 4K@60Hz and output in 4K@60Hz.

Multiple Windowing Modes: 4K-UHD full-screen display, HD quad-view, picture-in-picture display. the windowing presets are customizable to save for fast recall. Support video display in up to 16 screens.

More Features: Allows flexibly handling of various craping, roaming, overlay, and PIP of 4K and 2K images; text overy, signal source category; image transparency, screen frame opacity; bezal fusion etc.

Note: The titled price is for ref. Please send your requirements, we need quote prices based your needs.

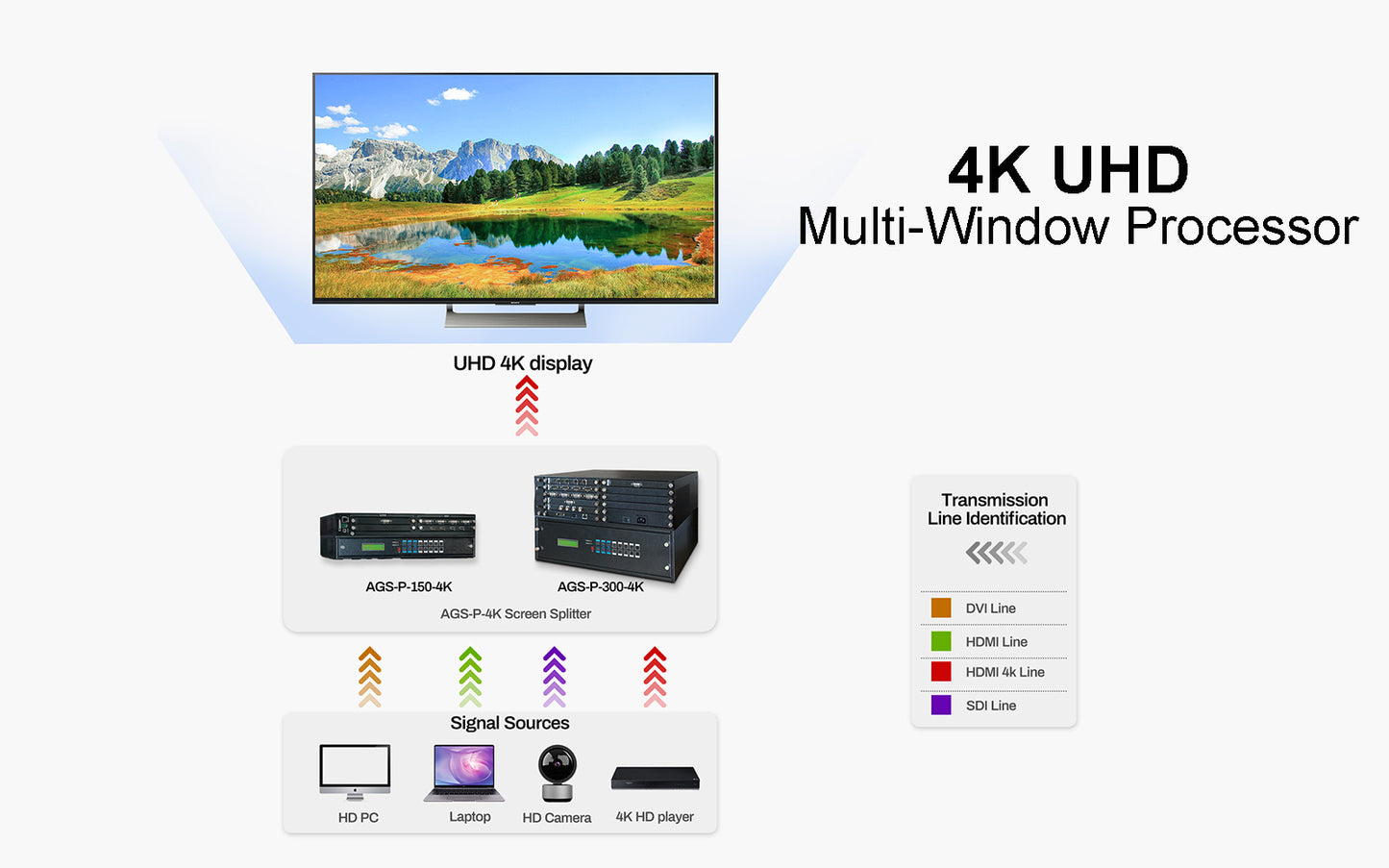

The AGS-P-4K is a modular, digital, networked, and expandable real-time multi-screen processor, which can simultaneously display multiple dynamic images on 4K projectors, monitors, TVs and other devices, supporting 4/8/12/16 screen-display and wide range of signal inputs including 4K HDMI/ 4K Dual-Link/ DVI/ HDMI/ SDI/ Fiber/ CAT/ HDBaseT/ VGA/ CVBS/ Ypbpr/ IP, etc., The 4k multi-window processor allows flexibly handling of various craping, roaming, overlay, and PIP of 4K and 2K images. It is a perfect option for military, medical, video conferencing and other applications.

FPGA Hardware Technology

The AGS-P-4K adopts plug-in module design, and advanced FPGA technology is embedded, featuring it powerful image processing capability and high reliability. Users can select different chassis and flexibly combine input and output cards to DIY your modules of the processor. The video multi-slpitting screen processor supports a wide range of signals including 4K HDMI/ 4K Dual-Link/ DVI/HDMI/ SDI/ Fiber/ CAT/ HDBaseT/ VGA/ CVBS/ Ypbpr/ IP etc., allowing up to 20 signals input. Users can choose 4K@30Hz or 4K@60Hz output cards. Each single processor can meet display requirements for up to 4, 8, 12, and 16 screen display.

UHD Image Presents Visual Feast

The AGS-P-4K is with built-in standard 4K timing, allowing automatical matches with any size, any brand, any type of 4K display devices such as 4K monitors, 4K TVs, 4K projectors, etc.

4K UHD Makes Images More Vivid

The multi-window processor supports point-to-point and pixel-level synchronous display of 4K×2K UHD images.  In addition, the AGS-P-4K supports 2 types of 4K input cards as follows:

HDMI 4K input card: HDMI 1.4a standard, HDMI2.0, in line with HDCP standard

Dual-link DVI input card: DVI1.0 standard, built-in EDID management.

Freely Allocate Your Presentation

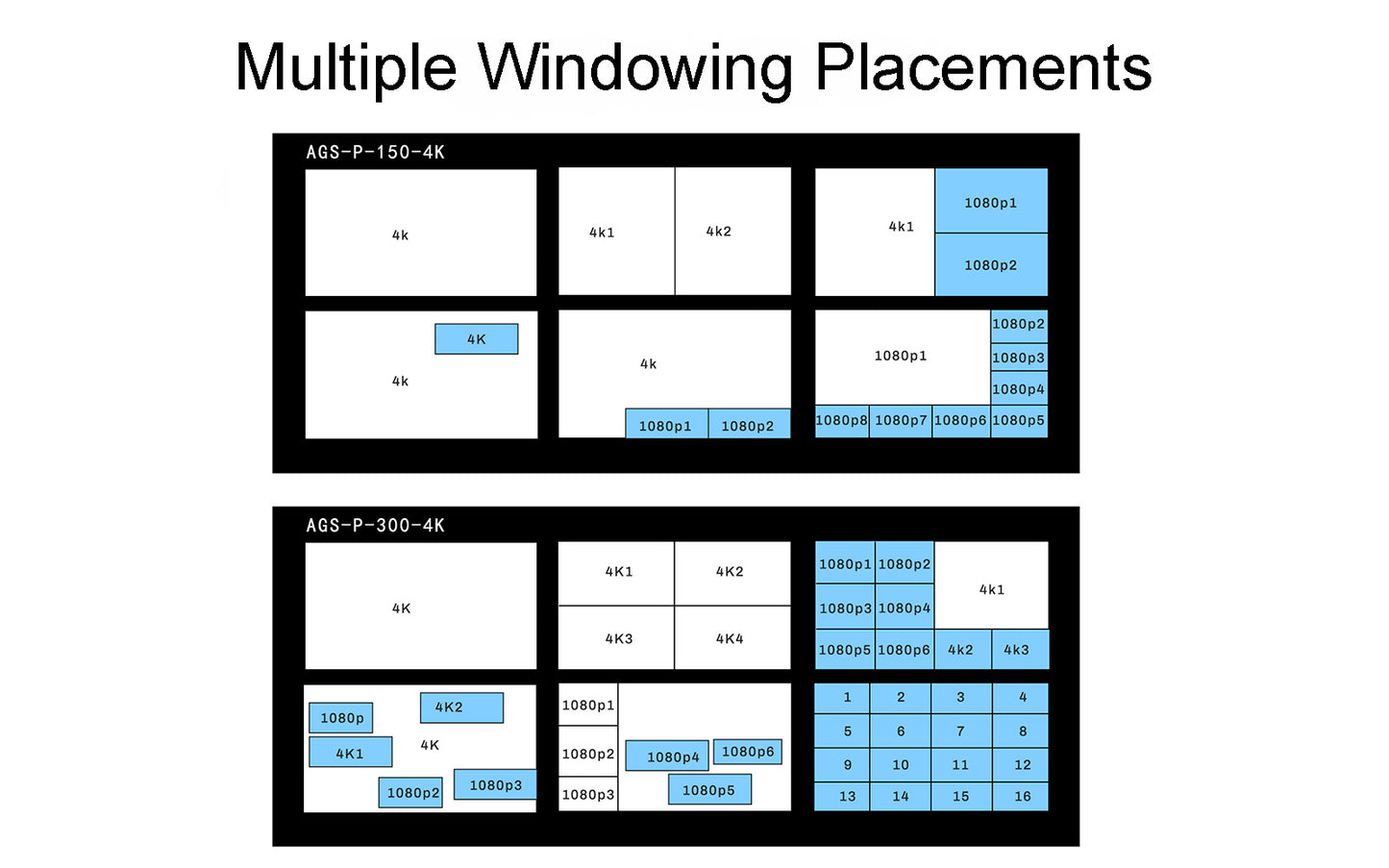

The screen layout can be freely allocated in 4/2/6/8/9/12/16 screens, PIP, side-by-side, quad-view, left big-right smalls and other layout methods for any 2K and 4K signal. The layout can be saved freely and recall with one key, making the presentation fast and convenient.

Text Overylay for Easier Signal Mangement

Custom OSD logo is supported to identify and classify signals from different devices. The OSD logo (color and name) will be superimposed on the input signals for display, which is more convenient for the classification and management of various datas.

HD/UHD Decoding

With H.264 and H.265, The multi-view processor supports to decode IP cameras and encoding terminals from various brands, featuring the ability to simultaneously decode 1* 4K, 4* 1080p, and 8* 720p. At the same time, it empowers the freedom of switching and display any decoded data for display on the large screens.

Signals Category to Streamline the Management

Based on the FPGA technology, the multi-window processor allows to categorize all signals into groups for management.  The AGS-P-4K process can work as an independent splitter system, or as a part for video screen splitting system, so unified,  centralized and distributed management can be realized through different operation interfaces. Moreover, permissions for each category can be set, making management more simple, clear and flexible.

User Friendly Network Control of the System

The AGS-P-4K supports network control, which can realize simultaneous control of multiple multi-window processors on the same LAN, so that users can simultaneously operate multi-screen presentation systems in multiple conference rooms or monitoring rooms in one place, making the management friendly for operators.

Graphic Interface, Smart Management

Enter OSD logos to classify signals from different devices.

Automatic signal identification, real-time monitoring of operating status.

One-key to switch signals to realize fast data broadcasting & presentation.

Scientific built-in data grouping and scene setting.

Permission management to ensure data security.

Data backup and quick recovery, supporting data sync with new devices.





Selectable Input Cards

No.  Type Interface Numbers Singal Type Input Resolution
1 1*4K dualink 1*DVI Dual-link DVI Max. 8K*4K or 4K*2K; support downscaling and customize graphic card resolution
2 1*4K@30 HDMI 1*HDMI HDMI 1.4a Max. 3840*2160@60Hz; support down scaling
3 1*4K@60 HDMI 1*HDMI HDMI 2.0 Max. 3840*2160@60Hz; support down scaling
4 4*2K HDMI 4*HDMI HDMI 1.4 Max. 1920*1200@60Hz; support down scaling
5 4*2K DVI 4*DVI DVI-D Max. 1920*1200@60Hz; support down scaling
6 4*2K DVI-C 4*DVI DVI-D Max. 1920*1200@60Hz; support down scaling; it can be inserted into the output chassis to increase inputs numbers.
7 4*2K mixed 2*VGA+2*HDMI+2*ear jack VGA(YPbPr compatible), HDMI(DVI caompatible); 3.5mm dual-sound audio Max. 1920*1200@60Hz; support down scaling
8 4*SDI 4*BNC SDI Max. 1080p@60Hz; support down scaling
9 4*VGA 4*VGA VGA Max. 1080p@60Hz; support down scaling
10 4*2K HDBaseT 4*RJ45 HDBaseT Max. 1920*1200@60Hz; support down scaling
11 4*2K RJ45 4*RJ45 twisted-pair signal Max. 1920*1200@60Hz; support down scaling
12 4*Optic fiber 4*LC connector single mode single core fiber signal Max. 1920*1200@60Hz; support down scaling
13 8*CVBS 8*BNC CVBS NTSC, PAL
14 Decoding card 2*RJ45+1*ear jack network, 3.5mm dual-channel audio 4*1080p H.264/H.265 decoding



Selectable Output Cards

No. Type Interface Numbers Singal Type Outrput Resolution
1 1*4K@30 4-screen output cards 1*HDMI HDMI 1.4a 840*2160@30Hz, support 4-screen display
2 4K@30 splitting &  video overlay cards / / pair with 4K@30 4-screen output card to add multi-window numbers; a single card can increase 4 windows.
3 1*4K@60 HDMI 8-screen output card 1*HDMI HDMI 2.0 3840*2160@60Hz; support 8-screen display



Selectable Chassis

No. Chassis Size Chassis Style No. Max. Input & Output Cards Numbers

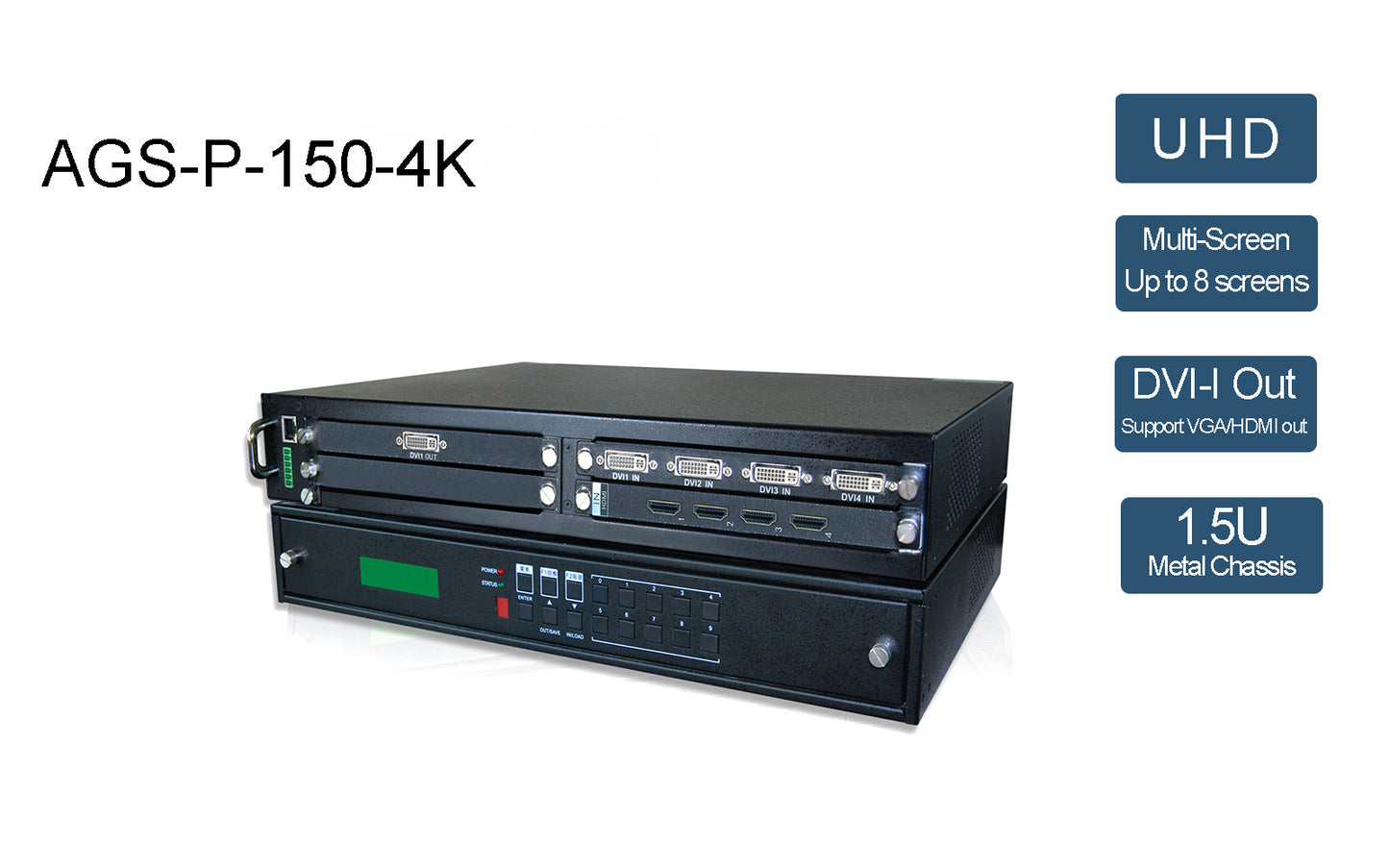

1 1.5U standard chassis AGS-P-150-4K 2*input cards & 2*output cards (Max. support 8-screen dislay on single large screen)

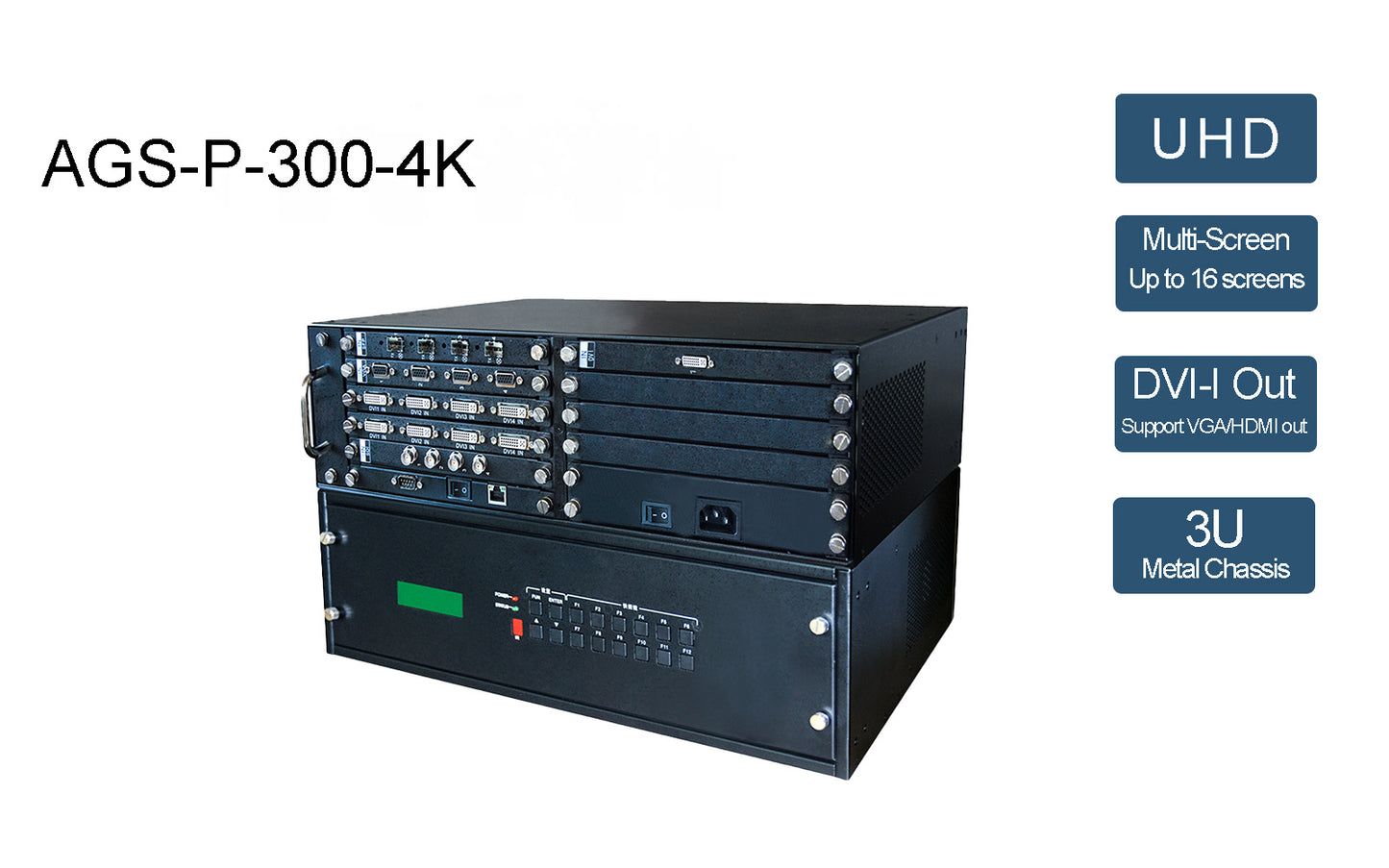

2 3U standard chassis AGS-P-300-4K 5*input cards & 4*output cards (Max. support 16-screen display on a single large screen)



The AGS-P-4K Specifications

Operate Temperature -10-45℃ (14~11℉) Operate Humidity 15%-85% non-condensing
Operate Noise

<45dB

Power Supply 100-240 AC, 50/60Hz
Rated Power 50-140W(varies with different cards) MTBF 30,000H
Installation Standard rack-mountable chassis Chassis Material Metal
Product Size

AGS-P-150-4K: 44cm(L)x30cm(D)x7cm(H);

AGS-P-300-4K: 44cm(L)x30cm(D)x13.5cm(H)

Product Weight(full load)

AGS-P-150-4K: 7kgs;

AGS-P-300-4K: 11kgs

Control

Serial control: RS-232(9-pin DB connector);

Network control: TCP/IP;

Panel control: panel chortcuts;

IR remote control: IR remote
