Overview

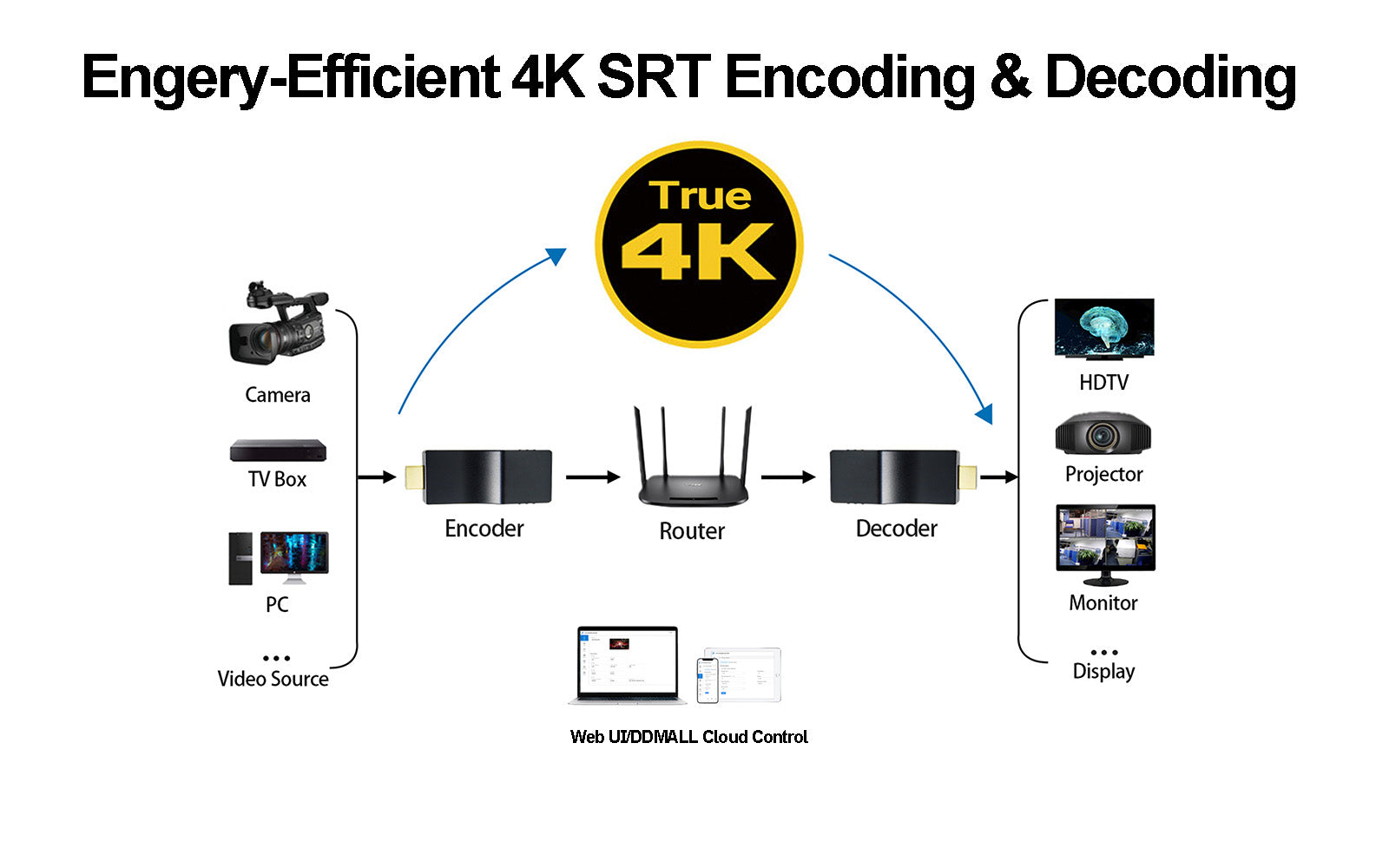

- 4K HDMI IP Encoder Decoder: The video encoder supports max. HDMI input in 2160p@30Hz, and max. encoding output in 2160p@30Hz, 64M. The decdoer supports max. input in 2160p@60Hz, and max. decoding output in 2160p@60Hz.
- High-Efficiency Streaming: Both of the encoder and decoder support H.265 and H.264 codec. The encoder supports NDI|HX2, SRT, HLS, RTMP(S), RTSP, UDP. The decoder supports SRT, ONVIF, RTSP, UDP. You can use SRT to perform secure end-to-end video transmission in Low latency.
- Multi-Channel Streaming: The encoder supports up to 4-channel encoding output with different protocols at the same time. So you can stream to YouTube, Facebook, Twitch, Wowza, Vimeo etc. at the same time. The decoder supports adding 30 video sources to the llist, you can select any of them for decoding at any time.
- Portable Wired HDMI Solution: Both the encoder and decoder are mini, lightweight, and USB-powered. The size is only 75*32*22mm, and weight is 32g only, making your setup easy and neat. They are the most portable, and reliable hardware encoding decoding solution.
-
More Features: Support DDNS, real-time text/picture/time OSD, NTP, video preview and online upgrading to add more features.
Parameters
HEV-4K Video encoder:
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 32g/0.07lbs |
| Product Dimension | 75x32x22mm/2.95x1.26x0.87in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 1.3, HDCP1.4 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | NDI, SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast | Supported Input Resolution |
3840*2160p@30Hz,1920*1200p@60Hz,1080p@60/50/30Hz, 1080i@60Hz,1080i@50Hz, 720p@60/50/30Hz |
| Supported Output Resolution |
3840*2160@30Hz,1080p@60Hz, 720p@60/30Hz, 960*720@60Hz, 960*540@60Hz, 640*480@60Hz, 360*200@60Hz |
Video Bitrate | 128Kbps~64Mbps |
| Pixel Clock |
165MHz (max) |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog, Mic in, Line in |
| Audio Encoding Format |
G.711u, AAC |
Compression Profile | BaseLine, Main, High |
| Control Method |
Web UI |
HDD-20 Video decoder:
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.0W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 35g/0.077lbs |
| Product Dimension | 75x32x22mm/2.95x1.26x0.87in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP, TCP, | Supported Output Resolution |
3840*2160p@60/50/30/25/24Hz, 1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz |
| Supported Stream Input Resolution |
3840*2160@60/30Hz,1920*1080p@60/30Hz, 1280*720p@60/30Hz, |
Audio Input Standard |
HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Profile | BaseLine, Main, High |
| Control Method |
Web UI |
