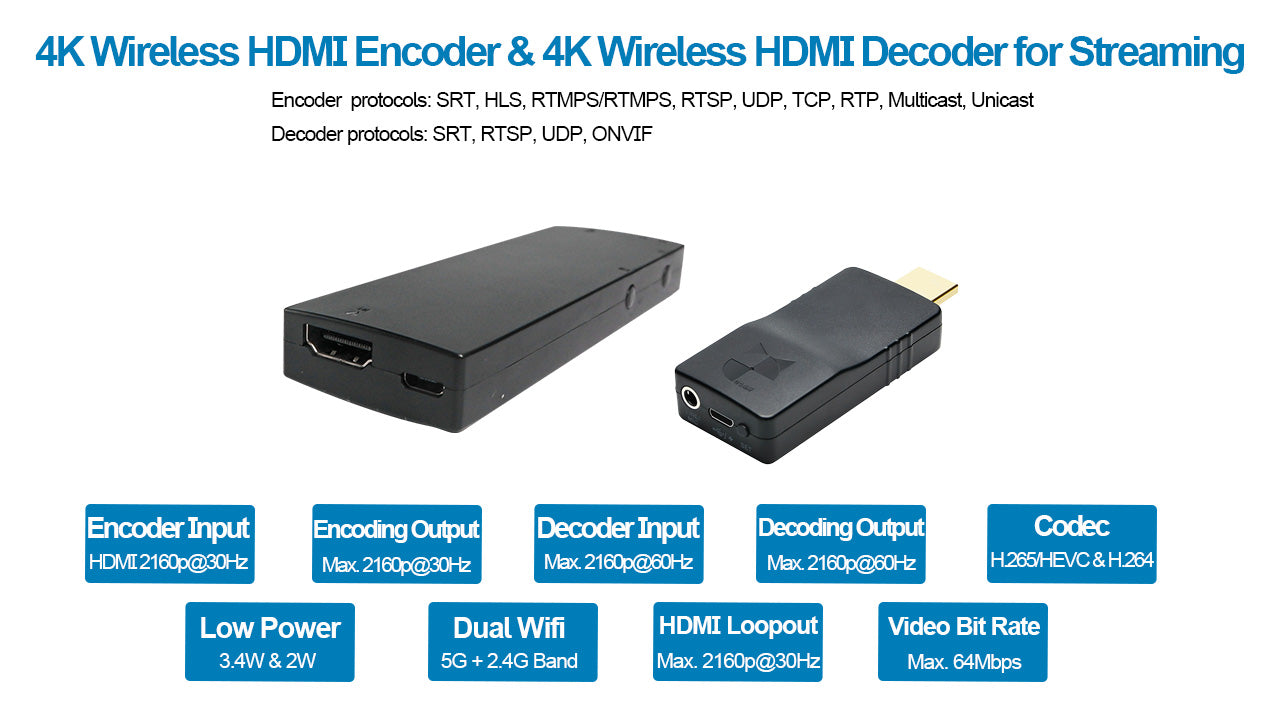

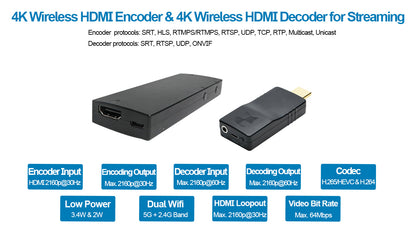

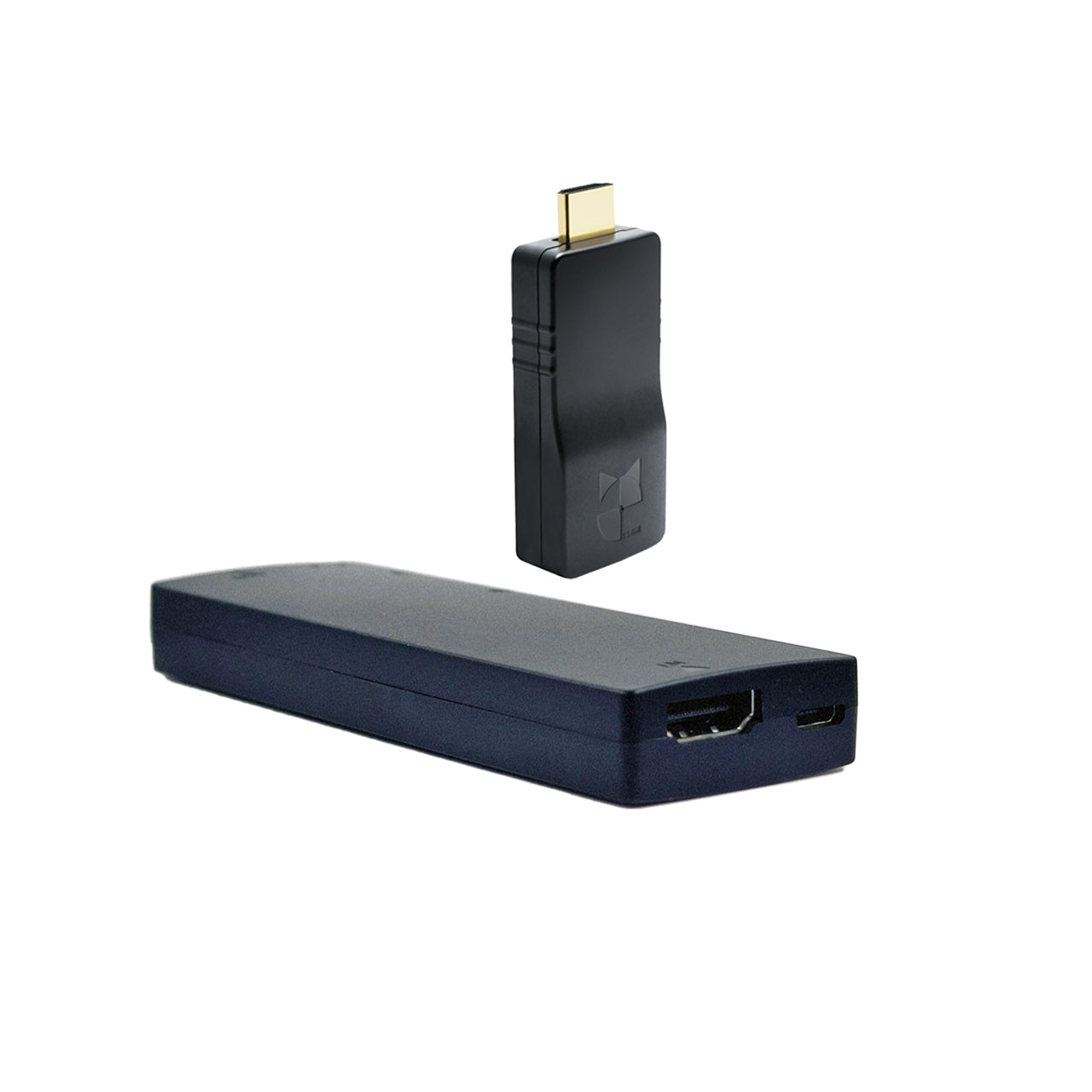

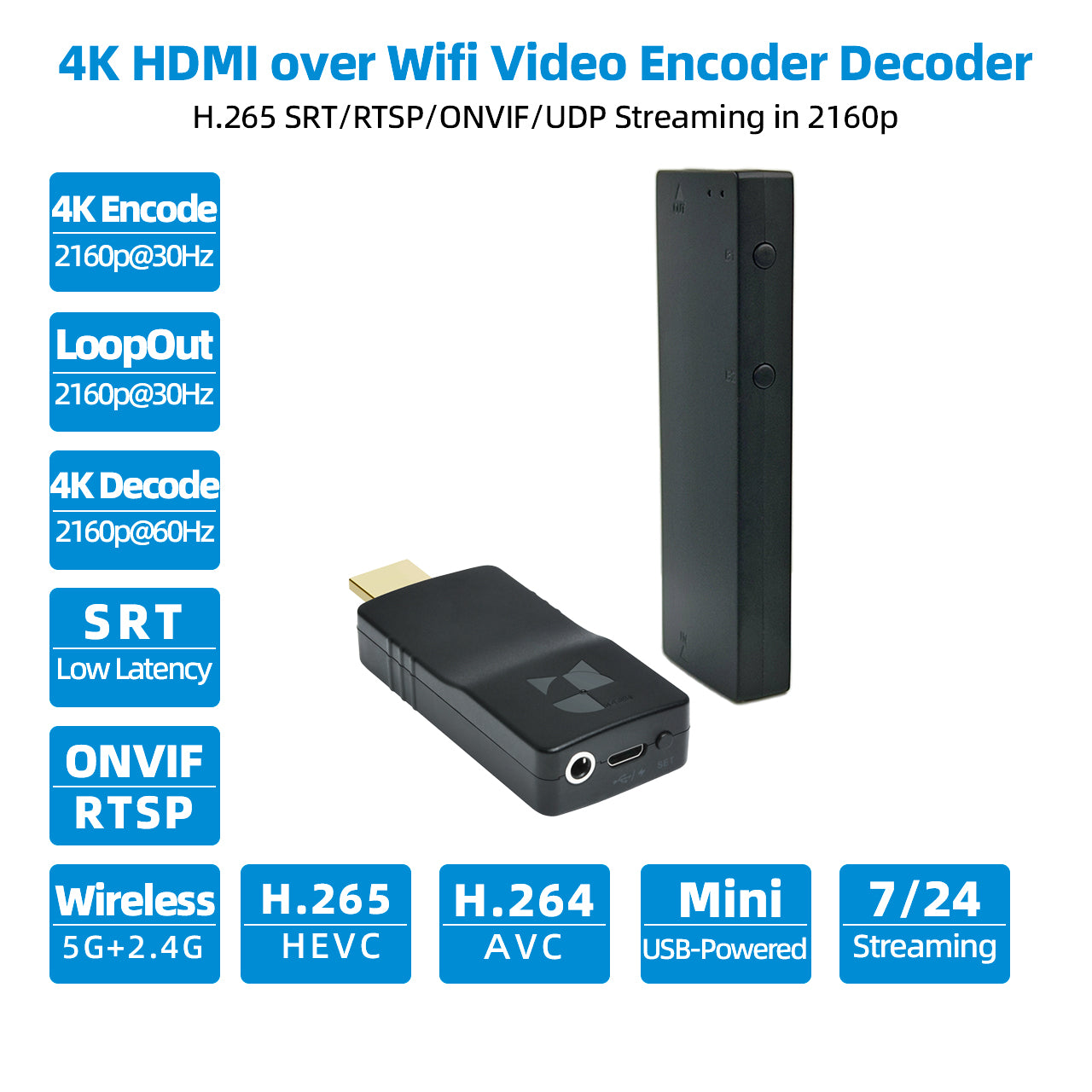

DDMALL HEC-20 Wifi6 Encoder & HDD-20W HDMI Decoder for 4K Live Streaming Wirelessly

DDMALL HEC-20 Wifi6 Encoder & HDD-20W HDMI Decoder for 4K Live Streaming Wirelessly

SKU:HED4KWHDD20W

Regular price $1,099.00 USD
Regular price $1,099.00 USD Sale price $1,099.00 USD
Sale Sold out
Shipping calculated at checkout.

100 in stock

View full details

Overview

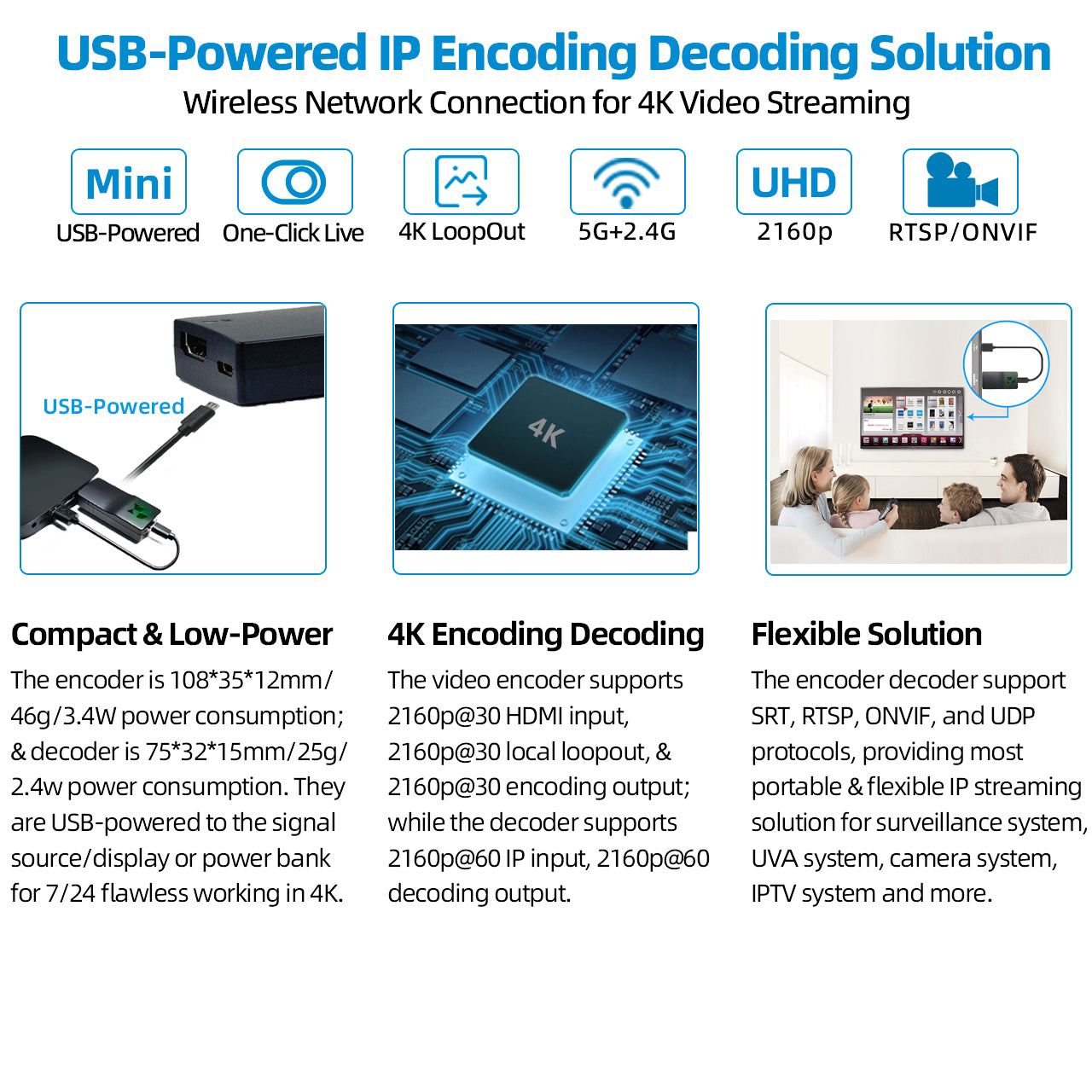

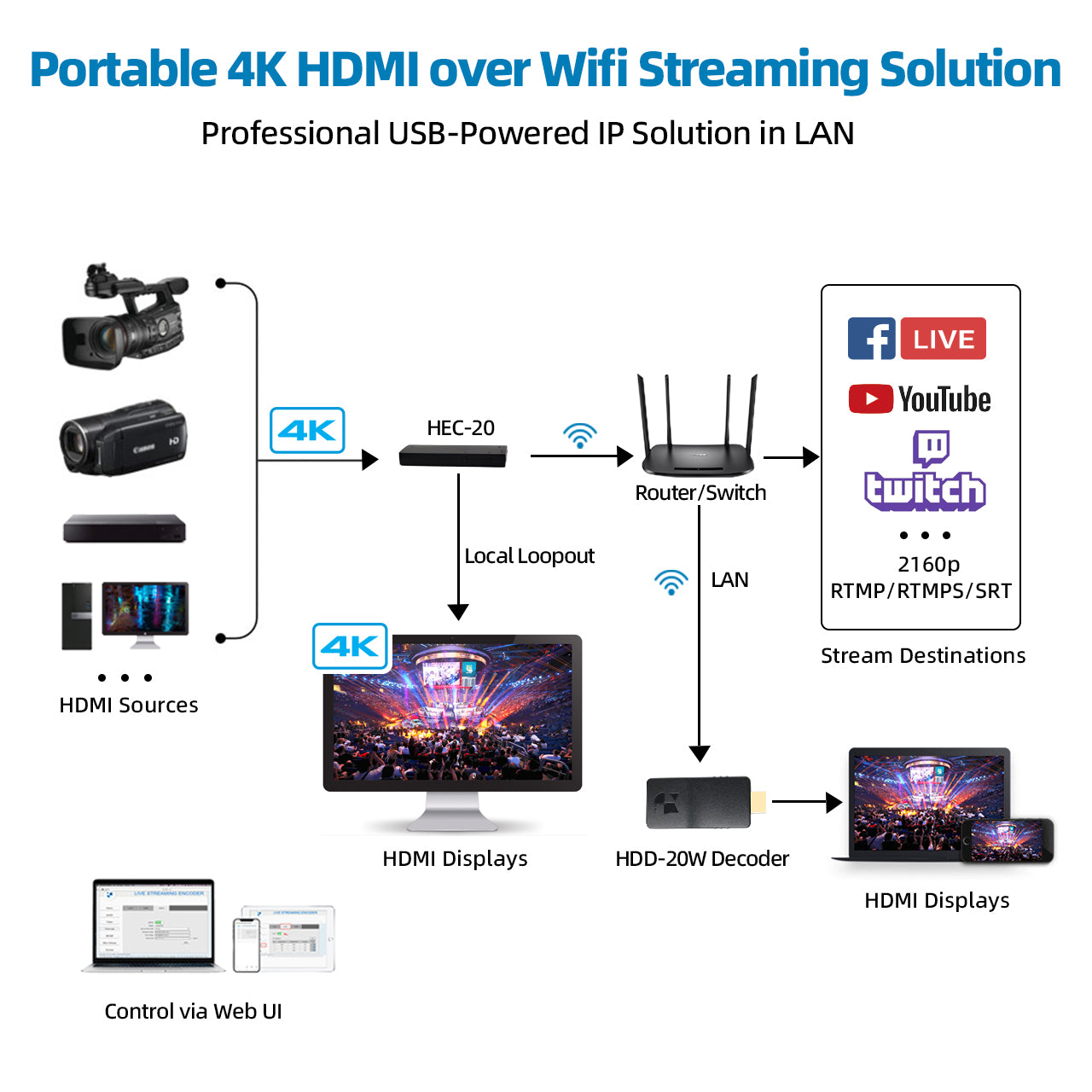

The DDMALL HEC-20 is a wireless 4K HDMI encoder supporting seamless Wifi roaming without interrupting video transmission, while the HDD-20W is a 4K wireless HDMI video decoder for IP stream decoding. With built-in 5G+2.4G Wifi anntenas, both the encoder and decoder are empowered with strong wireless network connection. they feafure in mini form factors and low power consumption. Both are powered with USB connection, make you stream without cable issue. The streaming encoder supports HDMI input in 2160p@30Hz, encoding output in 2160p@30Hz, and HDMI loopout in 2160p@30Hz at most; while the HDMI decoder support IP stream input in 2160p@60Hz, and decoding HDMI output in 2160p60Hz at most.

hdmi encoder decoder over wifi
wifi encoder decoder

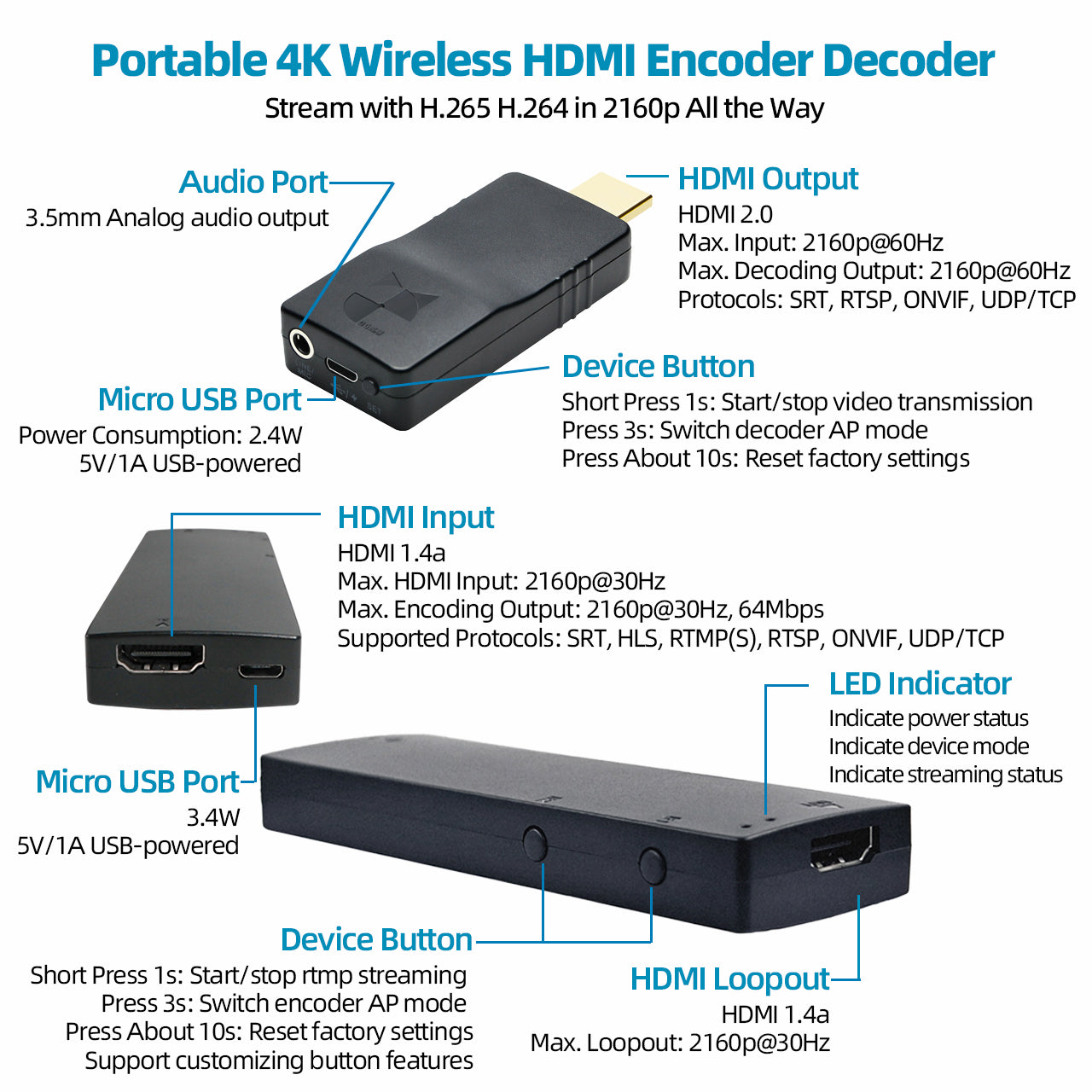

The HEC-20 Parameters

 General
 Power Supply  5V/1 A (USB cable powered
 Power Consumption  3.4W
 Operating Temperature  -10~55℃ (14~149℉
 Storage Temperature  -20~85℃ (-4~185℉
 Operating Humidity  10%- 90%RH (Non-condensing)
 Weight  46.4g/0.102lbs
 Dimension (L*W*H)  110.2×38.4×18.45mm/ 4.34×1.52× 0.73in
 MTBF  30,000H
 Video
 Input Standard HDMI 1.4A
 Video Codec H.265/HEVC and H.264/AVC
 Supported Protocols SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Low Latency, Multicast and Unicast.
 Supported Input Resolution 2160p@30/25/24Hz, 1080p@60/50/30/25/24/23Hz, 720p@60/50/30Hz
Supported Local Loop-Out 2160p@30/25/24Hz, 1080p@60/50/30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
 Supported Output Resolution

2160p@30/25/24Hz, 1080p@60/50/30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.

The frame rate can be selected by yourself.

The primary stream supports a maximum of 3840*2160@30Hz, secondary stream supports a maximum of 1080p@60Hz

 Video Bitrate

128Kbps~64Mbps

 Audio
 Input Standard HDMI
 Audio Encoding Format G.711u, AAC
 Audio Bitrate 32kbps~256Kbps
 System
 Wireless Standard 802.11a/n/ac 5G,802.11b/g/n 2.4G
 Control Method Web UI
 AP Mode Wi-Fi Info SSID:HED4KWpassword12345678
 AP Mode Default IP 192.168.1.252
 Default Web UI Login Credentials user/password: admin/admin
 GOP Tunable
 Compression Profile BaseLine, Main, High

The HDD-20W Parameters

Power Supply  5V/1 A (USB cable powered ) Power Consumption 2.6W
Work Temperature 10~65℃ (14~149℉) Storage Temperature -20~85℃ (-4~185℉)
Work Humidity 10%- 90%RH (Non-condensing) Product Weight 25g/0.055lbs
Product Dimension 75x32x15mm/2.95x1.26x0.59in MTBF(mean time between failures) 30,000h
Video Input Standard HDMI 2.0 Video Codec H.265/HEVC and H.264/AVC
Supported Protocols  RTSP, ONVIF, UDP, TCP,      Supported Output Resolution

3840*2160p@60/50/30/25/24Hz,

1920*1080p@60/50/30/25/24Hz,

1920*1080i@60/50Hz, 1280*720p@60/50Hz

Supported Stream Input Resolution

3840*2160@60/30Hz,1920*1080p@60/30Hz, 1280*720p@60/30Hz

Audio Input Standard HDMI embedded audio input, 3.5mm analog
Audio Encoding Format

G.711u, AAC

Compression Profile BaseLine, Main, High
Control Method

Web UI
