Overview

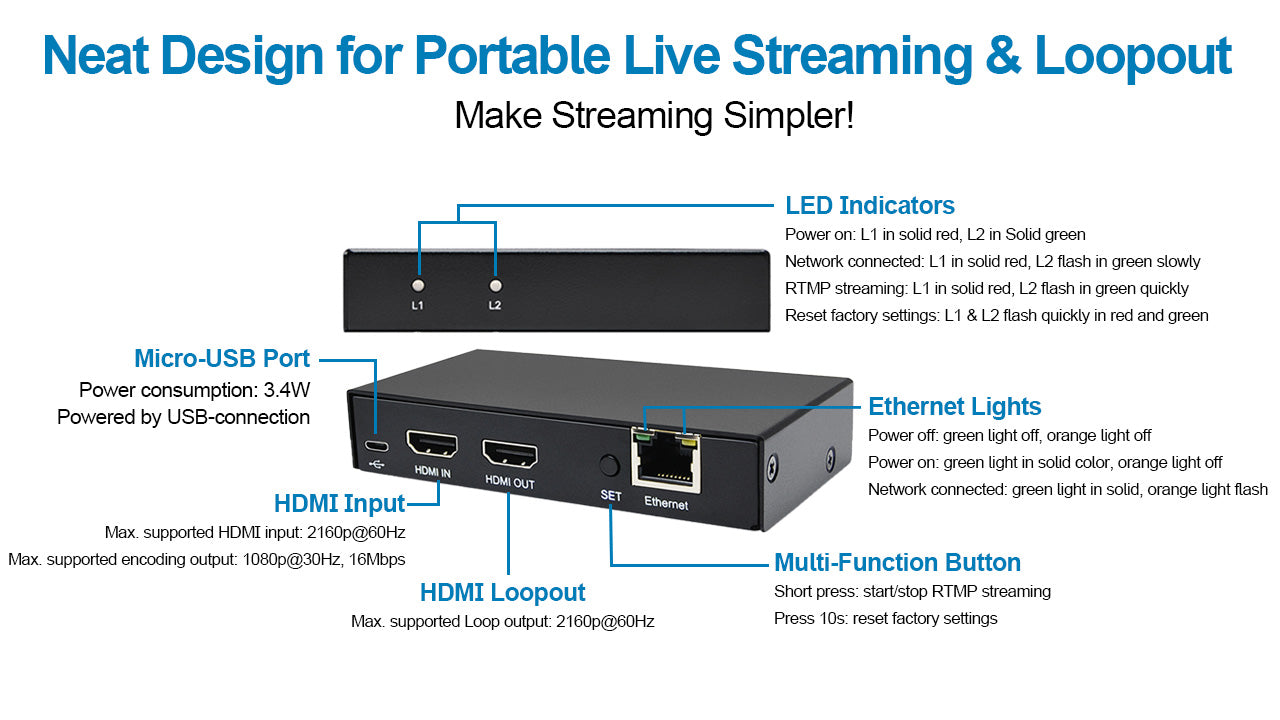

Energy-Efficient & USB-Powered: Ultra-low power consumption (only 3.4W); the live streaming encoder accepts power from USB port of signal source or mobile power bank with power adapter-free.
4K60Hz HDMI Input & Loopout: HDMI inputs up to 4K@60Hz; 4K video local loopout in up to 4K@60Hz with zero delay. Encoding outputs at up to 16Mbps in 1080p@30Hz with H.265 or H.264 SRT, HLS, RTMP/RTMPS, RTSP/ONVIF, RTP, TCP, UDP, Multicast, Unicast etc.;
One Click to Go Live: Support one-click to start or stop live streaming by pressing the set button on the HDMI IP encoder; it is vital to instantly start/stop the streaming at any time in many live broadcast events.
Remote Control & Stream in Internet: Support DDNS; you can easily control the HDMI encoder through domain remotely in public Internet and set up video transmission without any third-party live platform getting involved.
Stream Live on Multiple Platforms: The live video encoder allows users to simultaneously go live on 4 platforms with RTMP, RTMPS, or SRT protocol; compatible with YouTube, Facebook, Twitch, Dacast, Microsoft stream, wowza, IPTV and more
NTP Sync & Clock OSD: The HEV-10 supports NTP time sync with a simple setting; You can also add time as an OSD label at any position on the screen. So that you can stay tuned with your streaming video.
More Features: Support video preview; Support add text/picture/time OSD in real time; Support online upgrading to add more features.
SRT Encoder

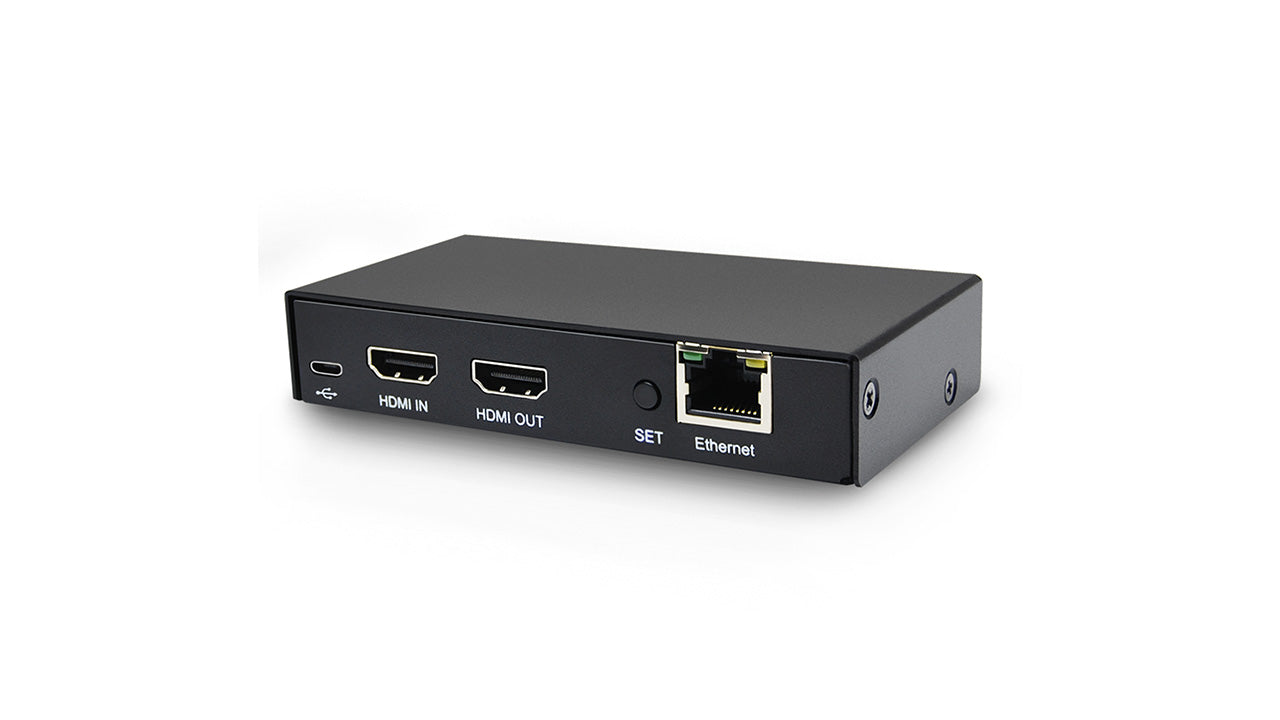

The HEV-10 is compact in size and a USB-powered encoder. The live streaming encoder delivers secure, reliable and high-quality low latency video with HEVC/H.265 or AVC/H.264 SRT protocol. No matter how bad your network condition is, say "no" to packet loss, jitter and fluctuating bandwidth.

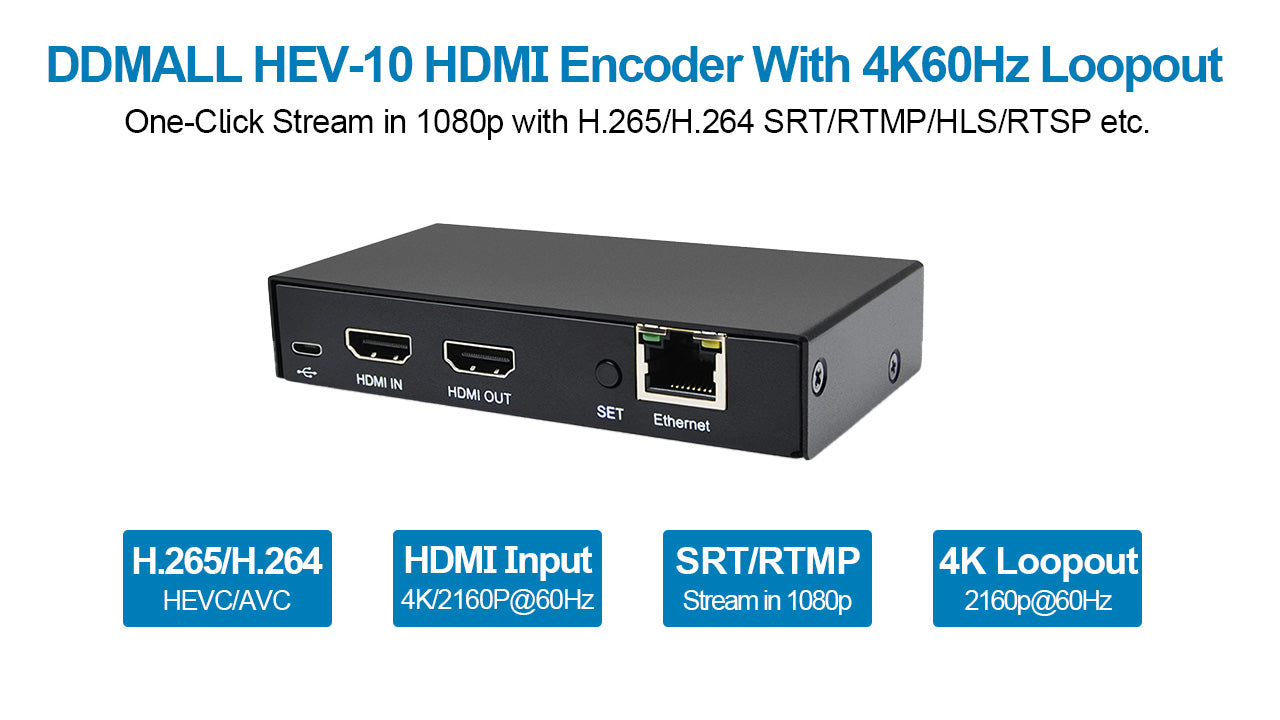

True 4K HDMI Input and Local Loopout
The HEV-10 hardware encoder HDMI inputs up to 4K@60Hz and 0-delay local loopout in 4K@60Hz; experience real 4K high-quality clarity and monitor your video locally in real time. The IP encoder encoding outputs at video bitrate up to 16Mbps. Enjoy your high quality video with ease.
DDNS--Control Your Encoder in Public Internet
With DDNS function, the HEV-10 enables remote management capabilities, you can easily control your encoder through domain name in public Internet. Access to your encoder anywhere from the world with Internet connectivity.
Parameters
|
Power Supply |
DC 5V 1A(USB-Powered) |
Power Consumption |
3.4W |
|
Operate Temperature |
-10~50℃ （14~122℉） |
Storage Temperature |
-20~85℃ （-4~185℉） |
|
Operate Humidity |
10%- 90%RH (Non-condensing) |
HDMI & Loopout Standard |
HDMI 2.0 |
|
Video Input & Loopout Resolution |
1096x2160p@60/30Hz, 3840x2160p@60/30Hz, 1920x1080p@60/50/30Hz, 1920x1080i@60/50/30Hz, 1280x720p@60/50/30Hz |
Encoding Output Resolution |
1080p@30Hz, 720p@60Hz, 960x720@60Hz, 960x540@60Hz, 640x480@60Hz, 360x200@60Hz |
|
Video Codec |
H.265/HEVC & H.264/AVC |
Video Bit Rate |
128Kbps-16Mbps |
|
Bitrate Control |
CBR/VBR/AVBR/FixQP |
Audio Input |
HDMI |
|
Audio Format |
G.711u, AAC |
Audio Bit Rate |
32Kbps-256Kbps |
|
Transport Protocol |
SRT, HLS/HTTP, RTMP(S), RTSP, ONVIF, RTP, TCP, UDP |
Work Mode |
Multicast, Unicast |
|
Network Mode |
Static IP, DHCP |
Control Method |
Web UI |
|

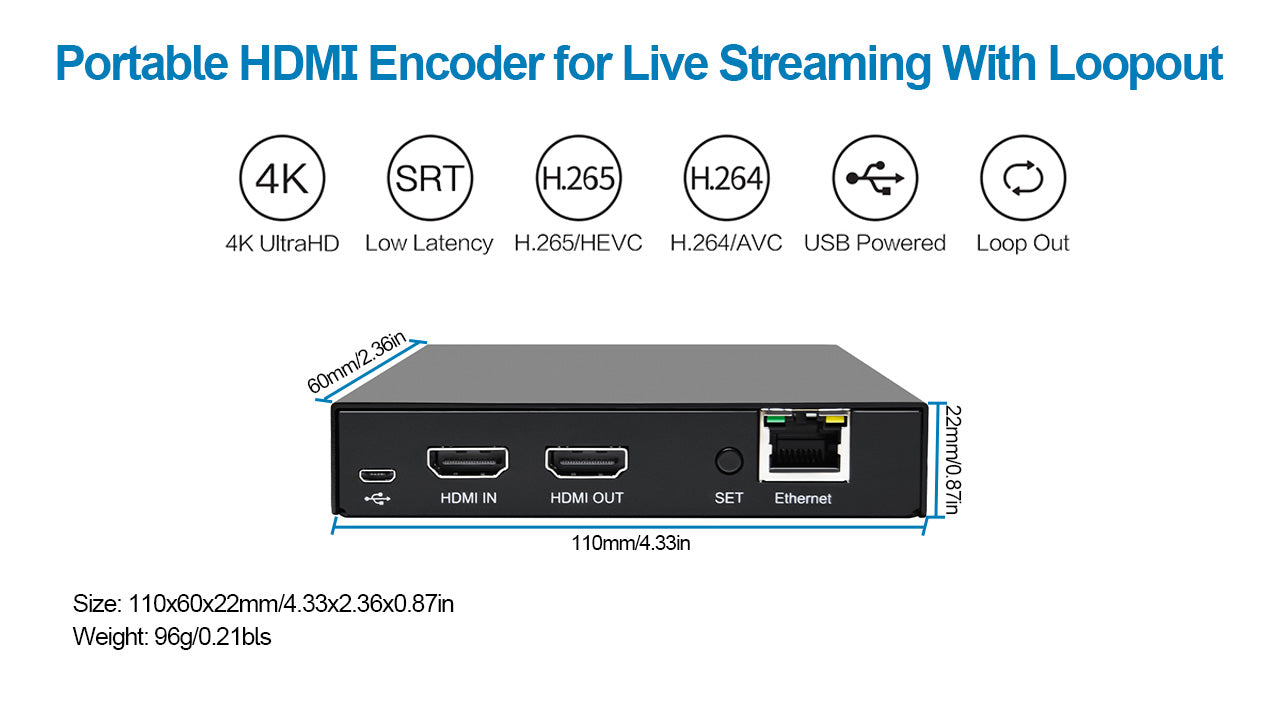

Dimension |
110mm(L)x60mm(W)x22mm(H) |
Weight |
96g |
