DDMALL HD-OPT-808 8x8 Integrated Optic Fiber Matrix Switcher

DDMALL HD-OPT-808 8x8 Integrated Optic Fiber Matrix Switcher

SKU:HD-OPT-808

Prix habituel $1,899.00 USD
Prix habituel Prix promotionnel $1,899.00 USD
Promotion Épuisé
Frais d'expédition calculés à l'étape de paiement.

Stock bas : 6 restant(s)

Afficher tous les détails

Overview

FPGA hardware technology: in 1U standard rack-mountable chassis. Modular design with selectable modules ready for free combination.

Full HD Video Visual Experience: H265/H264 encoding technology for lossless & uncompressed Full HD video long-haul transmission, flawless switching in zero delay. Resolution is up to 1920x1200@60Hz.

8x8 Matrix:  8 inputs and 8 outputs over fiber optic cables. with DDMALL fiber optic transmitter receiver, enjoy freedom of seamless switching of HDMI, DVI, VGA, SDI, CVBS, KVM signals.

More Features: Audio embedding & de-embedding, one click switching & recall display scenes, text overlay for easier management.

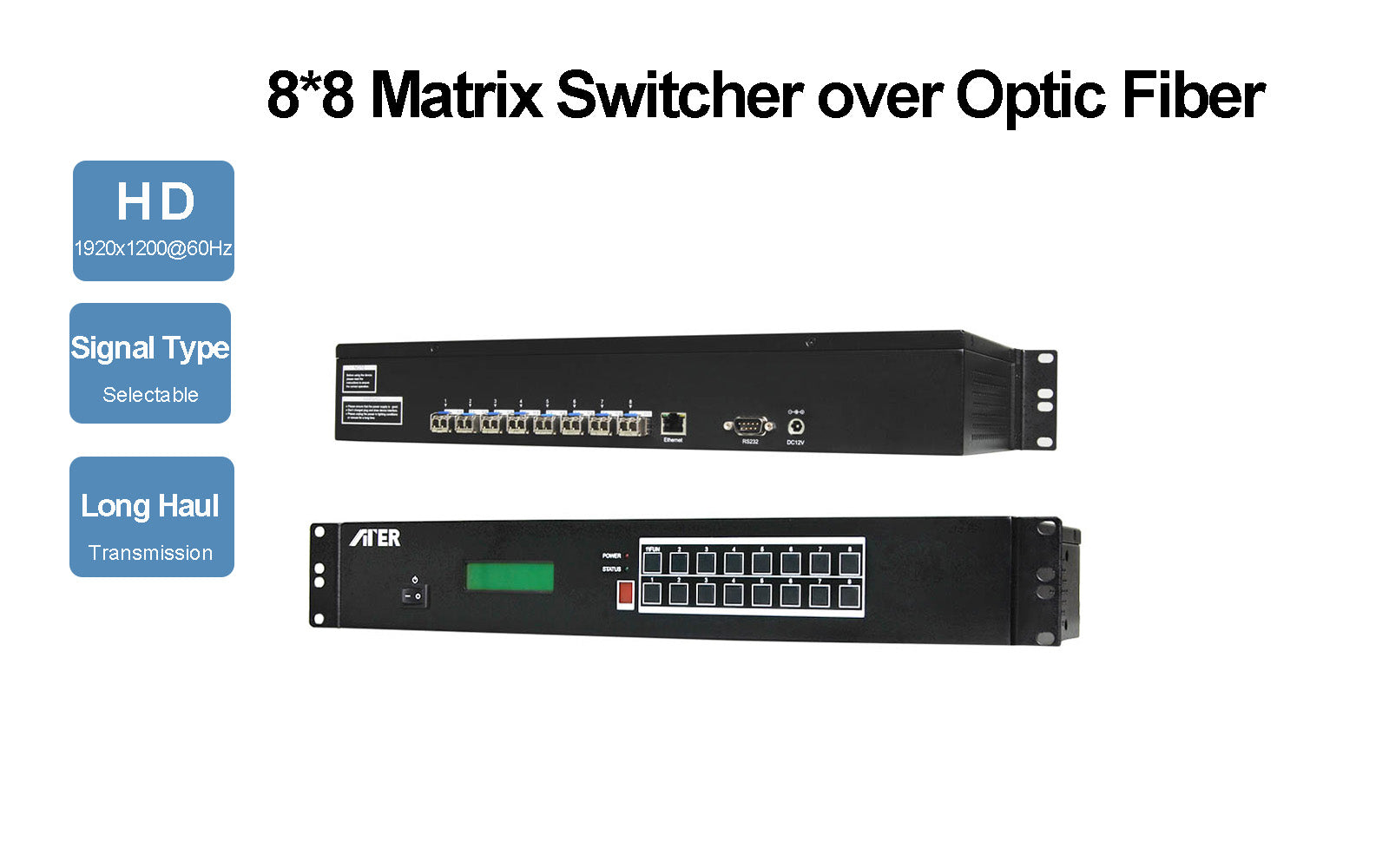

The DDMALL HD-OPT-808 matrix switcher is designed to route 8x8 fiber signals over fiber optic cable. This high-performance fiber optic matrix switcher supports fast switching of any input fiber signal to any or multiple fiber signal outputs for long-haul transmission over a single-mode fiber optic cable with transmission range up to 20km. It secures real-time signal restoration and safety even in complicated environments with electromagnetic interference. When working with DDMALL fiber optic transmitters, the HD-OPT-808 features seamless switching and long-distance transmission of HDMI, DVI, VGA, SDI, CVBS, KVM Audio signals, ideal for those applications that require high performance, high-class confidentiality and long-haul extension.

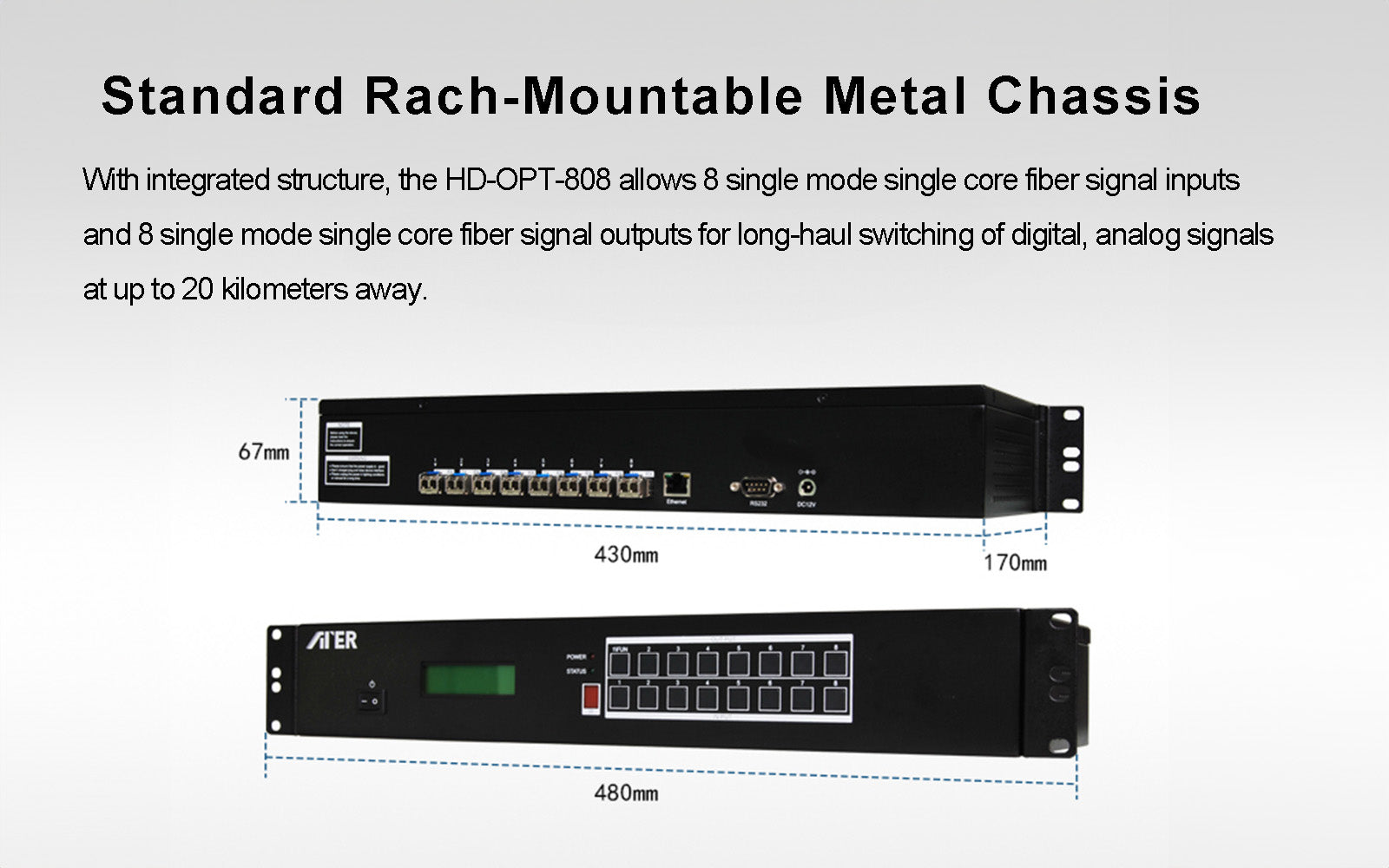

Advanced FPGA Hardware Technology

The HD-OPT-808 features integrated structure design in a standard 1U rack-mountable chassis, making it easy installation and space saving. With pure FPGA hardware design, it enables powerful signal processing capability and high reliability, supporting seamless switching of 8x8 fiber optic signals and HD fiber signal long-range transmission.

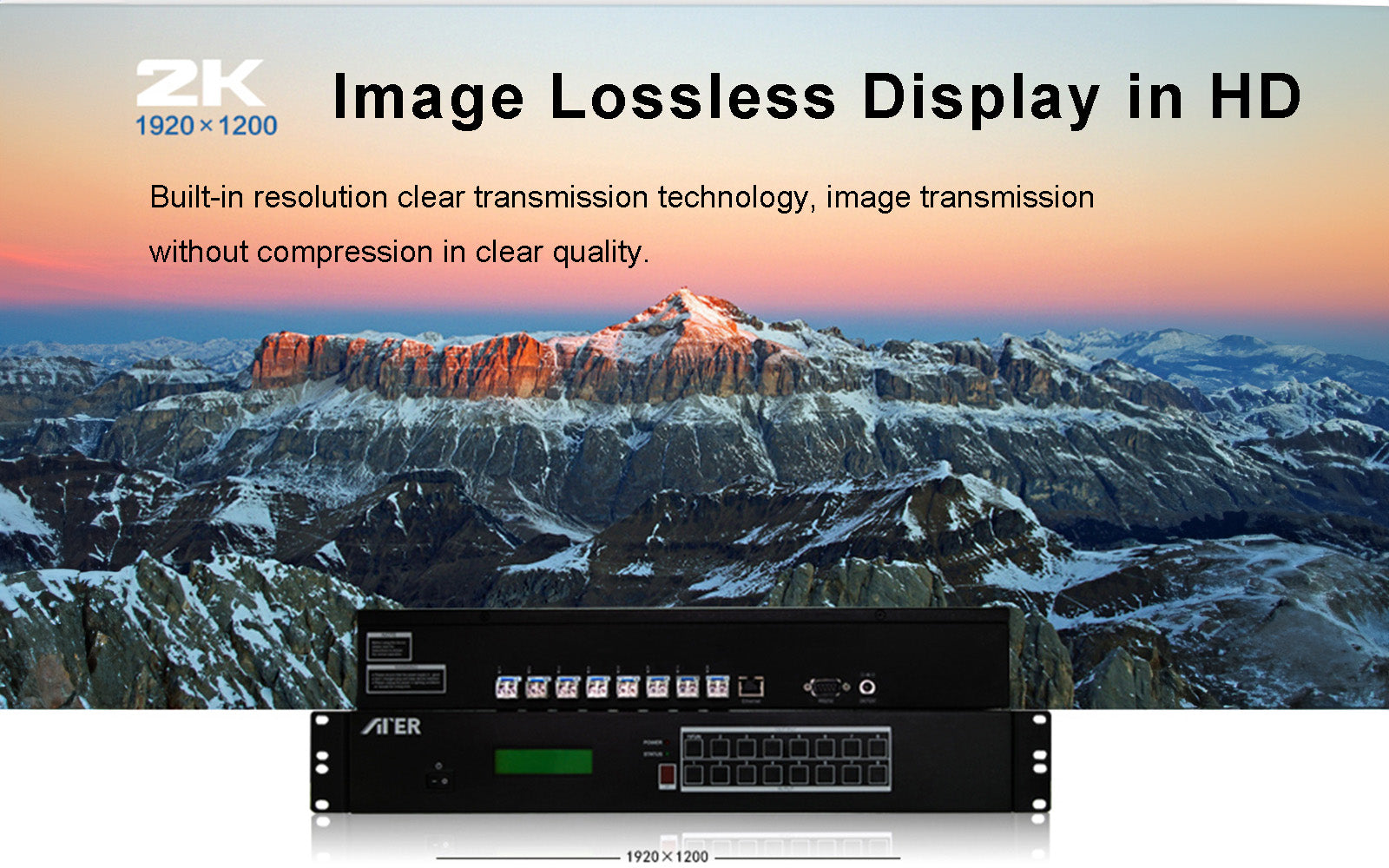

Full HD Signal Display at Full Frame Rate

The HD-OPT-808 supports up to 1920*1200@60Hz high definition signal display at full frame rate. With clear transmission technology and special H.264/H.265 encoding technology, uncompressed video transmission is processed with fine image detail.

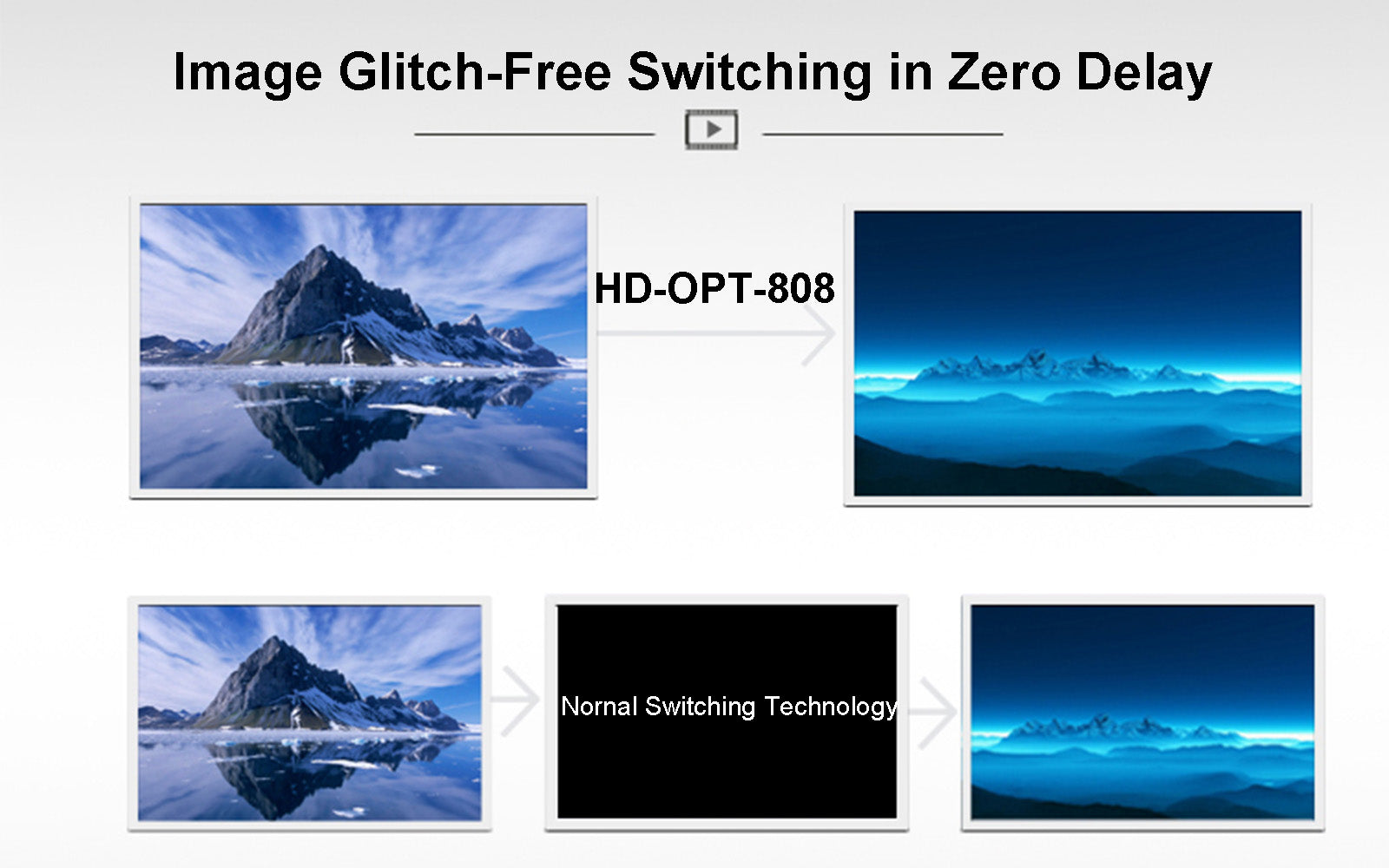

Glitch-Free Switching of Signal in Zero Delay

The HD-OPT-808 allows seamless and zero-delay switching of signals without blackout, jitter, or flashing, ensuring perfect visual experience on any display terminals.

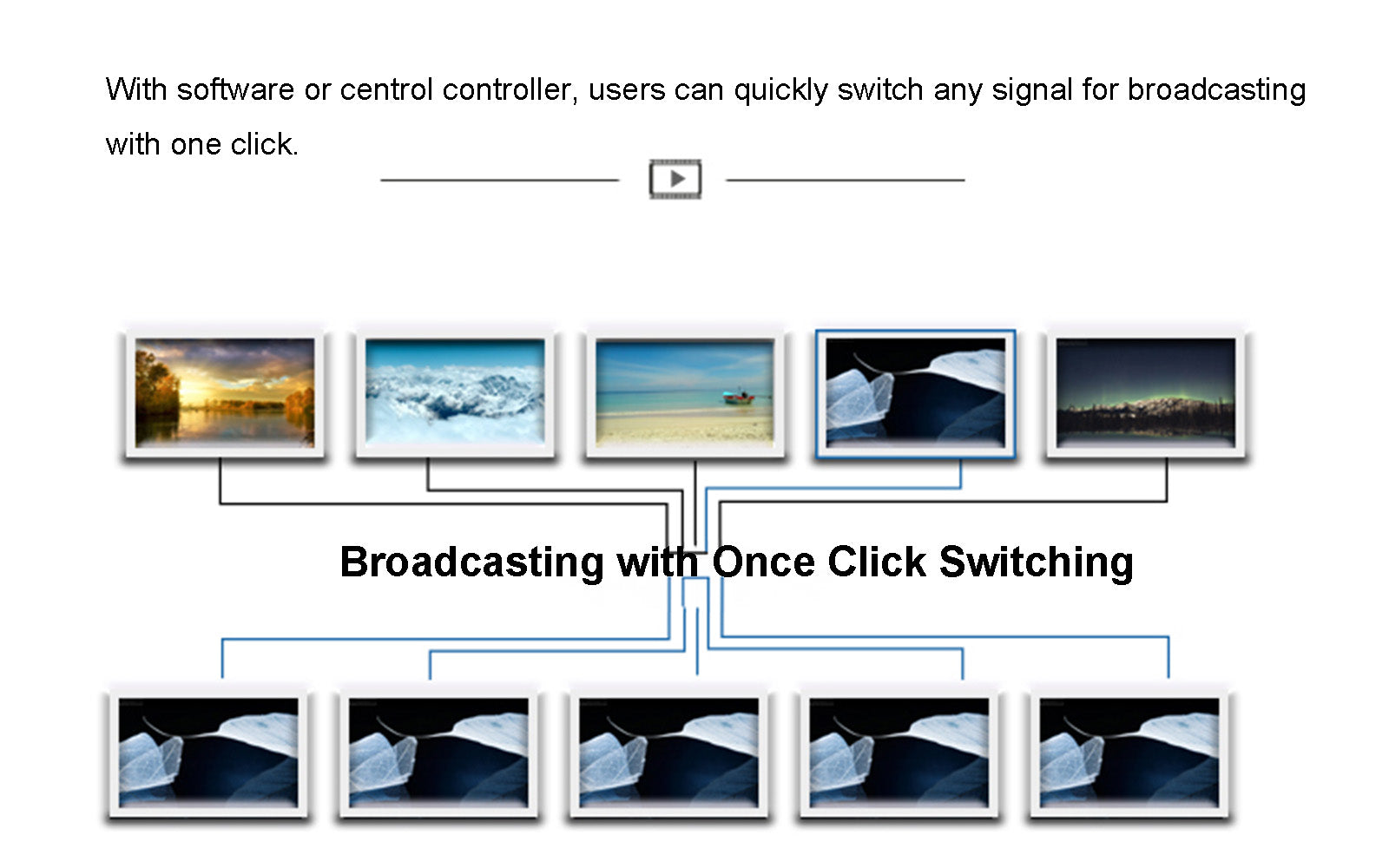

Data Presets for One Click Switching

With data saving and recall functions, the HD-OPT-808 enables simultaneous store of multiple signal switching display scenes, such as input broadcasting switching, input unicast switching etc. Users can perform one click recall of the scenes through the front panel buttons or infrared remote control for quickly signal switching.

Audio Embedding & De-embedding Flexibility

The synergy of video and audio makes the data exchanging more efficient. The HD-OPT-808 supports audio embedding and de-embedding. When working with DDMALL fiber optic transmitters, it enables different video signals like HDMI, DVI, VGA, CVBS, SDI to mix with digital audio or analog audio for transmission or conversion, making flexible audio video data presentation.

Overlay Text Simplify Data Management

Support OSD label. The HD-OPT-808 allows users to customize text to classify input sources, empowering intuitive data management.

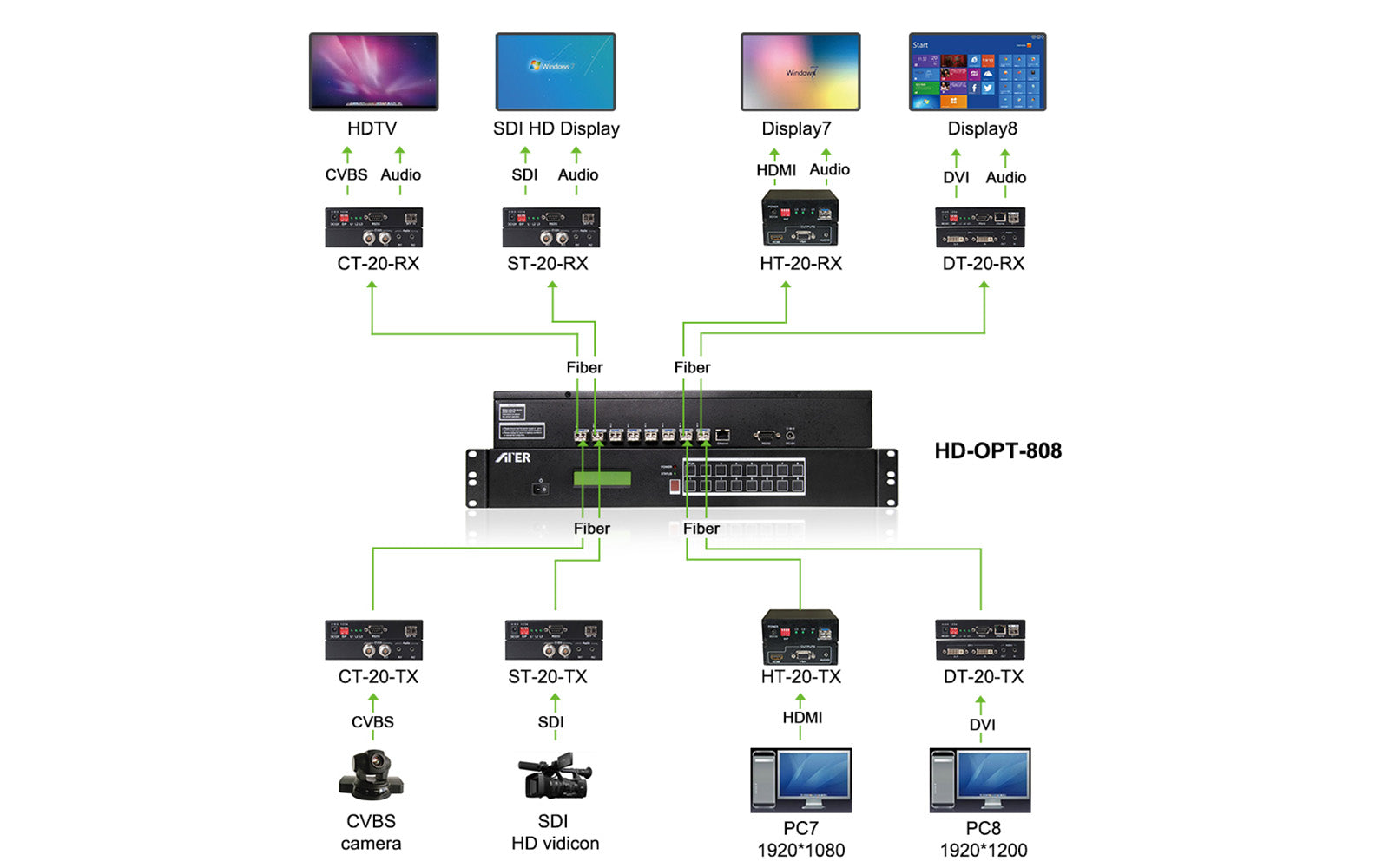

Selectable Fiber Optic Modules

Any DDMALL fiber optic module is selectable for HD-OPT-808, realizing freedom of mix and switching of any HDMI, DVI, VGA, SDI, CVBS, KVM, audio signals.

Selectable fiber optic transmitting module: HD-F02-TX、DT-20、ST-20-TX、CT-20-TX、KT-20

Selectable fiber optic receiving module: HD-F02-RX、DT-20、ST-20-RX、CT-20-RX、KT-20

 General Parameters

 Fiber Optic  AV Input
Number/Connector   8 inputs/LC mode connector
Signal Type  single-mode single-core fiber optic signal
Resolution  Max 1920*1200@60Hz
Data Rate  3.125Gbps
Center Wavelength 1310nm
Sensitivity Level  -18dBm
Insertion Loss  -30dBm
Return Loss  less than -30dB
Pixel Recovert  Automatic
Input Cable Length  5km, 10km, 20km, 40km(variable according to selected fiber receiving modules)

 Fiber Optic AV Output

Number/Connector   8 outputs/ LC mode connector
Signal Type  single-mode single-core fiber optic signal
Resolution  Max 1920*1200@60Hz
Data Rate  3.125Gbps
Output Rate  -3dBm
Center Wavelength  1310nm
Sensitivity Level  -18dBm
Insertion Loss  -30dBm
Return Loss  less  than -30dB
Pixel Recovery  automatic
Output Cable Length  5km, 10km, 20km, 40km(variable according to selected input transmitting modules)
Output Balance  support

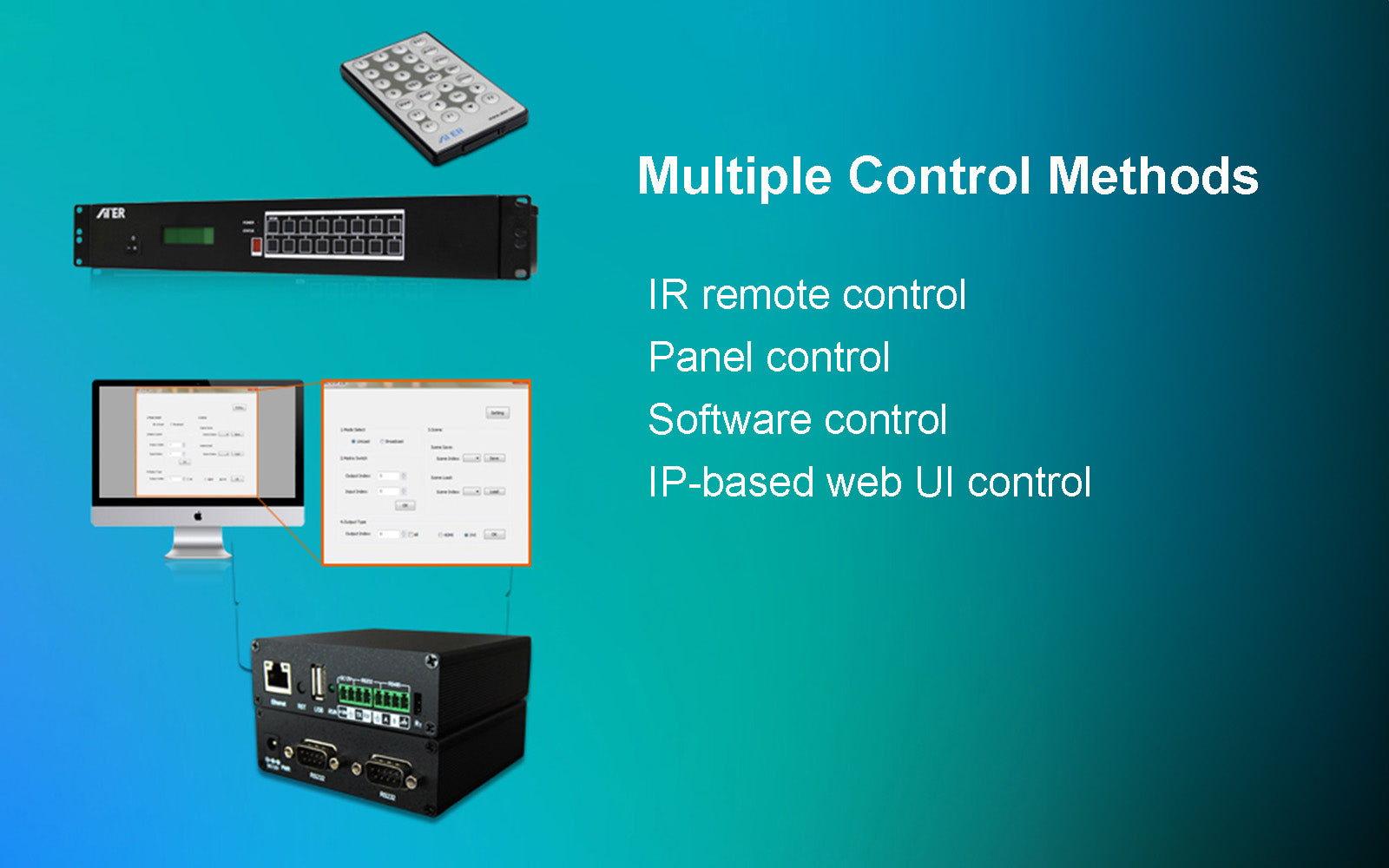

 Control Methods

Serial Control   RS-232(9-pin D connector)
IR Control  IR remote control
Panel Control  panel buttons
Network Control  TCP/IP; RJ45
Networkl Protocol  TCP/IP; UDP
Network Data Rate  10/100Based-T
Program Control  Matrix-Fiber control software
 Others
Power Supply   100-240V AC 50/60Hz
Power Consumption 300-500W(variable according to configuration)
Operate Temperature 5-40 celsius degree
Operate Humidity  15%-85% non-condensing
Operate Noise   ˂ 45dB
Product Size 43x16.8x6.5cm
Product Weight  7kgs
MTBF 30,000hours



[Purchase reminder]

For diffenerent application scenarios, almost DDMALL display processors need to be customized based on customer’s requirements. We would recommend you to contact us and tell us your using scenario or required technical parameters before order.

Meanwhile, technical background is a must to perform test and commissiong of DDMALL display processors. If you are not technical enough, we will recommend you to check in with us. Professional technical guide and free training will be offered to tackle the problems occured in your processing.

In the future, DDMALL will recruit a oversea expert team focusing on technical support and field installation services in local markets. If you are a technical stuff, who are willing to accept technical training for DDMALL products and are dedicated to provide professional technical service in your market, please contact us.
