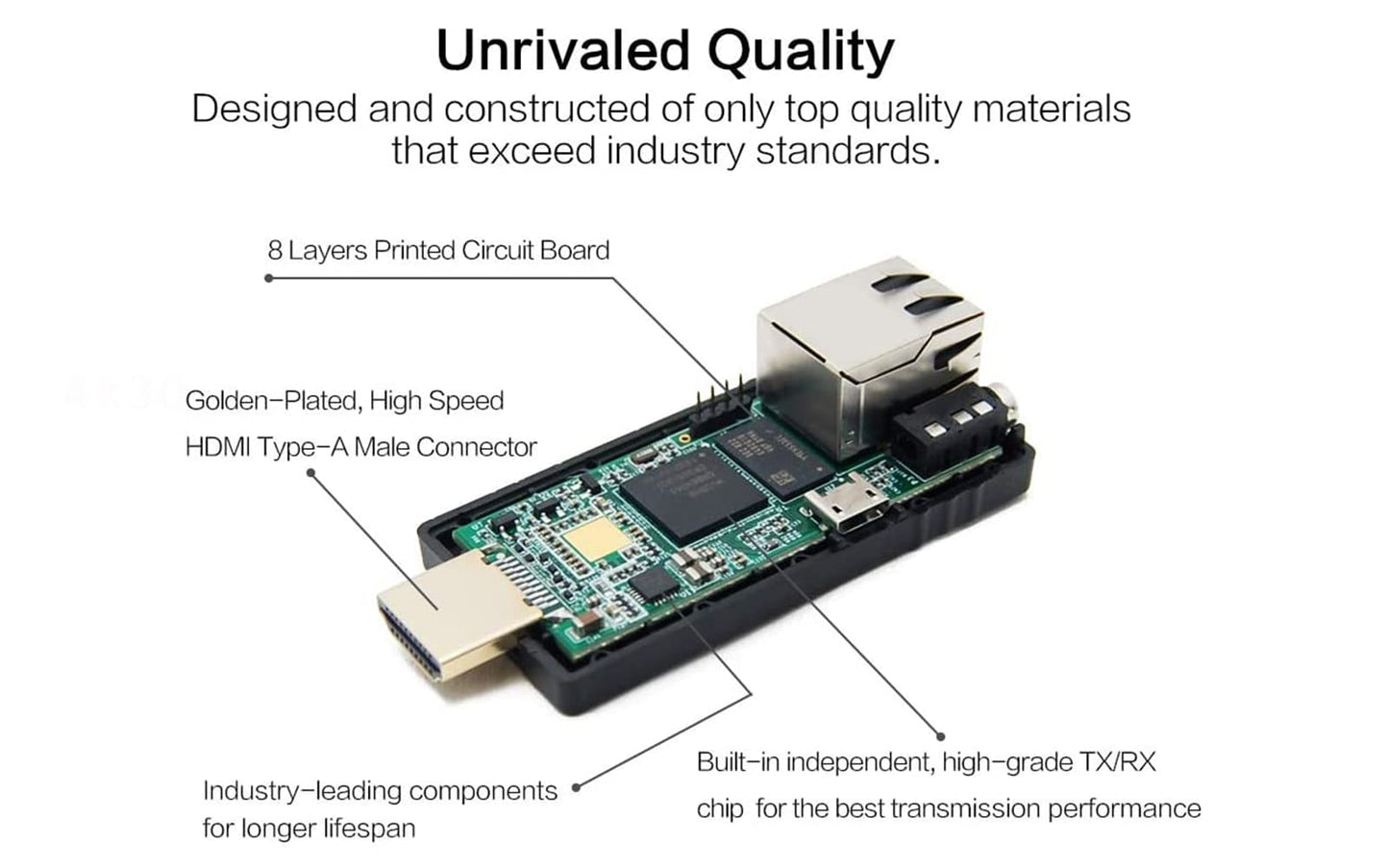

![HIP-20 Transmitter Receiver-unrivaled quality](http://www.ddmalltech.com/cdn/shop/files/2_51b2b273-7070-481c-9cca-01867da8fcc4.jpg?v=1701939428&width=1445)
![HIP-20 Transmitter Receiver-compact size](http://www.ddmalltech.com/cdn/shop/files/3_8ba44937-e51f-4b05-bc19-355e70d1d426.jpg?v=1701939428&width=1445)
![HIP-20 Transmitter Receiver- hdmi over ip solution](http://www.ddmalltech.com/cdn/shop/files/4_5dd65dea-2941-4188-99ad-d00b2a778834.jpg?v=1701939428&width=1445)
![HIP-20 Transmitter Receiver-various applictions](http://www.ddmalltech.com/cdn/shop/files/5_8e6142d2-a6ac-4aa7-9443-daf60fa2b5c3.jpg?v=1701939429&width=1445)
![HIP-20 Transmitter Receiver-video and audio quality](http://www.ddmalltech.com/cdn/shop/files/6_b0f63d73-a5c4-4931-85ca-919cfcf2bd39.jpg?v=1701939427&width=1445)
Overview

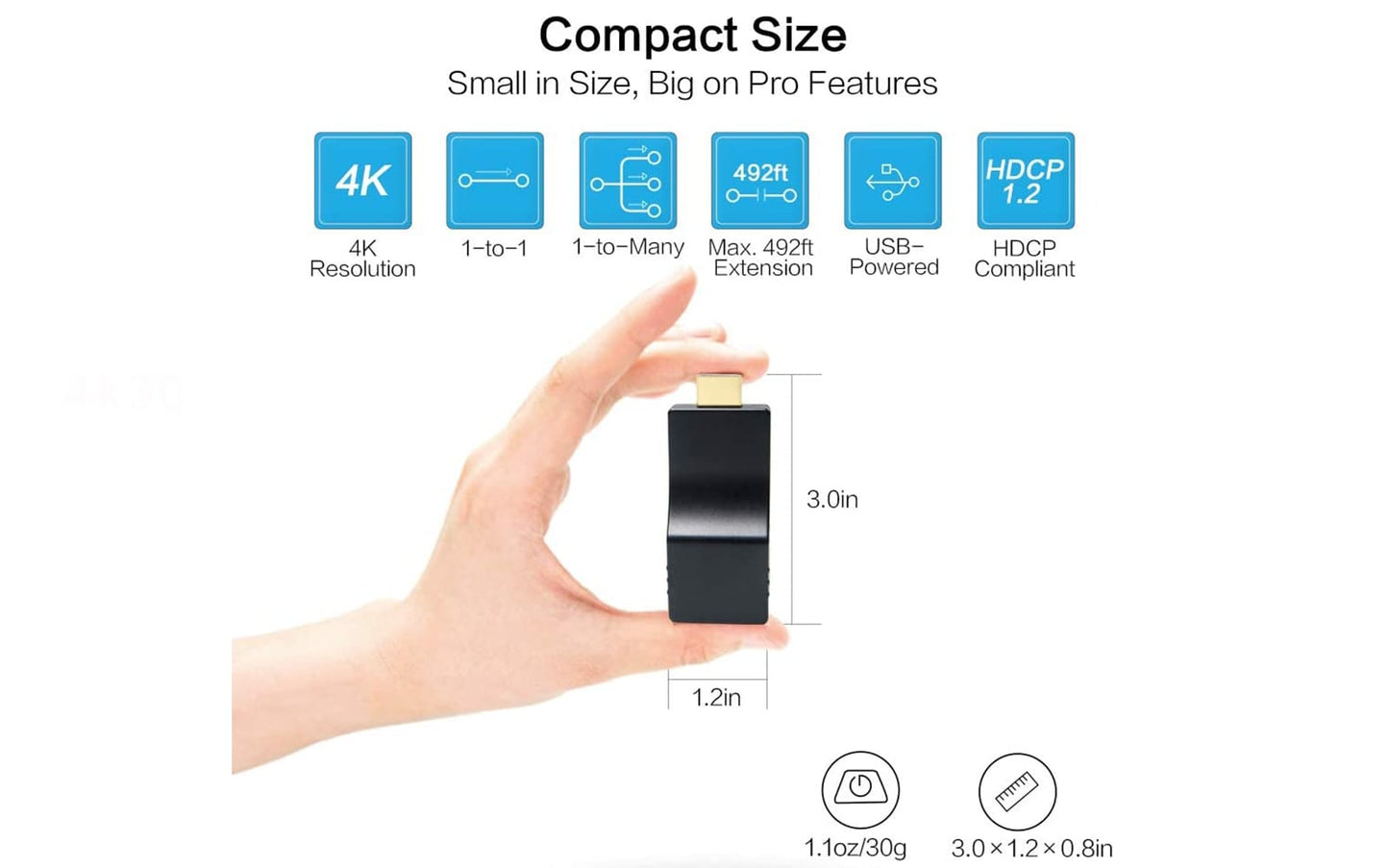

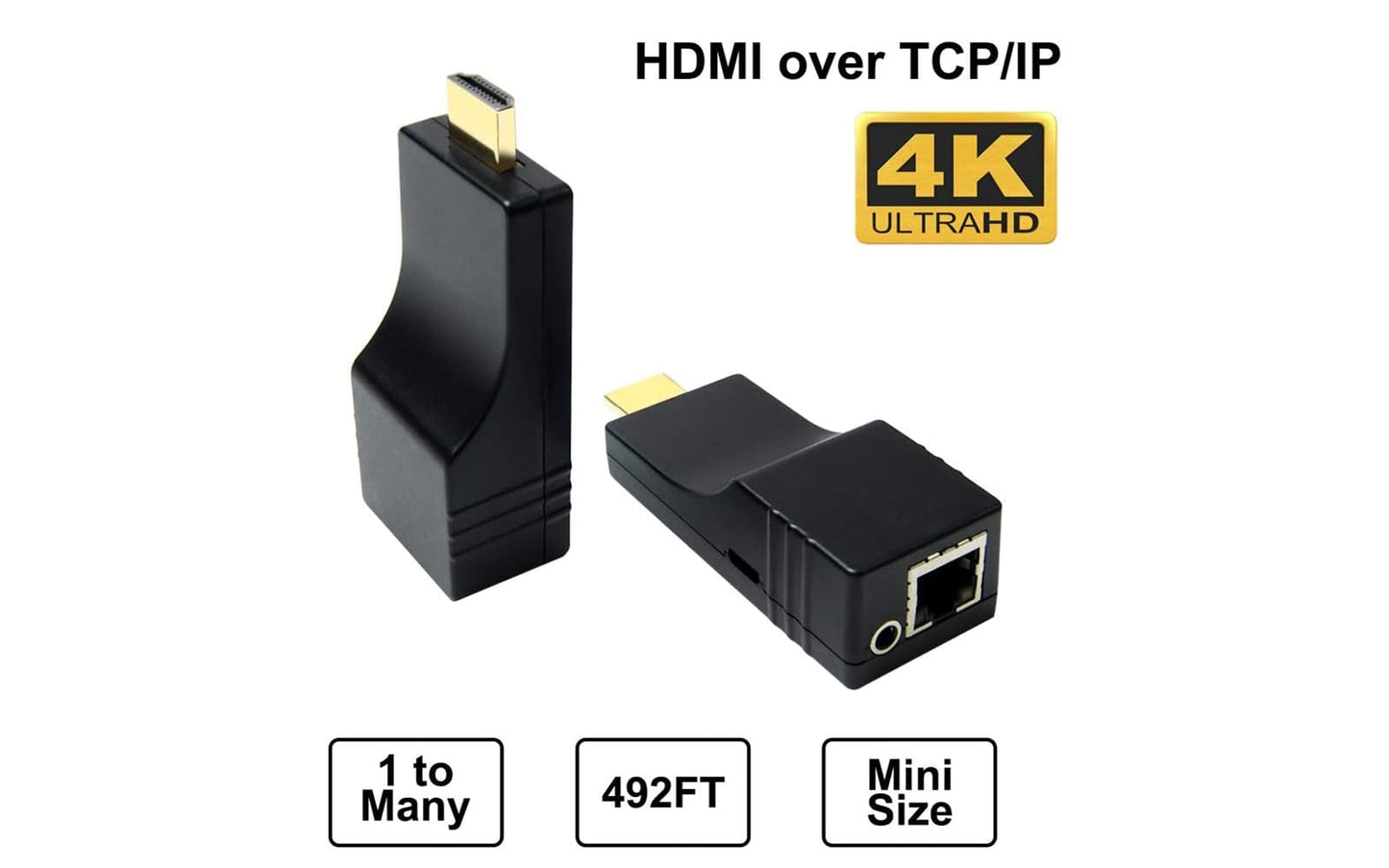

Portable HDMI over Ethernet Transmitter Receiver: Ultra-mini(75x32x22mm) and ultra-lightweight(64g). The HDMI ethernet extender is ideal for video transmission and broadcasting systems that require frequent move and have strict installation space.
Energy-Efficient & USB-Powered: Ultra-low power consumption(2.5W). The HDMI extender accepts power from mobile power bank, or the USB port of signal srouces and display terminals respectively; no additional power adapter is required. The TX transmitter can even take power directly from most HDMI sources without extra power supply. Easy to install and free from setup; plug and play.
4K Ultra HD Image Quality: The 4K HDMI extender adopts H.265 HEVC codec technology to achieve IP transmission of HDMI audio and video. HDMI inputs up to 4K@30Hz; support 4K H.265/HEVC encoding and 4K UHD HDMI decoding for output in true 4K.

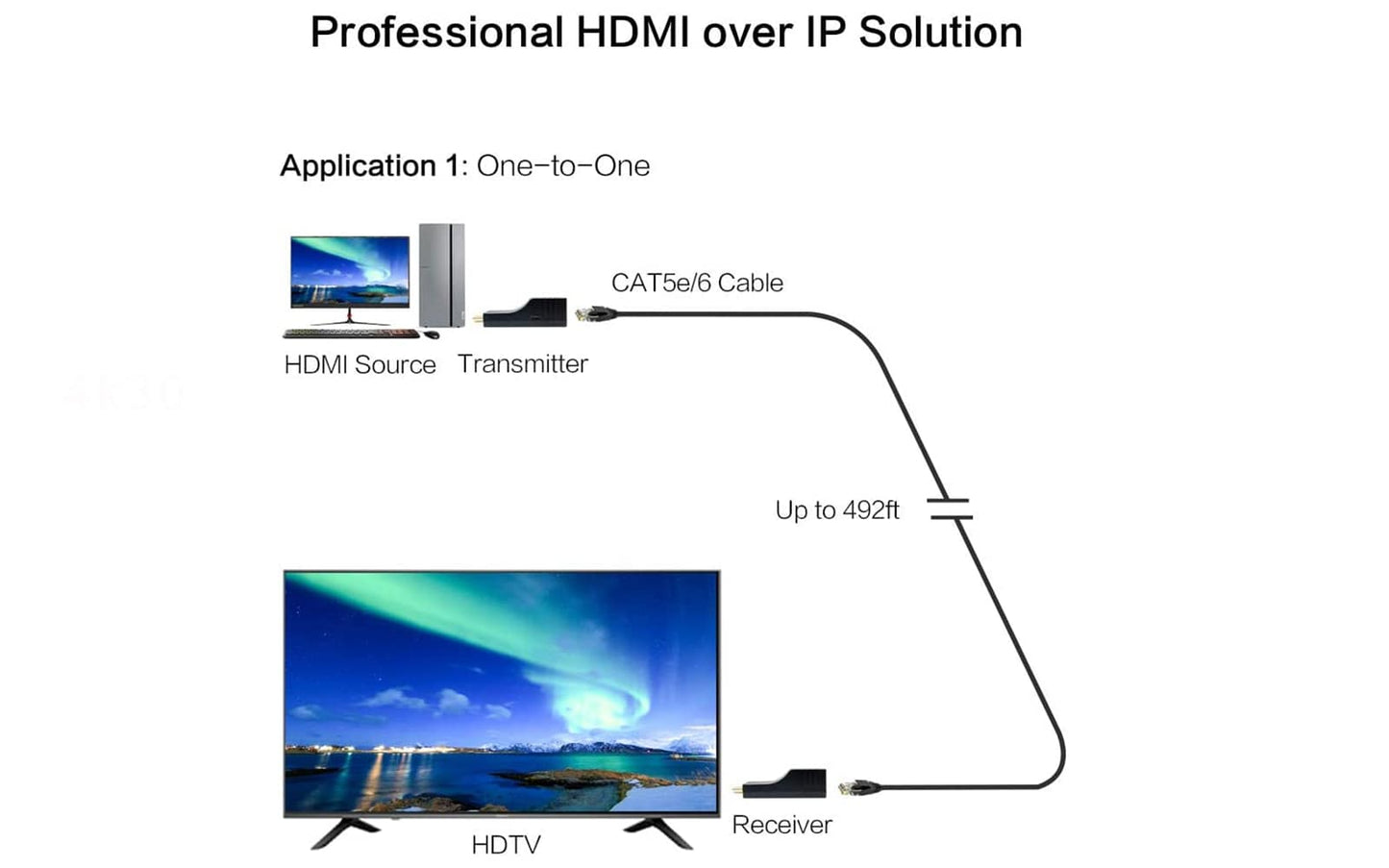

Transmission Latency as Less as 0.08s: HDMI signal long-distance transmission is achieved over twisted-pair cables with transmission latency as less as 0.08s in 1080P. Support 1-to-1 network cable direct connection with transmission range up to 492ft/150m. Support the TX and RX receivers to join the same LAN via a switch and perform video transmission over the LAN. As a HDMI over powerline extender, AV transmission can be conducted over the exising power lines with a powerline adapter.

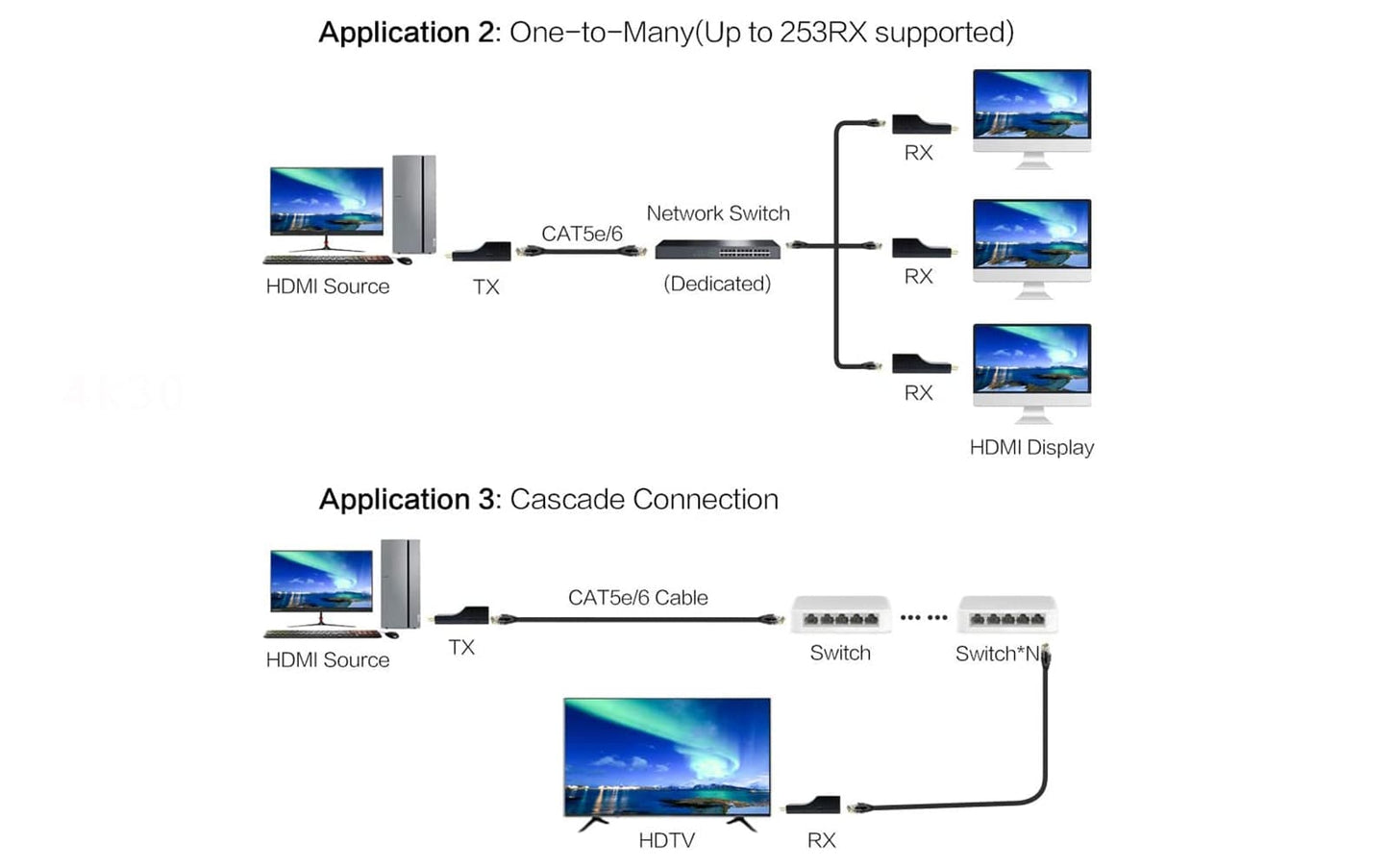

1-to-Many Video Broadcasting: Multiple RX receivers can be purchased separately to perform 1-to-many video broadcastting over the LAN. 1 TX transmitter supports up to 253 RX receivers(1-to-253 broadcasting). The TX and RXs can be added to the same LAN through a switch without setup to realize video transmission and broadcasting.
![](https://cdn.shopify.com/s/files/1/0271/8515/2134/files/A_1_d3b4f956-07a3-44bb-abea-91da0e1c69dc.png?v=1695799559)

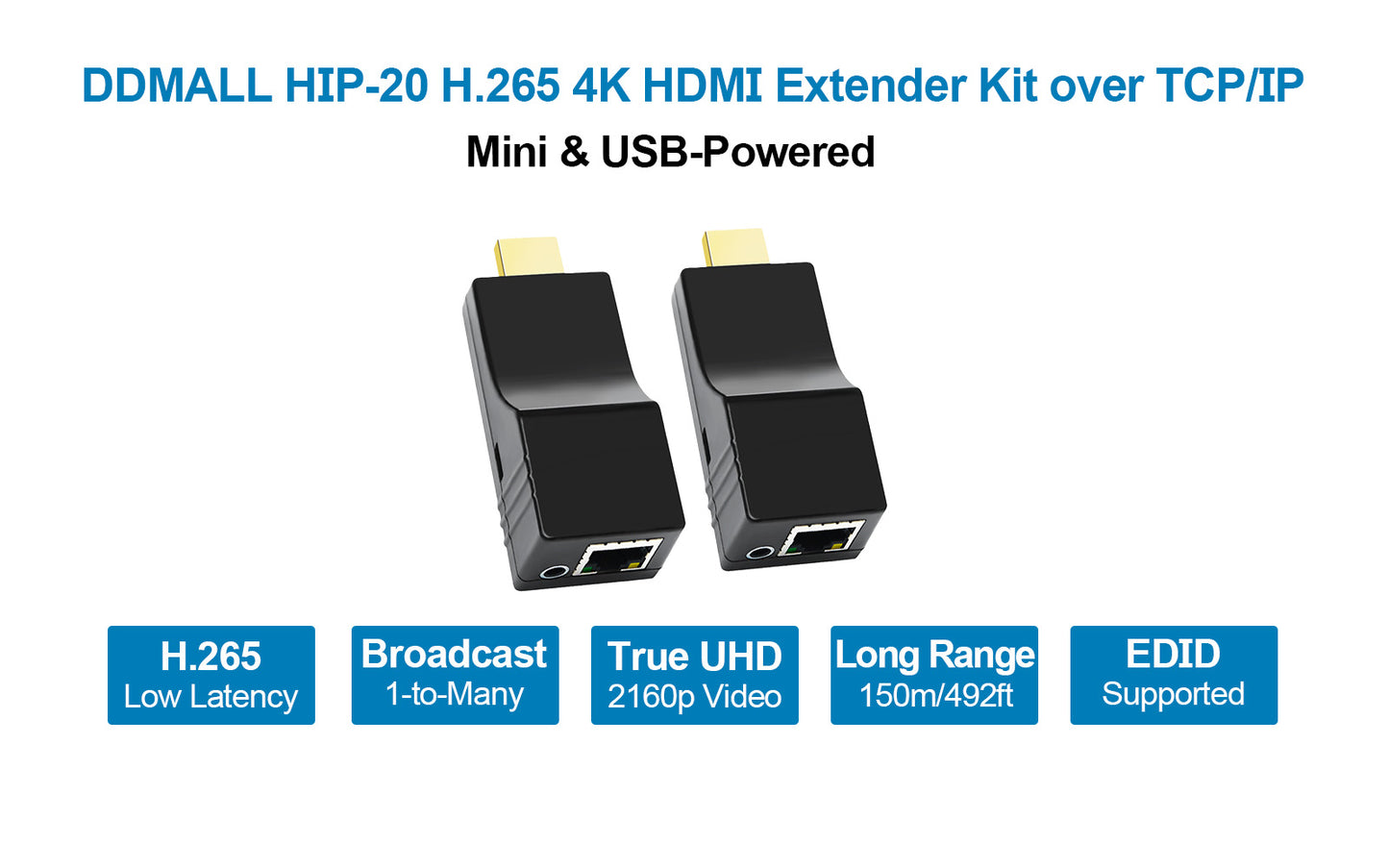

The HIP-20 is a 4K HDMI over IP transmitter and receiver kit launched by DDMALL. The ultra-compact and ultra-lightweight form factor makes it ideal for the video transmission applications that require frequent move or require tiny installation space. The HDMI over ethernet extender kit is USB-pwered and it accepts power from the USB port of signal sources and display terminals respectively. It offers a reliable video transmission solution in 4K@30Hz with H.265 HEVC with as less as 0.08s in 1080P transmission. In 1-to-1 video transmission scenarios, the HDMI ethernet extender can be set up over single cat6 or cat7 with transmission range up to 492ft/150m. In 1-to-many(up to 253) video transmission scenarios, the TX transmitter and RX receivers are connected to the same switch over twisted-pair cables on the same LAN to perform video transmission and broadcasting. Beyond that, as a UHD HDMI over poweline video extender kit, it can be set up on the existing power lines with the help of a powerline adapter.
![](https://cdn.shopify.com/s/files/1/0271/8515/2134/files/A_2_3b7ef946-ea74-4923-9ada-ea81f89aef79.png?v=1695799937)
Easy Setup & Cost-Effective
With the ultra-compact form factor, the HDMI over TCP/IP extender can be hidden on the back of your projector, TV, monitor simply. Both the TX transmitter and RX receiver are USB-powered so they can take power for the USB port of your HDMI sources or display terminals.(e.g. a USB port on your TV box, projector, TV, etc.). No more power adapters are needed, no more HDMI cables are required. The HDMI over TCP/IP extender can be set up on the existing power lines with the help of powerline adapter, which will greatly reduce the total cost.
![](https://cdn.shopify.com/s/files/1/0271/8515/2134/files/A_3_12ad7b53-dfda-41c9-bf80-175c857530f3.png?v=1695800377)
4K Ultra HD HDMI Ethernet Extender for 1-to-1, 1-to-Many Transmission
The HIP-20 is a true HDMI over TCP extender kit which allows HDMI input up to 4K@30Hz and output up to 4K@60Hz in near-time delay. The HIP-20 HDMI extender kit can be set up over a sing cat 5e or cat 6 to perform 1-to-1 direct connection and transmission. It can also be set up through a switch on the same LAN to perform 1-to-many video transmission and distribution. one TX transmitter can support up to 253 RX receivers.
![](https://cdn.shopify.com/s/files/1/0271/8515/2134/files/A_8.png?v=1695361191)

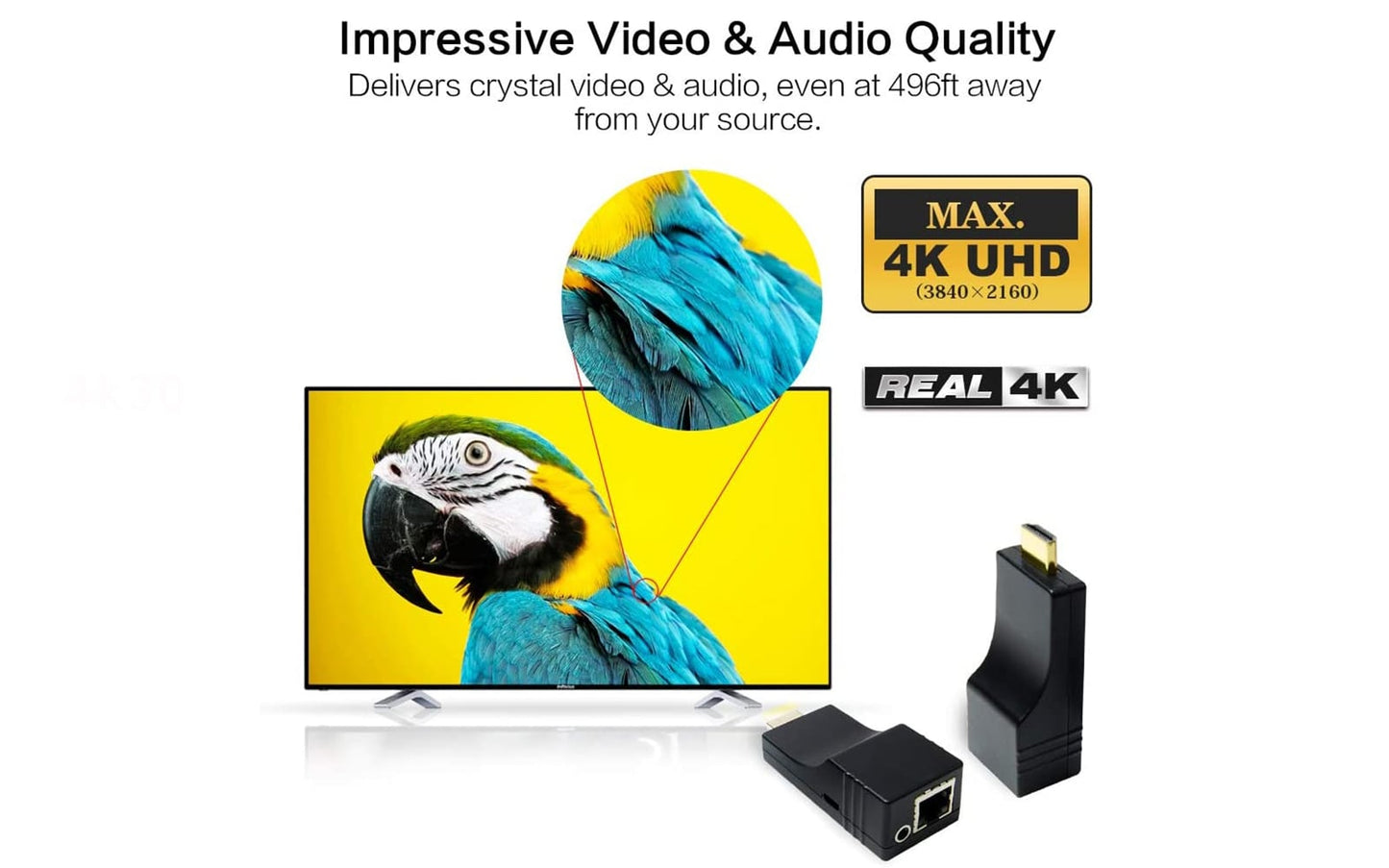

H.265 Technology, High-standard Video and Audio Quality
This mini HDMI over IP extender apply advanced H.265/HEVC technology for image processing. With anolog 3.5mm ear-jack and HDMI audio, you can switch between the two audio inputs format easily. Based on the same line, you video audio transmission will be conducted properly in ultra-clear clarity and reliable transmission.
Specifications
• Extension Range: 492ft/150m (Point-to-Point)
• Supported Input Resolution: 720p@50Hz, 1080i@30Hz, 1080i@50Hz, 1080p@60Hz, 1080p@50Hz, 1080p@60Hz, 2560×1440@30Hz, 3840×2160@30Hz
• Supported Output Resolution: 1920×1080@60Hz, 3840×2160@60Hz
• Supported Audio: 3.5mm Analog Audio, HDMI LPCM 2.0
• Transmission Modes: One-to-One, One-to-Many, Cascade Connection (Up to 253 RX Supported)
What's in the Box
• 1× HDMI Transmitter, 1× HDMI Receiver
• 2× HDMI Male to Female Cable
• 2× HDMI Female to Female Adapter
• 2× Micro USB Power Cable
• 2× 3M Double Sided Tape
• 1× User Manual
Friendly Reminder
• Please use an unmanaged, dedicated network switch for network setup with multiple receivers.
• For the best video quality and longer distance extension, we recommend you to use high quality CAT5e/CAT6 cable.
