AGP-P-4K Series Matrix Switchers

$8,848.00 available: In Stock
概要:Price varies for different hardware configuration, please reach us and provide your detailed hardware configuration for calculation before an order is placed.

Based on FPGA Hardware Technology, Hot-swappable Modular Design

The AGP-P-4K park series matrix switchers adopt advanced FPGA hardware technology and hot-swappable modular design which accept any combination of analog and digital signals. They are compatible with SD, HD, 4K and 8K UHD systems. 8×8, 36×36 and 144×144 matrix switchers are available. Specially designed for today's high performance requirements, the AGP-P-4K park series matrix switchers are ideal for applications that require reliable, high performance switching of video and audio signals between multiple source and displays.

Supports 4K UHD

The AGP-P-4K park series matrix switchers support multiple formats of UHD 4K×2K signals. UHD features a massive 3840?2160 frame size that's four times the resolution of regular 1080 HD video which brings users more vivid visual experience.

● HDMI1.4a, HDMI2.0 standards
● HDCP2.0, HDCP2.2 compliant
● Supported resolutions include 3840x2160@24Hz/30Hz/60Hz 4096x2160@24Hz/30Hz/60Hz
● Chroma sampling 4:4:4, 4:2:2, or 4:2:0
● Compatible with Duallink DVI、HDMI、HD-SDI and 3G-SDI
● Support the simultaneous transmission of audio signal



Superior Video Quality

The AGP-P-4K park series matrix switchers support 4K×2K resolution point to point display with embedded audio. The AGP-P-4K park seriesfeature automatically convert 2K signal to 4K with the built-in scaler. Support the scaling function for different video resolutions. In addition, the AGP-P-4K park series support four HD images to be displayed on one 4K display simultaneously which provide users with an unprecedented degree of flexibility.


Supports UHD Point to Point Display

The AGP-P-4K park series modular matrix switchers provide a flexible and convenient method of controlling signal sources to the display over different formats. Users can assign any sources to display on multi-screen. Full screen, M×N, 2K and 4K point to point displays are available, thus making the AGP-P-4K park series ideal for large-scale AV applications such as broadcasting stations, traffic and transportation-related control rooms, emergency service centers and any application that requires customizable high speed AV signal switching.



Support Quad Equal Windows Display Simultaneously

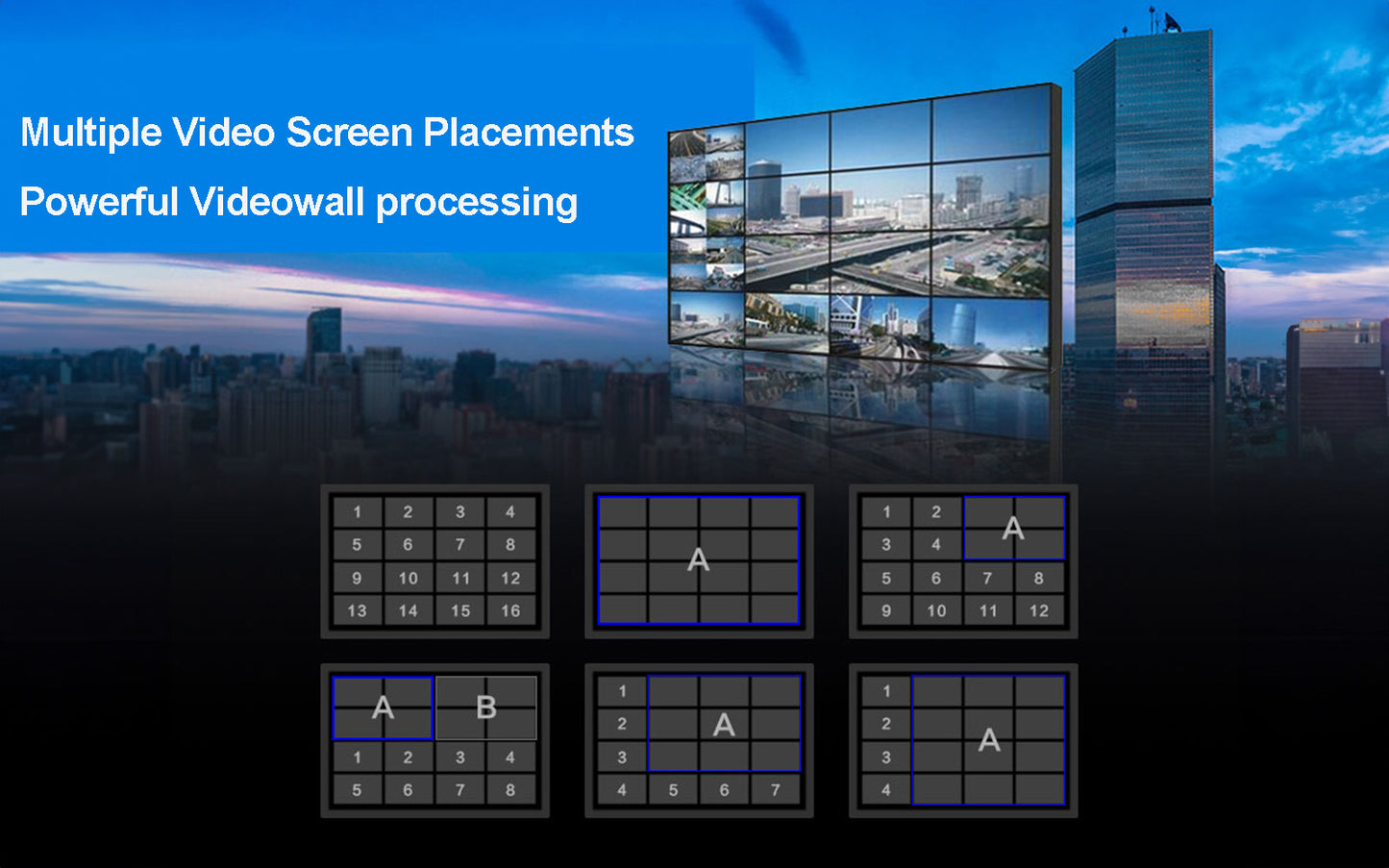

The AGP-P-4K park series matrix switchers support quad equal windows display simultaneously. Quad windows at 1920×1080 can be displayed on a single screen. Easily switch between multiple sources and multiple displays.



Windows can be Rotated Independent of Source Spin in 90°/270°

The AGP-P-4K park series matrix switcher with single card support windows rotation of four signal source. Windows can be rotated independent of source spin in 90°/270°. The output format and resolution are user-selectable which provide users with an unprecedented degree of convenience. They are widely used in the large-scale digital signage and the occasions with limited space.

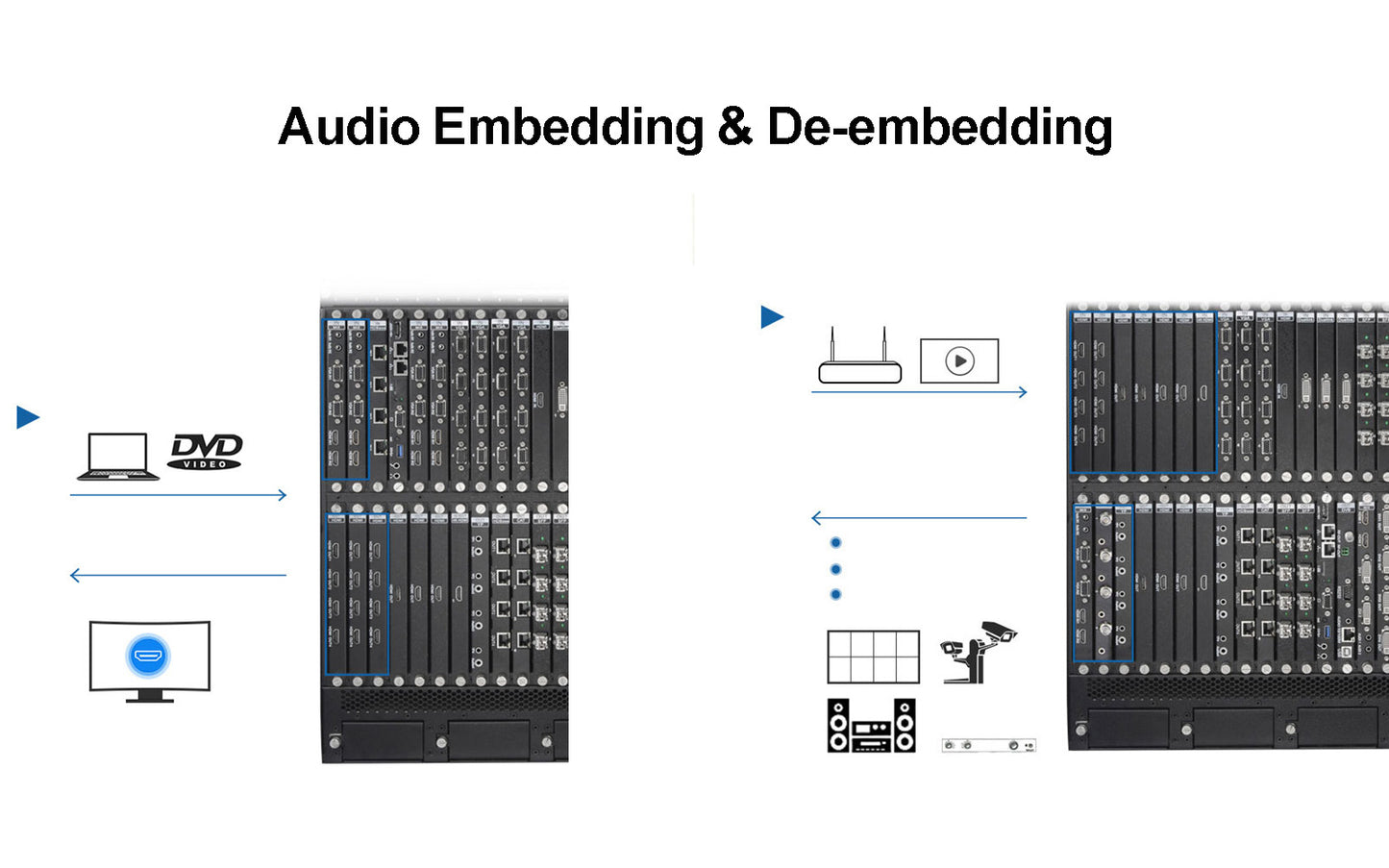

Built-in Audio Embedding and De-embedding Function

The AGP-P-4K park series matrix switchers provide highly flexible configuration and processing options for the audio inputs and outputs, and for distributing the audio in a system. Each video input can be accompanied by embedded digital audio or separate analog audio with the built-in audio embedding and de-embedding function.

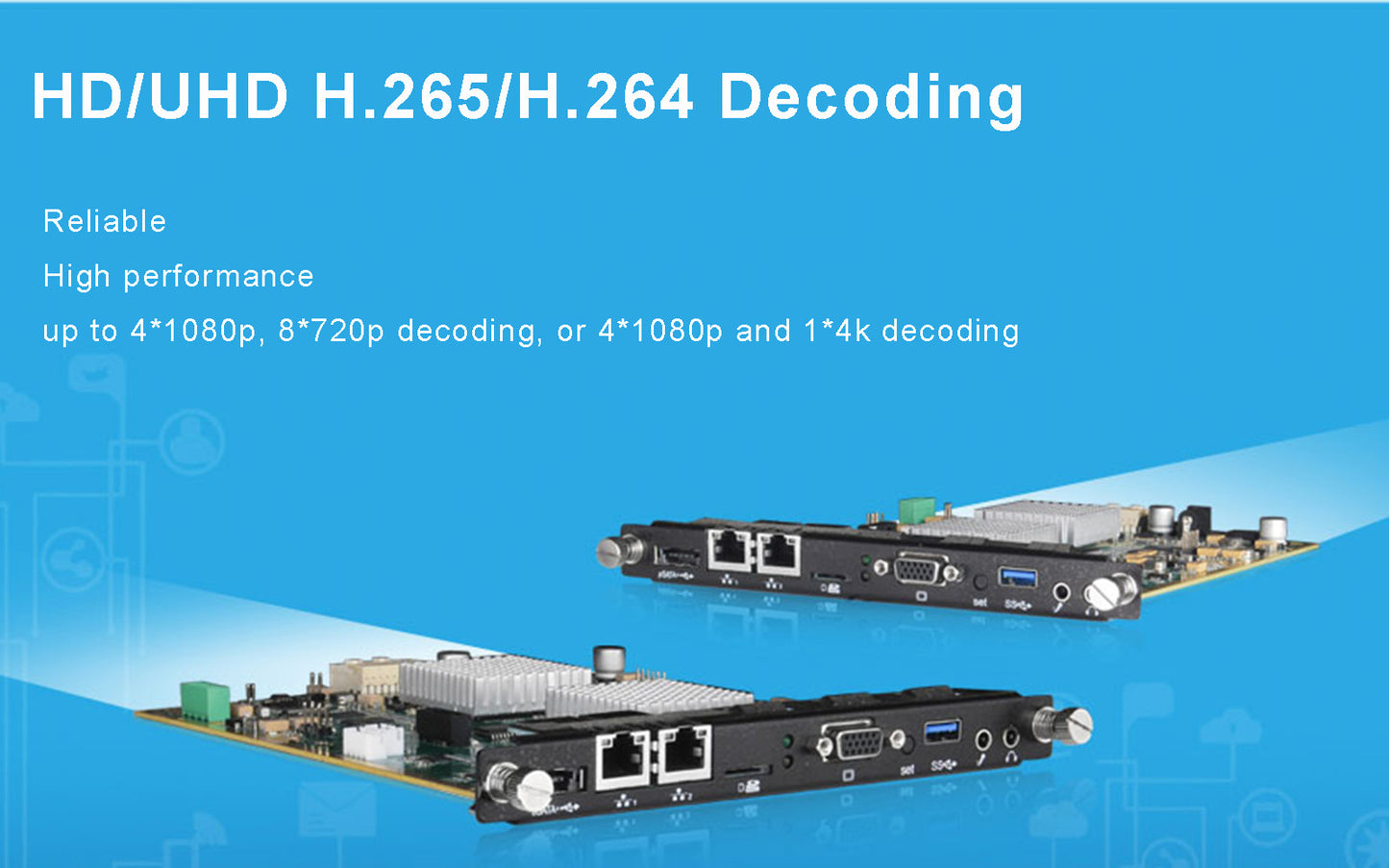

HD/UHD Signals Encoding and Decoding Technology

The AGP-P-4K park series matrix switchers adopt advanced H.264 and H.265 decoding technology. They can decode all kinds of encoders with IP standard. They feature the capability of decode four 1080p signals, eight 720p signals and sixteen 480p signals simultaneously. In addition, they can also simultaneous decode four 1080@60Hz and one 4K signals.



Advanced Digital CATV Transmission Technology

The AGP-P-4K park series matrix switchers adopt advanced CATV transmission technology. They are fully meet the European DVB standard and the Japanese ISDB standard CATV formats. The performance is demonstrably superior to the industry standard.



Virtualized Platform Design

The AGP-P-4K park series matrix switchers can work standalone or integrated with a control system with the virtualized platform design. Users can operate AV devices for centralized management and monitoring through the professional virtualized platform software.



User-defined Loop Output

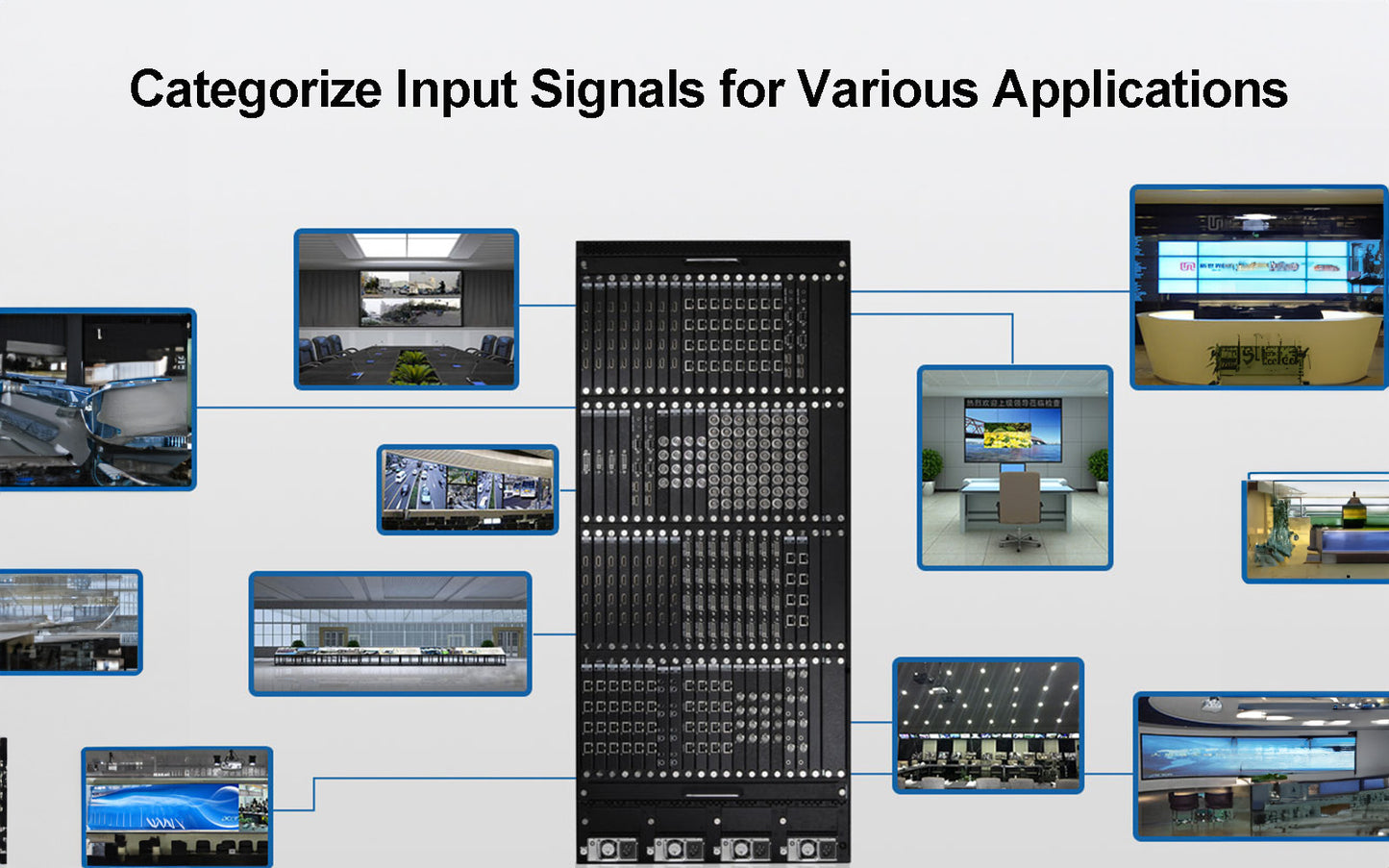

The AGP-P-4K park series matrix switchers support input grouping and output looping management. The interval time and the mode of output looping is user-defined. They are widely used in the remote monitoring, mission-critical control room, traffic management center, security operations center and command center, etc.



One-touch Setup

The AGP-P-4K park series matrix switcher is easy to setup. Users can finish the initial configuration through one-touch setup function which provides easy configuration, lower cost, reliable and flexible solution.



Real-time Output Preview

The AGP-P-4K park series matrix switchers provide the interface with real time output preview function. Users can check the desirable signal source through the software. The preview and the display state is fully synchronized.



Browser-based Graphical User Interface

● On-screen display
● Automatic incoming signal detection, real-time output preview
● One-click signal switching method
● Built-in data packets, scene setup and auto-loop functions
● Authority management
● Data backup and fast recovery

Based on FPGA Hardware Technology, Hot-swappable Modular Design

AGP-P-4K series is a fully-featured multimatrix switcher which supports both analog signal and digital signal. These series multimatrix switchers are designed for engineering application standpoint, and take fully consideration towards body mechanics principle. Users can choose different cases based on particular engineering demands, and choose multiple groups of input and output integrated circuit boards, to have the DIY matching modular design of the devices. To make the data integration more wonderful, we have a lot of integrated circuit boards including VGA/DVI/HDMI/Video/YPbPr/SDI/CAT/HDBaseT/Fiber/DualLink 4K/HDMI 1.4a 4K/Audio/IP signal boards, 2K/4K PIP, audio-visual embedding and de-embedding, audio-visual encoding and decoding, monitoring and recoding and other functional integrated circuit boards.


Available Plug-In Cases


AGP-P-150-4K case

1.5U standard case has two input card slots, two output card slots, including detachable power and fan.


AGP-P-300-4K case

3U standard case has five input card slots, four output card slots, including detachable power and fan.


AGP-P2-300-4K case

3U standard case has four input card slots, five output card slots, including detachable power and fan.


AGP-P-800-4K case

8U standard case has nine input and nine output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.


AGP-P-1200-4K case

12U standard case has 18 input and 18 output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.


AGP-P-2400-4K case

24U standard case has 36 input and 36 output card slots, one built-in power supply and three redundant power supplies, including detachable power and fan.


Available Hot-swappable Input Boards


AGP-P-4I-VGA VGA input board

Supports four VGA inputs. VESA standard. Supported resolutions range from 800x600 to 1920x1200.

AGP-P-4I-DVI DVI input board

Supports four DVI-I inputs, DVI1.0 protocol, up to 1920x1200 resolution.

AGP-P-8I-video video input board

Supports eight video inputs, NTSC, PAL and all-standard video signals.

AGP-P-4I-CAT twisted-pair input board

Supports four twisted pair inputs, self-adapted DVI and HDMI, up to 1920x1200 resolution. CAT.5e/CAT.6 twisted pair cable is available. The maximum transmission up to 50m.

AGP-P-4I-HB HDBaseT input board

Supports four HDBaseT signals input. CAT.5e/CAT.6 twisted pair cable is available. Supported resolution up to 1920x1200.

AGP-P-4I-HDMI HDMI input board

Supports four HDMI inputs, HDMI1.4 standard, HDCP compliant. Audio embedded. Compatible with DVI. Supported resolution up to 1920x1200.

AGP-P-4I-YB YPbPr input board

Supports four YPbPr inputs, 1080p resolutions. VGA connector.

AGP-P-4I-SDI SDI input board

Supports four SDI inputs, SMPTE 259M/SMPTE 292M/SMPTE 424M standards. Compatible with HD-SDI and 3G-SDI.

AGP-P-4I-Fiber optical fiber input board

Supports four optical fiber inputs, self-adapted HDMI(with embedded audio), DVI, SDI, CVBS, KVM, etc. Transmits signal via single-mode optical fiber.

AGP-P-4I-IP encoding input board

Decodes four 1080p and eight 720p signals. Supports H.264, H.265, MPEG4, MPEG2 and other mainstream encoding formats. The decoding of G.711A, ACC audio formats and double gigabit Ethernet are available.

AGP-P-1I-4K 4K input board

Supports one HDMI 4K signal input, HDMI 1.4a standard, up to 4Kx2K resolutions.

AGP-P-1I-DL 4K input board

Supports one Duallink DVI 4K signal input, the maximum resolution up to 8Kx4K.

AGP-P-I-MIXA10 audio+video input board

Supports the embedding of audio-video signals, two VGA+audio, two HDMI inputs, meets the VESA standard. Supports stereophonic line input, HDMI1.4 standard, compatible with DVI and embedded audio input.




Available Hot-swappable Output Boards


AGP-P-4O-DVI DVI output board

Supports four DVI-I outputs, DVI1.0 and VESA standards, up to 1920x1200 resolution.

AGP-P-4O-CAT twisted-pair output board

Supports four twisted pair outputs, self-adapted DVI and HDMI, up to 1920x1200 resolution. CAT.5e/CAT.6 twisted pair cable is available. The maximum transmission up to 50m.

AGP-P-4O-HB HDBaseT output board

Supports four HDBaseT signals input. Supported resolutions up to 1920x1200, including 1080p/60 and 2K. CAT.5e/CAT.6 twisted pair cable is available.

AGP-P-4O-HDMI HDMI output board

Supports four HDMI outputs, HDMI1.4a standard. 1920x1200 resolution supported. Audio embedded.

AGP-P-4I-SDI SDI output board

Supports four SDI outputs, SMPTE 259M/SMPTE 292M/SMPTE 424M standards. Compatible with HD-SDI and 3G-SDI.

AGP-P-4O-YB YPbPr output board

Supports four YPbPr outputs. DVI connector. Supported resolution up to 1080p.

AGP-P-4O-video video output board

Supports four video outputs, NTSC, PAL and all-standard video signals.

AGP-P-4O-Fiber optical fiber output board

Supports four optical fiber outputs. Self-adaptive HDMI(with embedded audio), DVI, SDI, CVBS, KVM, etc. Transmits signal via singlemode optic fiber.

AGP-P-4O-AU audio output board

Supports four audio outputs. 3.5mm ear-jack. Stereo audio line output supported.

AGP-P-4O-YBA audio-video output board

Supports four YPbPr+audio outputs. 1080p/1080i supported. 3.5mm ear-jack. Stereo audio line output supported.

AGP-P-4O-CVA audio-video output board

Supports four video+audio outputs. All-standard videos, NTSC and PAL standard supported. 3.5mm ear-jack.

AGP-P-O-MIXA10 audio-video output board

Supports audio and video decoding. Two DVI+audio and two HDMI outputs. Audio embedded. VGA and YPbPr supported. HDMI1.4 standard. Compatible with DVI.

AGP-P-4O-IP encoding output board

Encodes four 1080p, one 4K signals. Supports H.264, H.265, MPEG4, MPEG2 and other mainstream formats. The encoding of G.711A, ACC audio formats and double gigabit Ethernet are available.

AGP-P-O-DVB CATV output board

Supports one SDI+audio output. One Ethernet port. Meets the European DVB standard and Japanese ISDB CATV standard.




Hot-swappable Output Boards with Specific Function


AGP-P-2KO-IS 2K PIP output board

Supports one DVI-I output. DVI1.0 protocol. Supports 1920x1200 resolution point to point display and quad equal splits of 2K images.

AGP-P-4KO-IS 4K PIP output board

Supports one HDMI 4K output. HDMI1.4a standard. Supports 4Kx2K resolution point to point display and quad equal splits of 2K images.

AGP-P-RP recorded broadcast output board

Two gigabit Ethernet ports. Two USB interfaces. One stereo audio I/O interface. Built-in 1T hard disk which supports 2T storage at maximum.

Based on FPGA Hardware Technology, Hot-swappable Modular Design

AGP-P-4K series is a fully-featured multimatrix switcher which supports both analog signal and digital signal. These series multimatrix switchers are designed for engineering application standpoint, and take fully consideration towards body mechanics principle. Users can choose different cases based on particular engineering demands, and choose multiple groups of input and output integrated circuit boards, to have the DIY matching modular design of the devices. To make the data integration more wonderful, we have a lot of integrated circuit boards including VGA/DVI/HDMI/Video/YPbPr/SDI/CAT/HDBaseT/Fiber/DualLink 4K/HDMI 1.4a 4K/Audio/IP signal boards, 2K/4K PIP, audio-visual embedding and de-embedding, audio-visual encoding and decoding, monitoring and recoding and other functional integrated circuit boards.



Specifications


4K signal

Supported resolutions

3840×2160, 4196×2160

Refresh rate

24Hz, 30 Hz, 60 Hz

Chroma sampling

4:4:4, 4:2:2, 4:2:0

Standard

HDMI2.0, HDMI1.4a, DVI1.0


Video signal

Types

VGA, DVI, Video, twisted pair, HDBaseT,15-pin DB female jack, DVI-I socket, BNC socket,optical fiber, HDMI, YPbPr, SDI, HDMI

Connector

15-pin DB female jack, DVI-I socket, BNC socket, optical fiber, HDMI, YPbPr, SDI, HDMI RJ45 socket, LC-type optical fiber connector, 5-pin DB female socket, HDMI type A socket


Audio signal

Types

Dual track stereo

Connector

3.5mm ear-jack


Control method

Panel control

Front panel buttons

Ethernet control

TCP/IP, built-in optional web control

Serial port control

RS-232 (9-pin D socket), built-in AT-Link control protocol


Dimension

Product size

1.5U, 3U, 8U, 12U and 24U cases are available

Operating temperature

-15~65℃

MBTF

>30000h

Operating humidity

15-85%

Operating noise

45dB

Power

100-240V AC, 50/60Hz

The 8U case and above can use dual-redundant power supplies. It supports 24/7 operation with its forced heat dissipation function.

Power consumption

300-500W (based on different configuration)

Installation

Standard machine

Case type

Metal

Case size

Standard machine

AGP-P-150-4K

440mm(L)×440mm(B)×55mm(H)

AGP-P-300-4K

440mm(L)×440mm(B)×144mm(H)

AGP-P2-300-4K

440mm(L)×440mm(B)×144mm(H)

AGP-P-800-4K

440mm(L)×440mm(B)×440mm(H)

AGP-P-1200-4K

440mm(L)×440mm(B)×530mm(H)

AGP-P-2400-4K

440mm(L)×440mm(B)×740mm(H)

Product weight

Full loaded, AGP-P-150-4K 7kg

AGP-P-300-4K 10kg

AGP-P2-300-4K 10kg

AGP-P-800-4K 28kg

AGP-P-1200-4K 39kg

AGP-P-2400-4K 67kg
