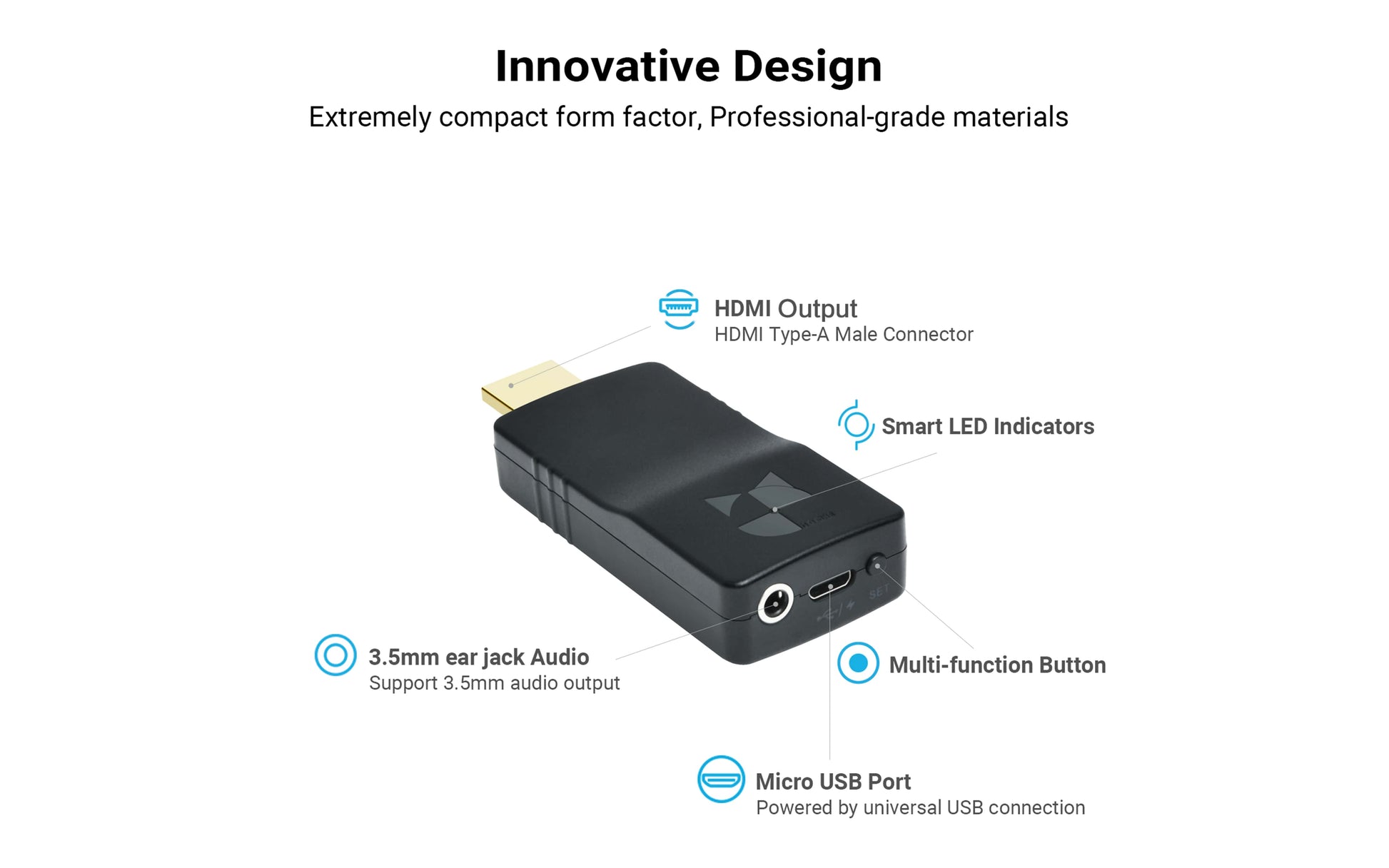

Easy Setup without Cable Mess: Ultra-mini size(75x32x15mm) and ultra-lightweight(25g). USB-powered. The video decoder accepts power from USB port of display without power adapter; Type-A male HDMI connector making it easy to plug to the HDMI port of display without HDMI cable.

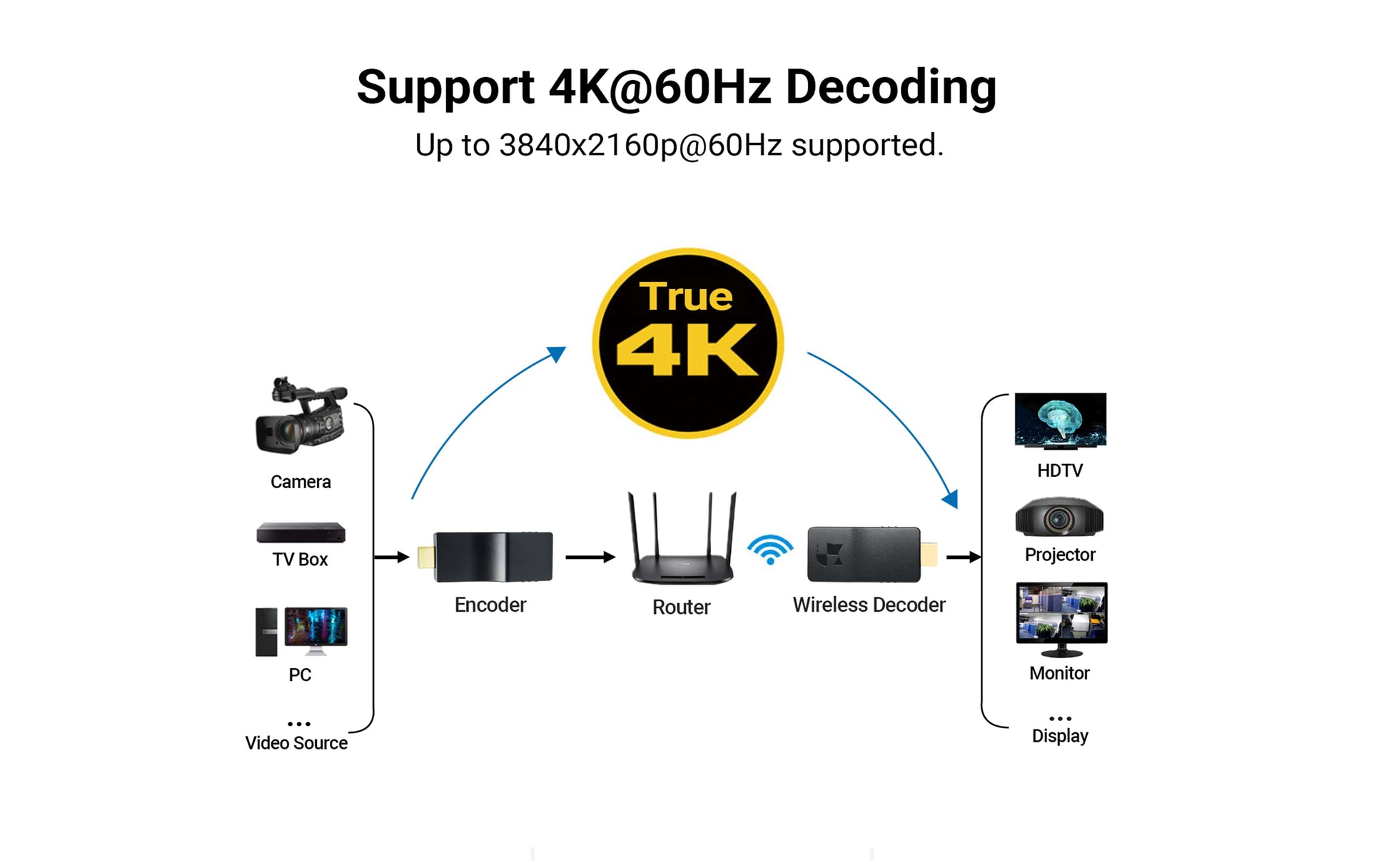

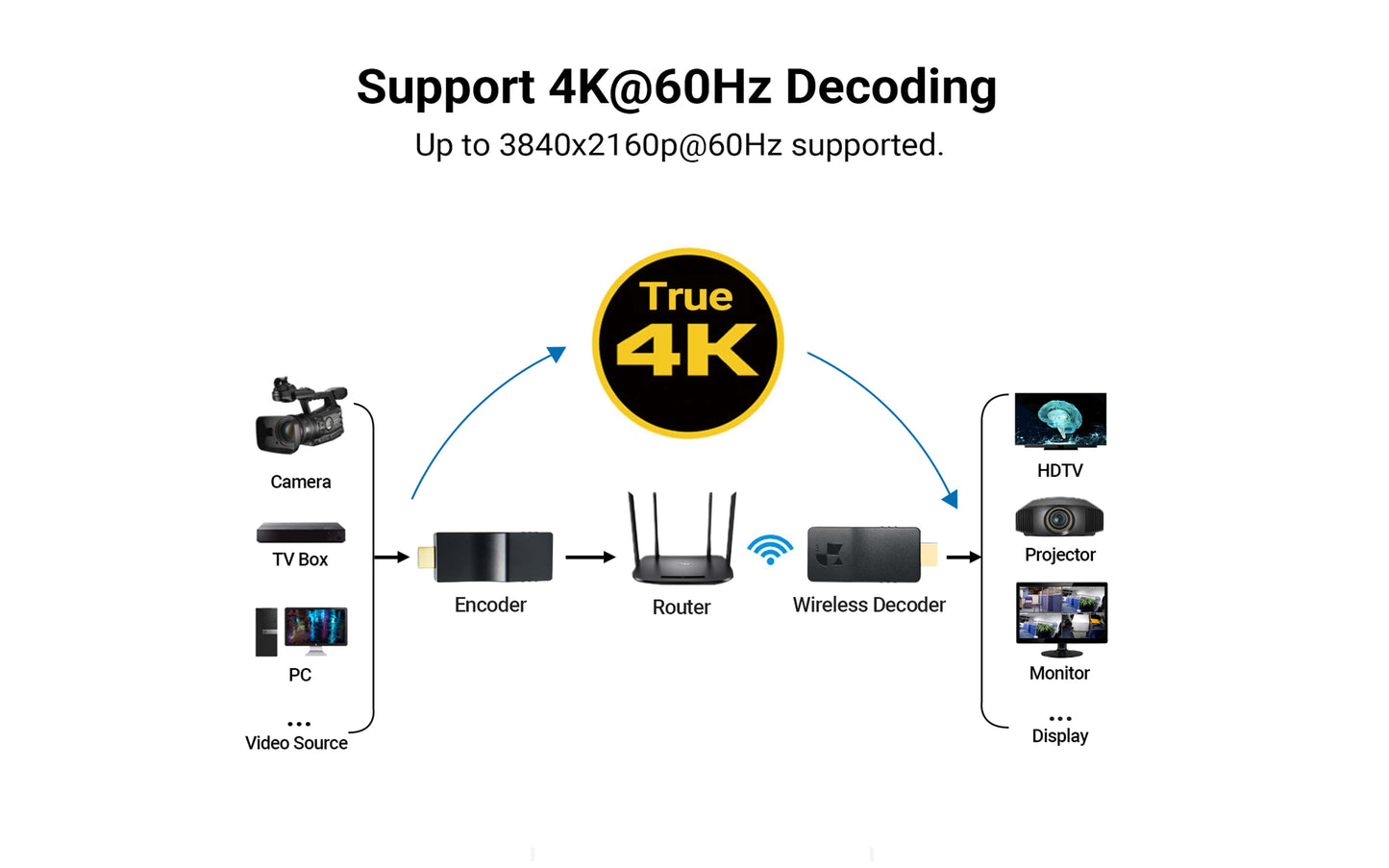

Portable 4K SRT Decoder: Decode up to 4K@60Hz with SRT protocol; the wireless HDMI encoder offers end-to-end IP video solution by pairing with DDMALL SRT encoder, providing secure, reliable, and high-quality low latency video transmission; compatible with third-party SRT encoders.
True 4K Video Decoder: Decode up to 4K@60Hz at high bitrate with HEVC/AVC, and HDMI outputs up to 4K@60Hz. Auto-match a best HDMI output resolution for display regarding the specific parameters of display terminals; support video resolution up-scaling and down-scaling.
Camera Decoder: The IP decoder decodes IP streams from various brand IP cameras or NVRs to HDMI signal; support protocols like ONVIF, RTSP, UDP, TCP.
2.4G+5G Dual-Wifi: Built-in 2.4G+5G dual-band wifi antenna. Convenient to connect various Wifi hotspots quickly for strong network connectivity, realizing stable and reliable streaming video transmission and output.

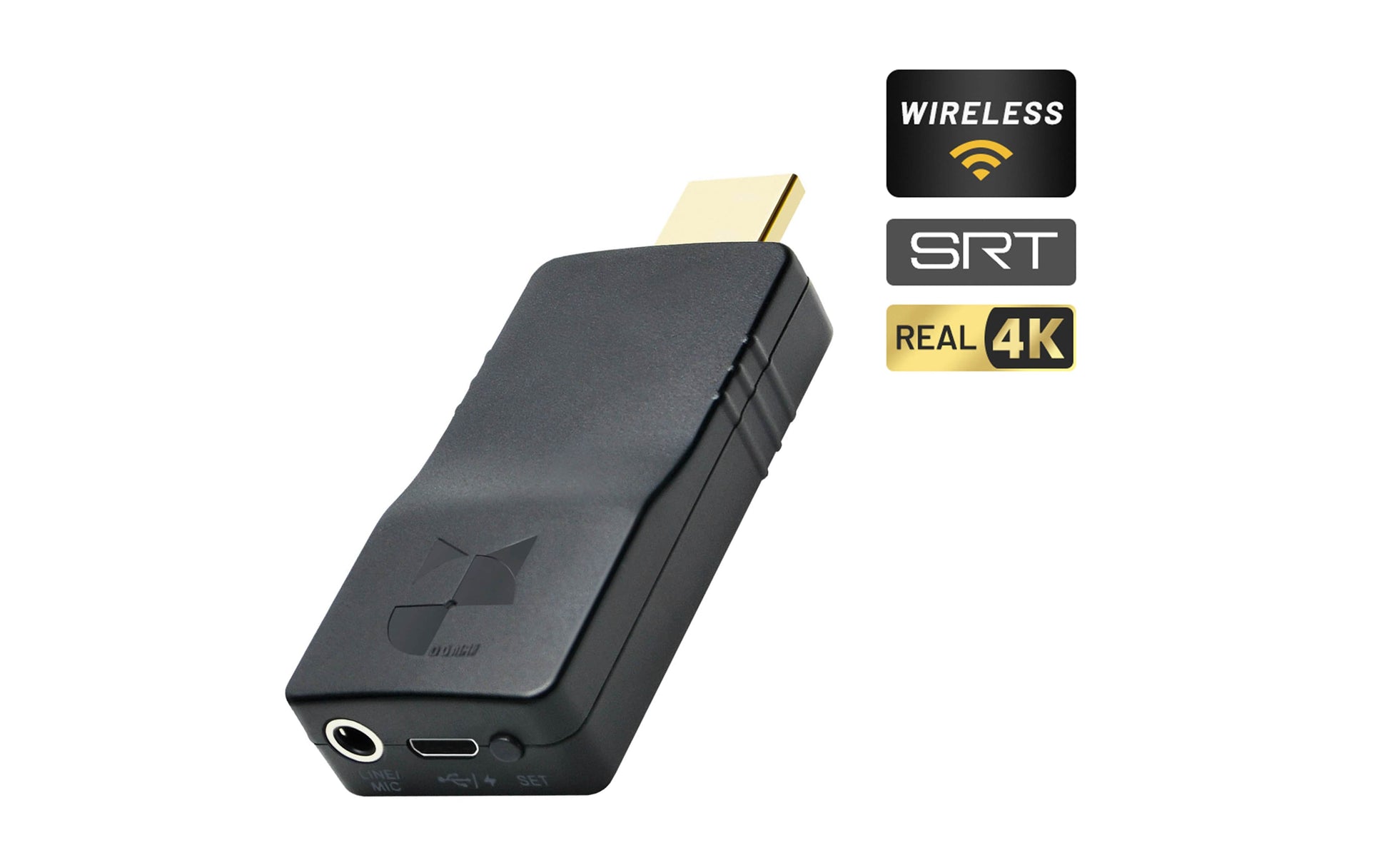

The HDD-20W is DDMALL compact and powerful wireless HDMI video deocder, features in ultra-mini and uldtra-lightweight form factor. It accepts power by USB connection to the USB port of displays. With HEVC H.265 and AVC H.264, this HEVC decoder decodes network streams and video encoders for broadcasting in 2160p at up to 60fps in ultra low latency, making it perfect to decode IP cameras and NVRs from differents brands. Captivate your audiences with the video streaming in pristime 4K quality; streamline your ip streaming decoding with energy efficiency and cost saving. Support video resolution up-scaling and down-scaling. Degrade 4K video to 2K video for passing through in case you have the needs. When it works as a SRT decoder, it secures your 4K video transmission reliably in low latency; Integrate the hdmi decoder into your systems to decode IP camera, network stream, DDMALL or third-party video encoders and more, it will bring your unmatched decoding AV experience.
Portable Wireless Video Streaming Decoder
Ultra-mini and lightweight form factor makes the IP video decoder easy to carry. Plug it to your portable signal sources without any cable clutters, and it delivers true 4K high quality video as you wish.
USB-Powered, Energy Efiicient
Leveraging the ultra-low power conumption, the Wifi HDMI video decoder takes power from most HDMI signal sources directly, or when the HDMI power voltage is too low to support normal working of the IP decoder, you can power it by USB connection to displays or power bank without additional power adapter. Agile your setup to the greatest extent.
Reliable Quality, Professional Performance

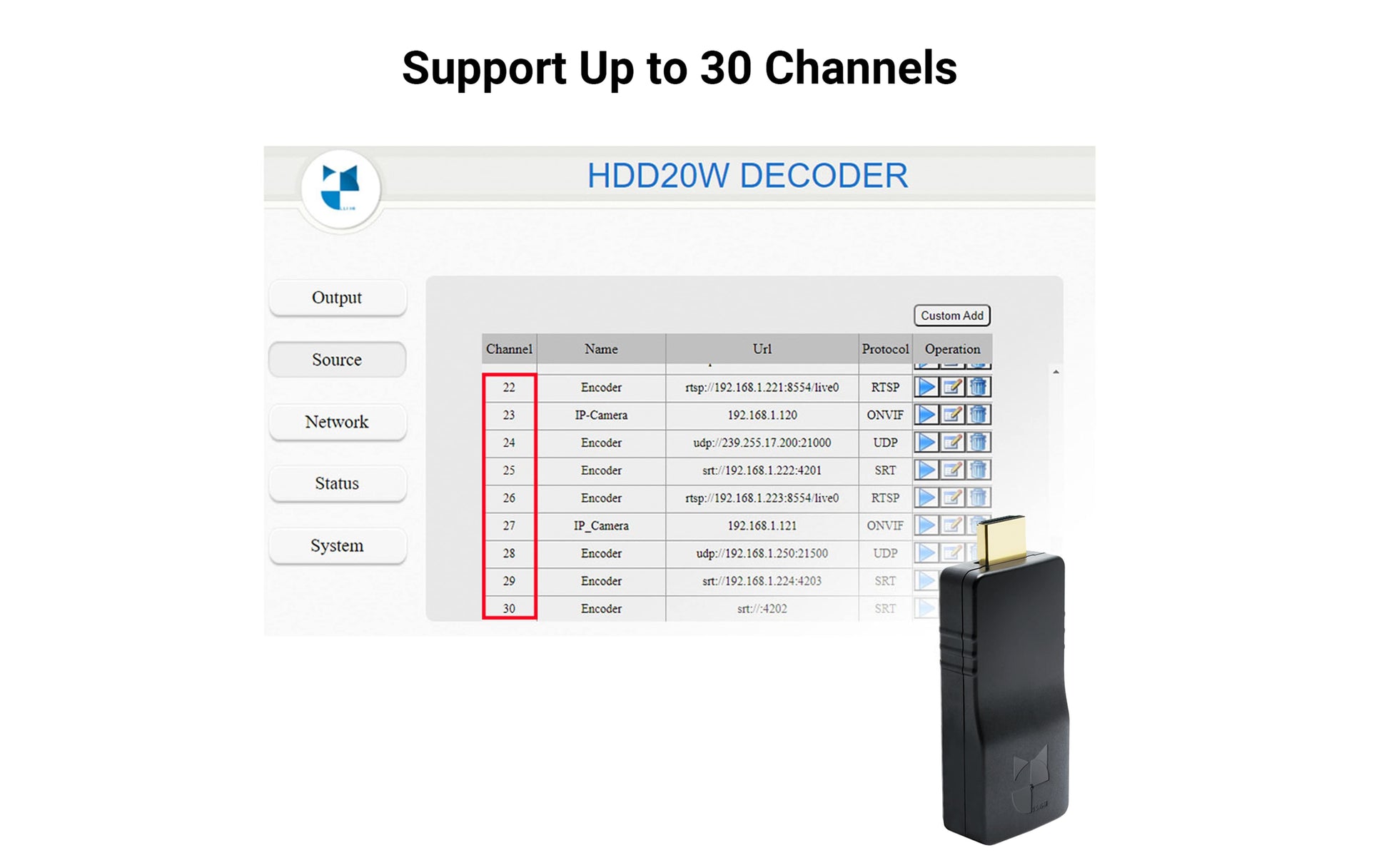

The IP decoder is a HEVC H.265 AVC H.264 video decoder, supporting ONVIF, RTSP, UDP, TCP. With inputs up to 4K@60Hz and decoding outputs up to 4K@60Hz as well. Plug it to your display directly and configure the decoder via web UI, then you will enjoy your decoding video with ease.
Wireless Video Decoding Solution
Built-in 5G+2.4G dual-band Wifi antenna, the HDMI video decoder enables more stable signal juice for the reliable video decoding. Use your mobile phone, or mobile Wifi router to provide network connection for the streaming decoder. Ideal for outdoor sports, wild shooting, mega church broadcasting, campus activities and more.
Easy to Setup

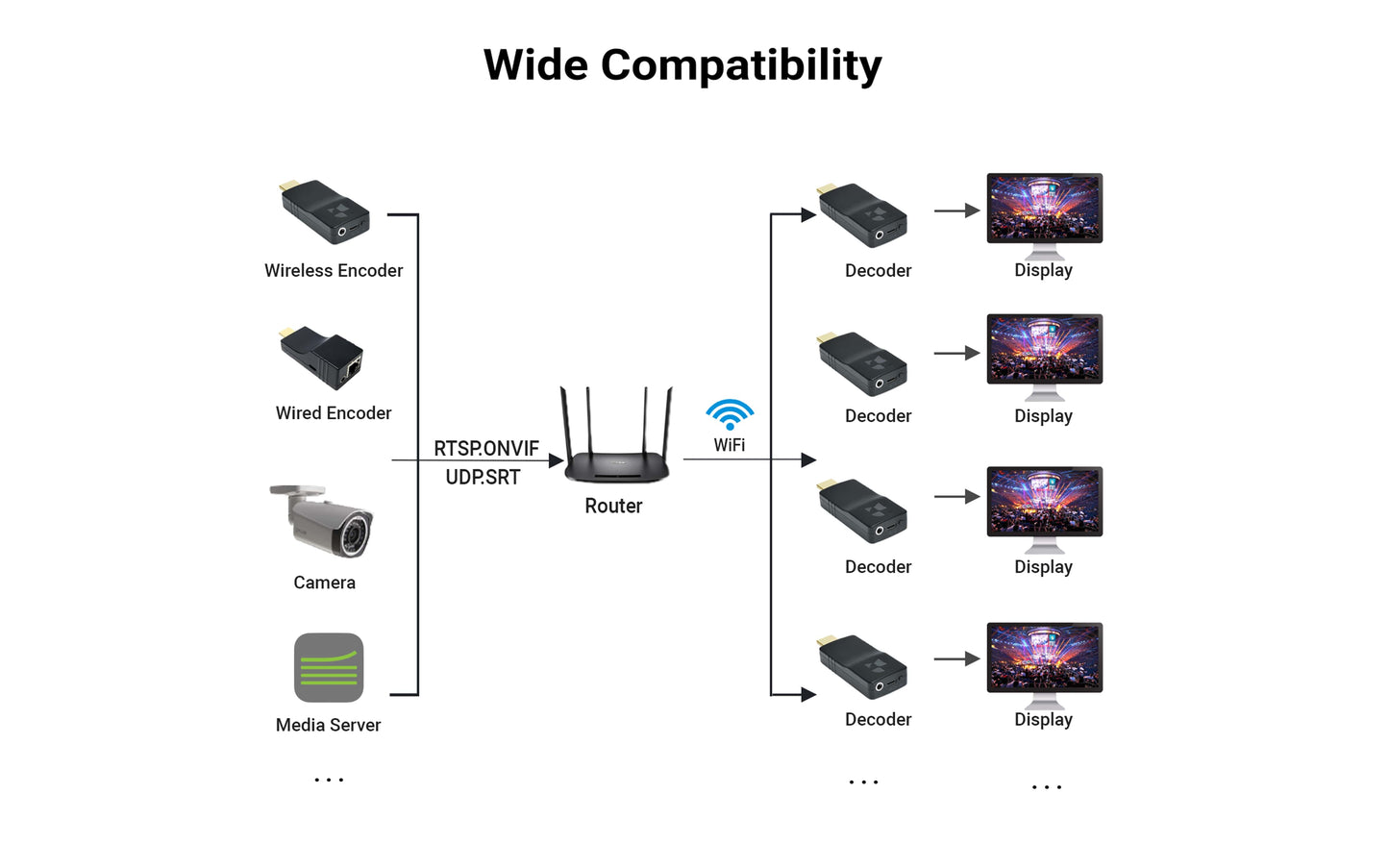

The Wifi video decoder adopts DDMALL technology, easy to carry and install. It is friendly to the network streams, IP streams, third-party encoders so you can simply integrate it into your decoding systems. The video decoder will work perfectly with your systems.
|Power Supply||5V/1 A （USB cable powered )||Power Consumption||2.6W|
|Work Temperature||10~65℃ （14~149℉）||Storage Temperature||-20~85℃ （-4~185℉）|
|Work Humidity||10%- 90%RH (Non-condensing)||Product Weight||25g/0.055lbs|

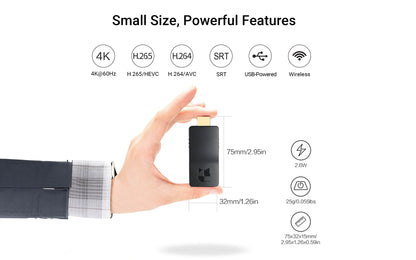

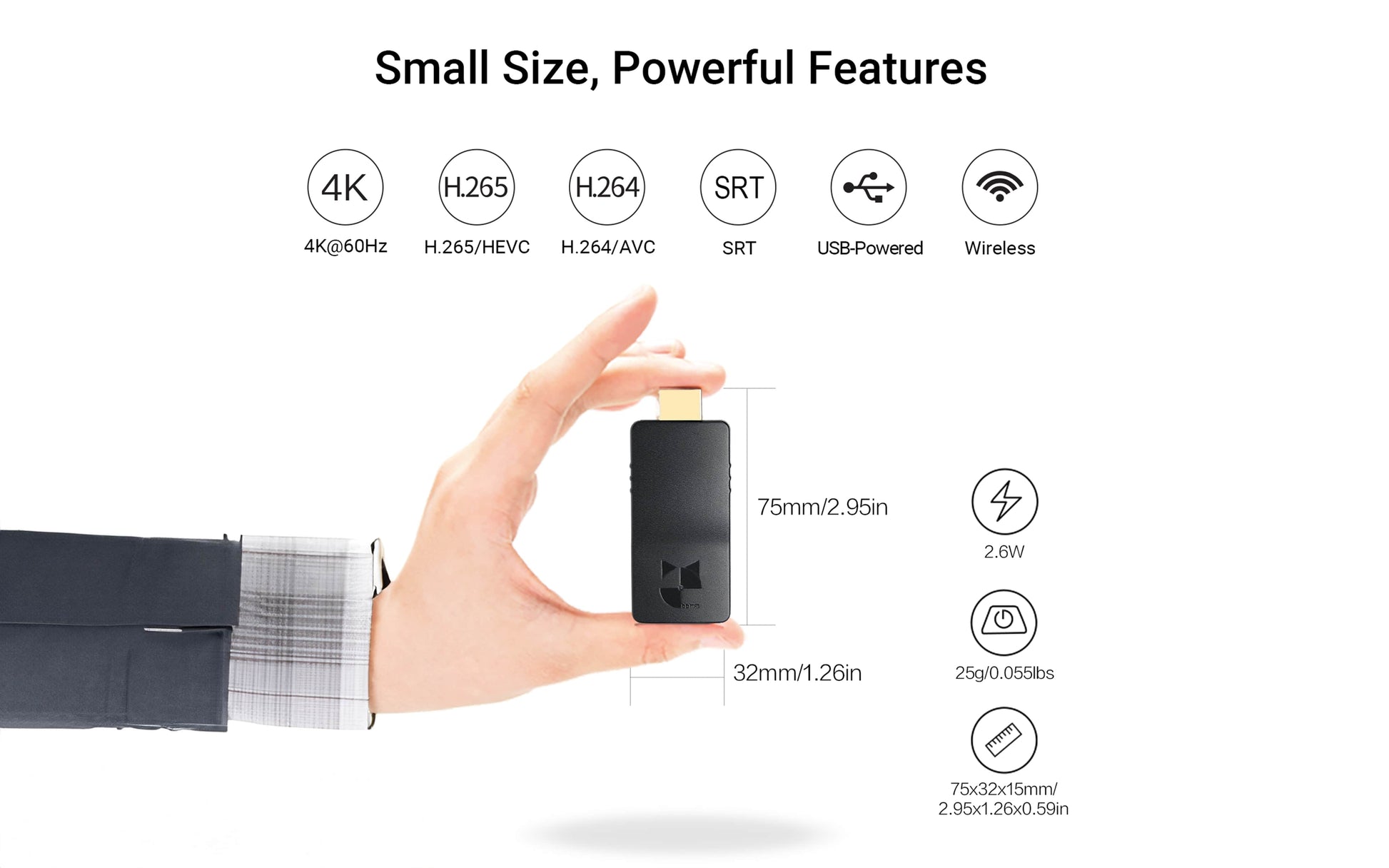

|Product Dimension||75x32x15mm/2.95x1.26x0.59in||MTBF(mean time between failures)||30,000h|
|Video Input Standard||HDMI 2.0||Video Codec||H.265/HEVC and H.264/AVC|
|Supported Protocols||RTSP, ONVIF, UDP, TCP,||Supported Output Resolution||
|Supported Stream Input Resolution||
|Audio Input Standard||HDMI embedded audio input, 3.5mm analog|
|Audio Encoding Format||
|Compression Profile||BaseLine, Main, High|
