DDMALL HEV-4K 4K H.265 H.264 NDI SRT Encoder, HDMI Live Encoder Support Low Latency and DDNS

$998.90 available: In Stock
Quick Overview:

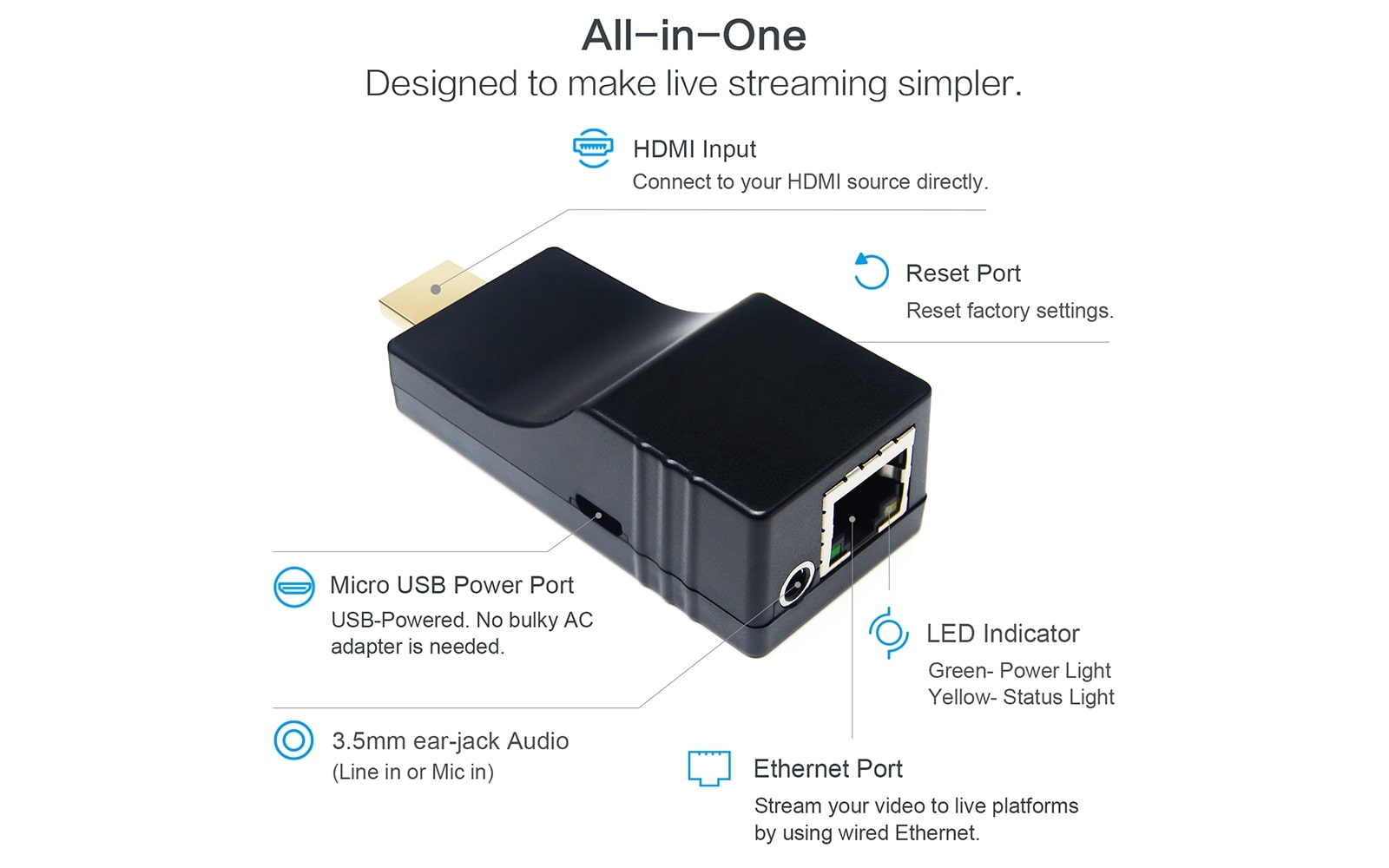

All-in-One HDMI Live Video Encoder: HEV-4K is a mini and lightweight portable HEVC H.265 H.264 hardware encoder over Ethernet. It can take power by almost HDMI ports. it the power voltage is too low to support the normal working of the encoder, you can power the encoder by USB connection.

• Real 4K NDI Encoder: HEV-4K is a real 4K encoder supporting up to  4Kp30 input and 4K@30 64Mbps output respectively. support NDI, users can transmit 4K video by low latency and small bandwidth.  it is also a H.265 HLS/HTTP encoder and SRT encoder. It supports various protocols such as RTP, RTSP, RTMP, RTMPS, UDP, TCP, HLS, HTTP etc.

4-Streams Output for Live Streaming: HEV-4K supports dual-stream output so that users can stream to 4 live platforms simultaneously. Users can do OSD setting and video preview via web UI.

DDNS & Low Latency Streaming Encoder: support DDNS, users can remotely control the encoder and broadcast audio video on Internet through encoder domain; use HEV-4K with DDMALL decoder HDD-20 based on low latency mode, users can stream at low latency less than 0.08s.

Lifetime Service & Perfect Video Solution: DDMALL provides user with one-stop purchase and lifetime firmware upgrading service to add new functionalities. It is a powerful portable video solution for engineering projects and live streaming to YouTube, Facebook, Dacast, Twitch, Wowza, Vimeo etc.

DDMALL Technology
DDMALL Technology is the proprietary brand of Atel Technologies Co., Ltd. As a company comprised of R&D and manufacture, we have been dedicated to hardware video codec products for over 20years. Foot on video over IP industry, we have developed a serious of HDMI over IP transmitter and receiver, live video encoders, live streaming decoder, AV over IP matrix, HDMI extender matrix etc. To meet the ever growing segmented market demands and keep our customers one-step ahead in the market, we will stay innovative and sharpen our technology to provide more versatile, reliable, stable but less cost and carbon footage solutions for video transmission, distribution and live streaming to meet the diversified customer requirements and financial budgets.
The DDMALL Advantages
• Leading Technologies in AV solution Field
• 20+ Years' Experience
• Strong R&D Capabilities
• ISO Certification
• OEM & ODM Specialist

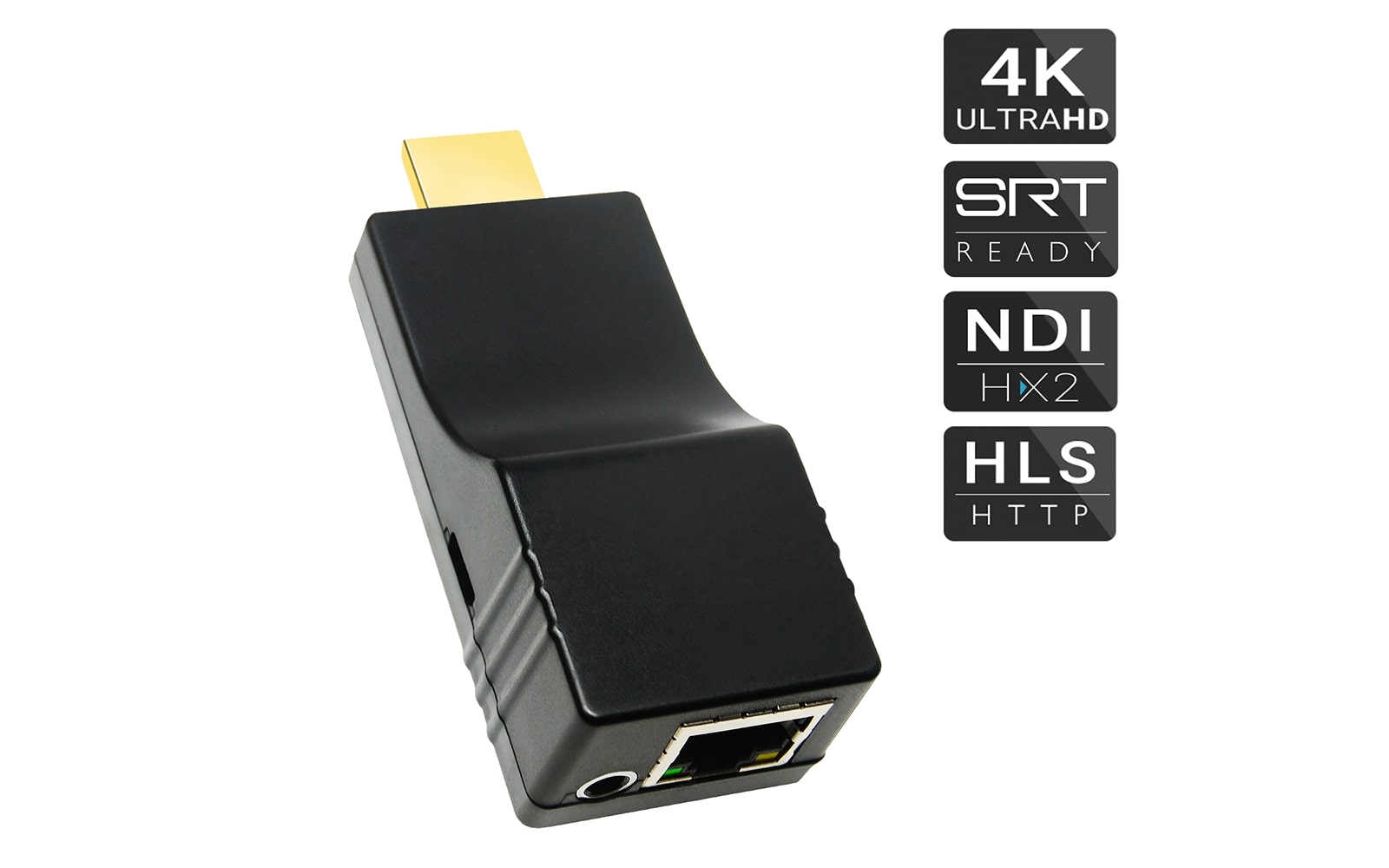

DDMALL 4K NDI SRT HDMI Video Encoder

Small Size, Professional Features

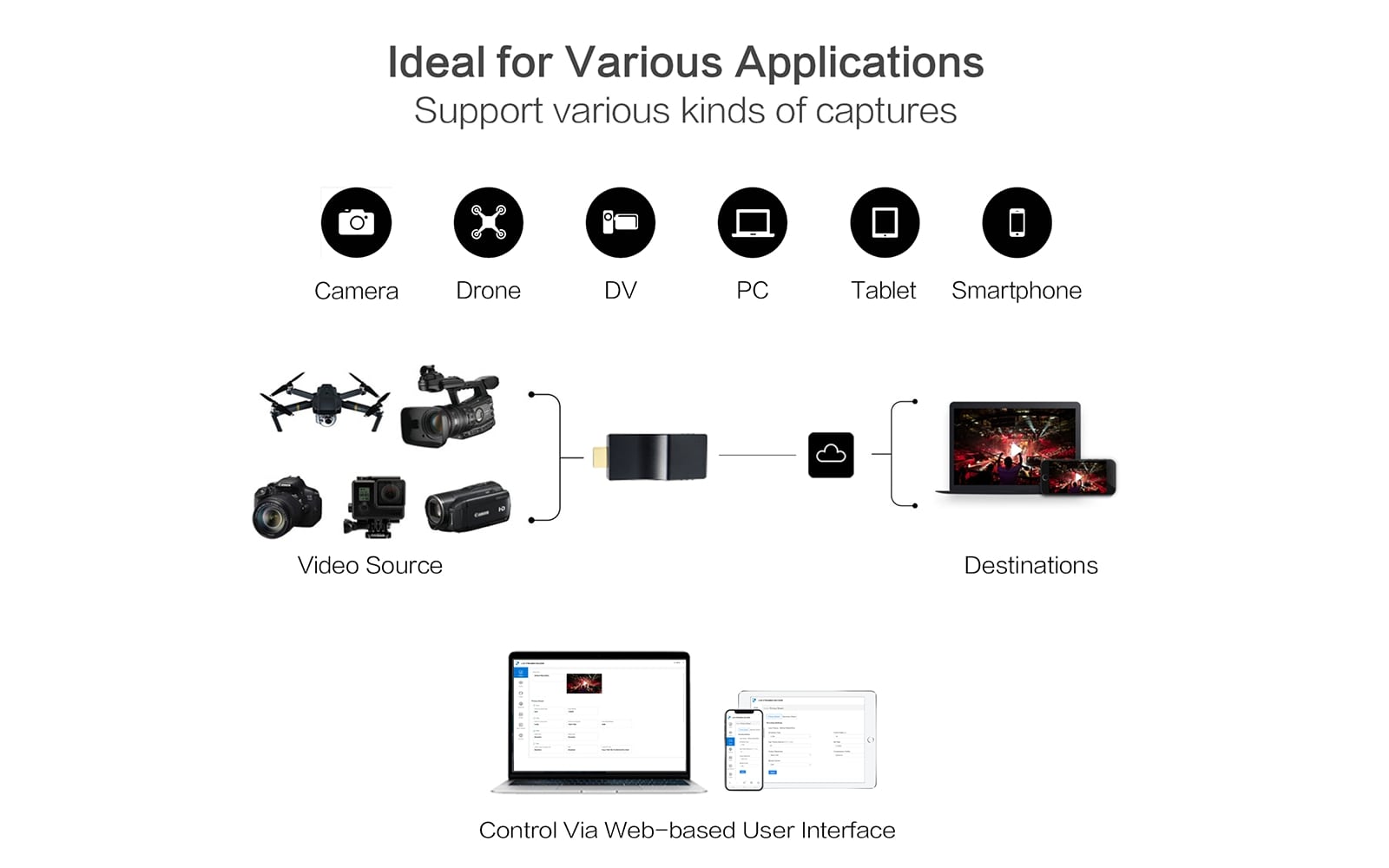

DDMALL HEV-4K is a real 4K H.265 and H.264 high profile encoder. It supports up to 4Kp30 video input and 4Kp30/2Kp 60 video encoding output respectively. The stand-alone device is ideal for integration projects, particularly in those applications such as manned or unmanned airborne platforms, outdoor live broadcasting, UAV monitoring etc.


• Eye-catching mini Size, Ultra-low power consumption of 2.5W—fondable choice for mobile and remote applications.

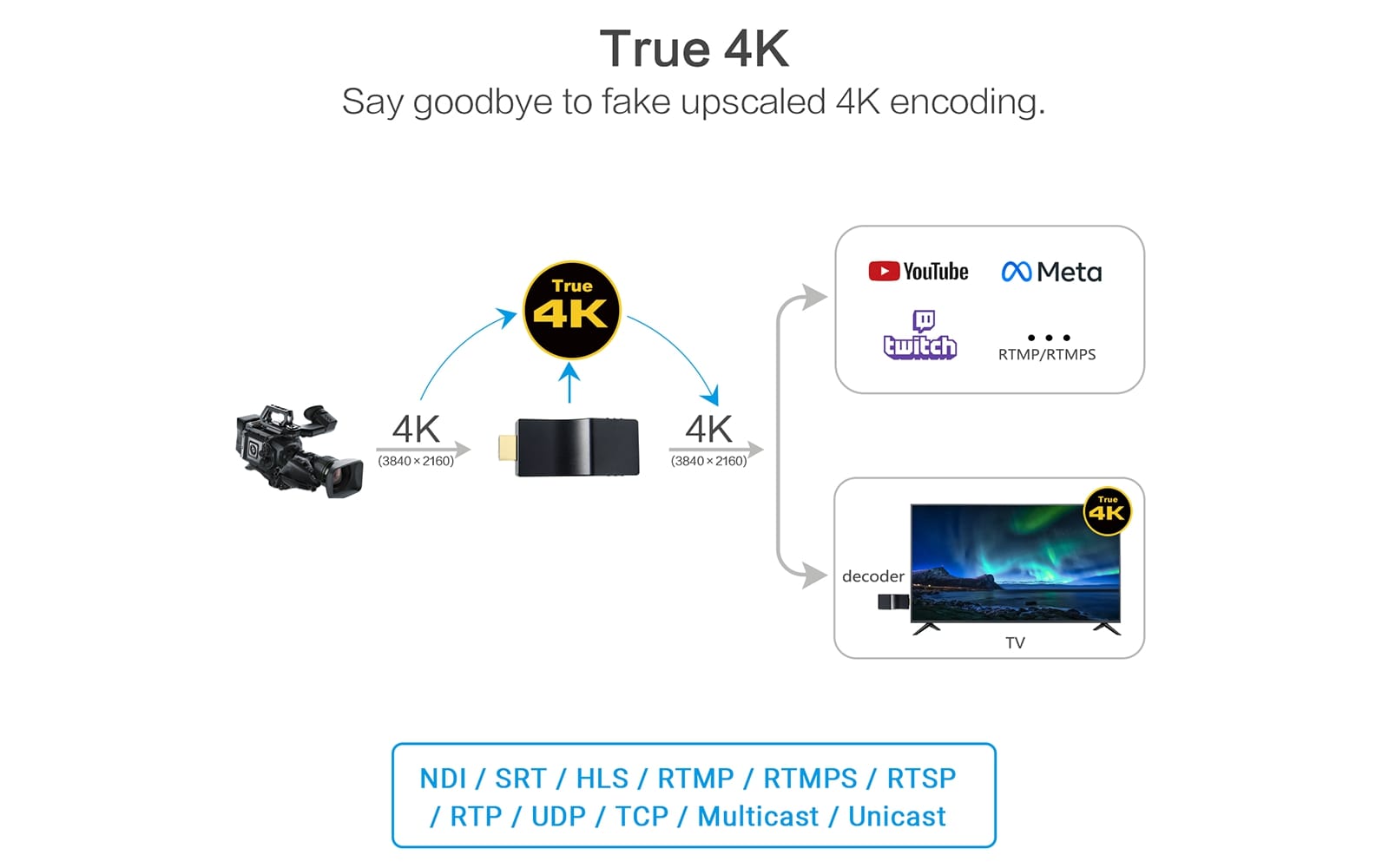

• Real 4K quality without fake upscaling—supports up to 4Kp30 video input and 4Kp30/2Kp60 video encoding output.
• 4K NDI|HX2 supported—video transmission in a low-latency and low-bandwidth manner.

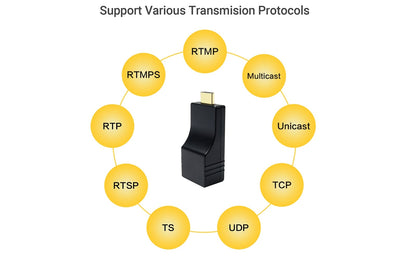

• Almost main protocols are supported—4K SRT, 4K HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP etc. choose the one you wish to process your stream freely.
• All-in-one feature for plug-and-play function--Powered by USB. No AC power adapter is required. Agile your work flow to biggest extent.
• UPnP+DDNS --Leveraging this function, users can enable intranet traversal, remotely control the encoder through encoder' domain, and build video transmission on public Internet.
• 4 platform live streaming simultaneously with main-stream and sub-stream output function.
• New features and functions to be added by supporting online device upgrading.
• OSD settings and management—customize logo/text/image to wherever the position of video source.
• Video Web page preview to monitor video status in real time.
• Reliable lifetime--Support 24/7 working durance.

No Software Needed

The DDMALL HEV-4K doesn't require driver or software installation. It is controlled via a login-protected web-based user interface, which is accessible on any web-enabled devices, such as PC, tablet and smart phone. No software installation required.


    Specifications & Parameters

Power Supply

5V/1 A (USB cable powered )

Power Consumption

2.5W

Work Temperature

-10~65℃ (14~149℉)

Storage Temperature

-20~85℃ (-4~185℉)

Work Humidity

10%- 90%RH (Non-condensing)

Weight

32g/0.07lbs

Dimension

75mm(L)*32mm(W)*22mm(H)/ 2.95×1.26× 0.87in

MTBF(mean time between failures)

30,000h

Video Input Standard

HDMI 1.3, HDCP1.4

Video Codec

H.265/HEVC and H.264/AVC

Supported Protocols

NDI, SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.

Supported Input Resolution

3840*2160p@30Hz,1920*1200p@60Hz,1080p@60Hz,1080p@5

0Hz,1080p@30Hz,1080i@60Hz,1080i@50Hz, 720p@60Hz,

720p@50Hz, 720p@30Hz,

Supported Output Resolution

3840*2160@30Hz,1080p@60Hz, 720p@60Hz, 720p@30Hz,

960*720@60Hz, 960*540@60Hz, 640*480@60Hz,

360*200@60Hz

Video Bitrate

128Kbps~64Mbps

Pixel Clock

165MHz (max)

Audio Input Standard

HDMI embedded audio input, 3.5mm analog, Mic in, Line in

Audio Encoding Format

G.711u, AAC

Audio Bitrate

32kbps~256Kbps

Control Method

Web UI

WEB UI login credentials

Default user/password: admin/admin

GOP

Tunable

Compression Profile

BaseLine, Main, High

UpnP+DDNS

Enabled to remote control and manage the encoder on WAN/public Internet.

Reminder

   • DDMALL HEV-4K can take power from almost HDMI sources directly, so no additional power supply is required. However, when the power voltage of some HDMI ports is too low to support normal operation of the encoder, you can power the encoder by using USB cable connection. (e.g. a SUB port on your PC, USB hub, power ban etc.)



HEV-4K Video Encoder Key Features:

• Eye-catching mini Size, Ultra-low power consumption of 2.5W—fondable video solution choice for mobile and remote applications.

• Real 4K quality without fake upscaling—support up to 4Kp30 video input and 4Kp30/2Kp60 video encoding output.

• 4K NDI|HX2 supported—video transmission in a low-latency and low-bandwidth manner.

• Almost main protocols are supported—4K SRT, 4K HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP etc. choose the one you wish to process your stream freely.

• All-in-one feature for plug-and-play--Powered by USB. No AC power adapter is required. Agile your work flow to great extent.

• UPnP+DDNS --Leveraging this function, users can enable intranet traversal, remotely control the encoder through encoder' domain, and build video transmission link on public Internet.

• Dual-stream output for 4 platform live streaming simultaneously—HEV-4K has Primary Stream and Secondary Stream for live streaming.

• Lifetime firmware upgrading—new features and functions to be added by supporting online device upgrading.

• OSD settings and management—customize logo/text/graphic image to any position of video source.

• Video Web page preview to monitor video status in real time.

• Reliable lifecycle--Support 24/7 working durance.







Specifications & Parameters

Power Supply

5V/1 A (USB cable powered )

Power Consumption

2.5W

Work Temperature

-10~65℃ (14~149℉)

Storage Temperature

-20~85℃ (-4~185℉)

Work Humidity

10%- 90%RH (Non-condensing)

Weight

32g/0.07lbs

Dimension

75mm(L)*32mm(W)*22mm(H)/ 2.95×1.26× 0.87in

MTBF(mean time between failures)

30,000h

Video Input Stanard

HDMI 1.3, HDCP1.4

Video Codec

H.265/HEVC and H.264/AVC

Supported Protocols

NDI, SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.

Supported Input Resolution

3840*2160p@30Hz,1920*1200p@60Hz,1080p@60Hz,1080p@5

0Hz,1080p@30Hz,1080i@60Hz,1080i@50Hz, 720p@60Hz,

720p@50Hz, 720p@30Hz,

Supported Output Resolution

3840*2160@30Hz,1080p@60Hz, 720p@60Hz, 720p@30Hz,

960*720@60Hz, 960*540@60Hz, 640*480@60Hz,

360*200@60Hz

Video Bitrate

128Kbps~64Mbps

Pixel Clock

165MHz (max)

Audio Input Standard

HDMI embedded audio input, 3.5mm analog, Mic in, Line in

Audio Encoding Format

G.711u, AAC

Audio Bitrate

32kbps~256Kbps

Control Method

Web UI

WEB UI login credentials

Default user/password: admin/admin

GOP

Tunable

Compression Profile

BaseLine, Main, High

UpnP+DDNS

Enabled to remote control and manage the encoder on WAN/public Internet.





Reminder

   • DDMALL HEV-4K can take power from almost HDMI sources directly, so no additional power supply is required. However, when the power voltage of some HDMI ports is too low to support normal operation of the encoder, you can power the encoder by using USB cable connection. (e.g. a SUB port on your PC, USB hub, power ban etc.)
