Overview

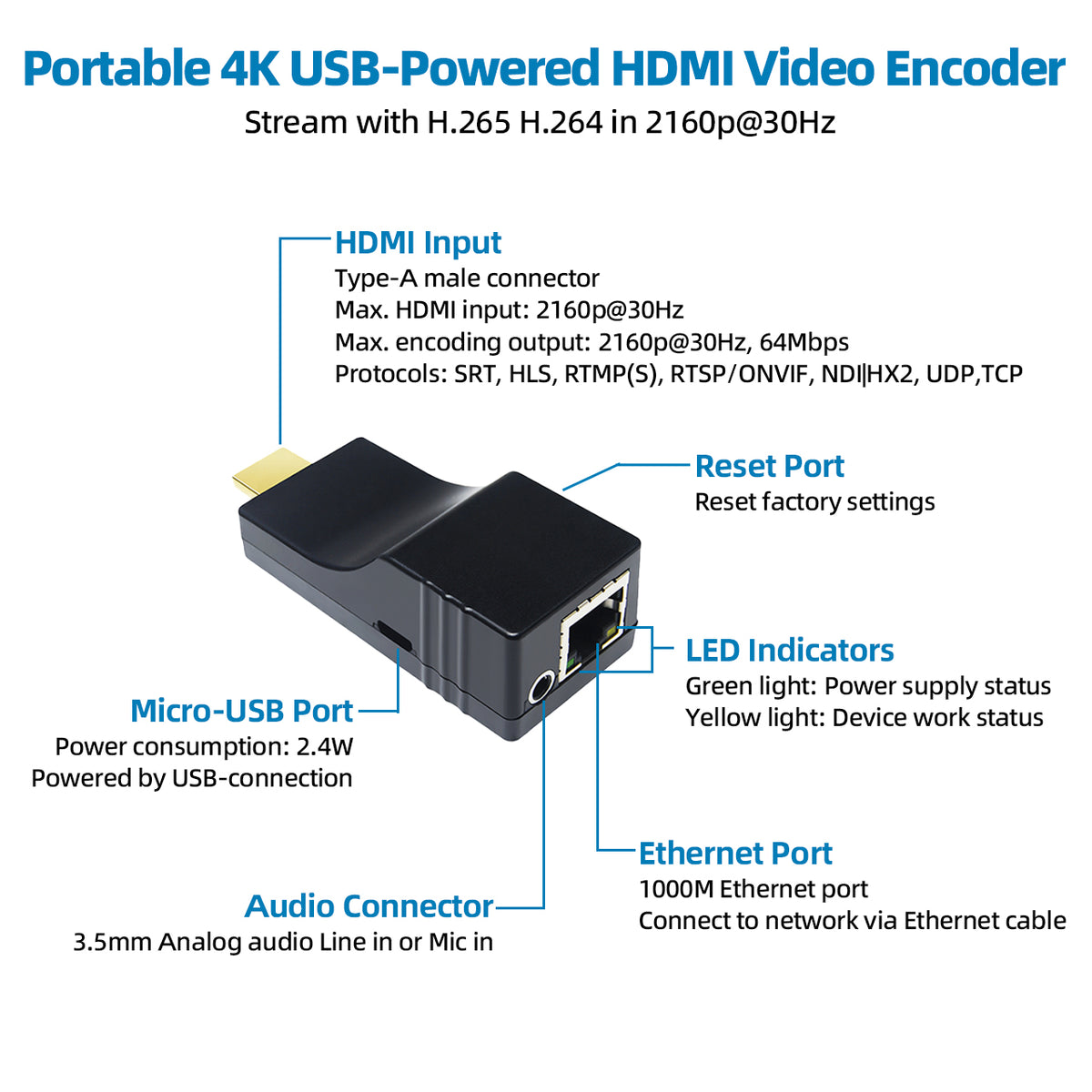

Portable 4K HDMI Encoder: Mini size(75x32x22mm), lightweight(32g) and USB-powered; The live streaming encoder is perfect for the live streaming applications with frequent move or tiny device installation space. The max. HDMI input is 2160p@30Hz, and max. encoding output is 2160p@30Hz, 64M with H.265 H.264 SRT, NDI|HX2, HLS, RTMP(S), RTSP, RTP, TCP, UDP, Multicast, Unicast.

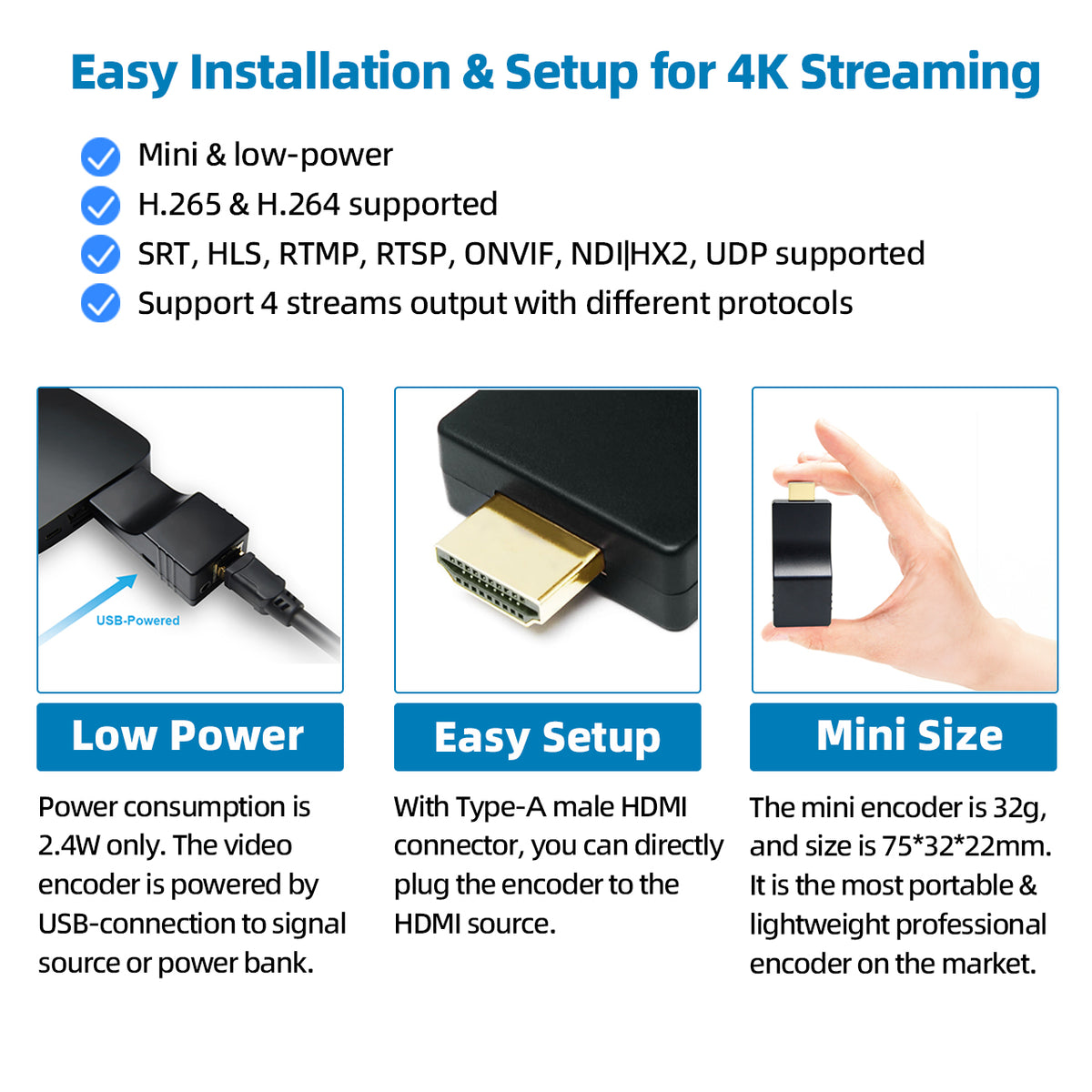

Energy-Efficient Encoder: Ultra-low power consumption (2.4W). The HDMI encoder can take power from most HDMI ports directly without extra power supply, or accept power from the USB port of signal sources or mobile power bank with power adapter-free, making it absolutely wonderful for the live streaming applications that require long working time, frequent move, or tiny installation space.

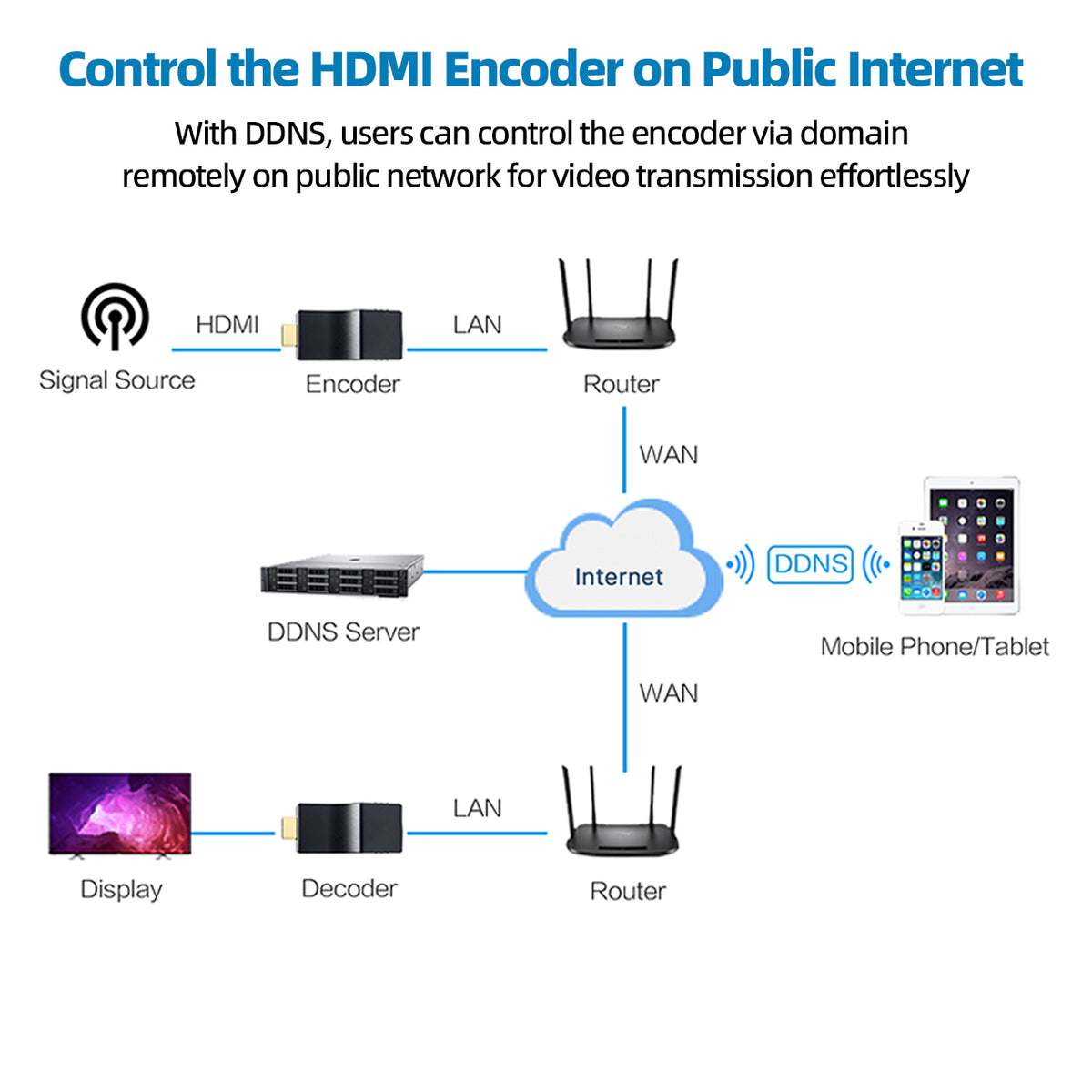

Remote Control in Public Internet: Support DDNS; you can easily control the IP encoder via domain remotely in public Internet and set up video transmission without any third-party live platform getting involved.
4K NDI Encoder: NDI|HX2 supported; this HDMI encoder delivers 4K high-quality video in low latency and low bandwidth; third-party NDI systems compatible over Ethernet.
Versatile Features & Robust Performance: Simultaneously go live to up to 4 platforms, compatible with YouTube, Facebook, Twitch and more; Support real-time text/picture/time OSD setting; Support HDMI input video preview via web UI; Support online upgrading to add more features.
4K NDI encoder
Support NDI protocol; the live streaming encoder delivers UHD video audio in true 4K clarity with low latency and low bandwidth. compatible with any third-party NDI compatible systems over LAN or Ethernet.
Stream on 4 platforms

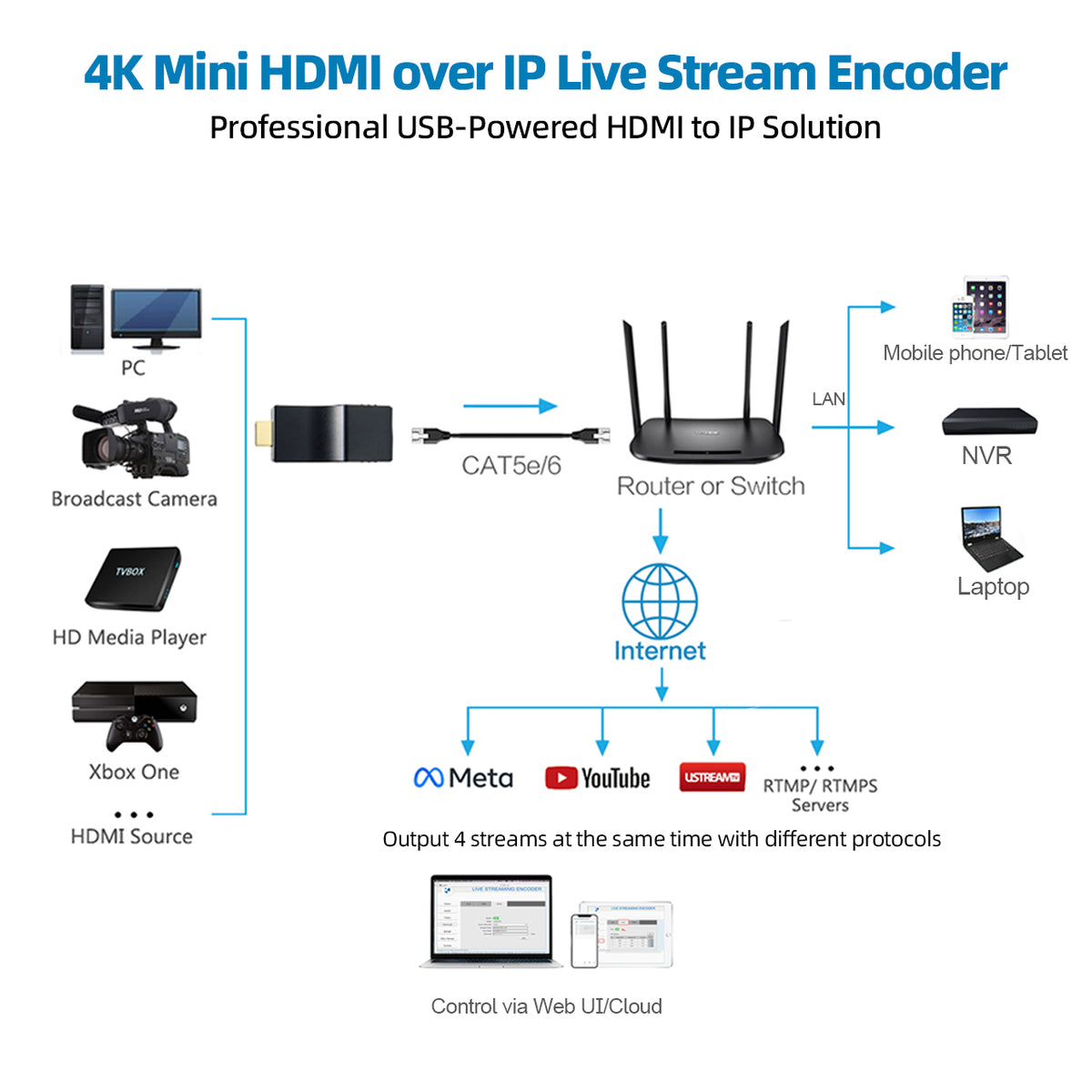

The HDMI live video encoder allows to simultaneously stream on up to 4 platforms like YouTube, Facebook, Twitch, Vimeo, Wowza, Livestreams and more with up to 4K@30 image clarity.
Specifications
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 32g/0.07lbs |
| Product Dimension | 75x32x22mm/2.95x1.26x0.87in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 1.4A | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | NDI, SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast, Unicast | Supported Input Resolution |
3840*2160p@30Hz,1920*1200p@60Hz,1080p@60/50/30Hz, 1080i@60Hz,1080i@50Hz, 720p@60/50/30Hz |
| Supported Output Resolution |
3840*2160@30Hz,1080p@60Hz, 720p@60/30Hz, 960*720@60Hz, 960*540@60Hz, 640*480@60Hz, 360*200@60Hz |
Video Bitrate | 128Kbps~64Mbps |
| Pixel Clock |
165MHz (max) |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog, Mic in, Line in |
| Audio Encoding Format |
G.711u, AAC |
Compression Profile | BaseLine, Main, High |
| Control Method |
Web UI |
