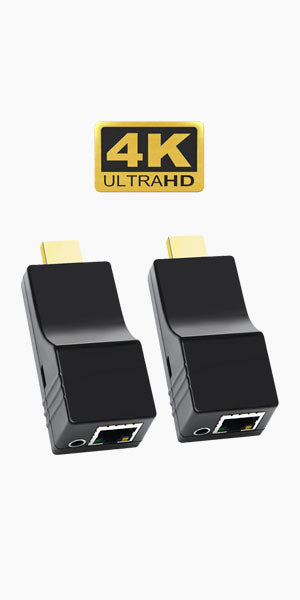

The DDMALL HE-30 4K HDMI extender kit allows you to transmit 4K@60Hz video with HDR  with range up to 230ft/70m over a single CAT6/CAT7 cable, while transmit 1080p video with range up to 295ft/90m. Leveraging the ultra-mini form factory, the HDMI video transmitter receiver  can be hidden in the back of your HDMI source, TV, projector and various device simply. With POC functionality, the TX transmitter can take power from the HDMI source directly and you just need to power the RX receiver by USB type-c cable. With EDID function, the extender kit will copy the EDID signal from the receiver's display automatically to ensure more stable and suitable video performance.

DDMALL 4K HDMI Extender over Cat 6/7

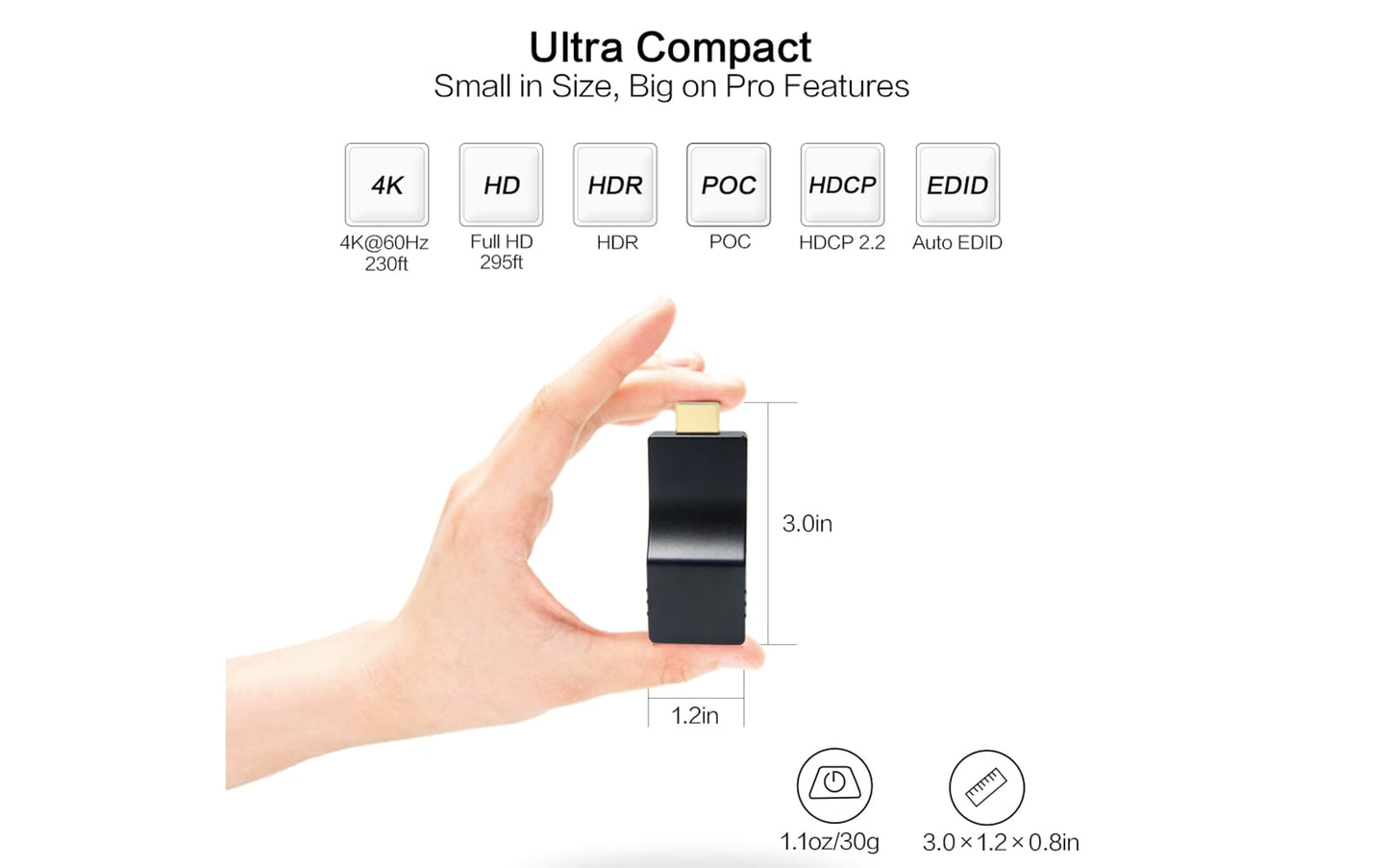

Small Size, Powerful Features

Key Features

• Supported resolution up to 4K@60Hz at up to 230ft/70m while 1080p at up to 295ft (90m).
• Chroma subsampling supports 4:4:4, 4:2:2 and 4:2:0.

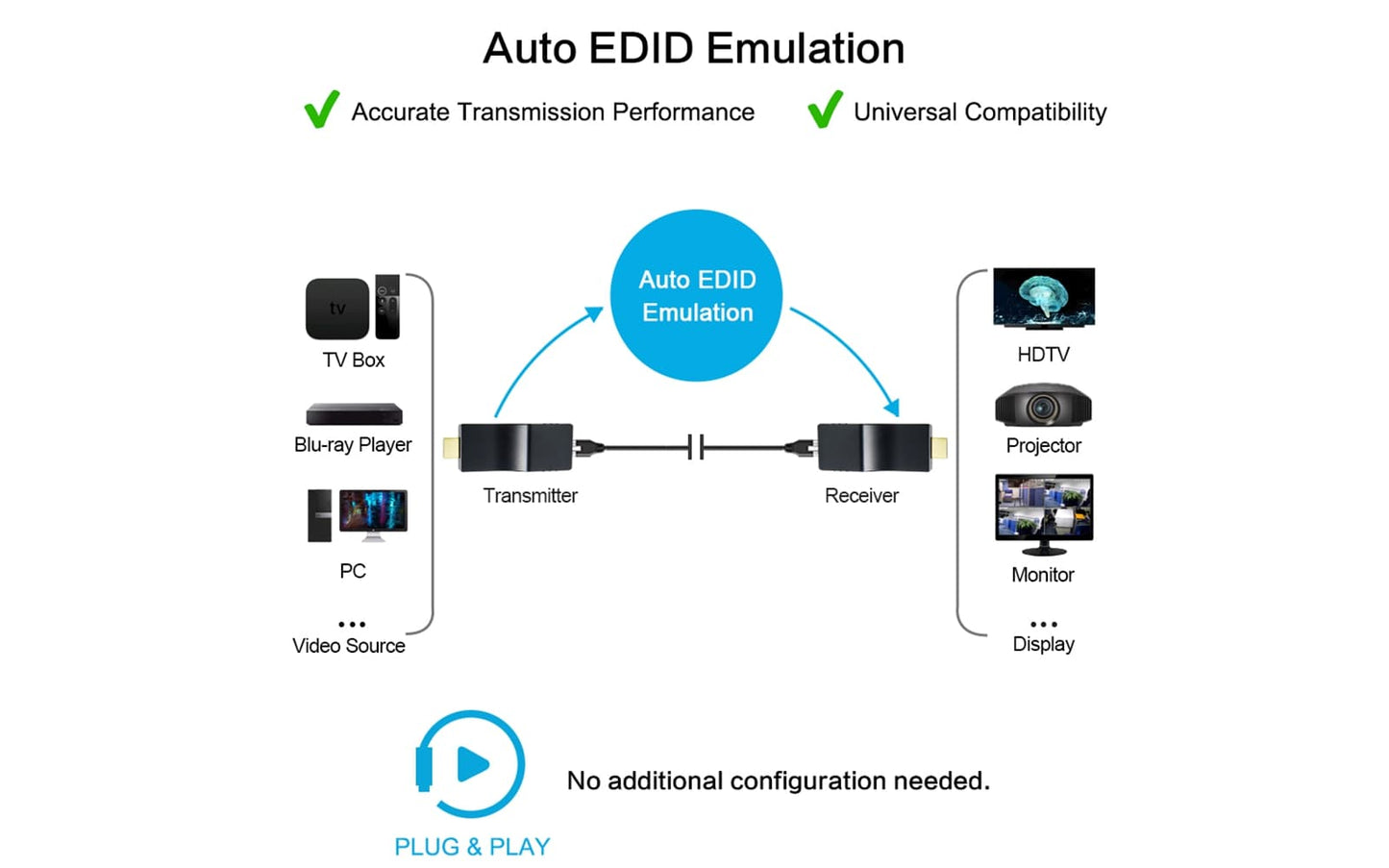

• EDID management - auto EDID pass through, no configuration needed.
• Power Over Cable(PoC) -  only need to power the receiver unit.
• USB-Powered - no proprietary AC power adapter required.
• All-in-one design - easy to install. Ideal for projection system, home A/V system and more.
• Professional-grade quality - stable and reliable 24/7 working.

Specifications

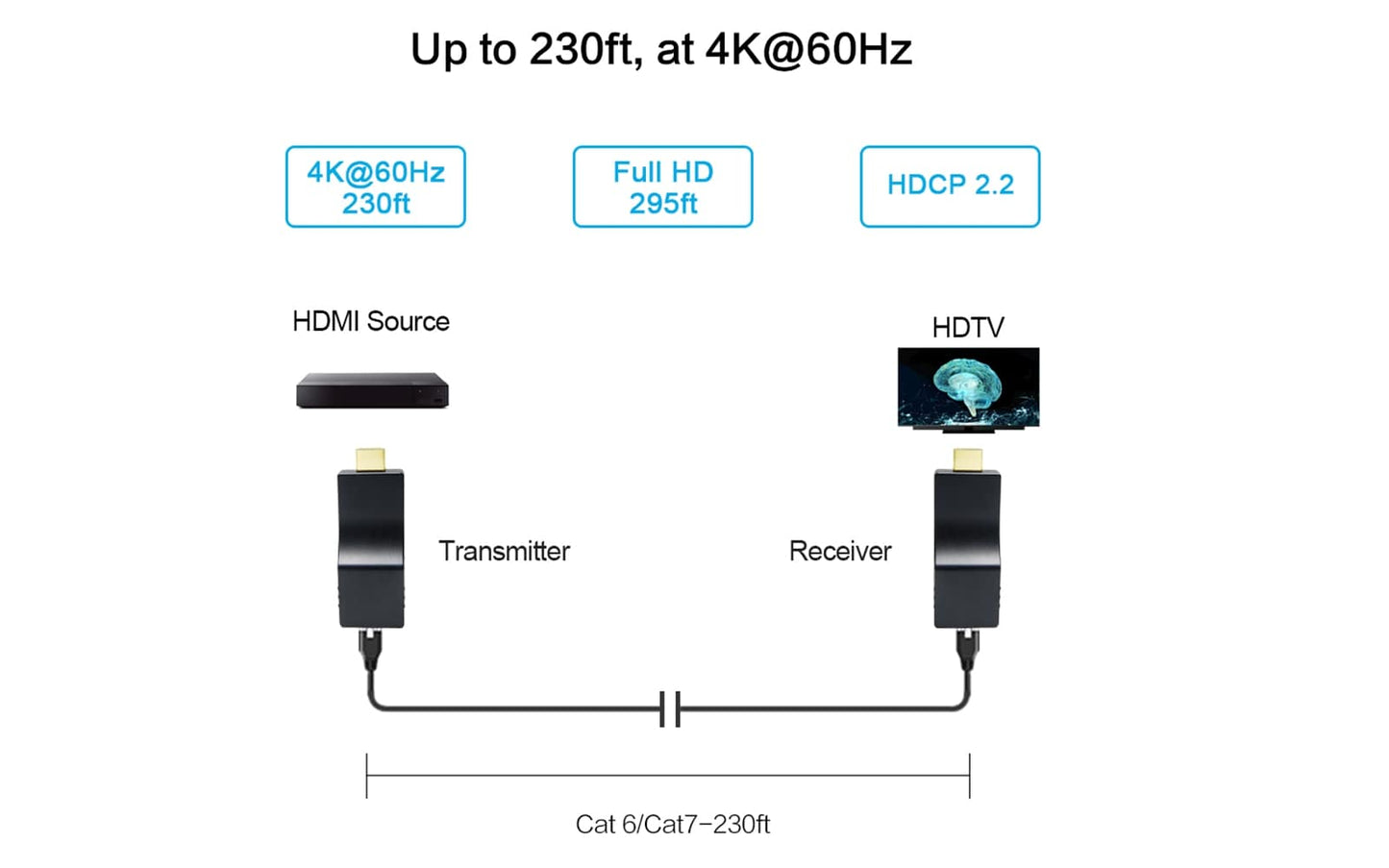

• Extension Range: Max. 230ft /70m in 4K@60Hz; 295ft/90m in Full HD 1080P.
• Supported Resolutions: 3840×2160p@60/30Hz, 1920×1080p@60/50/30Hz, 1920×1080i@60/50/30Hz, 1280×720p@60/50/30Hz
• Supported Audio Formats: Supports a full range of HD audio, includes Dobly TruHD, DTS-HD Master Audio, LPCM, DTS, Dobly-AC3, DSD, etc.
• Compliant with HDMI 2.0, HDCP 2.2, HDCP 1.4
• Plug and play - no setup is needed.
• Wide Compatibility: Compatible with various devices like set-top boxes, blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.
• LED Indicator: Green Light - Power; Yellow Light - Signal
• Power Consumption: Transmitter (2.5W), Receiver (2W)

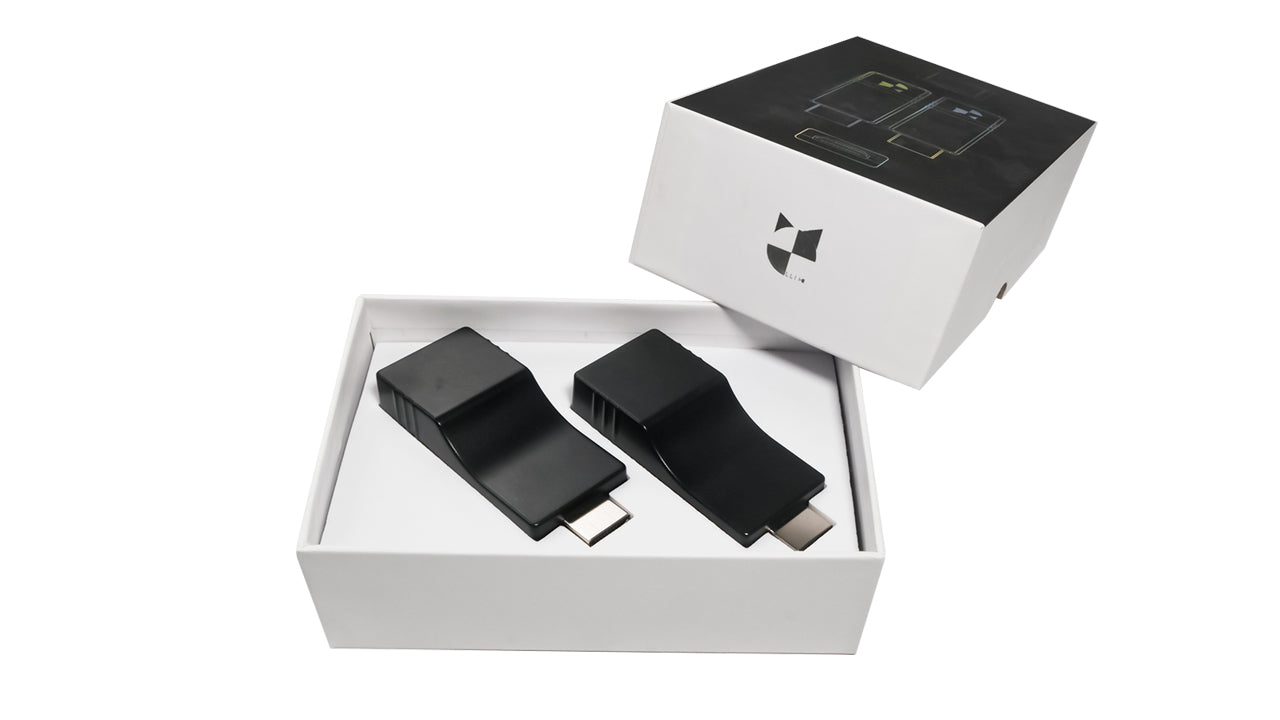

What's in the Box

• 1× 4K HDMI Transmitter
• 1× 4K HDMI Receiver
• 2× HDMI Male to Female Cable
• 2× Micro USB Power Cable
• 1× User Manual
