DDMALL HE-30IR 4K HDMI IR Extender, HDMI Transmitter and Receiver 230ft/70m Range
【4K True UDH HDMI Transmitter】The HE-30IR HDMI video extender extends 4K HDMI A/V signals from point to point with up to 230ft/70m range in 4K@60Hz over single cat6/cat7 cable, while transmission range up to 295ft/90m in 1080P.
【Multiple Chroma Subsampling Supported】The HE-30IR HDMI transmitter receiver kit supports 4:4:4, 4:2:2 and 4:2:0. More saturated color and video quality of your video transmission will take place. The transmitter also supports full range of audio formats like Dolby True HD, DTS-HD Master audio, LPCM, DTS, Dolby-AC3/DSD.
【Plug and Play】The HE-30IR HDMI extender kit over cat6 or cat7 can be easy set up. Both the TX transmitter and RX receiver are USB-powered. Plug and play.
【POC and IR Control Supported】The HE-30IR HDMI extender kit supports POC so you will only need to power the TX transmitter or the RX receiver. The HDMI transmitter and receiver kit support IR remote control for easier management of your transmission.
【Auto-EDID Supported】With built-in auto-EDID emulation technology, the HDMI video transmitter allows to copy EDID information for the EDID compliant displays to ensure accurate display performance.
DDMALL Technology
DDMALL Technology is the proprietary brand of Atel Technologies Co., Ltd. As a company comprised of R&D and manufacture, we have been dedicated to hardware video codec products for over 20years. Foot on video over IP industry, we have developed a series of hardware HDMI over Ethernet transmitters, extenders, live video encoders, decoders, A/V processors, matrix switchers, HDMI cables etc. To meet the ever-growing segmented market demands and keep our customers one-step ahead in the market, we will stay innovative and sharpen our technology to provide more versatile, reliable, stable but less cost and carbon footage solutions for video transmission, distribution and live streaming.

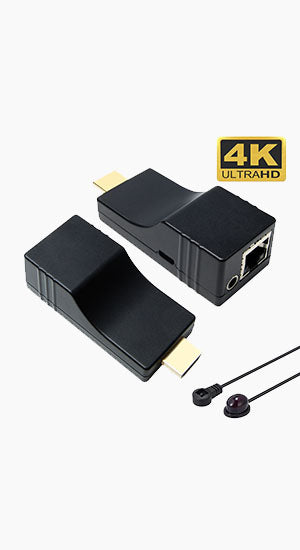

The DDMALL HE-30IR 4K HDMI IR extender allows you to extend up to UHD 4K@60Hz video with HDR with range up to 230ft/70m or 1080P video with range up to 295ft/90m over a single CAT6/CAT7 cable. With the ultra-compact form facto, The HE-30IR transmitter receiver kit can be hidden in the back of HDMI source, TV, projector and various device simply. This HDMI IR extender support IR remote control for your easier and convenient video transmission. The HDMI video extender kit is USB-powered and supports power over cable (POC) so you just need to power the receiver unit. It allows EDID management so the transmitter kit will automatically copy the EDID signal from the receiver's display for better video performance. Ideal for projection systems, digital signage, meeting rooms, pro A/V systems, and more.
DDMALL 4K HDMI Extender with IR Remote
Compact Size, Professional Features
• Transmission range is up to 230ft /70m in Ultra HD 4K@60Hz while 295ft/90m in full HD 1080p.
• Support 20~60KHz wide frequency IR remote control.
• Support Chroma subsampling 4:4:4, 4:2:2 and 4:2:0.
• EDID management - auto EDID pass through, no configuration needed.
• Power Over Cable(PoC) - only need to power the receiver unit.
• USB-Powered - no proprietary AC power adapter is required.
• All-in-one design - easy to install. Ideal for projection system, home A/V system and more.
• Professional-grade quality - stable and reliable, supports 24/7 working.
Specifications
• Extension Range: Max. 230ft/70m in4K@60Hz, 295ft/90m in Full HD 1080P
• Supported Resolutions: 3840×2160p@60/30Hz, 1920×1080p@60/50/30Hz, 1920×1080i@60/50/30Hz, 1280×720p@60/50/30Hz
• Supported Audio: full range of HD audio, includes Dobly TruHD, DTS-HD Master Audio, LPCM, DTS, Dobly-AC3, DSD, etc.
• Compliant with HDMI 2.0, HDCP 2.2, HDCP 1.4
• Wide Compatibility: Compatible with various devices like set-top boxes, Blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.
• LED Indicator: Green Light - Power; Yellow Light - Signal
• Power Consumption: Transmitter (2.5W), Receiver (2W)
What's in the Box
• 1× HDMI Transmitter
• 1× HDMI Receiver
• 2× HDMI Male to Female Cable
• 2× Micro USB Power Cable
• 1× IR Blaster
• 1× IR Receiver
• 1× User Manual
