DDMALL HE-35IR 4K HDMI Transmitter and Receiver 230ft/70m with Loopout

$229.90 available: In Stock
Quick Overview:The DDMALL HE-35IR 4K HDMI Extender kit is an ultra HD video transmitter and receiver set,  allowing you to extend 4K@60Hz HDMI audio/video signals to 230ft/70m over a single CAT5e/6/7 cable with zero latency, while maintaining original audio/video quality. It is powered by universal USB cable, no proprietary AC power adapter is required. Supporting plug and play, it is ideal for projection system, digital signage, conference room, pro A/V system, home theater and more.

DDMALL Technology
DDMALL Technology is the proprietary brand of Atel Technologies Co., Ltd. As a company comprised of R&D and manufacture, we have been dedicated to hardware video codec products for over 20years. Foot on video over IP industry, we have developed a series of hardware HDMI over Ethernet transmitters, extenders, live video encoders, decoders, A/V processors, matrix switchers, HDMI cables etc. To meet the ever growing segmented market demands and keep our customers one-step ahead in the market, we will stay innovative and sharpen our technology to provide more versatile, reliable, stable but less cost and carbon footage solutions for video transmission, distribution and live streaming.
The DDMALL Advantages
• Leading Technologies in AV solution Field
• 20+ Years' Experience
• Strong R&D Capabilities
• ISO Certification
• OEM & ODM Specialist

DDMALL 4K HDMI Extender with IR Remote and Local HDMI Loop Out

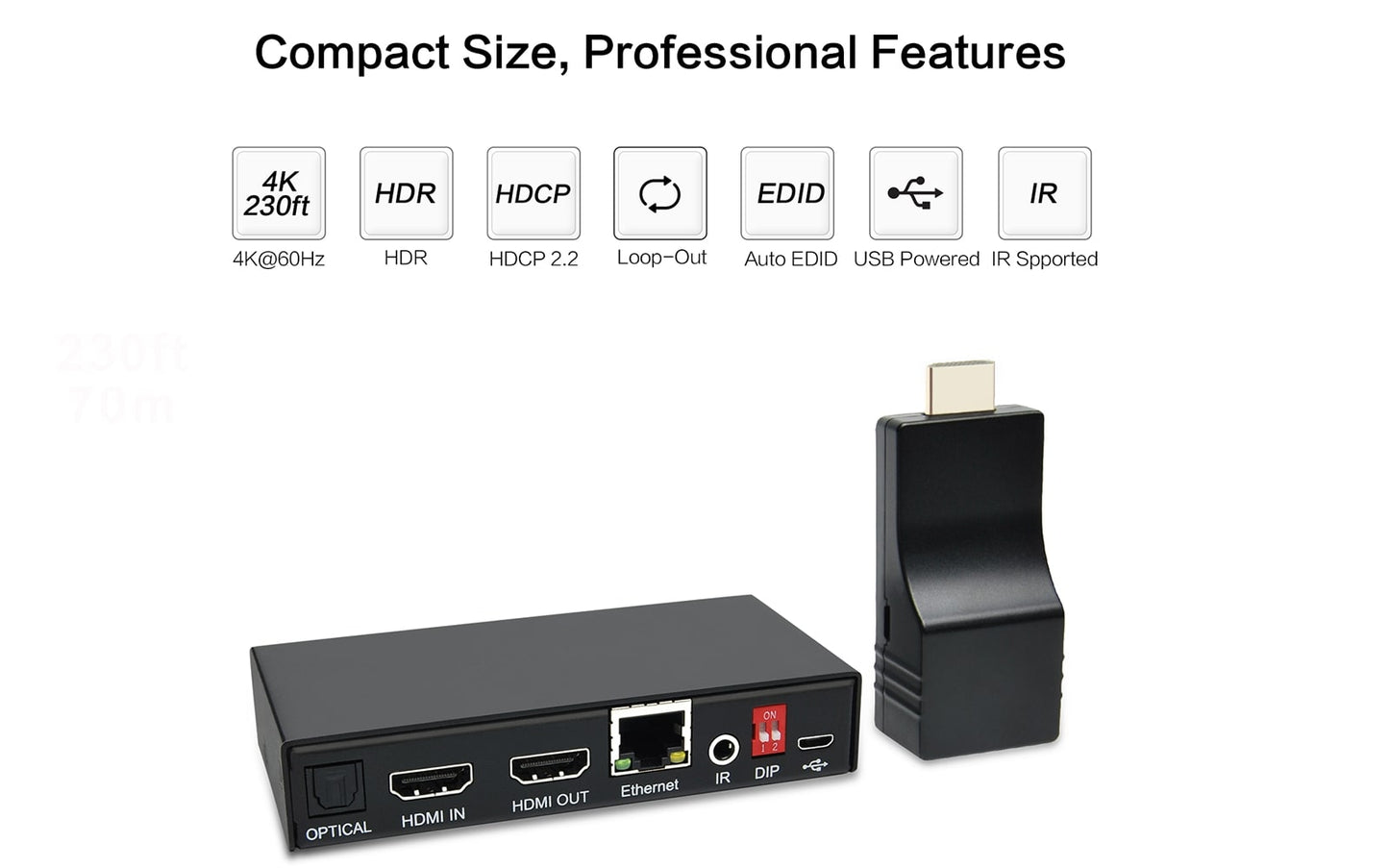

Compact Size, Professional Features

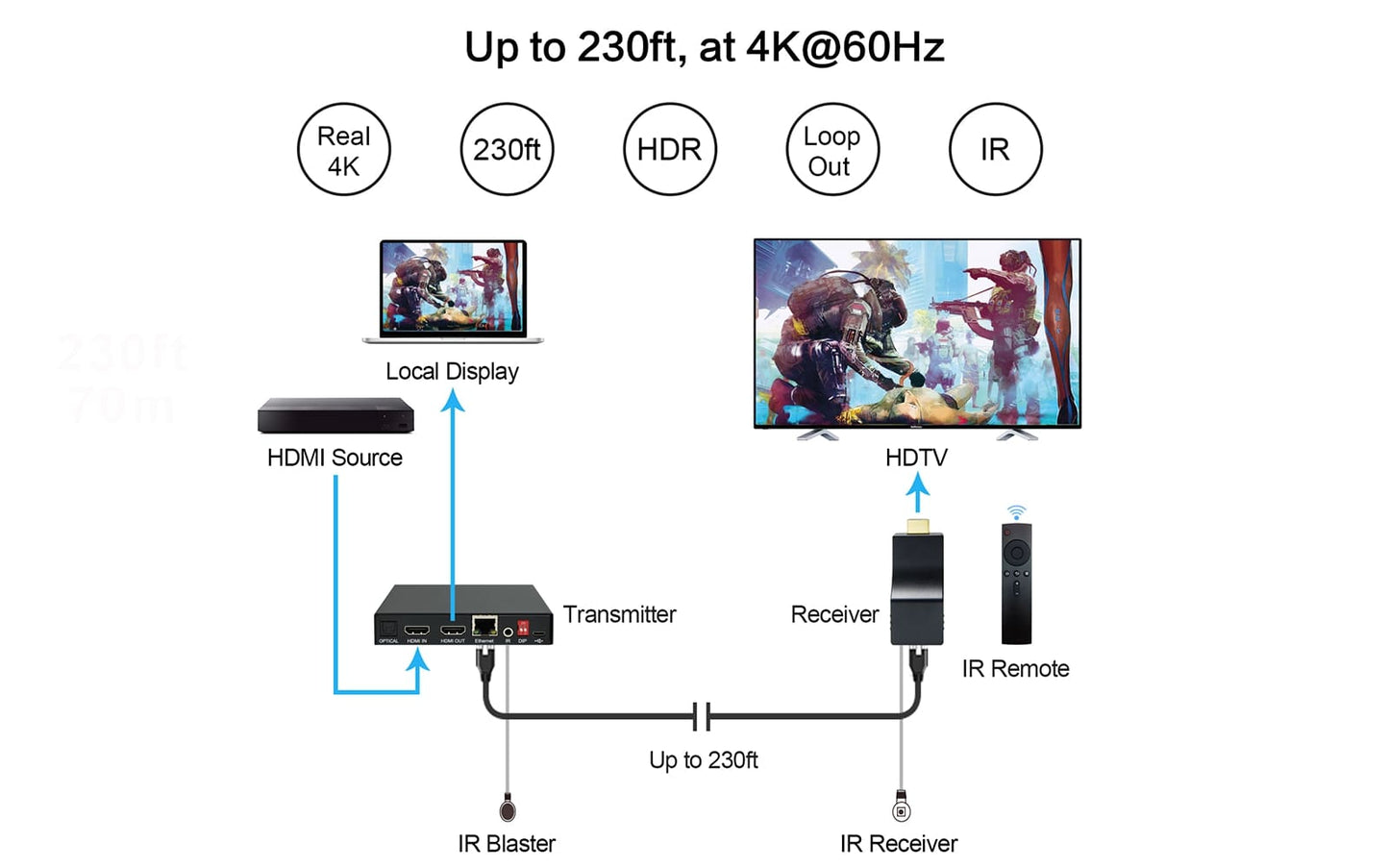

The DDMALL HE-35IR 4K HDMI Extender allows you to extend up to 4K@60Hz HDMI audio/video signals at up to 230ft/70m over a single CAT5e/6/7 cable with zero latency, while maintaining original audio/video quality. It supports all professional 4K specs and features a compact size for easy, plug and play installation. It is powered by universal USB, no proprietary AC power adapter required. Ideally suited for projection system, digital signage, conference room, pro A/V system, and more.


Key Features

• Extends Ultra HD 4K@60Hz at up to 230ft (70m) with zero latency.
• Zero-latency loop out that connect to a local HDMI display.
• Supports Chroma subsampling 4:4:4, 4:2:2 and 4:2:0.
• Supports 20~60KHz wide frequency IR remote control.
• Supports analog audio and optical audio output simultaneously.
• USB-Powered - no AC power adapter required. Perfect for extending from where power outlet may be limited.
• Compact size & easy to install. Ideal for projection system, and more.
• Professional grade quality - stable and reliable, supports 24/7 working.






Specifications

• Extension Range: Max. 230ft (70m) at 4K@60Hz
• Supported Resolutions: 3840×2160p@60/30Hz, 1920×1080p@60/50/30Hz, 1920×1080i@60/50/30Hz, 1280×720p@60/50/30Hz
• Supported Audio: Supports a full range of HD audio, includes Dobly TruHD, DTS-HD Master Audio, LPCM, DTS, Dobly-AC3, DSD, etc. Supports 5.1CH SPDIF audio and 3.5mm analog audio output simultaneously (on transmitter unit).
• Compliant with HDMI 2.0, HDCP 2.2, HDCP 1.4
• Supports 20~60KHz wide frequency IR remote control.
• Wide Compatibility: Compatible with various devices, such as set-top boxes, Blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.
• LED Indicator: Green Light - Power Yellow Light - Signal.
• Power Consumption: Transmitter (2.5W), Receiver (2W).


What's in the Package

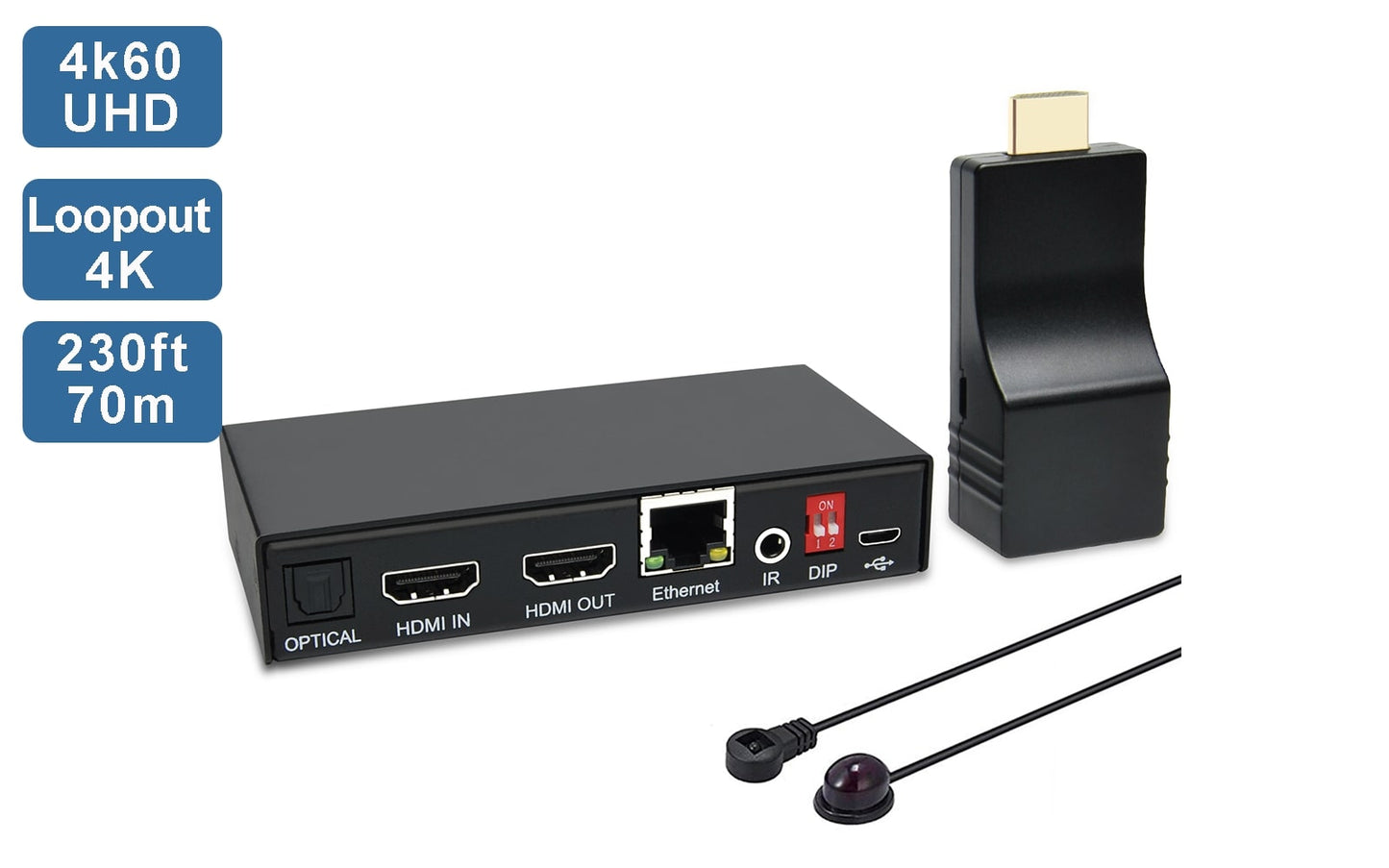

• 1× HDMI Transmitter, 1× HDMI Receiver
• 1× HDMI Male to Female Cable
• 2× Micro USB Power Cable
• 1× IR Blaster, 1× Receiver
• 1× User Manual







●【Real 4K Performance】Extends Ultra HD 4K@60Hz HDMI video & audio up to 230ft (70m) over a single CAT5e/CAT6 cable with no latency and no signal loss. Compactible with HDMI 2.0, HDCP 2.2, HDCP 1.4. Supports HDR for vibrant video. Supports YCbCr 4:4:4, 4:2:2 and 4:2:0 Chroma color. Supports 20~60KHz wide frequency IR remote control.

●【Zero-latency Local Loopout】Zero latency Local HDMI loop output on transmitter to connect a monitor or display near the source. USB-Powered- Both the transmitter and receiver can be powered by universal USB connection, no proprietary AC power adapters needed. Perfect for projection system, digital signage, and extending from where power may be limited.

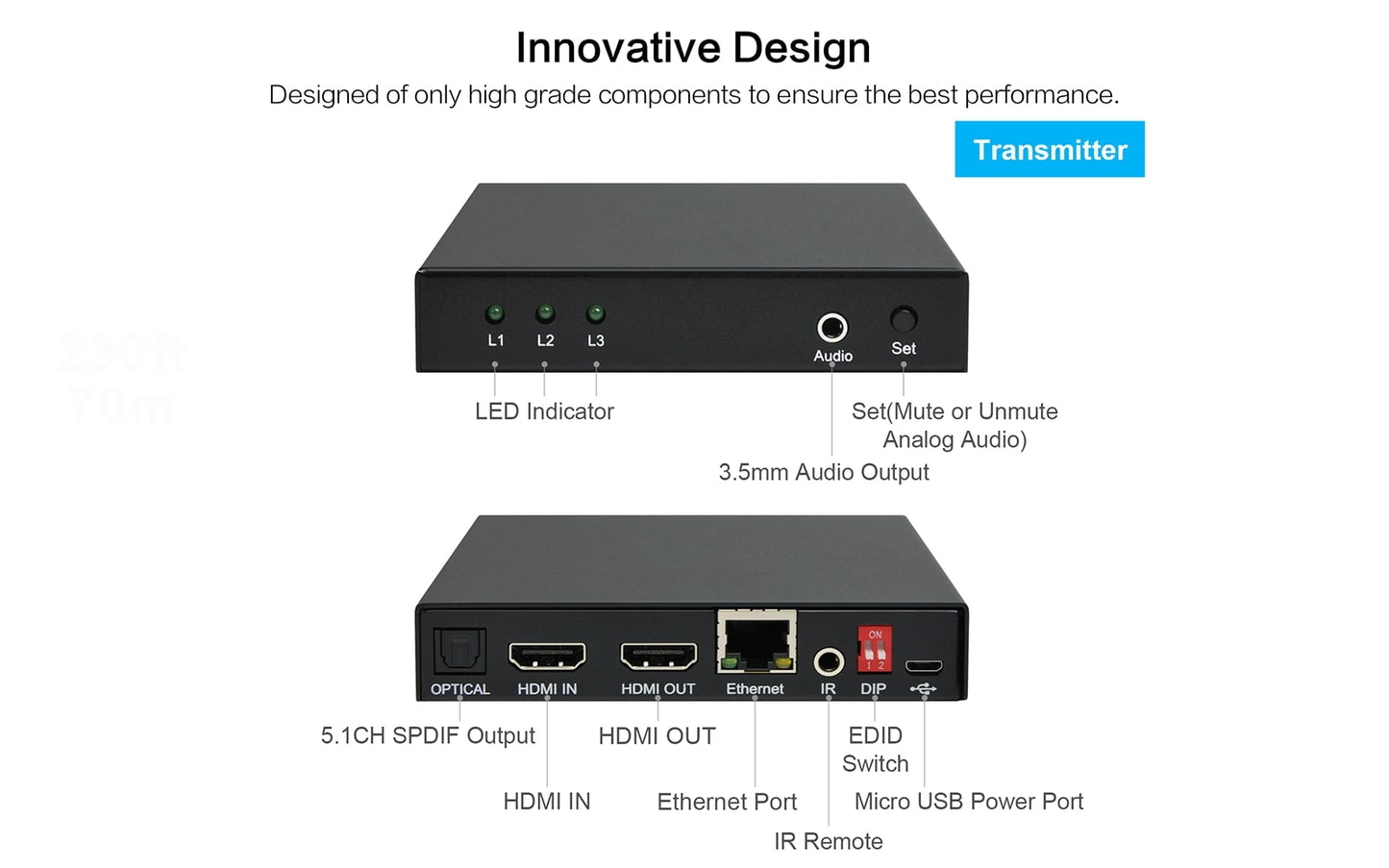

●【Multiple Audio Formats】Support HD audio for a full range of audio formats, such as Dolby TrueHD, DTS-HD Master audio, LPCM, DTS, Dolby-AC3/DSD, etc. The transmitter can extract the digital audio from your HDMI source through the 5.1 digital optical audio port (SPDIF 5.1ch output) and 3.5mm analog audio port, this allows you to connect to an external sound bar or earphone for enhanced audio experience.

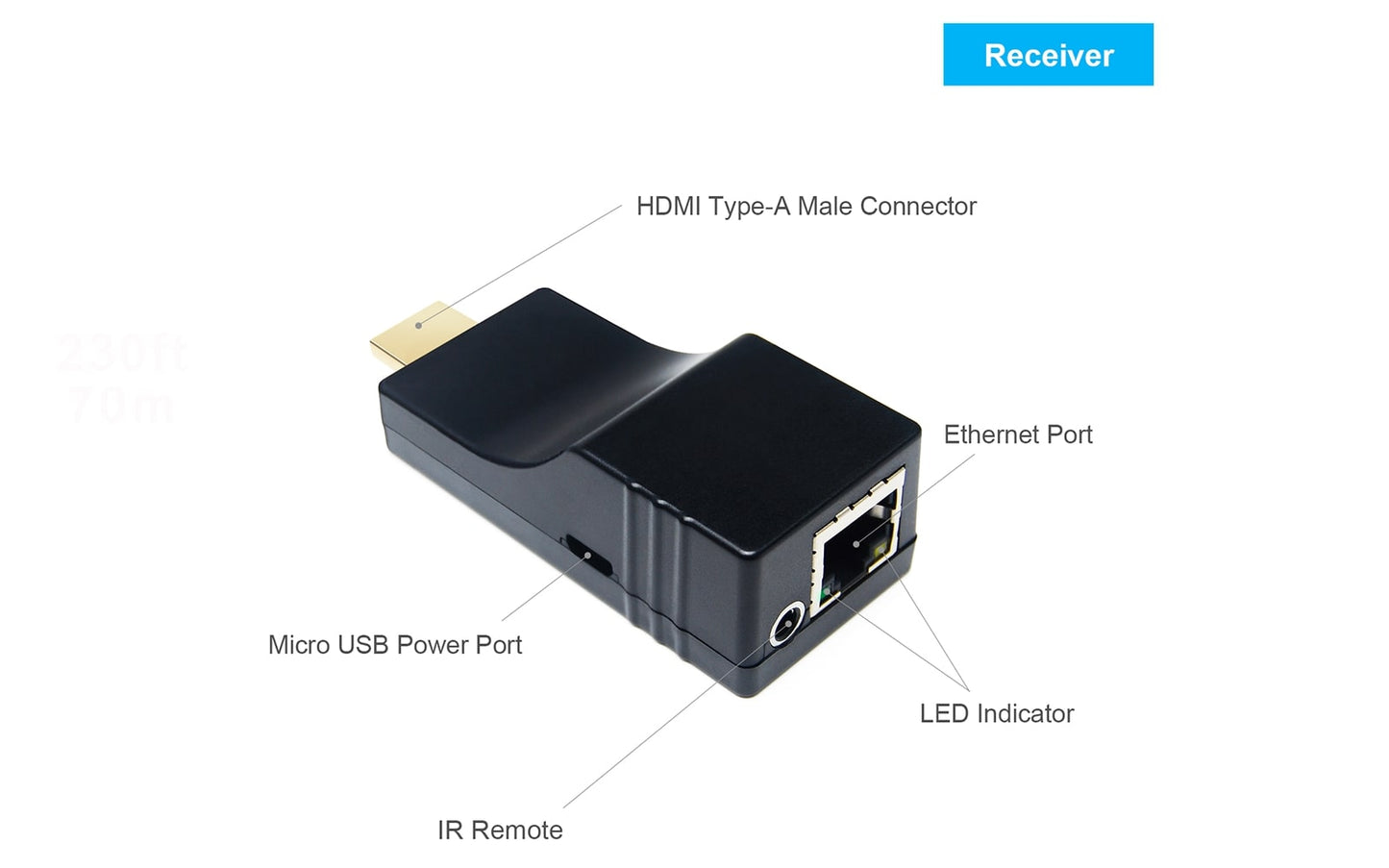

●【Easy Installation】The Receiver unit features a compact size and lightweight and a built-in HDMI Type-A male connector that connects directly to your TV, monitor, reducing clutter by eliminating the need for extra HDMI cables. The receiver can be hidden in the back of TV, projector, monitor simply, and be powered from the nearby USB port. No more cable mess. The transmitter built with sturdy metal enclosure provides durability and minimizes EMI/RFI noise interference.

●【Buy with Confidence】DDMALL has over 20 years’ experience in designing and manufacturing Pro A/V products. Our passion for unique design brought our vision, and products, to life. We believe in our products and we are extremely focused on customer satisfaction, that’s why we are confident in offering 3-Year worry-free manufacturer warranty and free lifetime technical support to our customers. If you have any questions, please do not hesitate to contact us. We're always standing by to help.


   •  Extension Range: Max. 230ft (70m) at 4K@60Hz

   •  Supported Resolutions: 3840×2160p@60/30Hz, 1920×1080p@60/50/30Hz, 1920×1080i@60/50/30Hz, 1280×720p@60/50/30Hz

   •  Supported Audio: Supports a full range of HD audio, includes Dobly TruHD, DTS-HD Master Audio, LPCM, DTS, Dobly-AC3, DSD, etc. Supports 5.1CH SPDIF audio and 3.5mm analog audio output simultaneously (on transmitter unit).

   •  Compliant with HDMI 2.0, HDCP 2.2, HDCP 1.4

   •  Supports 20~60KHz wide frequency IR remote control.

   •  Wide Compatibility: Compatible with various devices, such as set-top boxes, Blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.

   •  LED Indicator: Green Light - Power Yellow Light - Signal.

   •  Power Supply: Powered by universal USB port. No proprietary AC power adapter needed.

   •  Power Supply: Power Consumption: Transmitter (2.5W), Receiver (2W).
