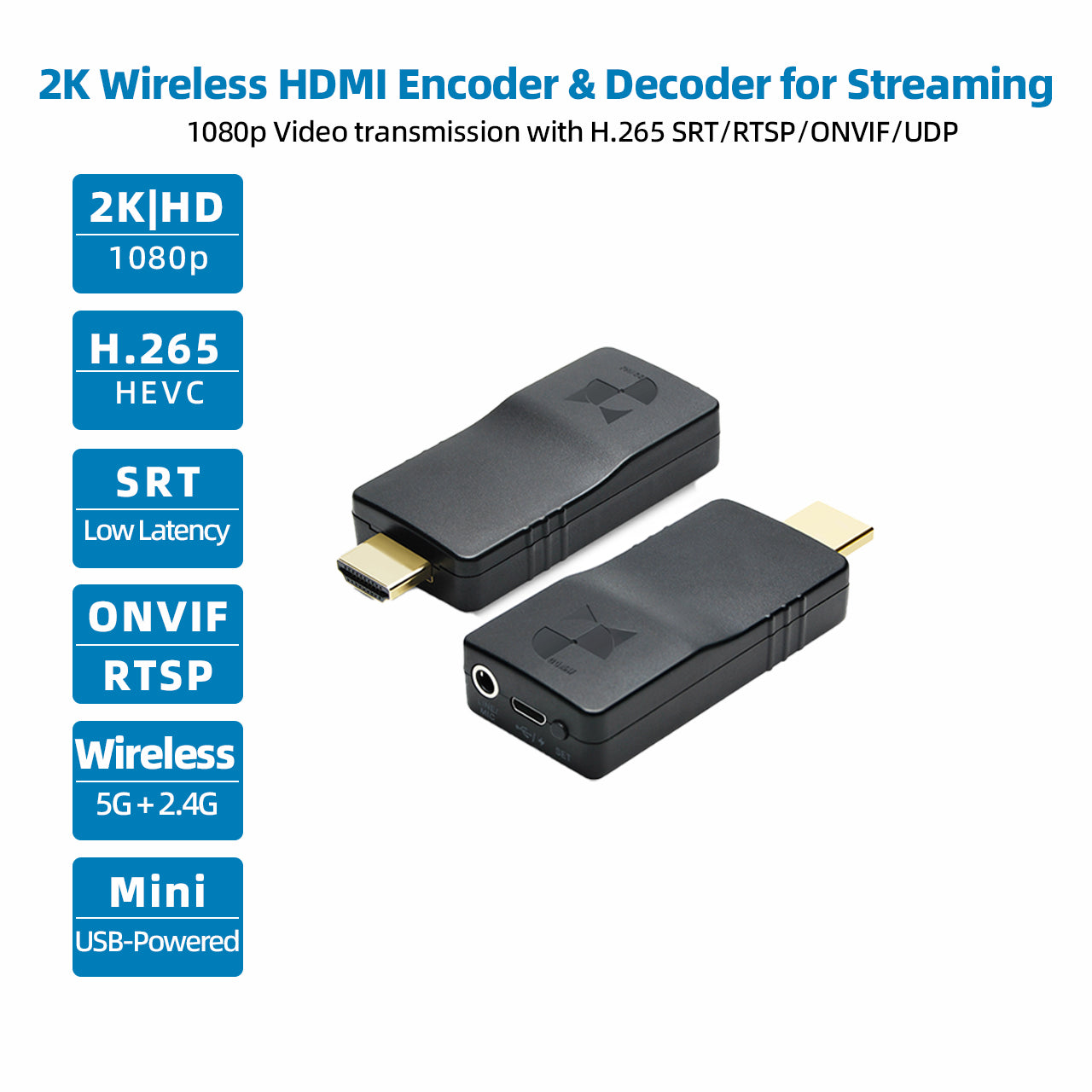

Overview

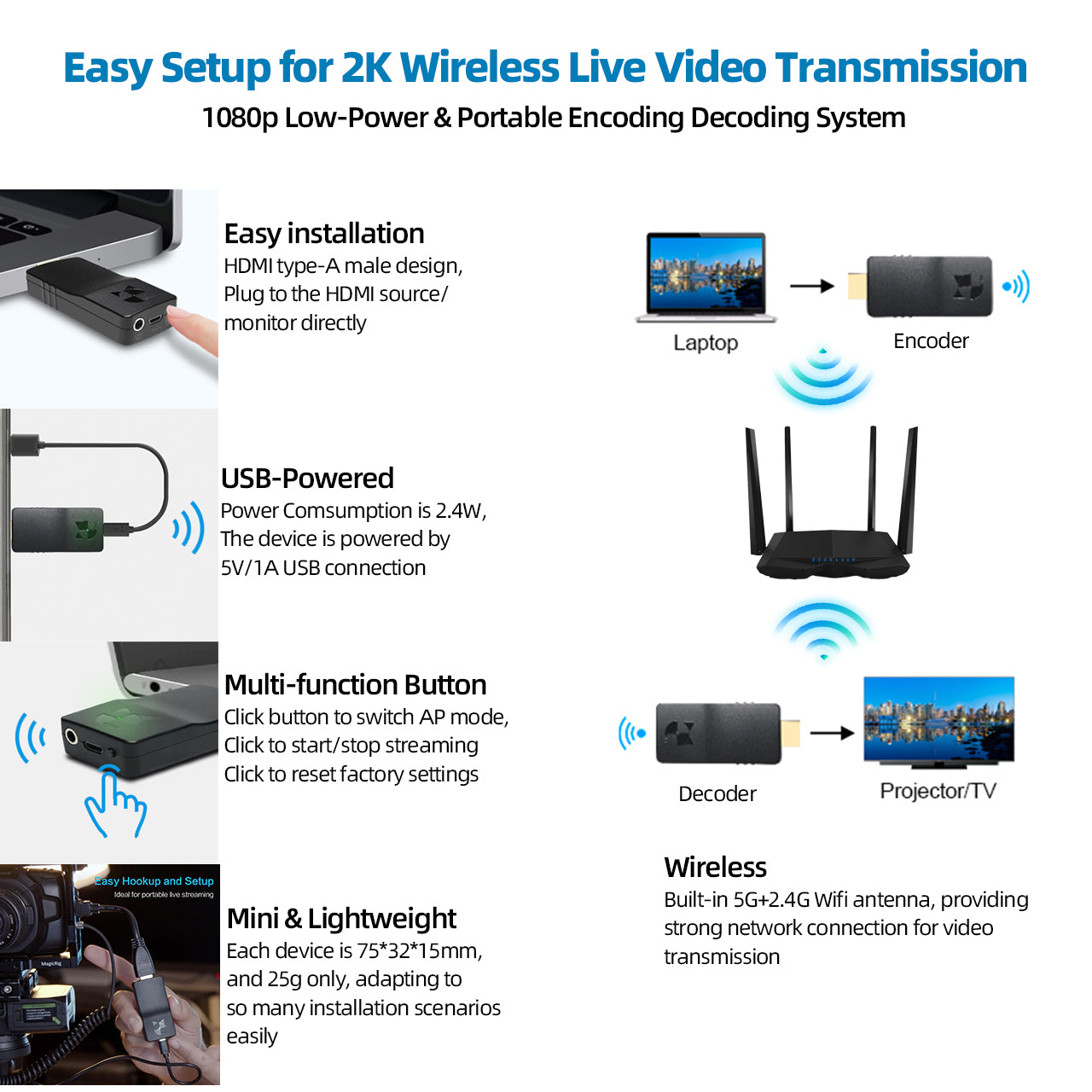

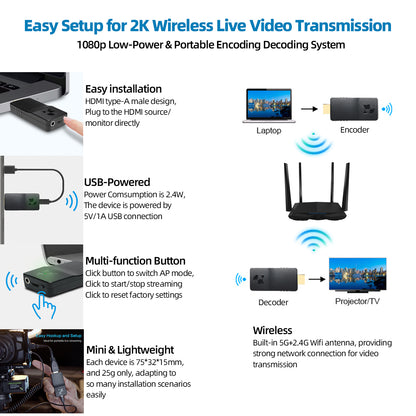

- Neat AV over IP Solution: With built-in 5G+2.4G dual-band Wifi antenna, mini size(75x32x15mm), lightweight(25g), and type-A male HDMI connector, users can directly plug to the HDMI source or display without additional cables, making the setup neat and tidy.
- Low-Power HDMI Video Transmission: With low power consumption(2.4W), the HDMI encoder and decoder are powered by USB-connection to the video source/display or power bank, empowering 7/24 non-stop streaming effortlessly.

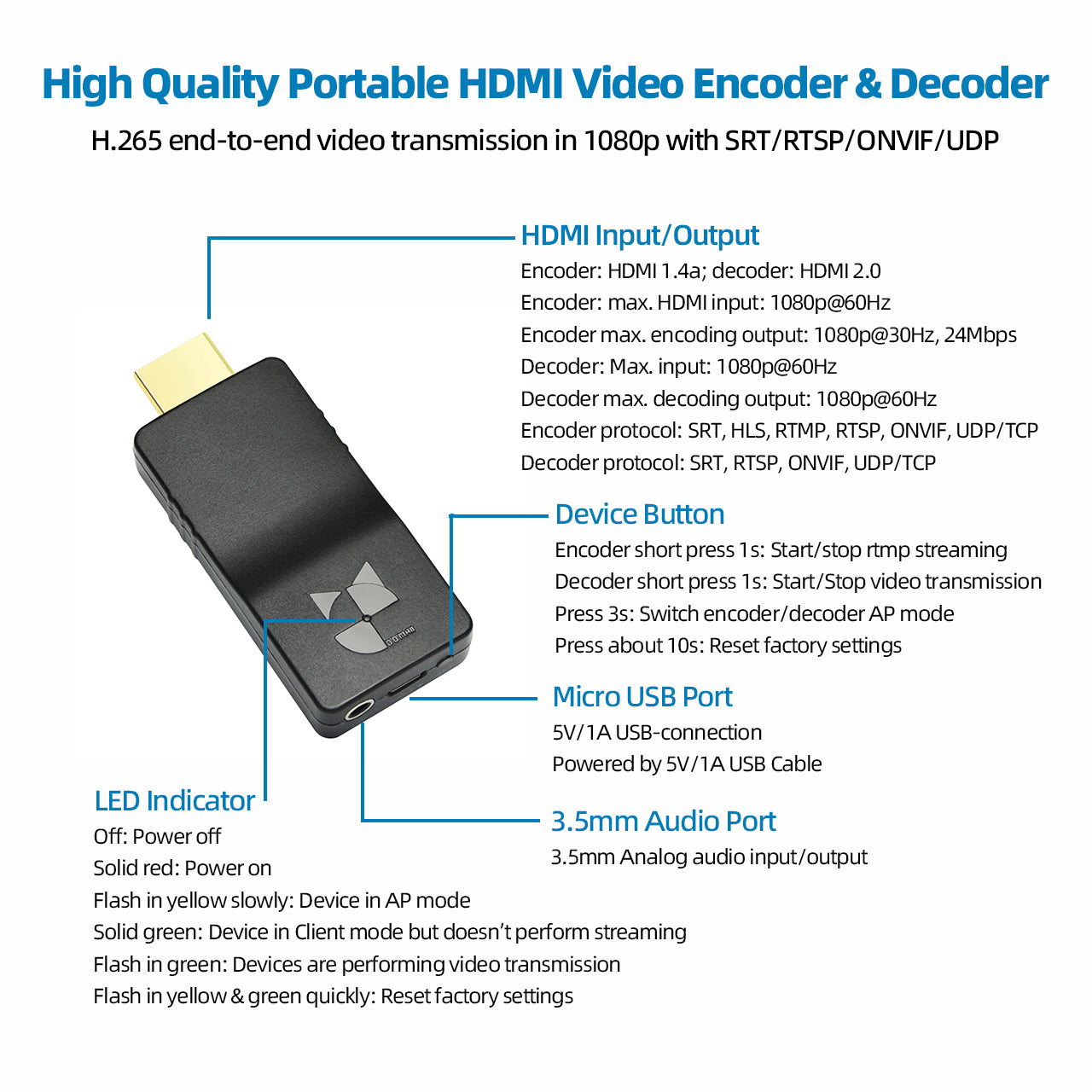

- HD Encoding & Decoding: HDMI input of the video encoder is up to 1080p@60Hz, and its max. encoding output is 1080p@30Hz at 24Mbps. The input of the HDMI decoder is up to 2160p@60Hz, and its max. decoding output is 1080p@60Hz.

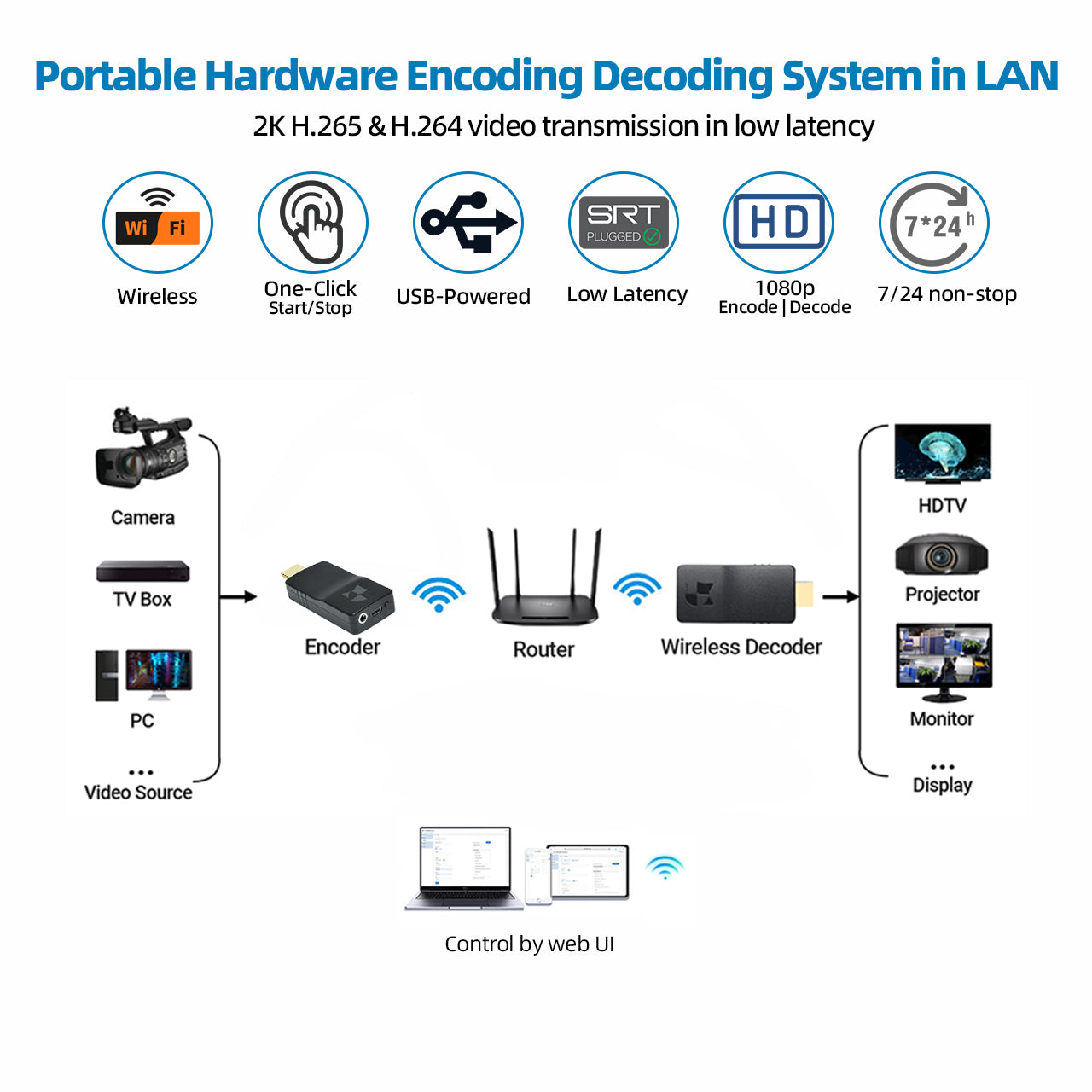

- High-Quality Video Transmission: With H.265(HEVC) and H.264(AVC), the IP encoder supports SRT, HLS, RTMP(S), RTSP, ONVIF, RTP, TCP, UDP, Multicast, Unicast; while the video decoder supports SRT, ONVIF, RTSP, UDP. It is the most portable hardware video transmission solution in low latency.

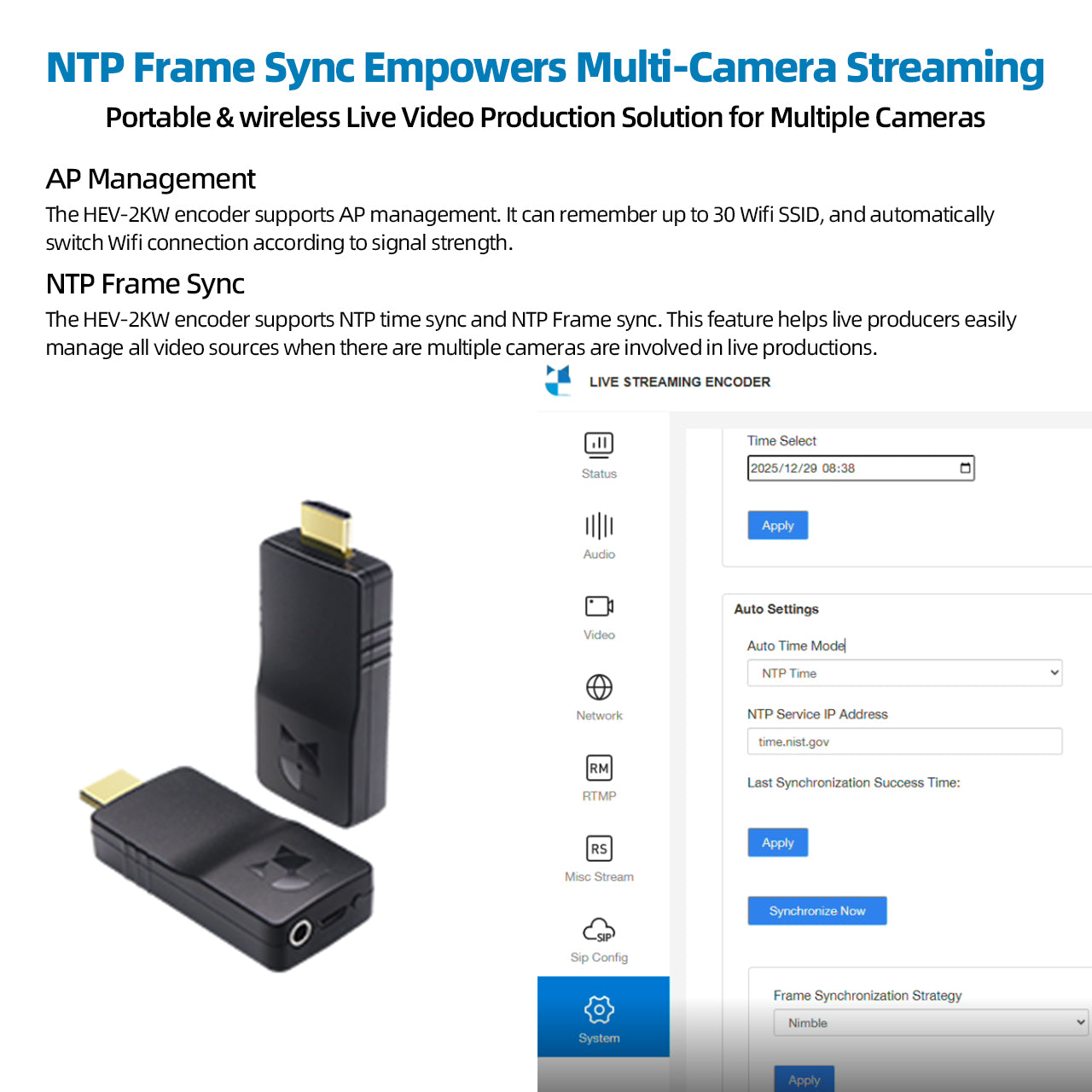

- More Features: Compatible with third-party hardware or software encoder/decoder. The encoder supports NTP frame sync, which is crucial for multi-camera streaming, remote monitoring, and video conferencing. Moreover, The encoder also supports one lick to start/stop RTMP streaming, go live to 4 live platforms at the same time, real-time text/picture/time OSD, image preview, and Cloud control for massive deployment. Contact us to customize more features according to your needs.
The HEV-2KW Encoder Parameters
|
Power Supply
|
5V/1 A （USB cable powered ）
|
Power Consumption | 2.4W |
|
Work Temperature
|
-10~55℃ （14~149℉）
|
Storage Temperature | -20~85℃ （-4~185℉） |
|
Work Humidity
|
10%- 90%RH (Non-condensing)
|
Weight | 25g/0.055lbs |
|
Dimension
|
75mm(L)*32mm(W)*15mm(H)/ 3.94×1.26× 0.59in
|
MTBF(mean time between failures) | 30,000h |
|
Video Input Standard
|
HDMI 1.4A
|
Video Codec | H.265/HEVC and H.264/AVC |
|
Supported Protocols
|
SRT, HLS, RTMP(S), RTSP, ONVIF, UDP,/TCP, Multicast and Unicast.
|
Supported Input Resolution | 1080p@60Hz, 720p@60Hz |
|
Supported Output Resolution
|
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
|
Video Bitrate | 128Kbps~24Mbps |
|
Audio Input Standard
|
HDMI, 3.5mm analog, Mic in, Line in
|
Audio Encoding Format | G.711u, AAC |
|
Audio Bitrate
|
32kbps~256Kbps
|
Wireless Standard | 802.11a/n/ac 5G，802.11b/g/n 2.4G |
|
Control Method
|
Web UI/Cloud
|
AP Mode Wi-Fi Info. | SSID：HEV-2KWPlus；password：12345678 |
|
AP Mode Default IP
|
192.168.1.252
|
Default Web UI Login Credentials | user/password: admin/admin |
|
GOP
|
Tunable
|
Compression Profile | BaseLine, Main, High |
The DD-2KW Decoder Parameters
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.4W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature |
-20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 25g/0.055lbs |
| Product Dimension | 75x32x15mm/2.95x1.26x0.59in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP/TCP, | Supported Output Resolution |
1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz, |
| Supported Stream Input Resolution |
3840*2160p@60/30Hz 1920*1080p@60/30Hz, 1280*720p@60/30Hz, |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Level | BaseLine, Main, High |
| Control Method |
Web UI |
Default AP Mode IP | 192.168.2.250 |
