DDMALL AGS-P2-100-4K 4K UHD HDMI Multi-Window Processor for 4K Image Processing & Display

DDMALL AGS-P2-100-4K 4K UHD HDMI Multi-Window Processor for 4K Image Processing & Display


Regular price $4,999.00 USD
Regular price Sale price $4,999.00 USD
Sale Sold out
Shipping calculated at checkout.

In stock

View full details


4K UHD Inputs: 4* 4K HDMI input, 1* 4K HDMI output. Secure your video in 4K all the way! Support four 4K sources synchronized display in quad-view placement.

Multiple Windowing Placements: Like 1 source full-screen display, 4 sources quad-view, or picture-in-picture display. All display scenes are customizable to save for fast recall.

More Features: Text overlay for easy management of your Multiviewer; resolution scaling, audio embedding & de-embedding and more.

Graphic Interface: Intuitive control like pannel buttons, RS232, or IR remote control.

Pure FPGA Hardware Technology: Rack-Mountable 1U standard metal chassis for easy setup; FGPA algorithm technology secures impage processing reliability.

Note: the titled price is only for reference. Please send us your requirements and we will quote prices based on your needs.

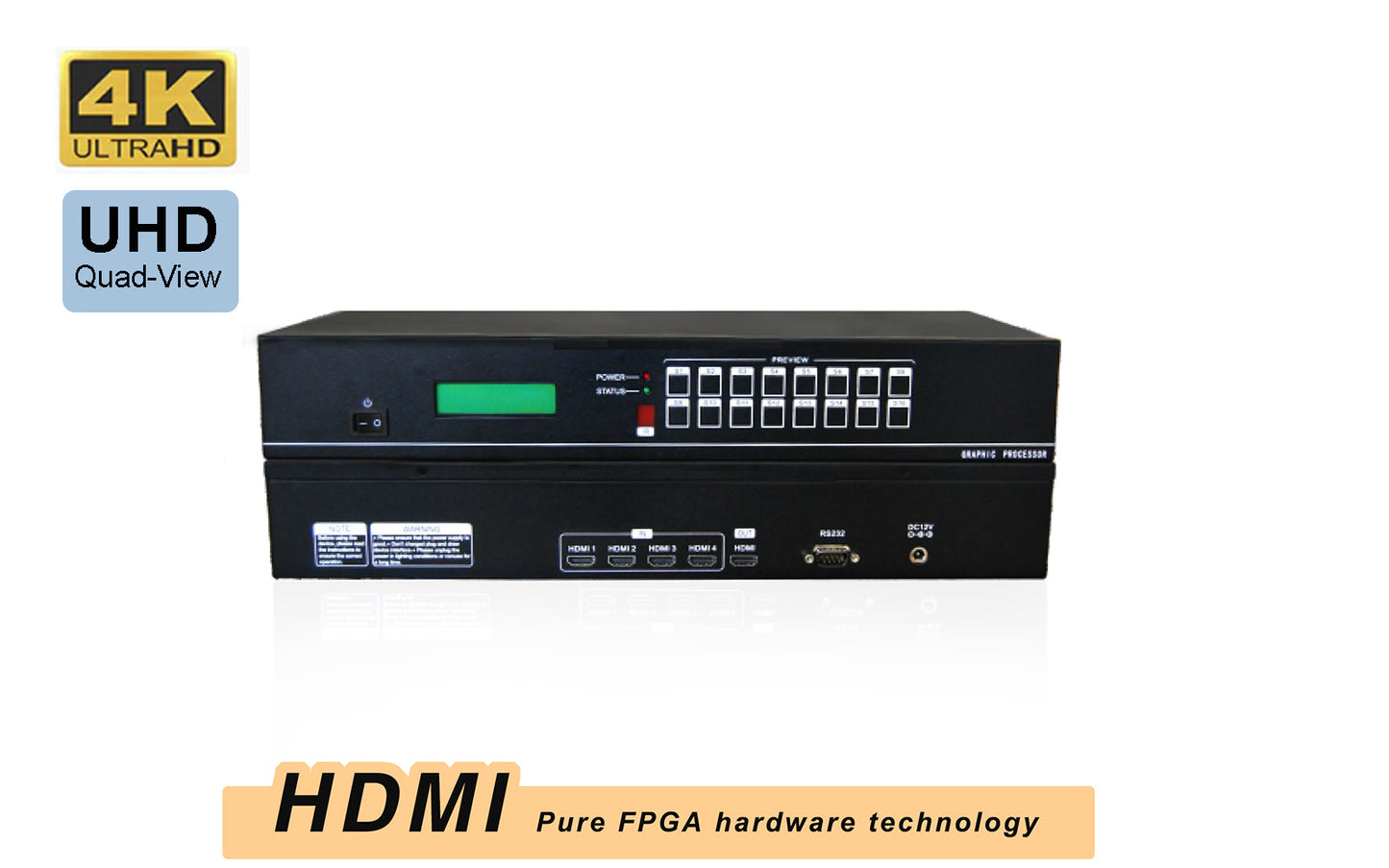

The AGS-P2-100-4K is a powerful 4K ultra HD multi-window processor that enables the  synchronzied quad-view display of up to four 4K images from different HDMI sources on a screen in 4K resolution. It is capable of flexibly handling videos full-screen display, multi-window view, window-overlay, window-transition and picture-in-picture display, supporting fast recall of windowing dislay scene presets, resolution scaling, audio embedding and de-embedding, text overlay for sources classification, RS232 control and IR control. The multi-window processor supports 4 channels of 4K HDMI input and 1 channel of 4K HDMI output, ideal for applications such as military, command, medical, and video conferences that require display of critical quality graphics and video content from multiple sources.

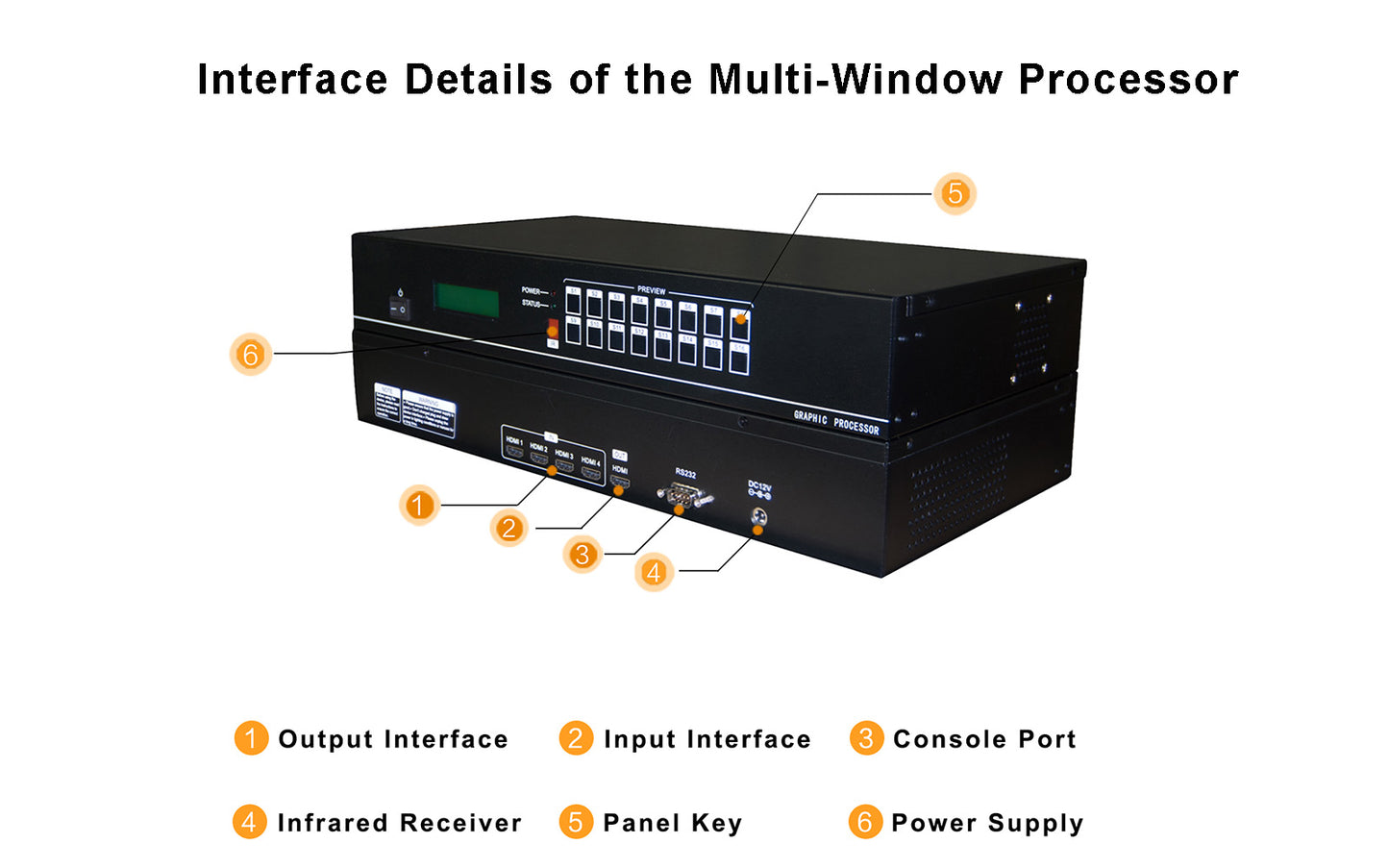

① 4 channels of 4K HDMI input, HDMI 1.4a standard, support resolution up to 3840x2160@30Hz, support down scaling for 2K input.

② 1 channel of 4K HDMI output, HDMI 1.4A, support resolution up to 3840x2160@30Hz, support down scaling for 2K output.

③ 1 channel of RS232 control port.

④ Power interface

⑤ Panel buttons for one-click recall of saved windowing display scenes.

⑥ IR reception for receiving control signal command from IR remote.


Crystal Clear 4K Quality, Display Detail & Realism

Support ultra-high-definition 4Kx2K display in HDMI 1.4a format wthout any frame rate dropping. The multi-window processor routes 4K ultra HD images to 4K ultra HD display uncompressly and losslessly, enabling image content displayed in amazing vivid detail and complete color accuracy. It is downward compatible with various conventional high-definition digital inputs.

High-Performance Video Windowing

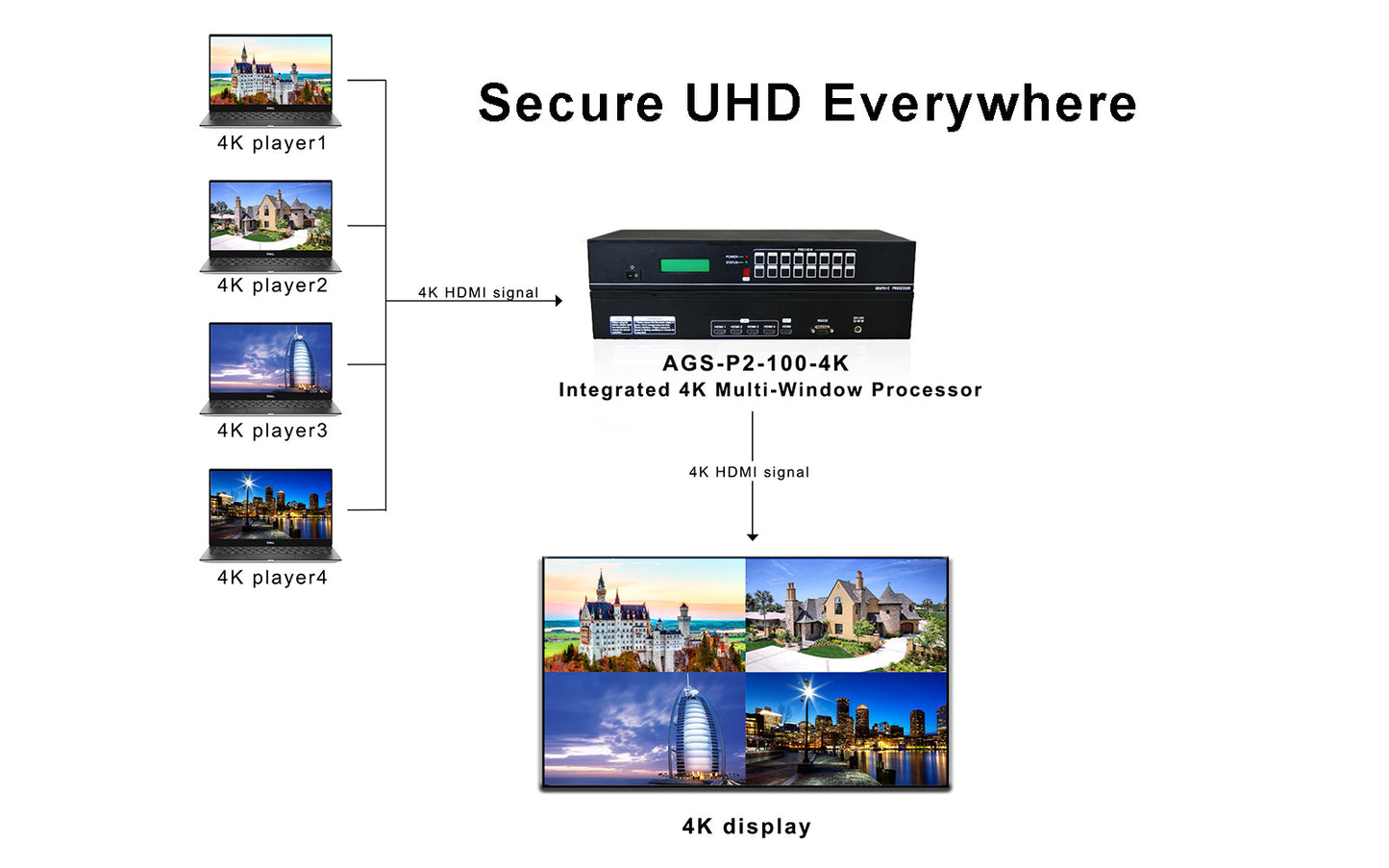

Support 4K video full screen display or 4 images quad-view display simultaneously at resolution up to 3840x2160. Users can quickly access to all the information from different sources for analysis and decision making.


Fast Recall of Display Scene Presets Saved

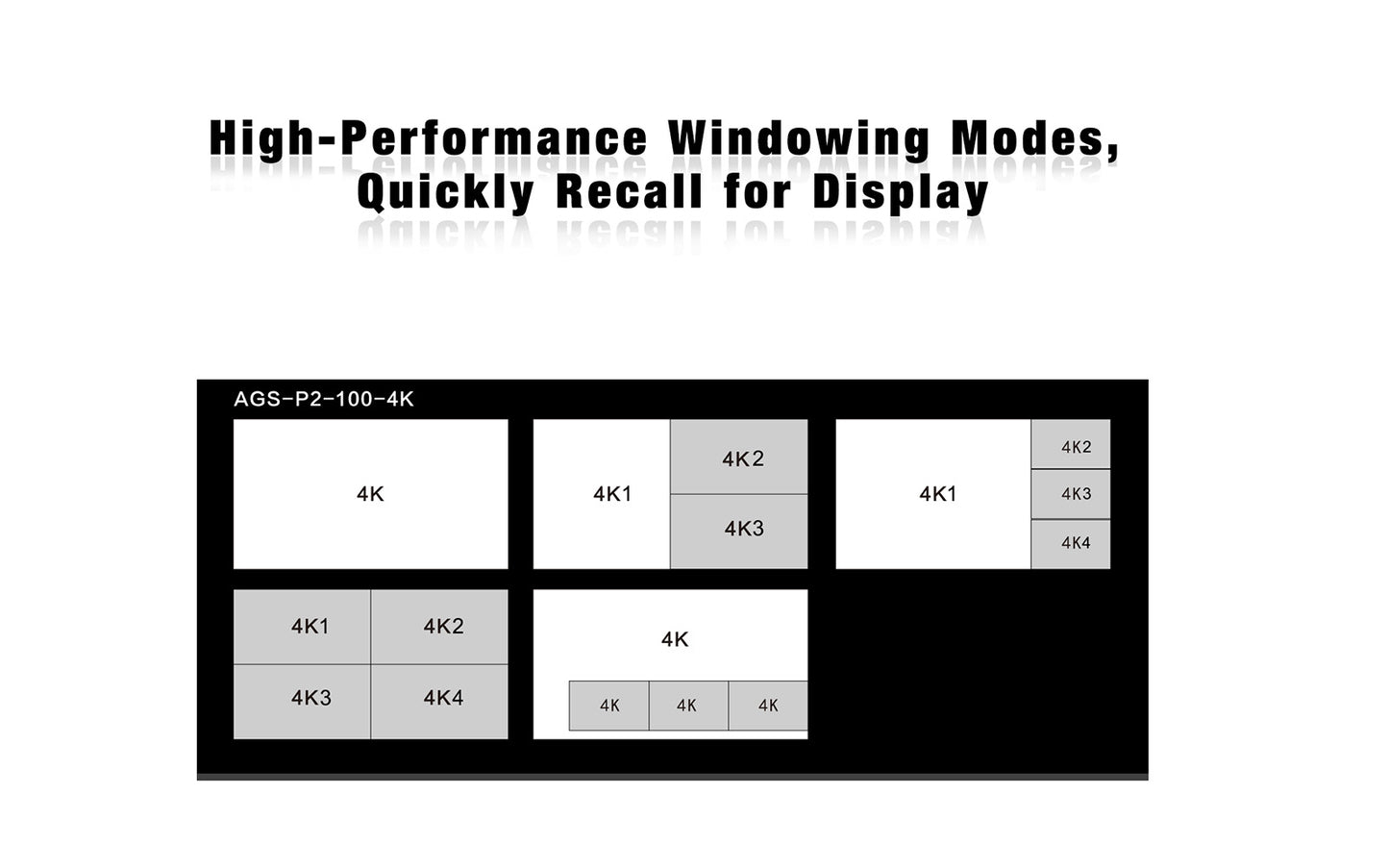

To quickly recall different video windowing display scenes for 4K display, the AGS-P2-100-4K offers five standard conventional windowing templates to meet users’ basic requirements for 4K multi-window display, making it easy to deploy the image display quickly. A windowing setting software is also in place to meet users’ customization requirements.


Image Transparency Adjustment

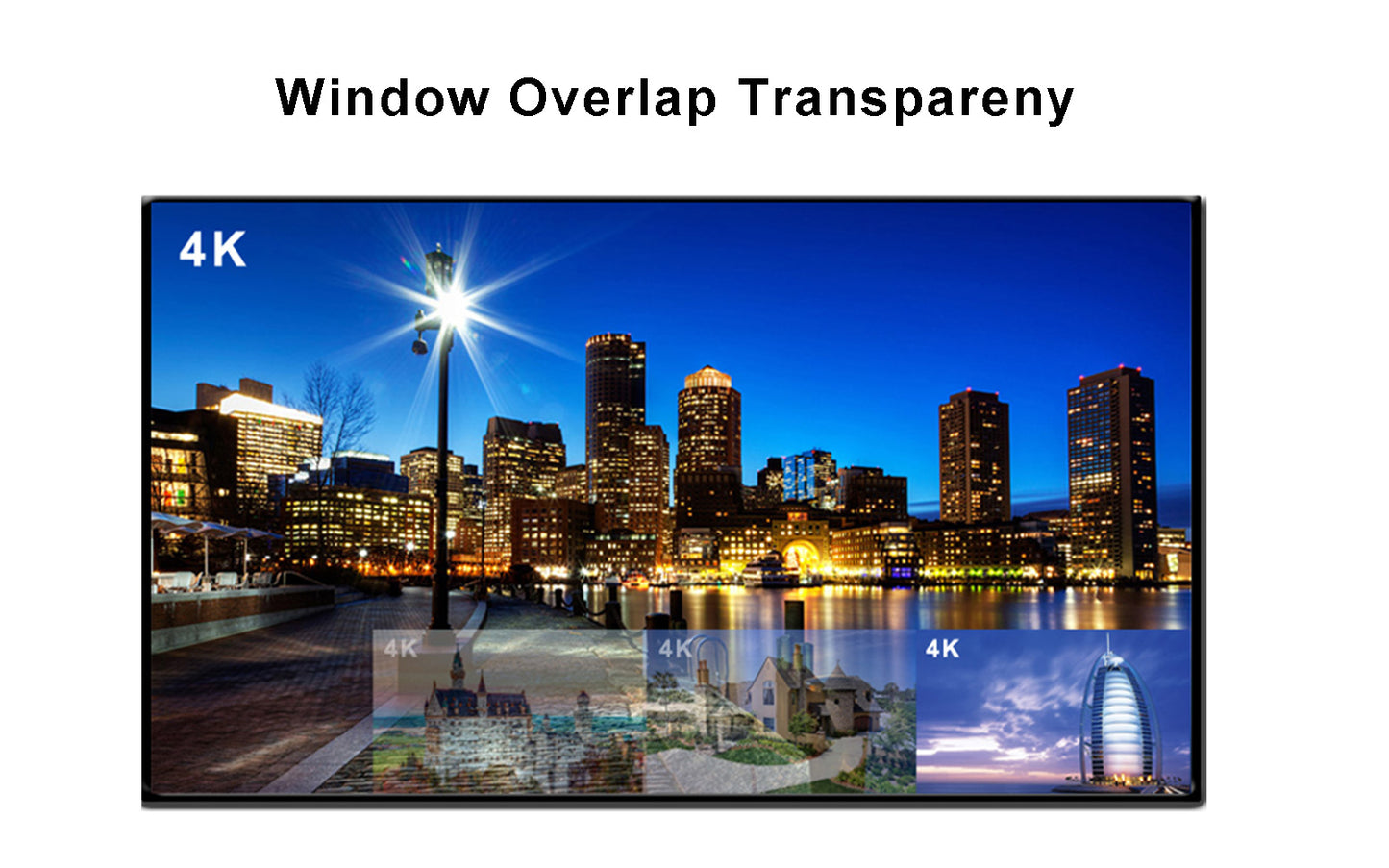

Support radar image transparency overlay technology and window transparency functions. It is suitable for processing sources displayed in inset PIP windows on full screen display of 4K*2K high-definition dynamic image, supporting 50% and 100% image transparency ratio adjustment.

Text Overlay for Sources Labeling

Each video window can be designated with a custom OSD label. The default OSD presets multiple color identifiers internally for better labeling different signal sources. Users can also add custom labels to appear at any location on the screen, making it easier to manage the whole video system.

One Click to recall & Switch Pre-Saved Scenes

The AGS-P2-100-4K supports frequently used configurations to be saved for recall. Multiple display scene configurations can be saved simultaneously, such as 4K full-screen display, 4K quad-view, and 4K full-screen with 4K PIP etc. Users can quickly recall the scene data with one click using the front panel control or infrared remote control, for seamless scene switching.

User-Friendly Control

The device settings and operations of the AGS-P2-100-4K are embedded in its menu functions for convenient operation through auxiliary infrared remote control. It is as easy as controlling a TV. Through the menu functions, users can quickly recall the 5 conventional windowing scenes, as well as directly process signal selection, resolution configuration, phase adjustment, step size adjustment, and location adjustment etc. It greatly facilitates users’ deployment of the video system.

General Parameters

  Video Input   Video Output
Number/Type 4xHDMI type-A connector  1x HDMI type-A connector
Signal Type HDMI 4K (not support analog signal) HDMI 4K(not support analog signal)
Data Rate  Max. 8.91Gbps  Max. 8.91Gbps
Pixel Clock  Max. 297MHz Max. 660MHz
Supported Resolutions 720p@50Hz/60Hz, 1080p@24Hz/50Hz/60Hz; 3840x2160@30Hz; 4096x2160@24Hz 3840x2160@30Hz; 4096x2160@24Hz
Standard  HDMI1.4a HDMI1.4a
 Serial Control  RS-232 (9-pin D connector )
Pannel Control  Pannel buttons
IR Control  infrared remote control
Work Temperature -15-65 Celsius degree
MTBF  more than 30,000hours
Work Humidity  15-85%
Noise Level  Max. 45dB
Power Supply  100-240V AC, 50/60Hz
Power Consumption 48W
Chassis Size  Standard 1U metal housing 43x16.8x6.5cm
Product Weight  2.2kgs
