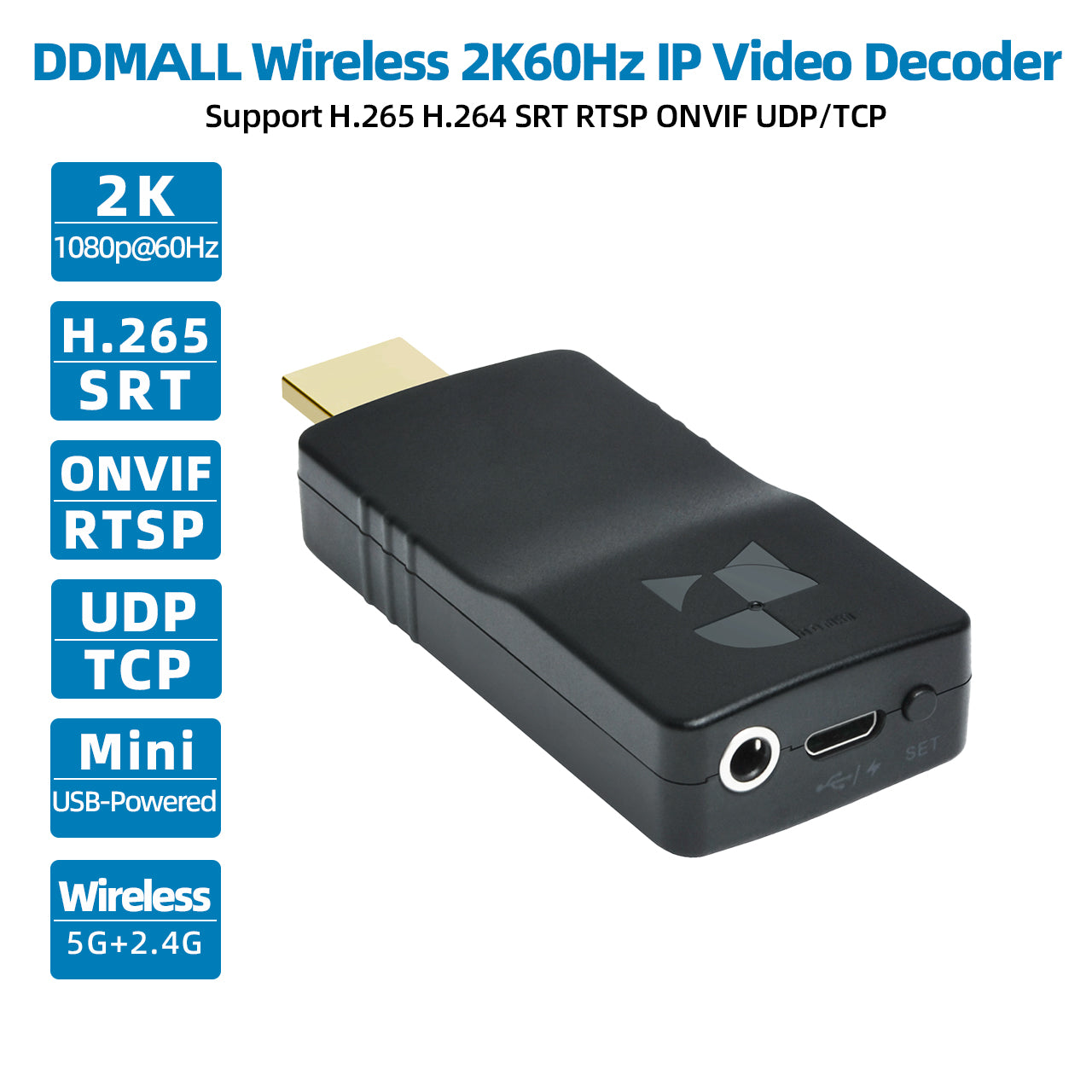

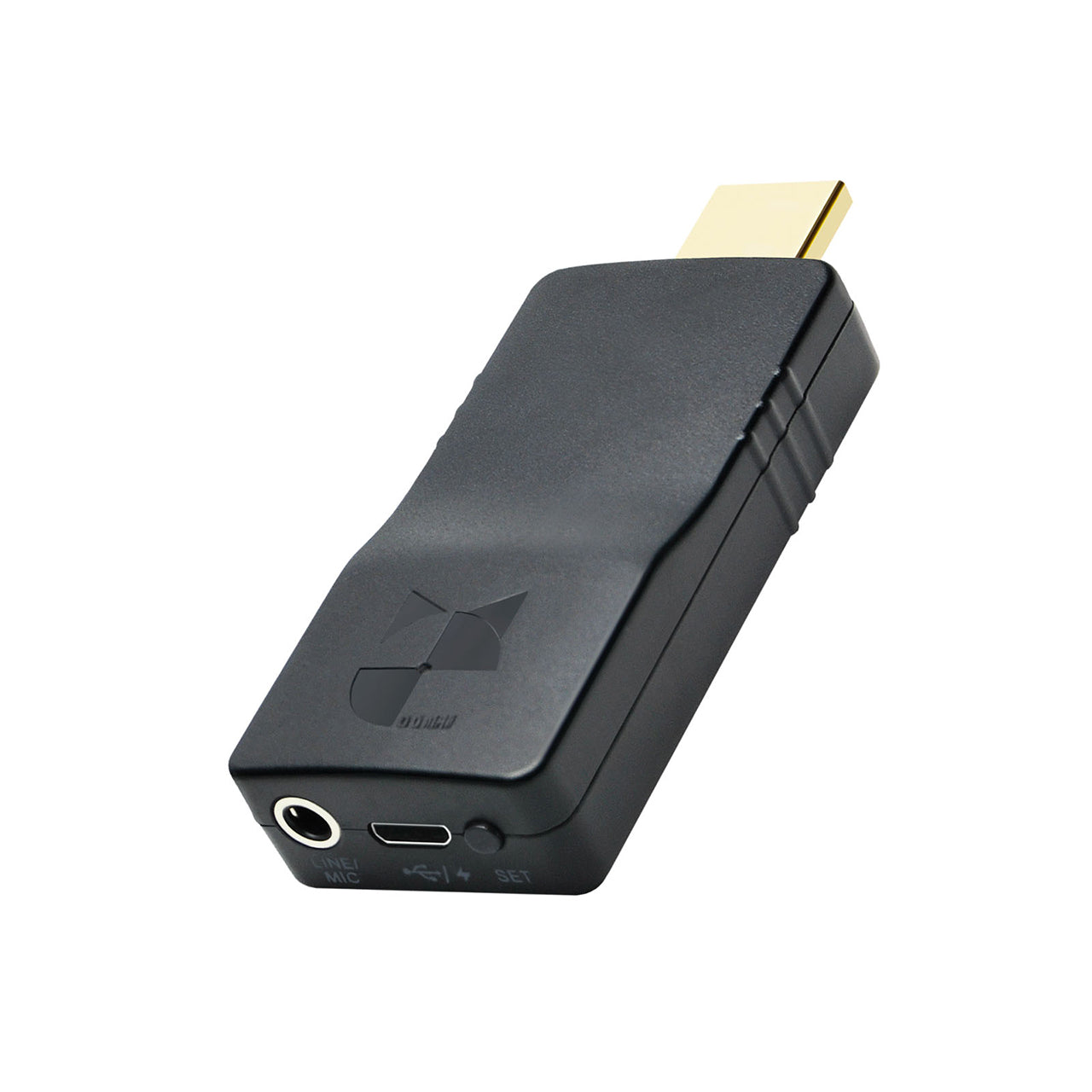

DDMALL HDD-10W Wireless HDMI Video Decoder Decode IP camera, Wifi Decoder in 1080p@60Hz

DDMALL HDD-10W Wireless HDMI Video Decoder Decode IP camera, Wifi Decoder in 1080p@60Hz

SKU:HDD-10W

Regular price $299.00 USD
Regular price $299.00 USD Sale price $299.00 USD
Sale Sold out
Shipping calculated at checkout.

100 in stock

View full details

Overview

HDD-10W: 2K Wireless HDMI Video Decoder, Mini SRT Decoder

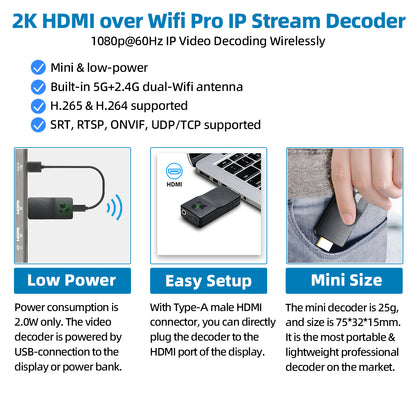

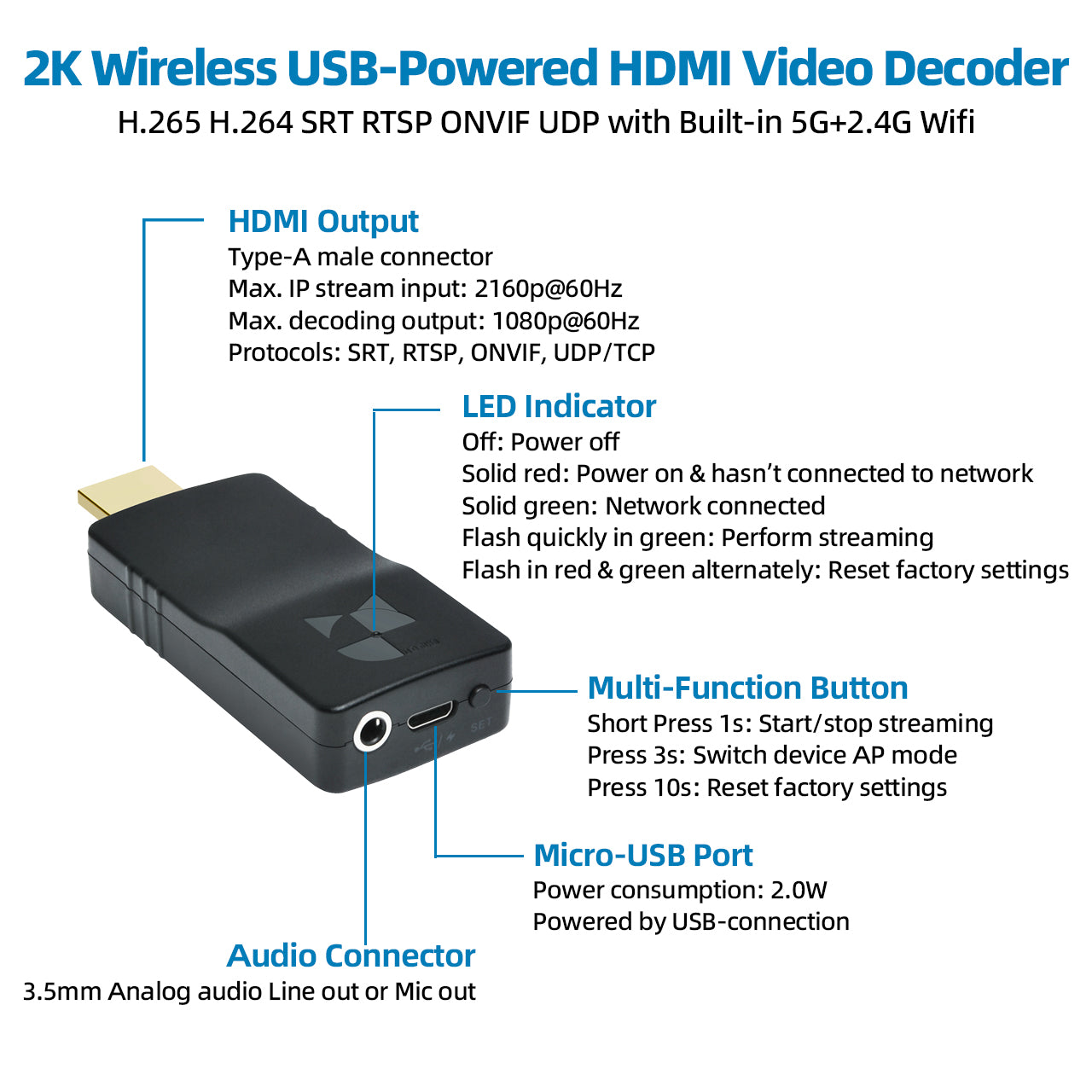

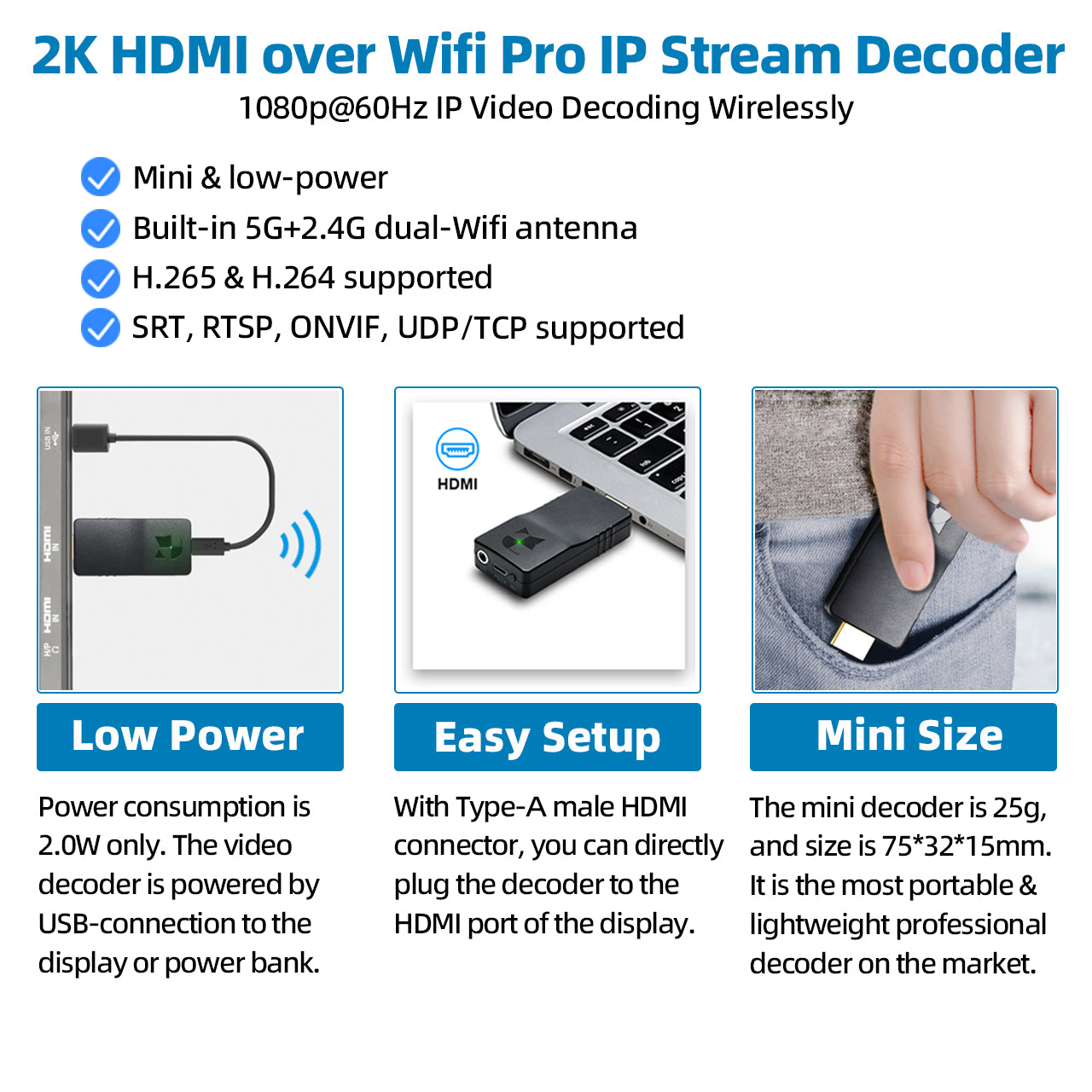

Mini & Low Power IP Decoder: 75x32x15mm/25g & low power consumption with USB-Powered. Type-A Male HDMI connector. Easy installation and setup.

True HD Wireless SRT Decoder: SRT supported to offer secure, reliable and low-latency end-to-end IP stream decoding by pairing with DDMALL or third-party SRT encoders.

High-Quality Video: Resolution is up to 2K, decoding and HDMI output up to 1080p@60Hz at high bitrate with H.265/HEVC & H.264/AVC compression.

Camera Decoder: Support SRT, ONVIF, RTSP, UDP, and TCP protocolS. Professional and portable hardware IP decoding solution for IP cameras or NVRs.

5G+2.4G Dual-Band Wi-Fi: Built-in 5G+2.4G high-performance Wifi antennas provides reliable wireless network connectivity.

The HDD-10W is one of DDMALL portable HDMI video decoders featuring in mini size(75x32x15mm/25g) and low power consumption. The HDMI decoder is USB-powered. It supports to decode up to 1080P@60Hz video and HDMI output up to 1080P@60Hz at high bitrate with built-in H.265/HEVC & H.264/AVC SRT, ONVIF, RTSP, or UDP protocol. It is a SRT decoder to perform secure, reliable, and low latency full HD video when pairing with DDMALL SRT encoders or third-party SRT encoders. The IP decoder offers a portable & wireless decoding solution to decode IP cameras, NVR devices, and network streams. Integrate the HDMI decoder into your IPTV system, surveillance system, video distribution system, broadcast system, and more to perform reliable decoding.

Wireless SRT Decoder!

As a low-power hardware HDMI decoder, we know how reliable performance means to a user. So at the first beginning when we design this decoder, we embed SRT protocol. Pair with DDMALL SRT encoders or other brand SRT encoders to perform secure, high-quality, stable, low-delay end-to-end video transmission in LAN. Even in extremely congested network, you can do it with ease. The SRT protect your video from packet loss, jitter and freeze.

True HD SRT Video Decoder

Easy USB-Powered

Online Upgrading

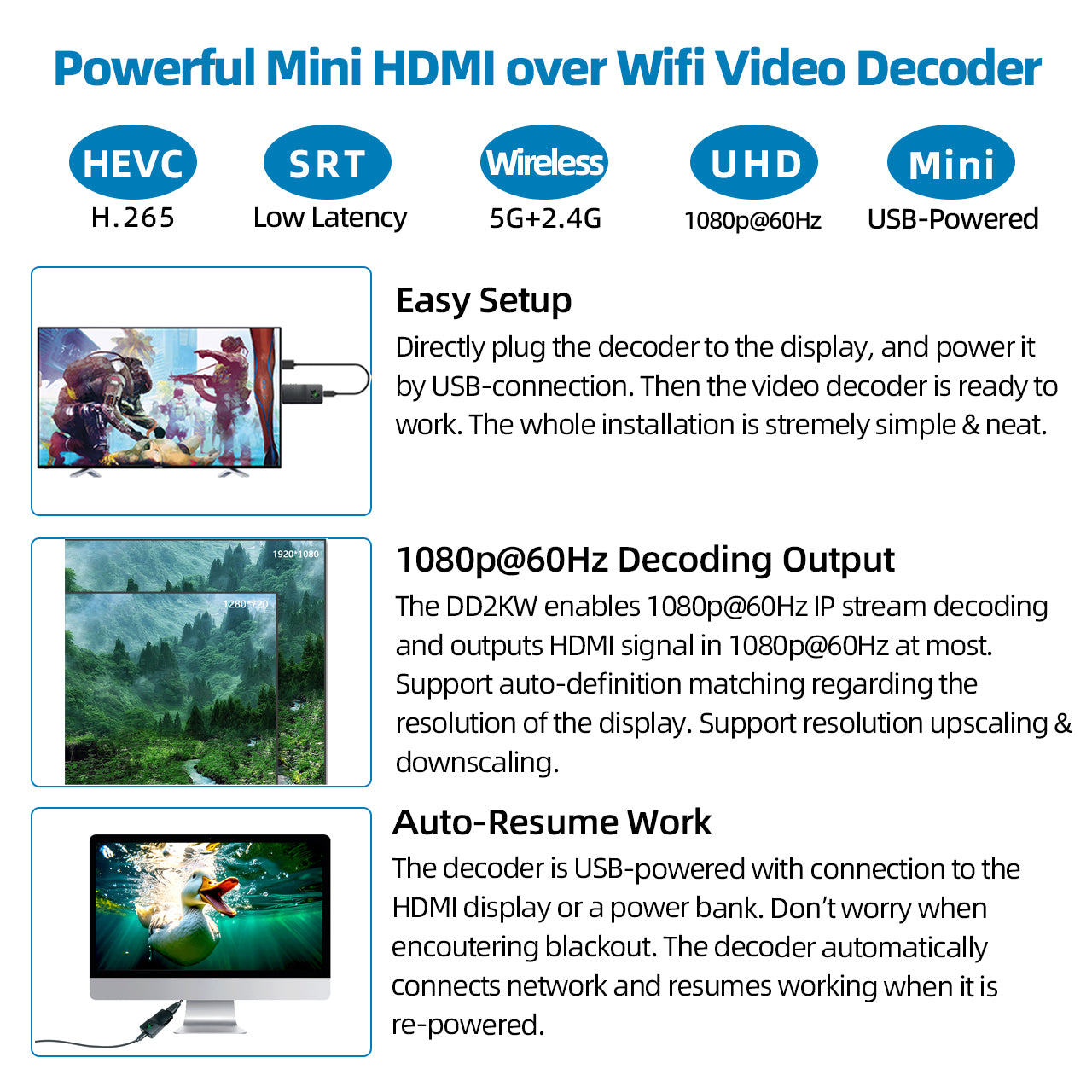

Portable design 2K high-definition SRT streaming decoder secures your video from packet loss and jittering even over unpredicable networks. Power it by a USB cable then you are on the go with ease. No fear of power shortage as it will get enough juice with USB-connection.  HEVC/H.265, AVC/H.264 compression. decode and output in up to 1080p@60Hz. Firmware is upgradable to add new features.

Dedicated "Wireless" Streamline Your Video System

As the most mini hardware decoder on the market with functions density, the HDD-10W is confident to process IP streaming decoding on your network wirelessly. Forget network cables and power adapter, the wreless HDMI decoder will amaze you how neat and easy to set it up on your network wirelessly. Worry about the video transmission performance? Ho man, just take care of your wireless router. If it can provide enough juice for network connectivity, the HDD-10W will decode your fulll HD video at high bitrates. Immersively experience the smooth and crisp video quality.

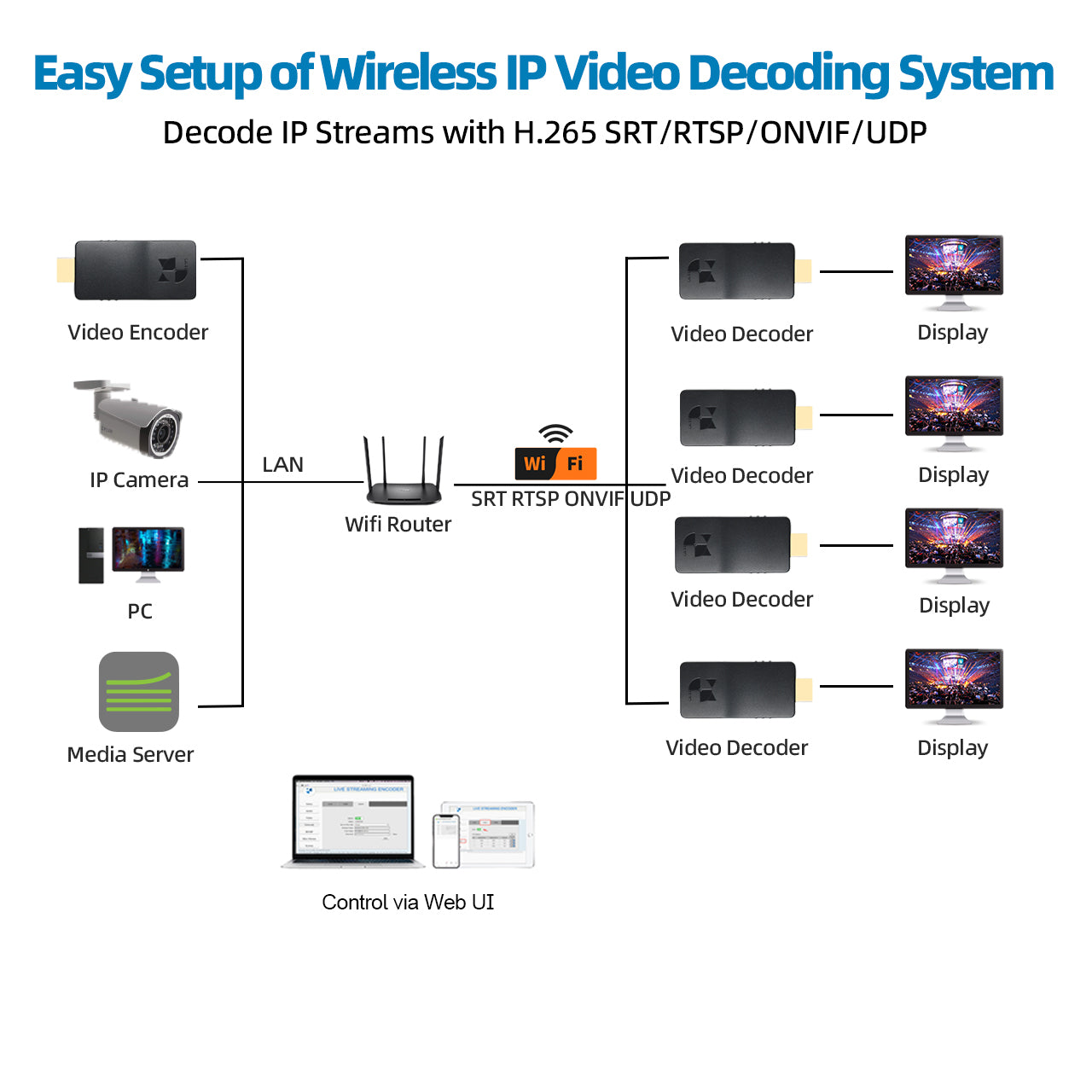

Diagram to show setup of HDMI decoder in your video system.   Diagram to show easy installation and wide capatibility



Specifications


 Power Supply  5V/1 A (USB cable powered ) Power Consumption 2.6W
Work Temperature 10~65℃ (14~149℉) Storage Temperature
-20~85℃ (-4~185℉)
Work Humidity 10%- 90%RH (Non-condensing) Product Weight 25g/0.055lbs
Product Dimension 75x32x15mm/2.95x1.26x0.59in MTBF(mean time between failures) 30,000h
Video Input Standard HDMI 2.0 Video Codec H.265/HEVC and H.264/AVC
Supported Protocols  SRT, RTSP, ONVIF, UDP, TCP,      Supported Output Resolution

1920*1080p@60/50/30/25/24Hz,

1920*1080i@60/50Hz, 1280*720p@60/50Hz,

Supported Stream Input Resolution

1920*1080p@60/30Hz, 1280*720p@60/30Hz,



Audio Input Standard HDMI embedded audio input, 3.5mm analog
Audio Encoding Format

G.711u, AAC

Compression Level BaseLine, Main, High
Control Method

Web UI

Default AP Mode IP 192.168.2.250



What's In the Package

*1× HDD-10W HDMI Decoder

*1×HDMI Male to Female Cable

*1×Micro USB Power Cable

*1 x Quick Installation Manual

*1 x Warranty Card
