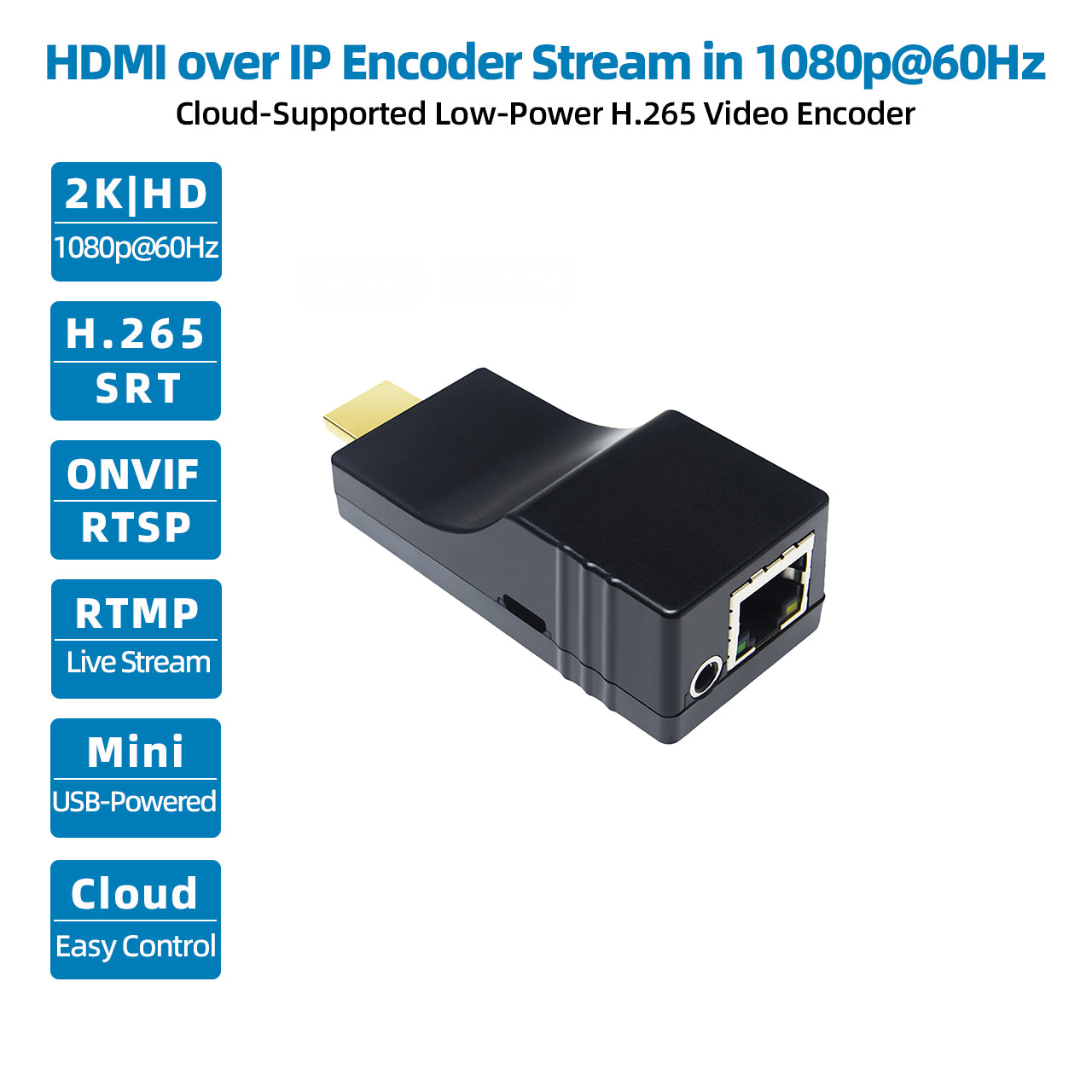

Overview

Mini & Lightweight & Power-Efficient: Power consumption is 2.4W. The video encoder takes power from most HDMI ports directly or is powered by USB connection to signal source or a mobile power bank. With size in 75mm(L)*32mm(W)*22mm(H), the mini encoder can be plugged to the signal source directly, providing unparalleled flexibility in challeging scenarios.

1080p@60Hz Streaming: HDMI input up to 1080P@60Hz & encoding output up to 1080P@60Hz, 16Mbps with H.265 or H.264 SRT, RTMP, RTSP, ONVIF, UDP/TCP. With SRT protocol, the encoder delivers end-to-end high-quality video reliably in low latency.

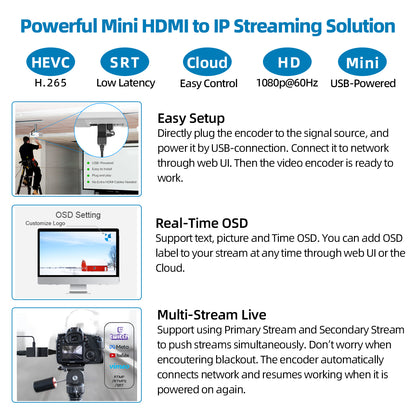

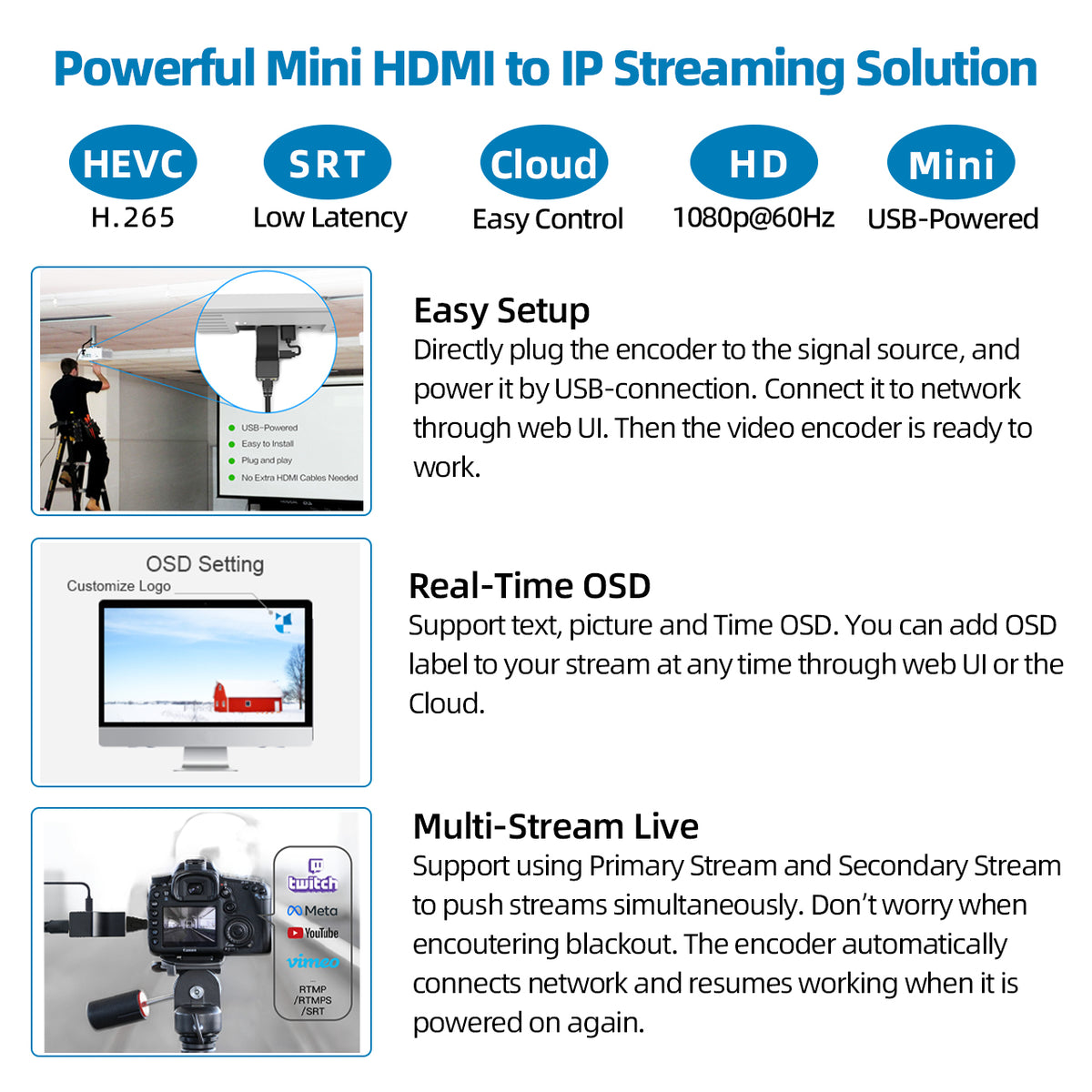

Real-Time OSD: The streaming encoder allows you to add or edit text/picture/time OSD during streaming in real time. With NTP feature, you can easily synchronize your stream time with your live server effortlessly.

Dual-Stream Output: The mini encoder supports encoding output through Primary Stream & Secondary Stream simultaneouly in 2K resolution so that you can live to different destinations such as YouTube, Facebook, Twitch, Wowza etc. Moreover, When meeting blackout, don't worry, the encoder will automatically connect network and resume streaming after power supply is resumed.

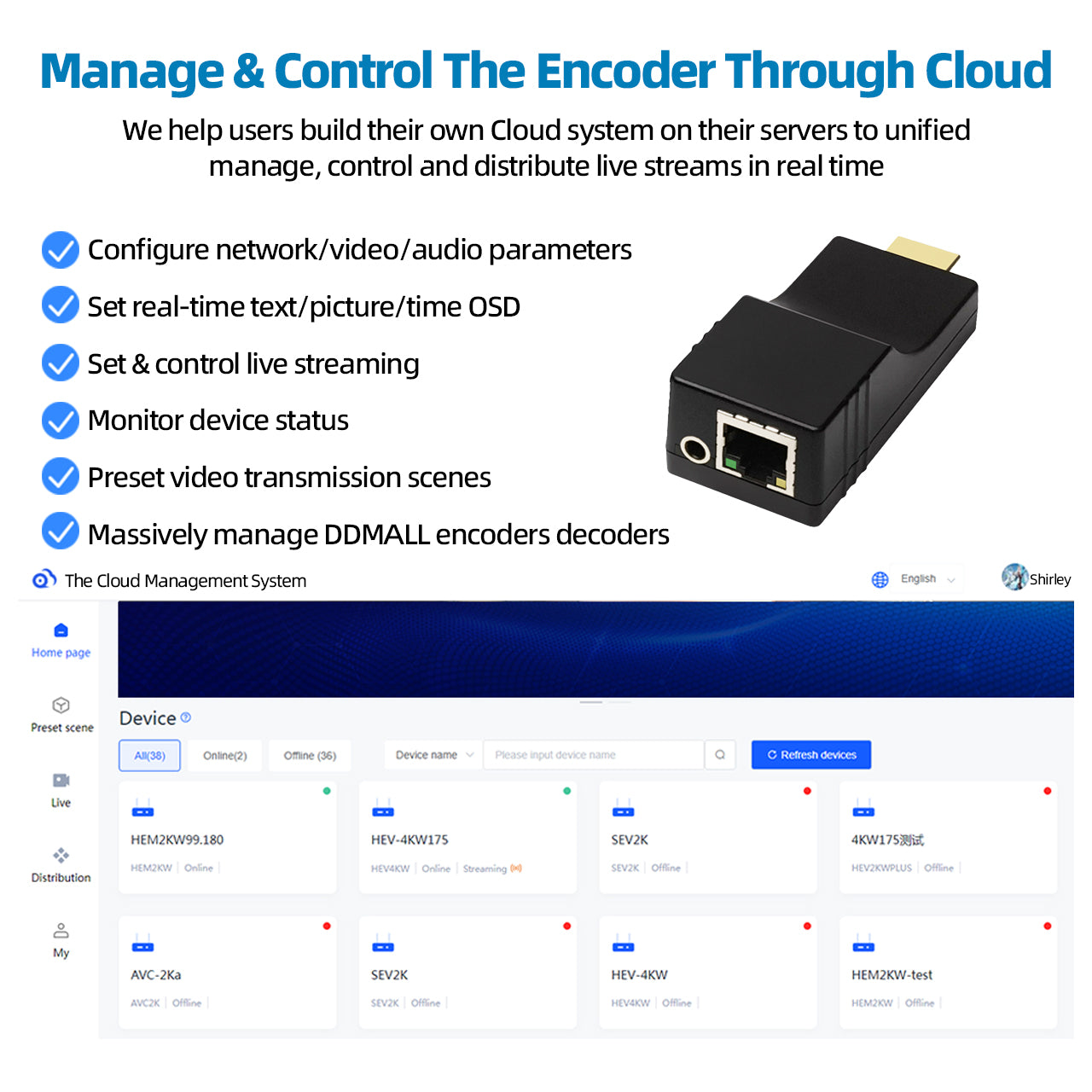

Cloud Control: The CEV-2K is a Cloud-control encoder. When you enable Cloud-control feature through web UI, you can control the encoder through your Cloud account, where you can edit network, video, audio, system, and streaming parameters, add OSD, preset scene, and set video distribution relationship etc.

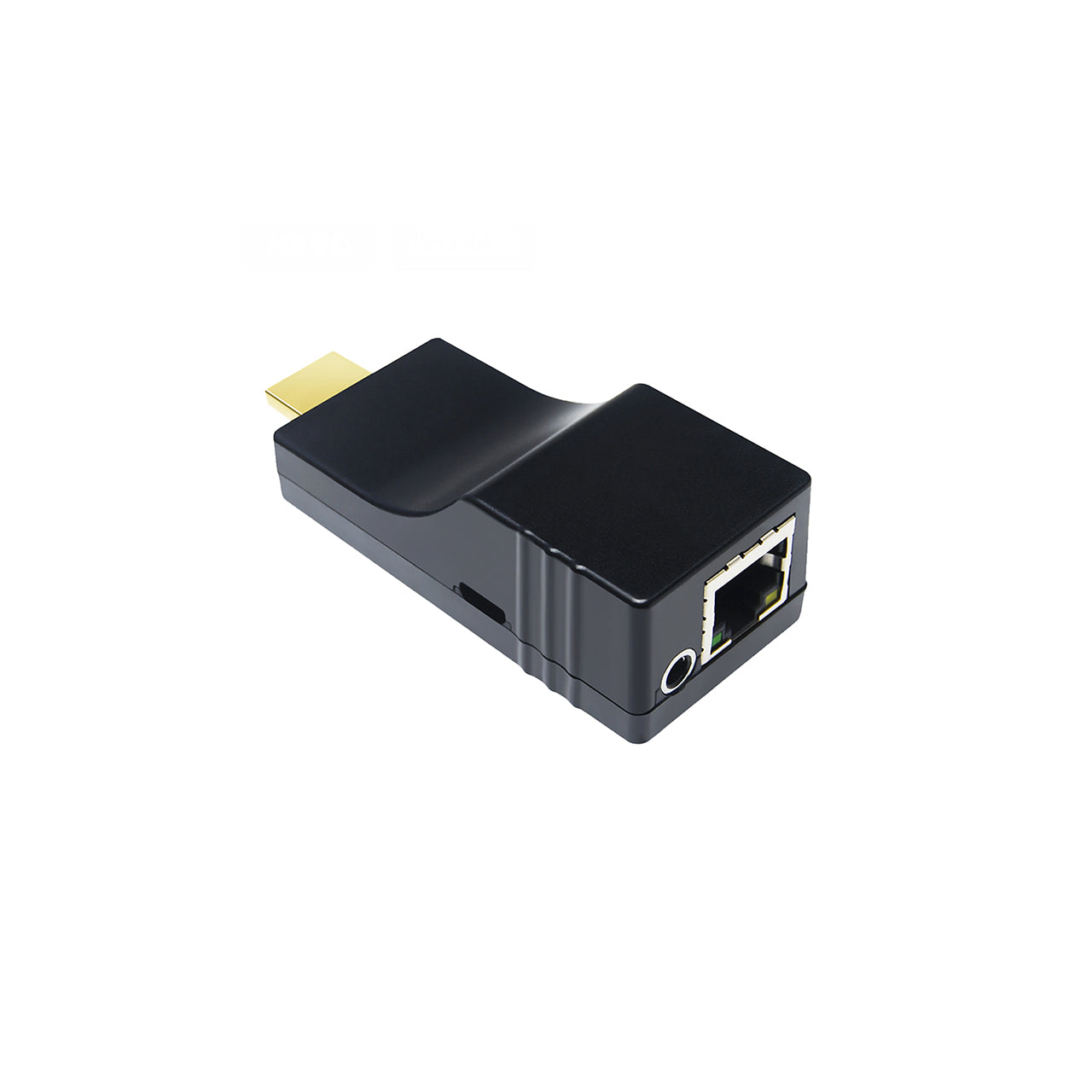

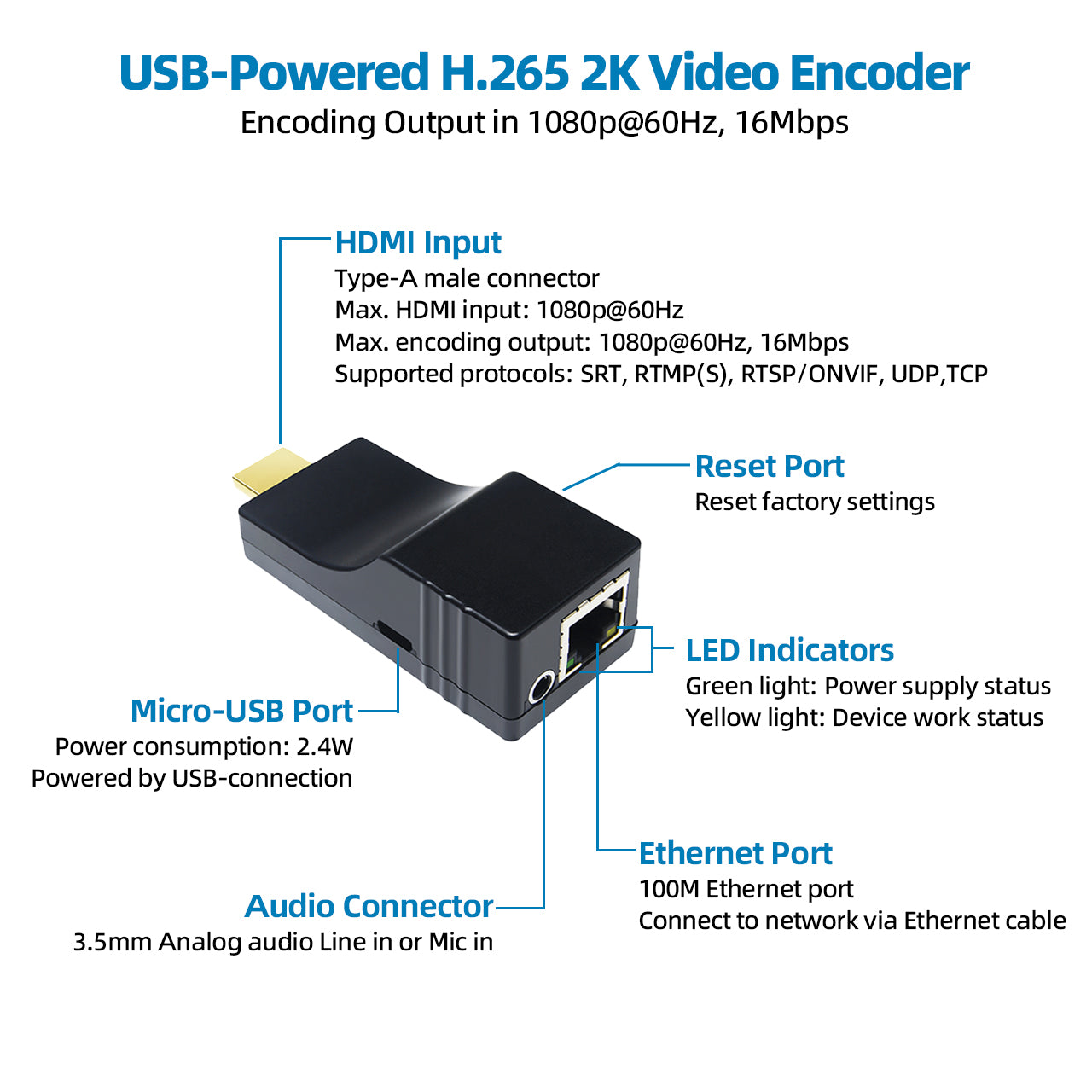

Hardware Appearance

HDMI Input: Type-A male design HDMI connector so that it can be plugged to the HDMI port directly. HDMI input up to 1080p@60Hz and streaming output up to 1080p@60Hz. .

Micro USB Power Port: Powered by USB connection to the signal source or a mobile power bank without any power adapter.

3.5mm ear-jack Audio: Support 3.5mm analog Line in/ Mic in audio input.

Reset Port: Long press to reset factory settings.

LED Indicators: Green light shows power condition, and Yellow light shows working status.

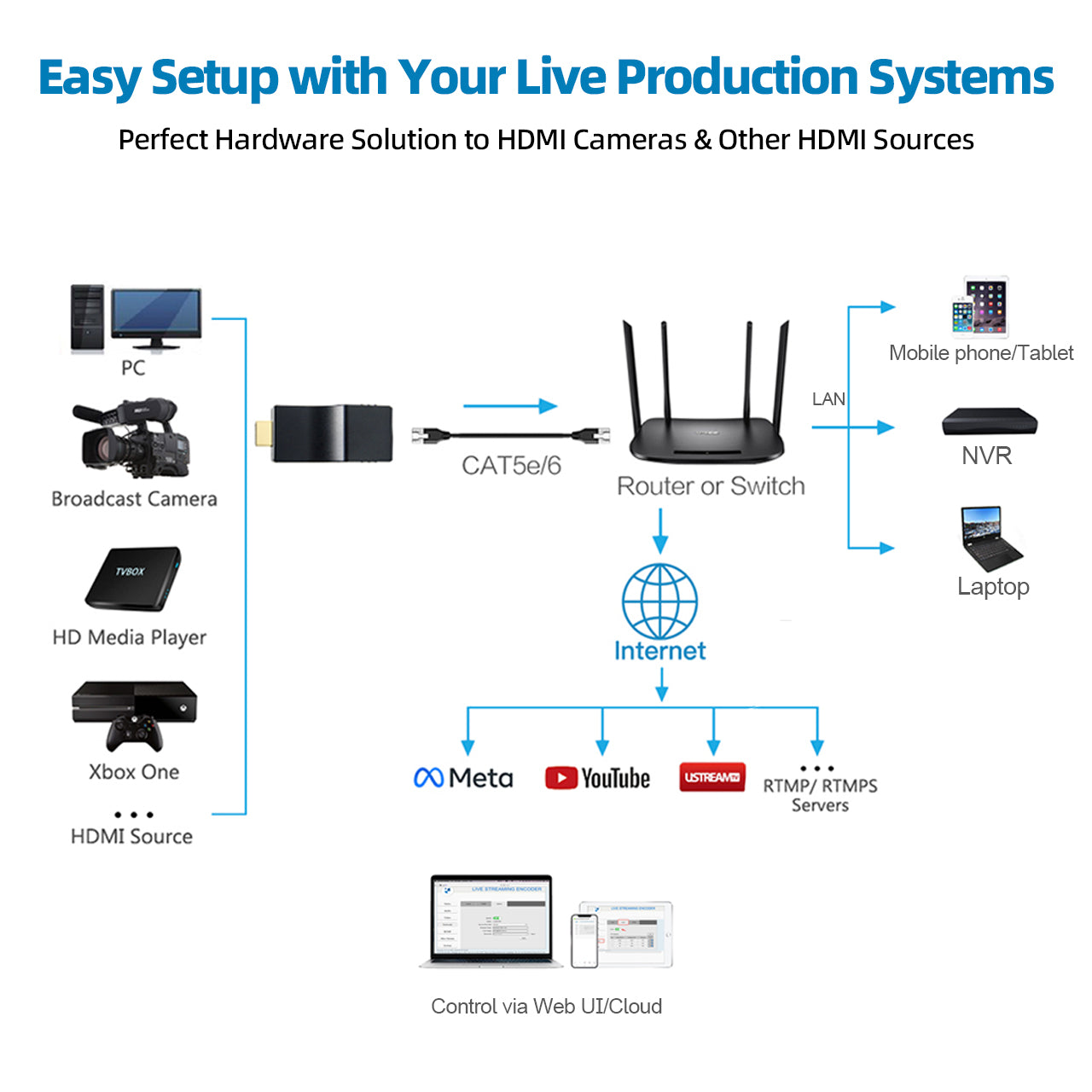

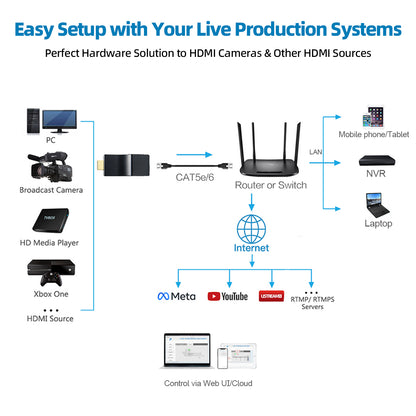

Ethernet Port: Stream your content to YouTube and more using wired Ethernet.

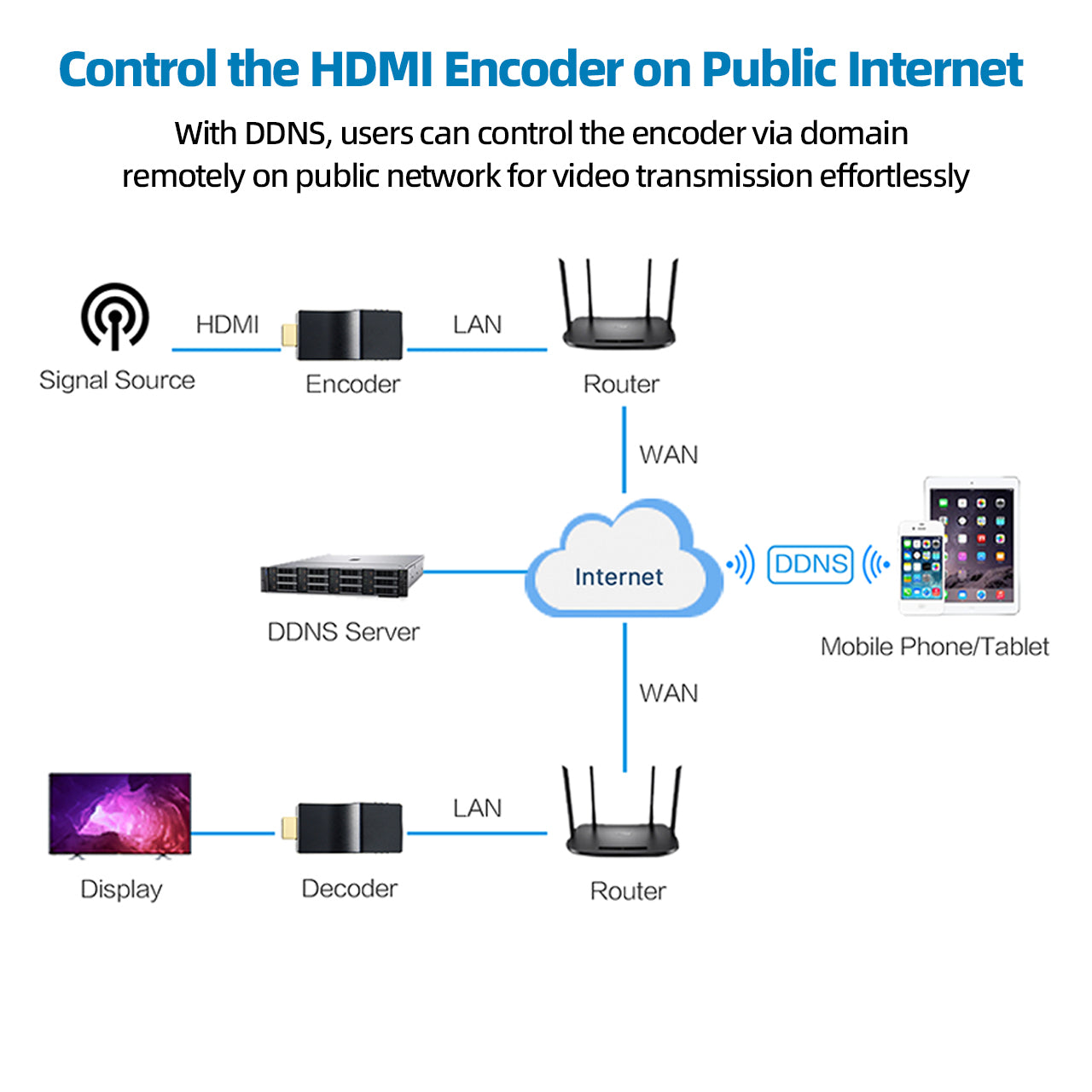

Control the IP Encoder Anywhere: As a Cloud-based encoder, the CEV-2k can be controlled via web UI or DDMALL Cloud so that you can control your encoder anywhere there is network connection.
