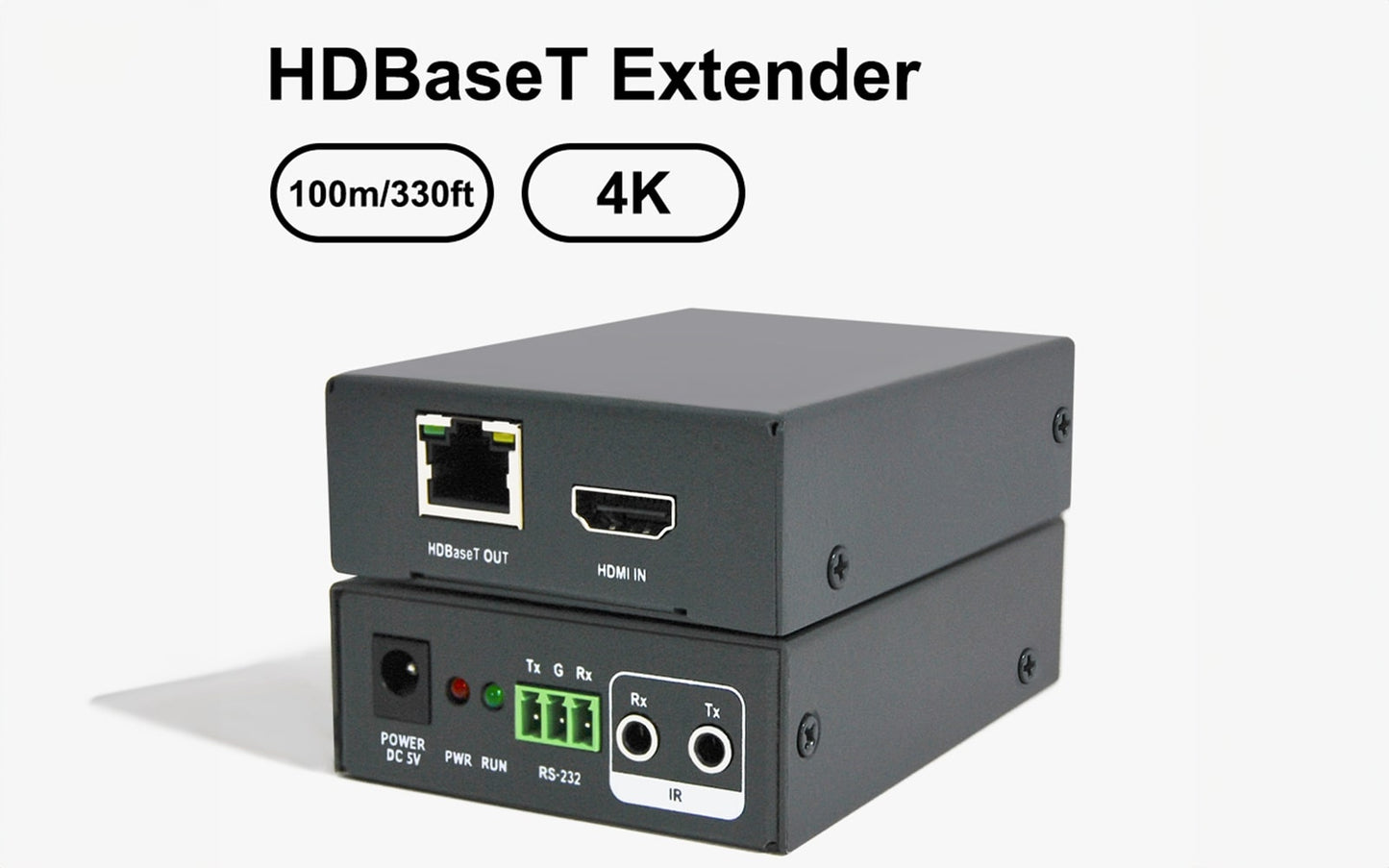

HDBaseT HDMI Extender(100m)

$329.50 available: In Stock

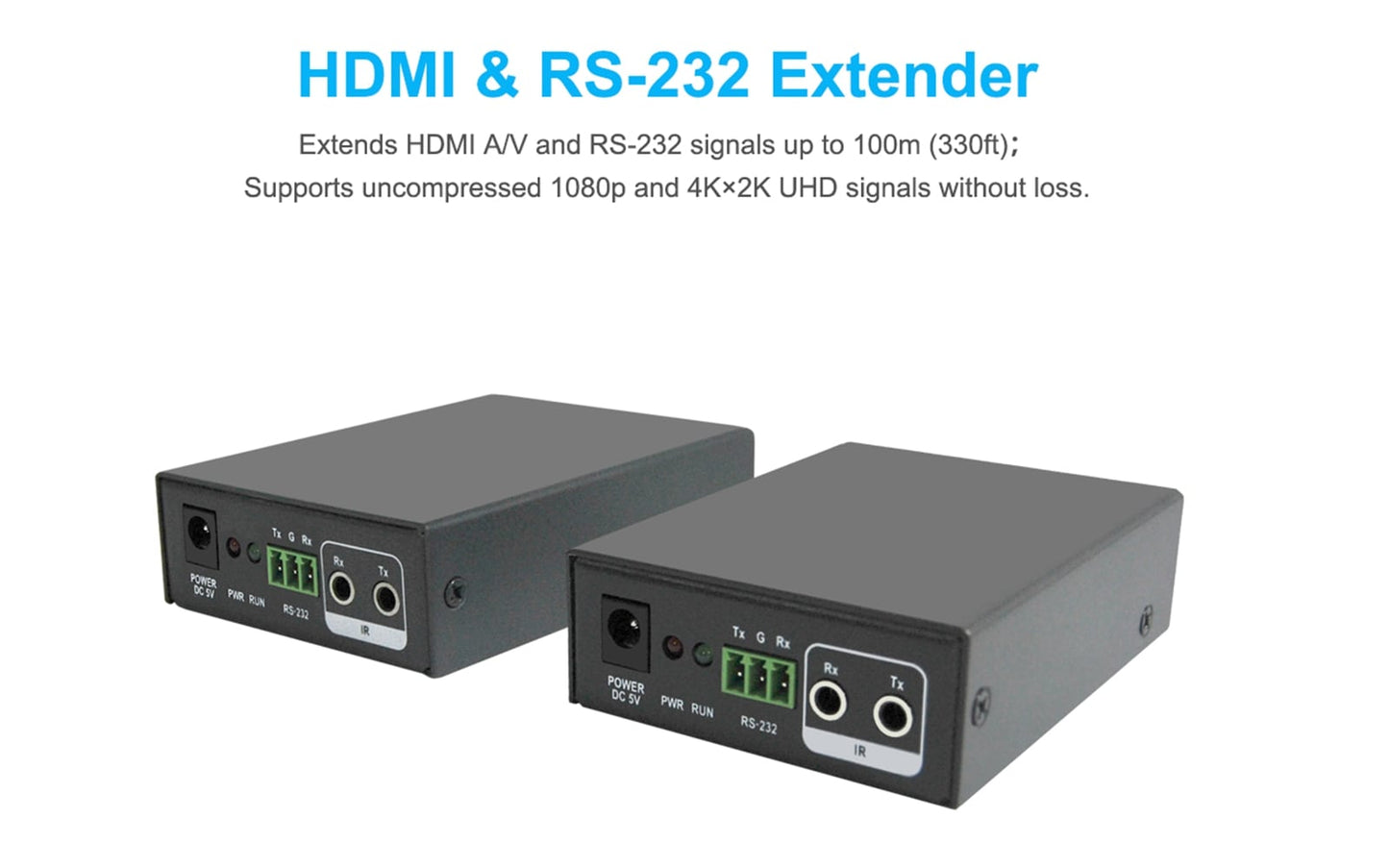

Quick Overview:This compact HDBaseT Extender Kit allows you to extend HDMI and RS232 signals without loss over CAT.5e/6 Ethernet cable. It supports extension of 4K@24Hz video to distances up to 230ft (70meters) and 1080p video to distances up to 330ft (100 meters). Bi-directional IR remote control extension allows IR signals to travel both ways. Ideal for corporate, medical, videoconferencing, and education markets where HDMI and RS232 transmission is crucial.


DDMALL - Innovation Made Simple

• Leading Technologies - Over 20 years experience in designing and manufacturing innovative and professional A/V products.
• Strong R&D Capabilities - With more than 50% office staff working in R&D center and 15% investment of sales revenue every year.
• ISO Certification- 100% inspection involves inspecting each item that is produced to ensure the best product quality.

HDB 101 HD

DDMALL HDBaseT HDMI Extender

Simple, Powerful and Reliable

DDMALL HDBaseT HDMI Extender over CAT5e/6/7 with IR –Using HDBaseT technology to extend uncompressed HDMI audio/video signals over one cost effective CAT5e/6 cable up to 330ft(100m), while maintaining signal strength and lossless video. Supports extension of 4K@30Hz video to distances up to 230ft (70meters) and 1080p video to distances up to 330ft (100 meters). Bi-directional IR remote control extension allows IR signals to travel both ways.


Key Features:

• 4K video to distances up to 230ft and 1080p video to distances up to 330ft.
• HDMI 1.4 and HDCP 2.2.
• Max transmission rate: 10. 2Gbps.
• Bi-Directional IR to control the source from the display side.
• Audio performance including digital stereo 7.1ch, LPCM, Dolby DTS-HD, Dolby True HD.
• HDbaseT Protocol.
• EDID Management.

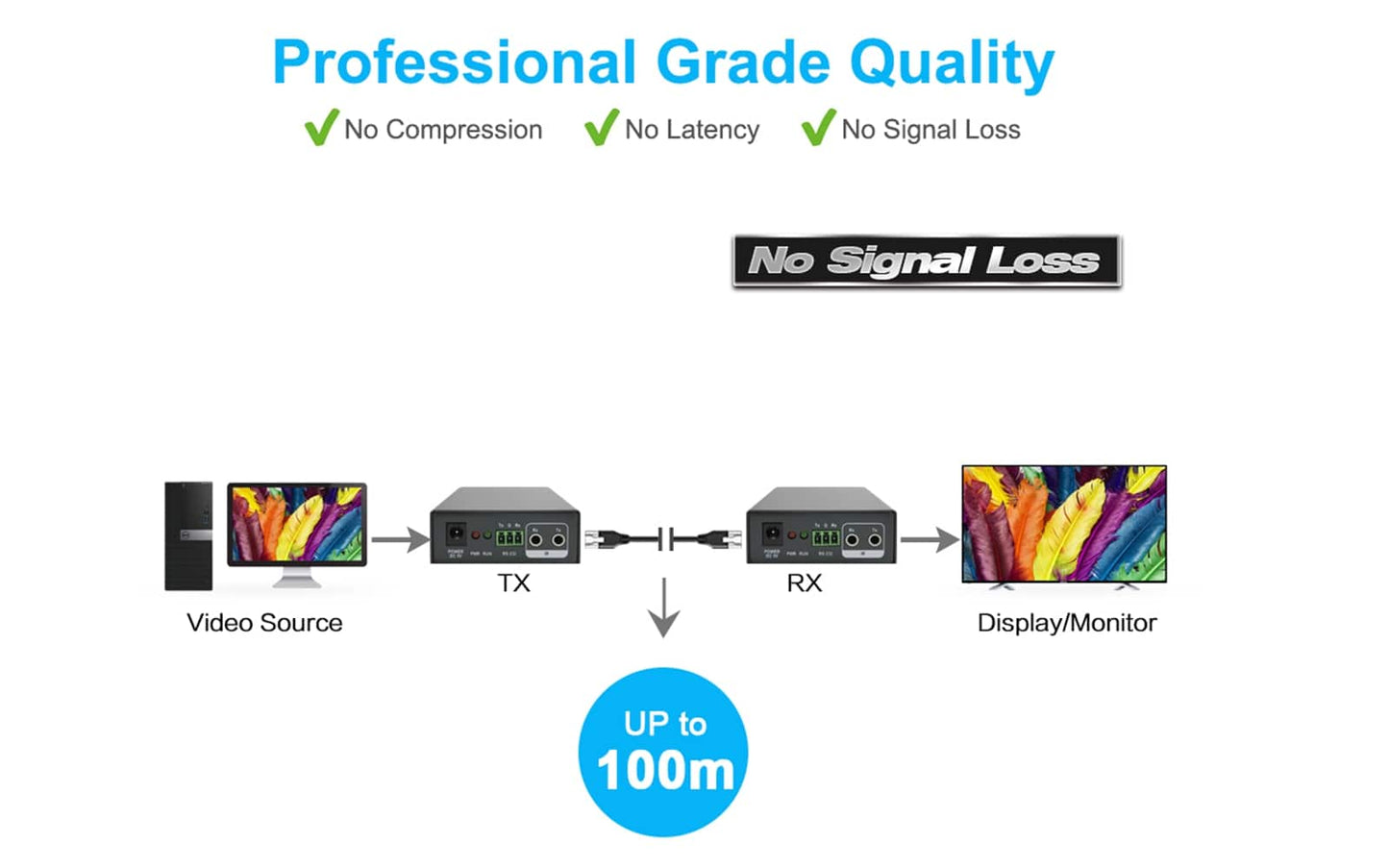

Professional Grade Quality

100% quality control of every component. All our products are manufactured from high-grade materials to ensure the best performance.


Specifications

• Max. Extension Range: 330ft(100m).
• Max. Resolutions: 4096x2160@24Hz, 3840x2160@30Hz, 1920x1200@60Hz.
• Max transmission rate: 10. 2Gbps.
• Audio format: Digital stereo, LPCM, Dolby DTS-HD, Dolby True HD.
• Transport protocol: HDbaseT
• Housing: Metal
• Power Supply: DC 5V, 2A

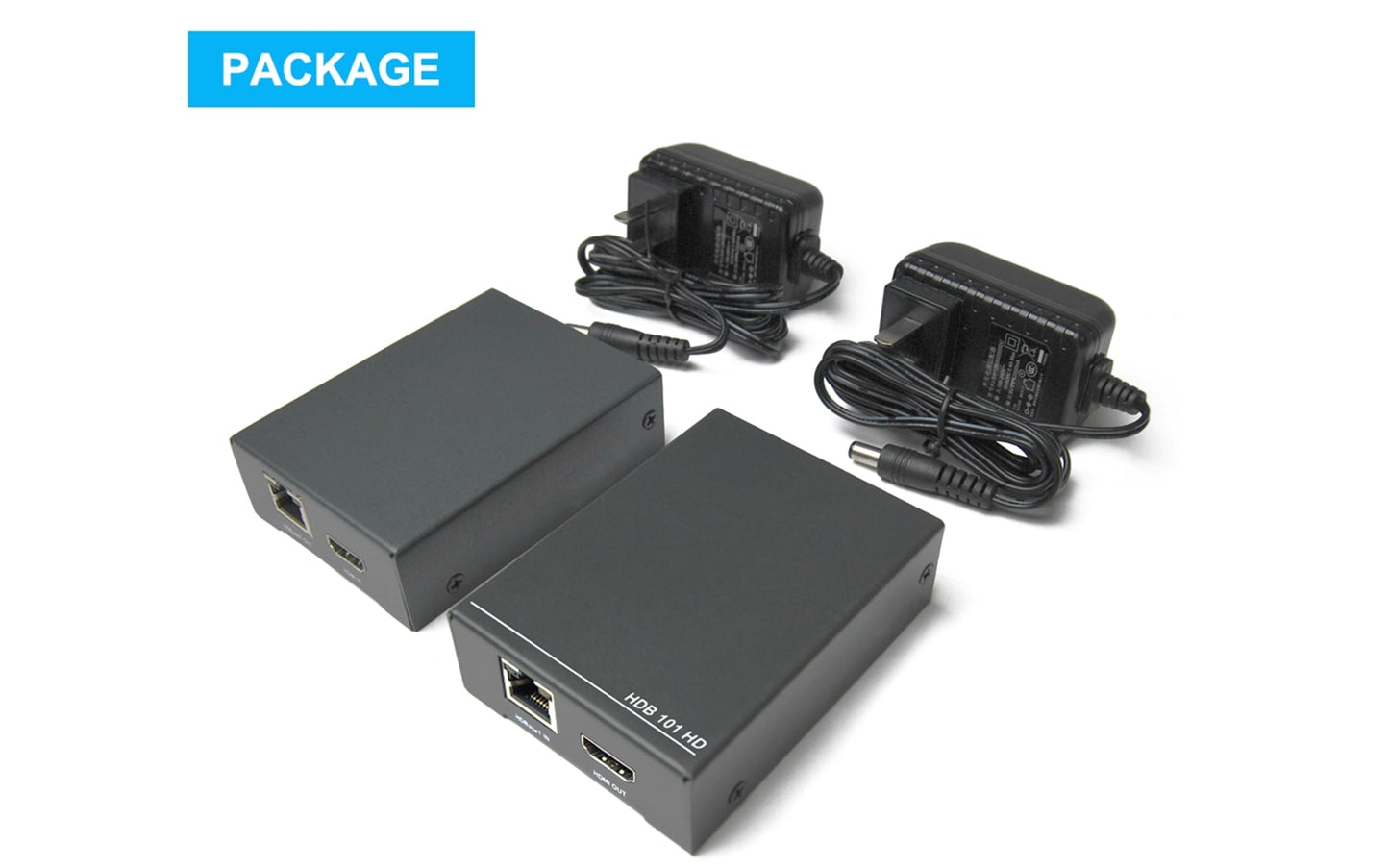

What's in the Box

• 1×Transmitter

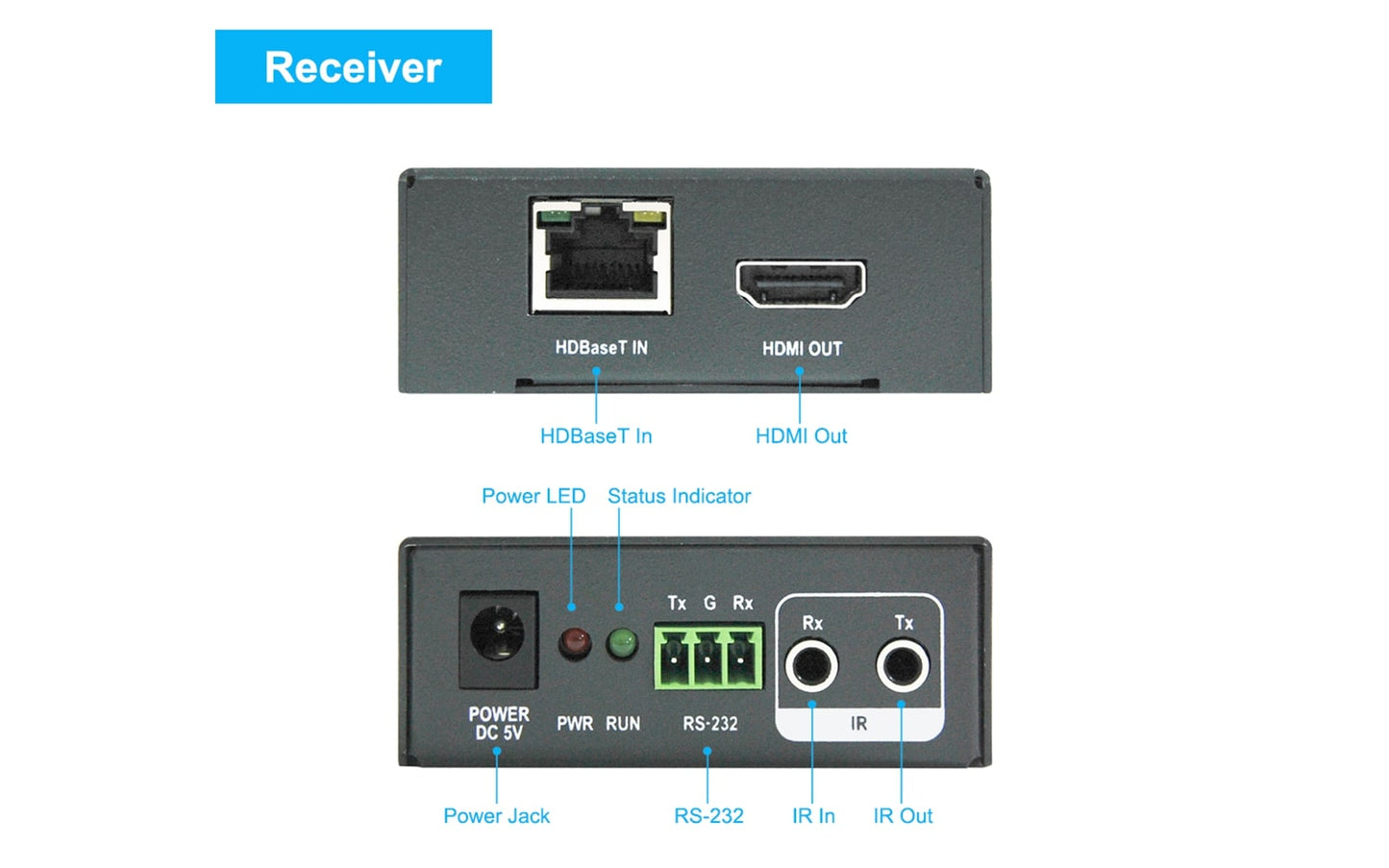

• 1×Receiver
• 2×DC Power Adapter
• 1×User Manual

✔ LONG RANGE HDBASET EXTENDER - Extend lossless HDMI audio/video signals over one cost effective CAT5e/6 cable, up to 330ft (100m) @1080p & 230ft (70m) @2160p. The video is transmitted using uncompressed HDBaseT technology, bringing Ultra High Definition picture with more vivid and dynamic visual with no signal loss or delay.

✔ ZERO LOSS & ZERO COMPRESSION - Real time extension with zero compression and zero signal loss. It delivers crystal clear video and audio quality with ZERO compression and ZERO bit reduction, even at 330ft (100m) away from your source device.

✔ ADVANCED FEATURES - HDMI 1.4, UHD 4K, 3D, 10.2Gbps bandwidth, Bi-directional IR, RS-232 extension. Supports DTS-HD, Dolby TrueHD, 7.1ch digital audio and all other HDMI standard formats. Compatibility with the latest HDMI source and display devices, such as Apple TV, Roku, Amazon Fire TV, cable box, Xbox One S, PS4 and more.

✔ BI-DIRECTIONAL IR CONTROL - Extend the IR signals both ways, either from Transmitter (source) to Receiver (sink) or Receiver to Transmitter. Supports full IR signal frequency from 20KHz to 60KHz.

✔BUY WITH CONFIDENCE - Short circuit prevention, temperature control and more advanced features to keep you and your devices completely safe. At DDMALL, we pride ourselves on providing innovative and high quality A/V products to our customers. We believe in our products, that's why we are confident in offering 3-YEAR worry-free manufacturer warranty and free lifetime technical support. If you have any questions, please do not hesitate to contact us.

Specifications

• Max. Extension Range: 330ft(100m).
• Max. Resolutions: 4096x2160@24Hz, 3840x2160@30Hz, 1920x1200@60Hz.
• Max transmission rate: 10. 2Gbps.
• Audio format: Digital stereo, LPCM, Dolby DTS-HD, Dolby True HD.
• Transport protocol: HDbaseT
• Housing: Metal
• Power Supply: DC 5V, 2A
