Overview
- 1080p@60Hz Encoding Decoding: The video encoder supports max. HDMI input in 1080p@60Hz, and max. encoding output in 1080p@60Hz, 16M. The IP decoder supports max. input in 1080p@60Hz, and max. decoding output in 1080p@60Hz.
- Powerful SRT ONVIF Streaming: Both the encoder and decoder are with built-in H.265 and H.264 codec. The encoder supports SRT, RTMP(S), RTSP, ONVIF, UDP. The decoder supports SRT, ONVIF, RTSP, UDP. You can use SRT to deliver end-to-end secure video in low latency.

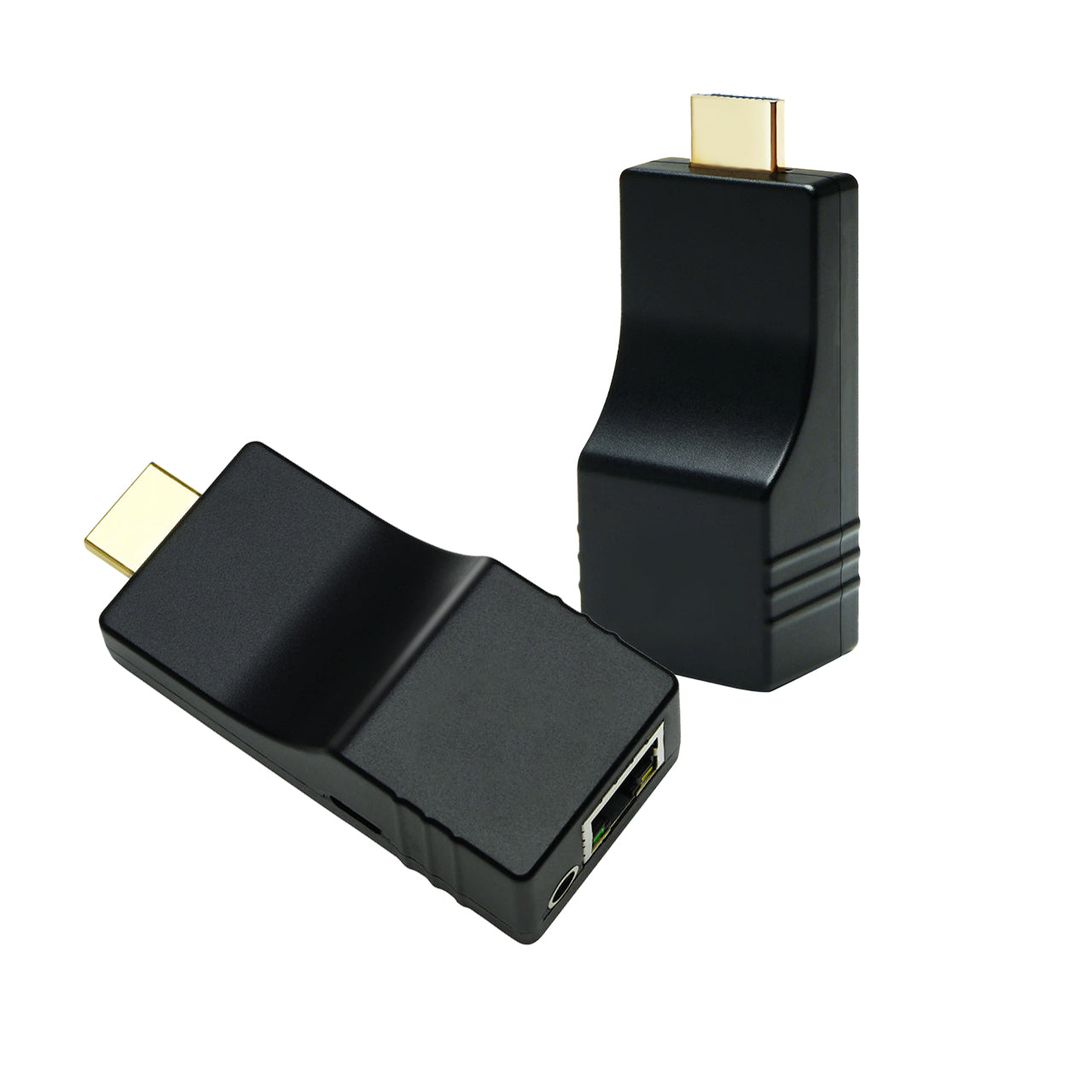

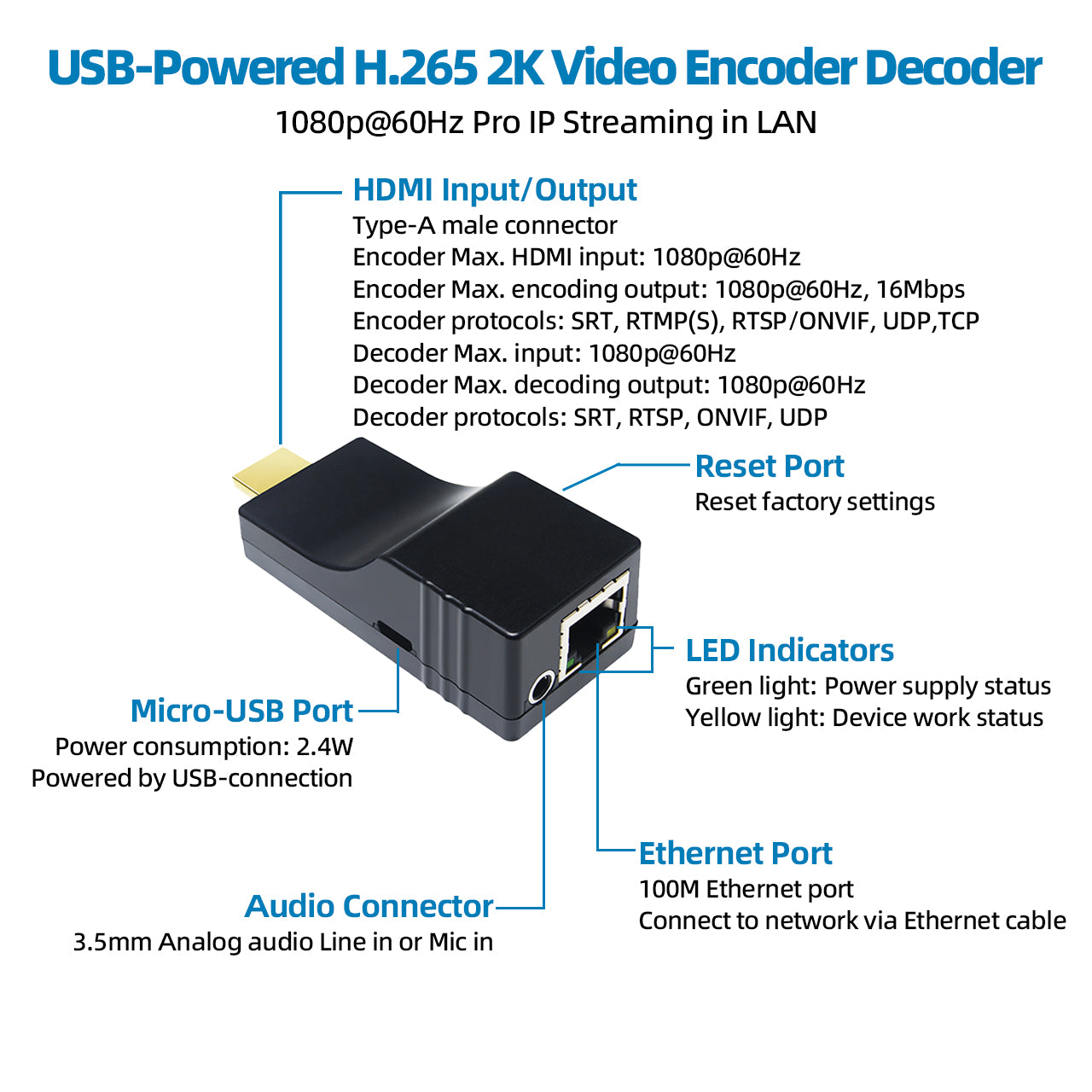

- Portable Hardware Streaming Solution: Both the encoder and decoder are mini, lightweight, and USB-powered. Size is 75*32*22mm/32g. With type-A HDMI male connector, it is easy to plug the encoder and decoder to the HDMI port directly, making your setup easy and tidy.

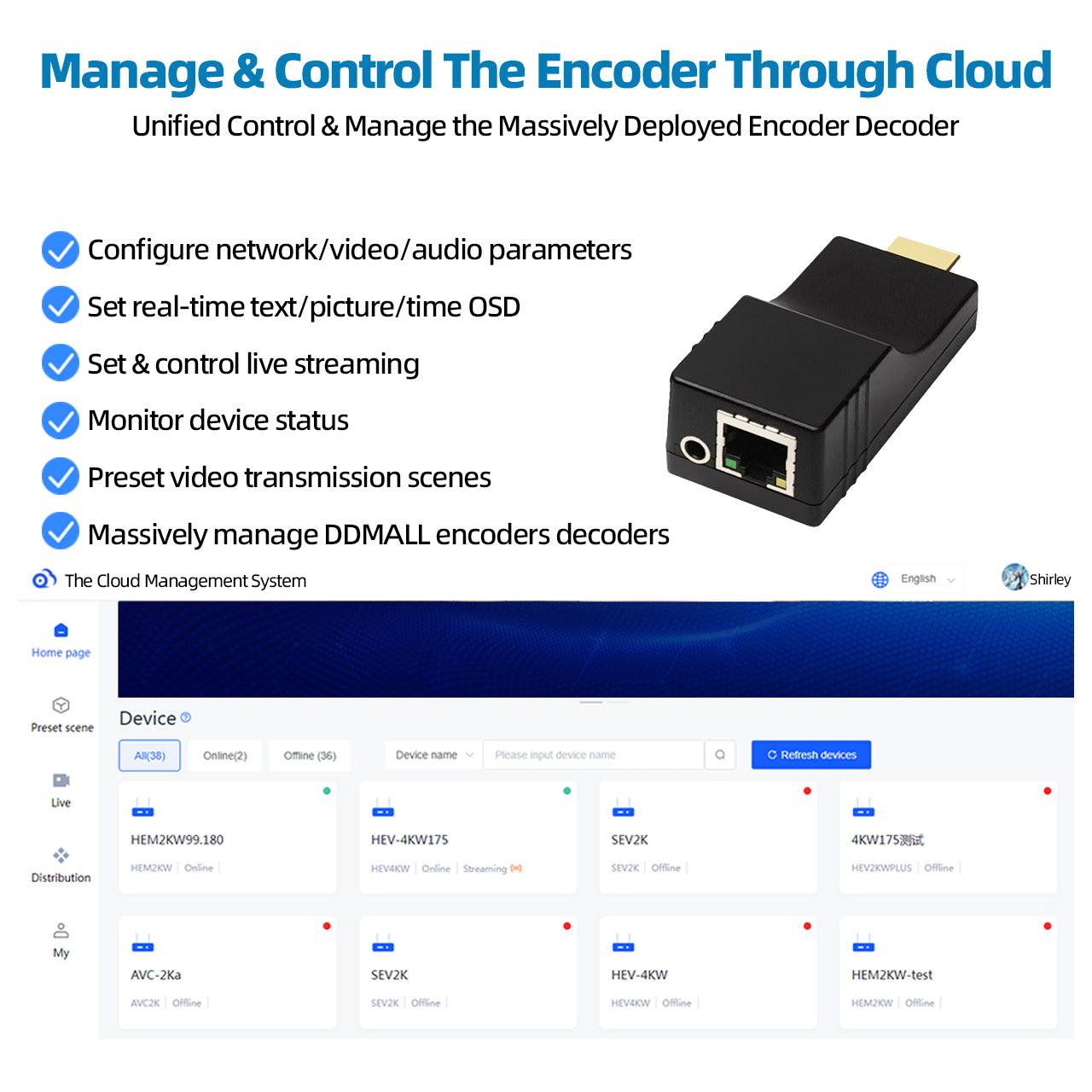

- More Features: Support real-time text/picture/time OSD, NTP sync, video preview, and online upgrading to customize more features.

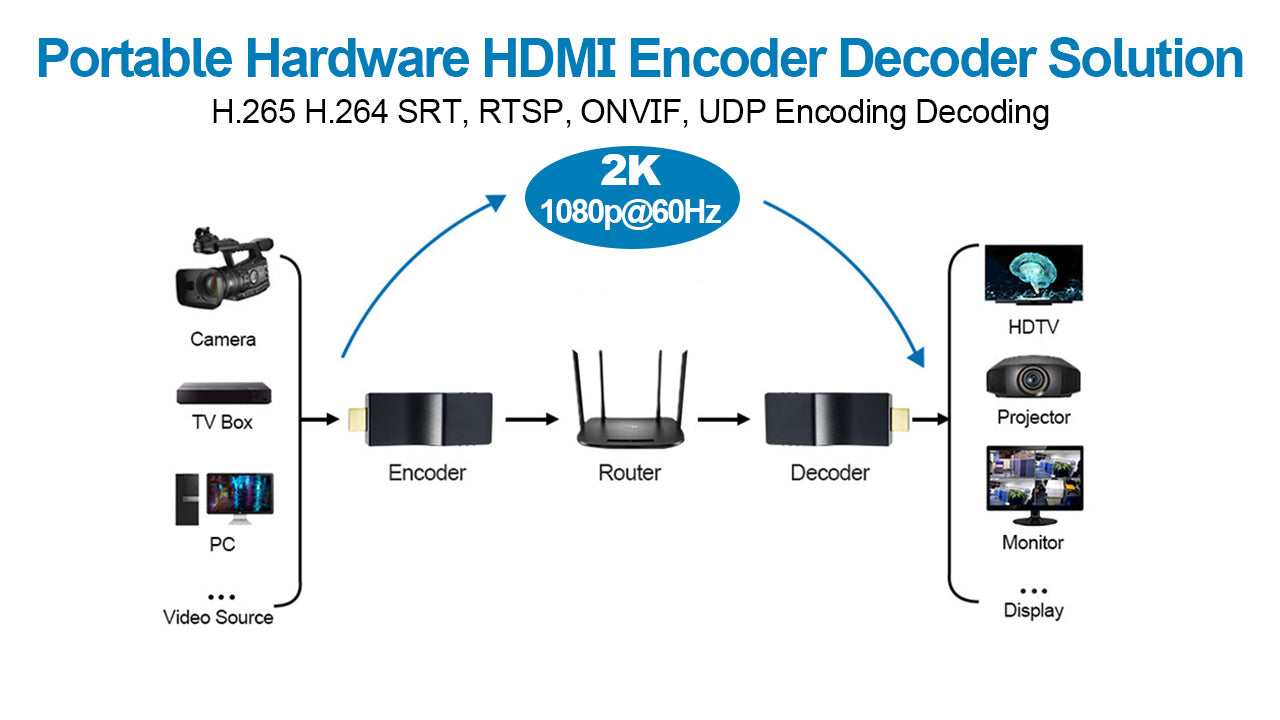

SRT Ready to Secure Video Transmission in Low Latency
Both the CEV-2K and HDD-10 support SRT protocol. As low-power 2K SRT encoder decoder, they are easy setup and widely compatible with third-party video equipments or systems, providing the most portable hardware SRT solutions to stream secure, low-latency and high-quality video.

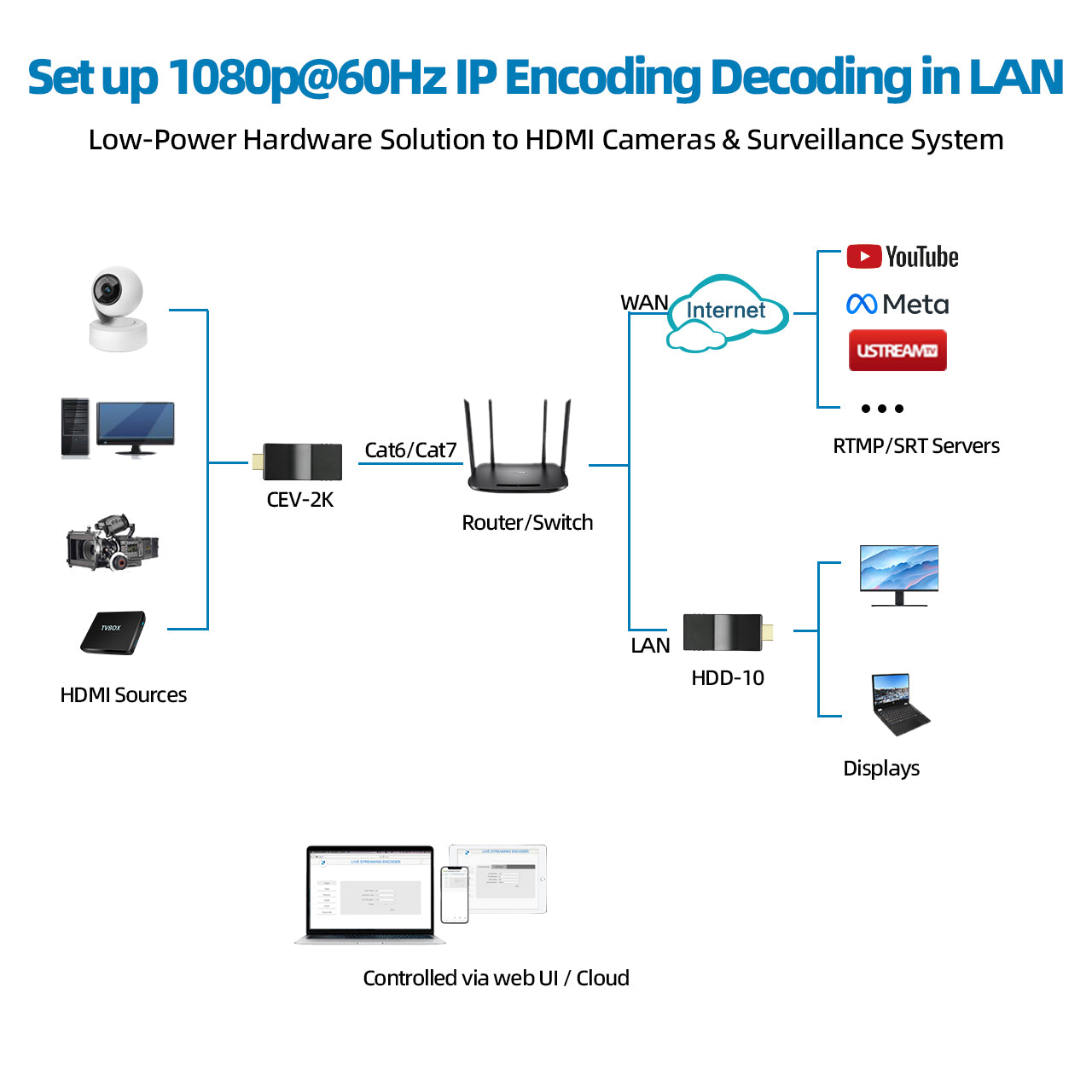

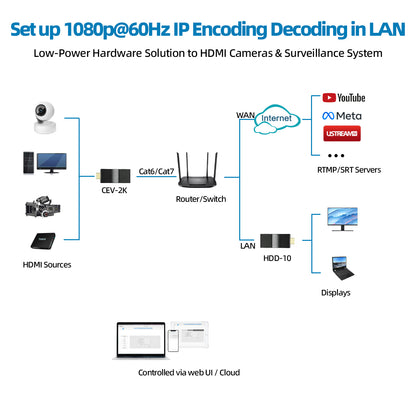

Easy Setup & Reliable Streaming in Real 2K

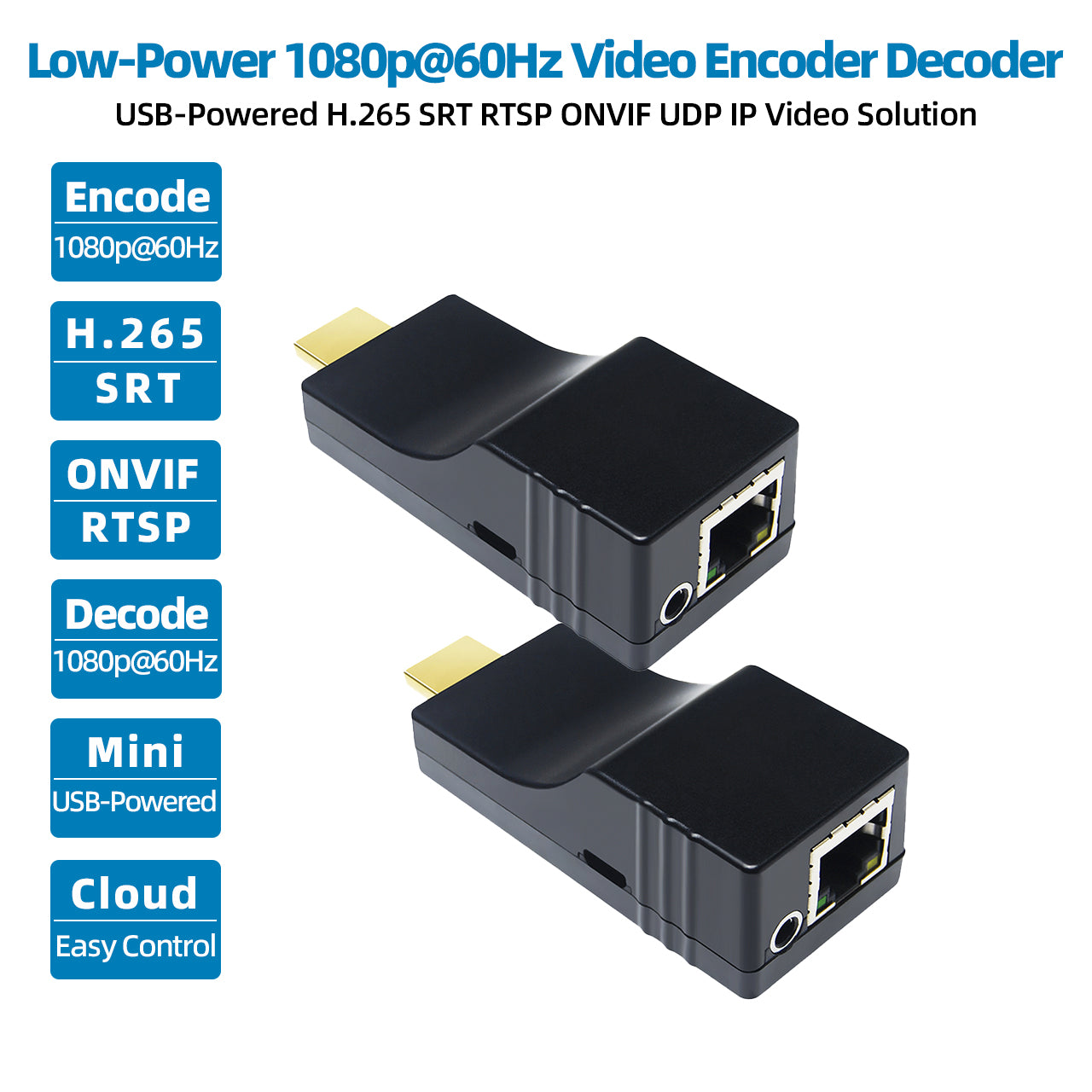

The CEV-2K HDMI encoder supports HDMI input and encoding output in 1080p@60Hz; while the HDD-10 video decoder supports video input and decoding output in 1080p@60Hz. They are the most energy-efficient IP stream encoder decoder pair for live productions.
Parameters
CEV-2K Video encoder:
| General |
| Power Supply | 5V/1 A (USB-Powered) |
| Power Consumption | 2.4W |
| Operating Temperature | -10~55℃（14~122℉） |
| Storage Temperature | -20~85℃（-4~185℉） |
| Operating Humidity | 10%- 90%RH (Non-condensing) |
| Weight | 32g |
| Dimension | 75mm(L)*32mm(W)*22mm(H) |
| MTBF | 30,000h |
| Video |
| Video Input | HDMI1.3 (HDCP1.4 Supported) |
| Input Resolution | 1080p@60/50/30/25，720p@60/50/30 |
| Video Compression Format | H.264/H.265 |
| Encoding Output Resolution |
1080p@60Hz,1080p@30Hz,720p@60Hz, 960×720@60Hz, 960×540@60Hz, 640×480@60Hz The primary stream supports Max. 1080p@60Hz 16Mbps The secondary stream supports Max. 720p@30Hz 8Mbps |
| Bit Rate | 32Kbps~16Mbps |
| Audio |
| Audio Input | HDMI, Mic In, Line in |
| Audio Compression Format | AAC |
| Bit Rate | 32kbps~256kbps |
| System |
| Supported Transmission Protocols | SRT, RTMP/RTMPS, RTSP/Onvif, UDP, TCP |
| Control Method | Web UI |
| Default IP Address | 192.168.1.251 |
| Web UI Login | Default User Name/ Password: admin/admin |
HDD-10 Video decoder:
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature | -20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 32g/0.077lbs |
| Product Dimension | 75x32x22mm/2.95x1.26x0.87in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP, TCP, | Supported Output Resolution |
1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz |
| Supported Stream Input Resolution |
1920*1080p@60/30Hz, 1280*720p@60/30Hz, |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Level | BaseLine, Main, High |
| Control Method |
Web UI |
