DDMALL HD-F01 2K HDMI over Fiber Transmitter and Receiver, Fiber Optic Extender HD with 12.4miles/20km Range

DDMALL HD-F01 2K HDMI over Fiber Transmitter and Receiver, Fiber Optic Extender HD with 12.4miles/20km Range

SKU:HD-F01

Regular price $599.00 USD
Regular price $599.00 USD Sale price $599.00 USD
Sale Sold out
Shipping calculated at checkout.

18 in stock

View full details

Overview

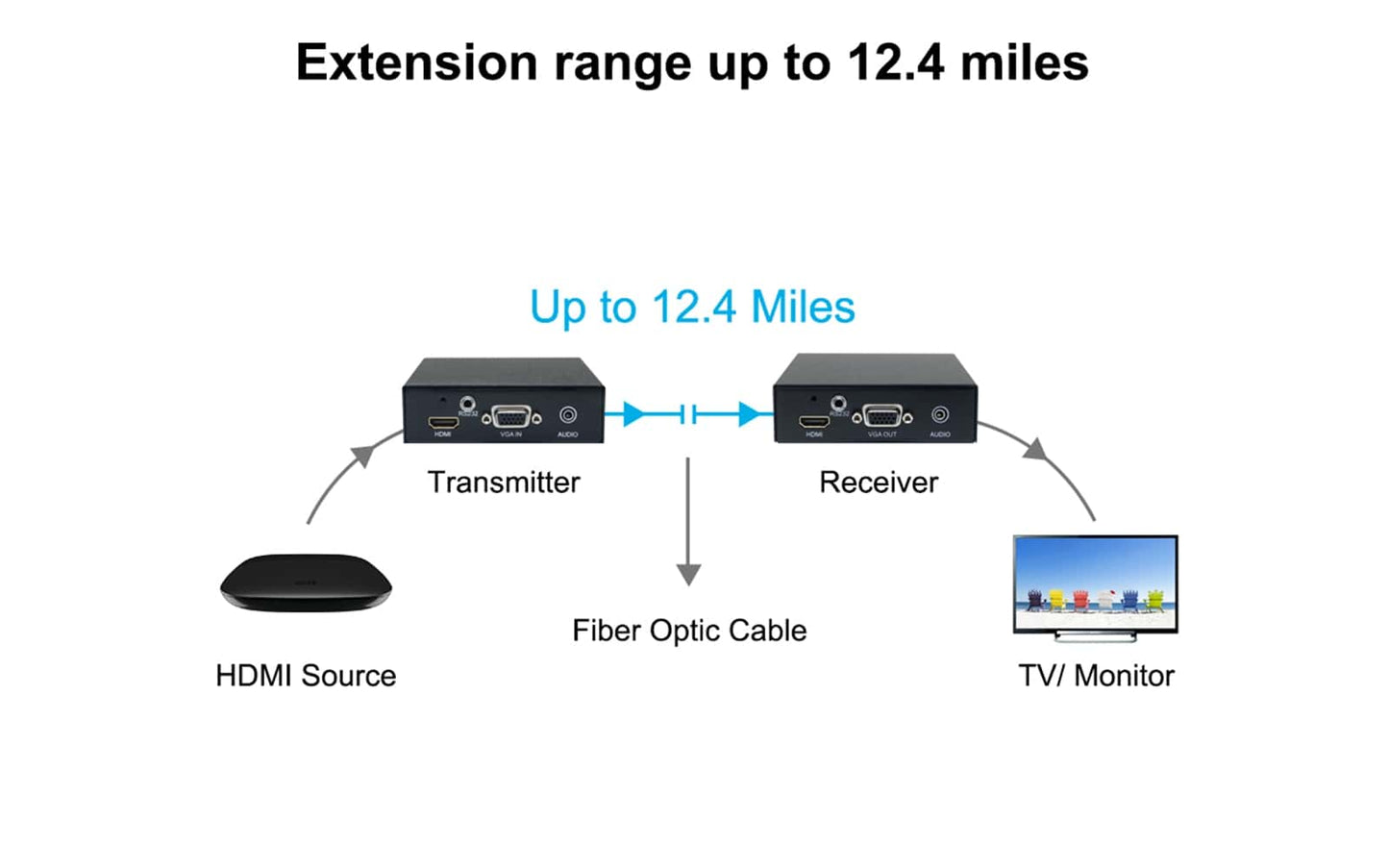

20KM Extension:  This compact HDMI over fiber extender kit extends HDMI A/V signals from the video source to remote display terminals at up to 12.4 miles (20km) over a LC single-mode fiber optic cable. It allows independent cable installation or seamless integration into your existing fiber cable infrastructure to avoid additional cable hassels, reducing potential failure points.

Zero Loss & Zero Compression:  Real-time extension with zero compression and zero signal loss in resolution up to 1920×1200@60Hz/1080p@60Hz. The fiber optic transmitter and receiver kit delivers crystal clear video with zero compression and zero bit reduction at transmission range up to 12.4 miles (20km).

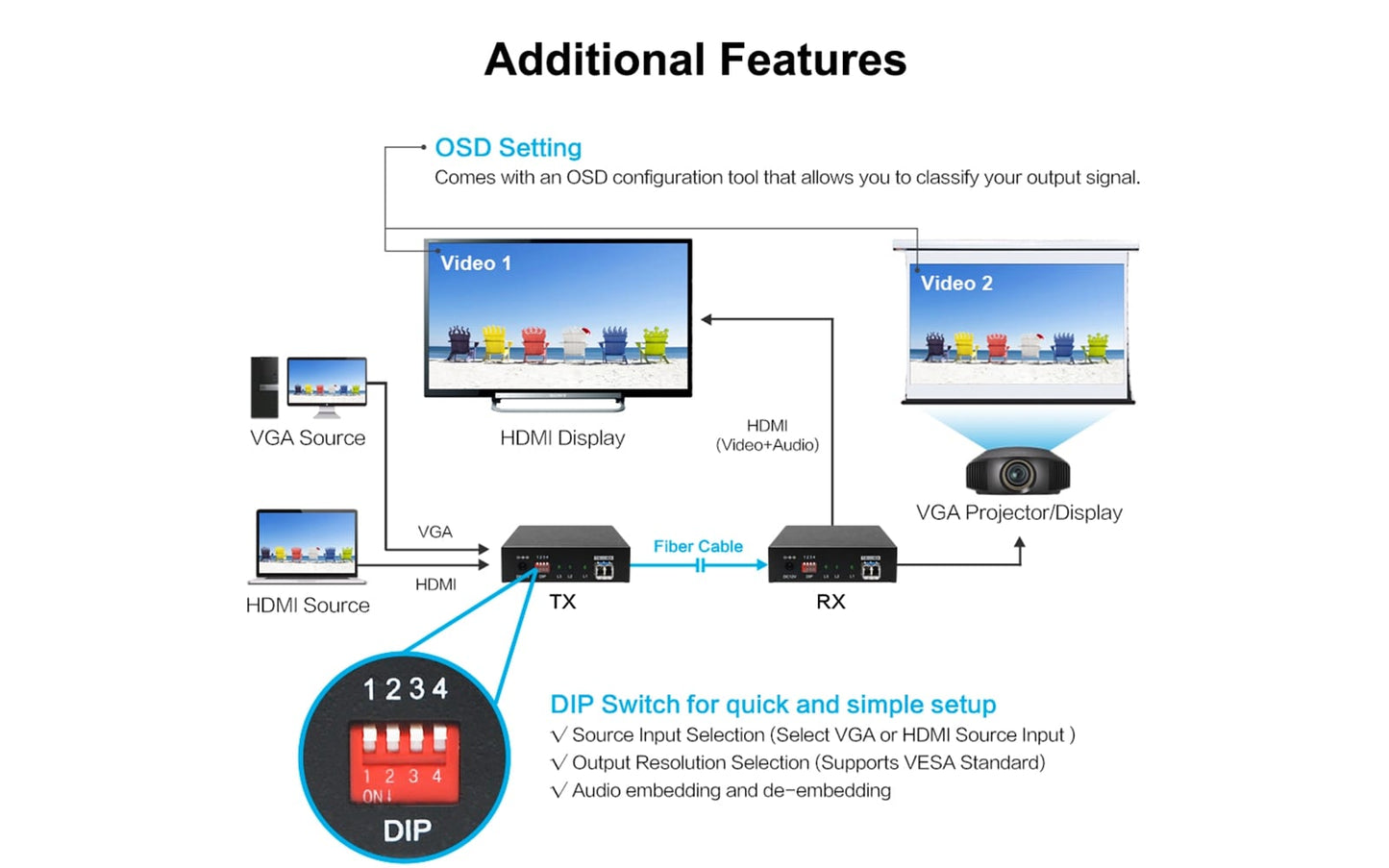

Wide Compatibility: The HDMI over fiber extender kit provides full suite of connectivity to easy access for different connections. Both the TX transmitter and the RX receiver are equipped with a HDMI Type-A female connector, a VGA connector and a 3.5mm audio ear-jack. Support HDMI, DVI, VGA and line-in audio transmission over single optic fiber cable, enabling signal extension with different signal formats.

Professional Grade Performance: The fiber optic transmitter receiver kit is ideal for sports arenas, concert venues, stadium digital signage applications that need to distribute crystal clear video and audio signal over long distances reliably.

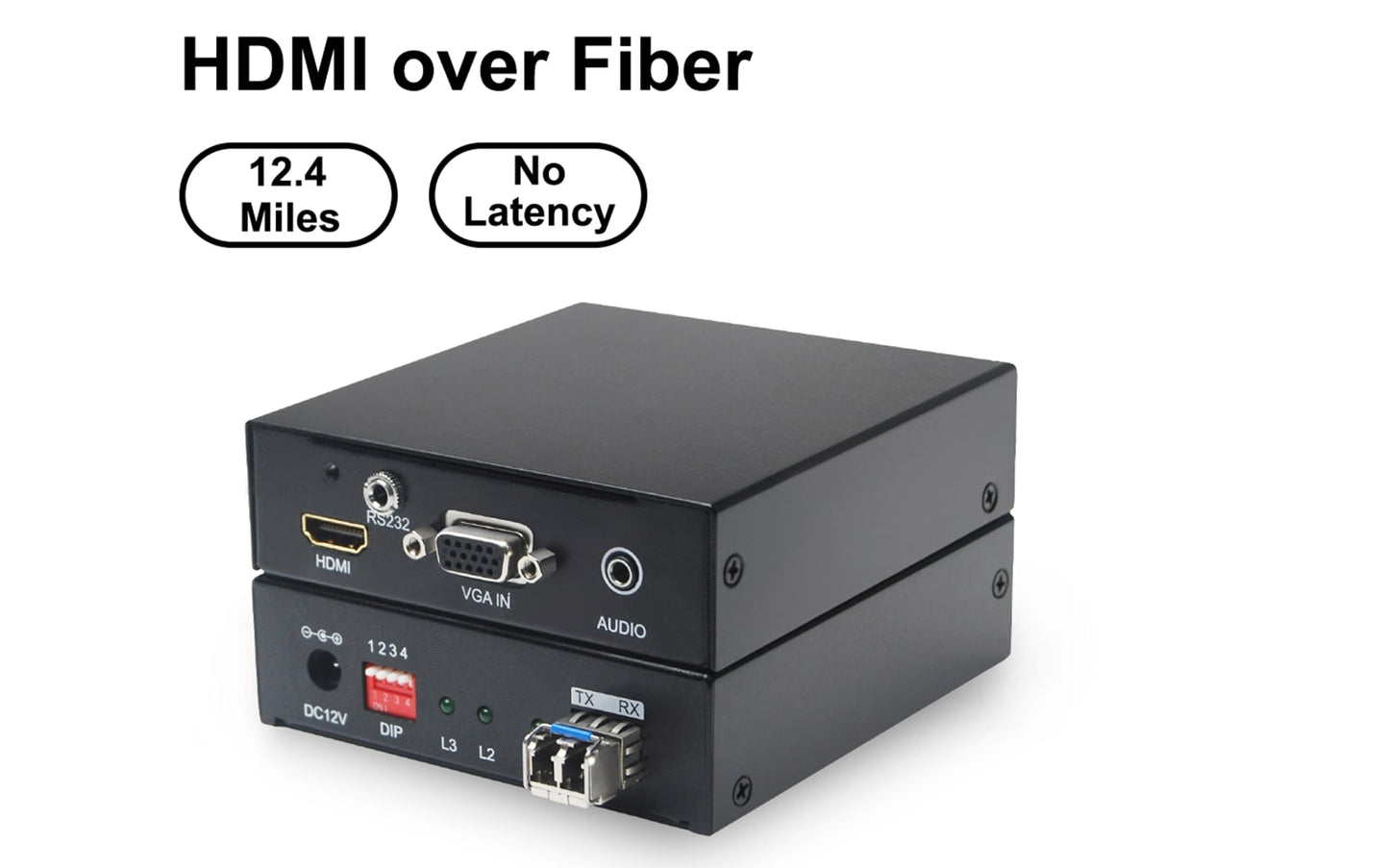

DDMALL HDMI to LC Fiber Optic Extender

Simple, Powerful and Reliable

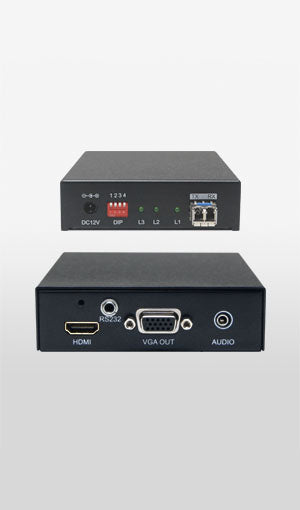

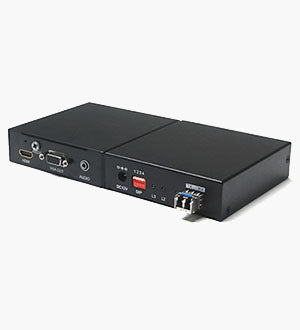

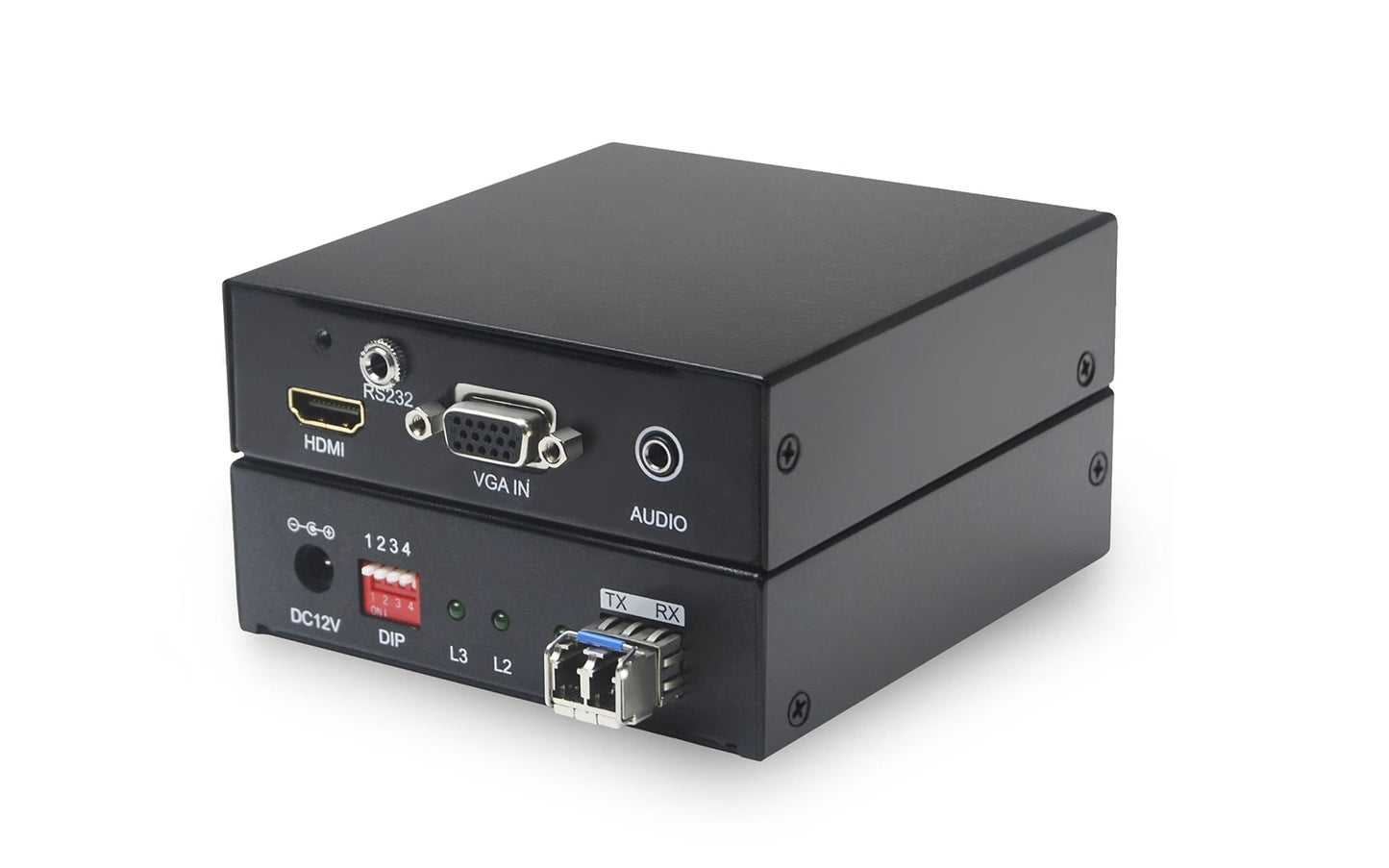

The HD-F01 is a fiber optic transmitter and receiver kit that provides long range transmission of HDMI video and audio at up to 12.4 miles (20km) with zero compression and zero bit reduction over one LC single-mode fiber optic cable. Supported resolution is up to 1920×1200@60Hz. The fiber optic HDMI video extender features industry standard LC-type connectivity, ideal for a wide range of applications, which require long distance transmission of high resolution content in high quality.

Key Features:

    Extension range up to 12.4 miles/20km over one LC single-mode fiber.

    Plug and play, no external driver is needed.

    Max. resolution up to 1920×1200@60Hz/1080p@60Hz.

    Zero compression and zero bit reduction.

    Real-time transmission with zero delay without dropping frames.

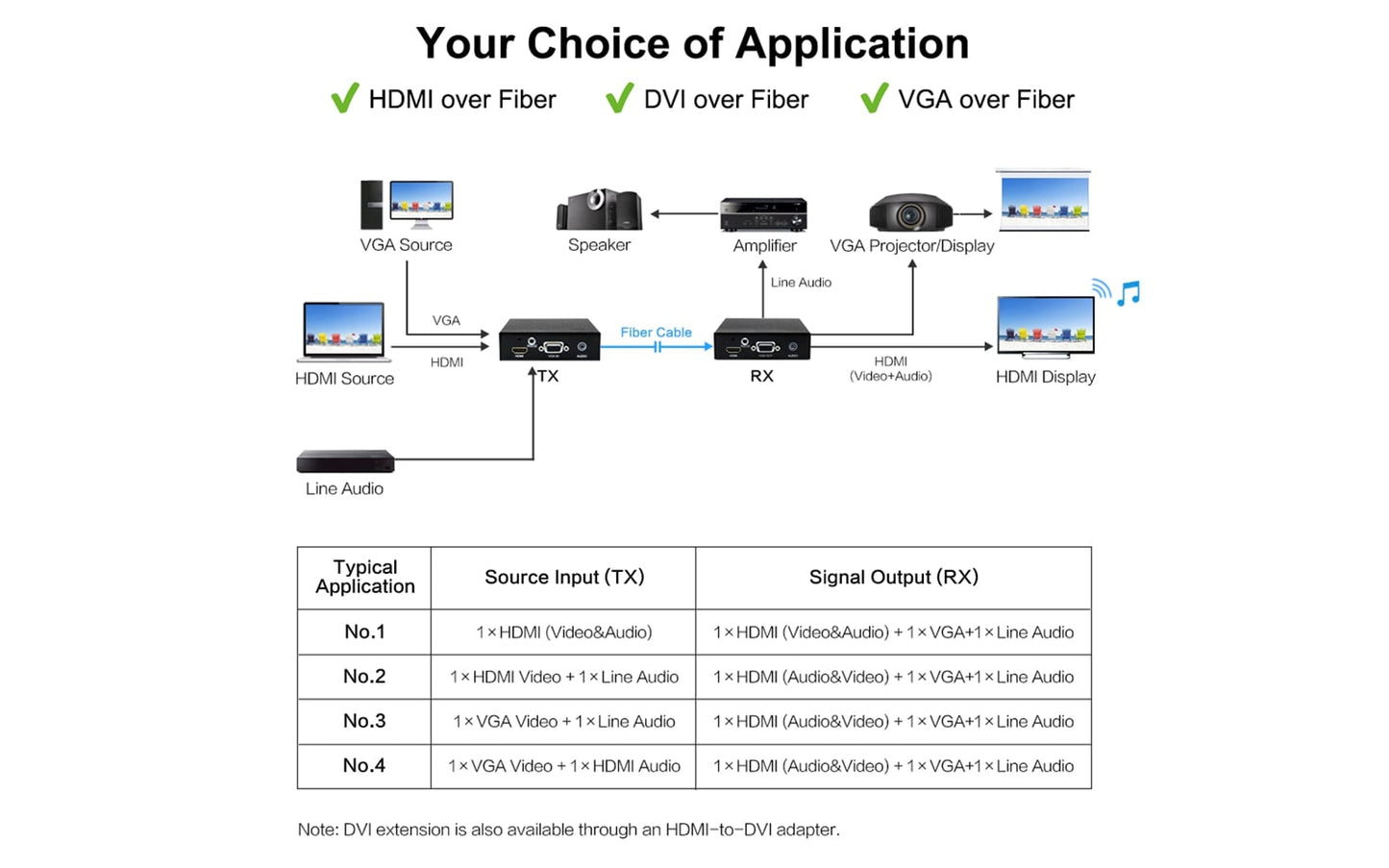

    Compatible with HDMI, VGA, DVI sources and display terminals.

    Support 3.5mm analog audio transmission (line in/out).

    Support audio embedding and de-embedding.

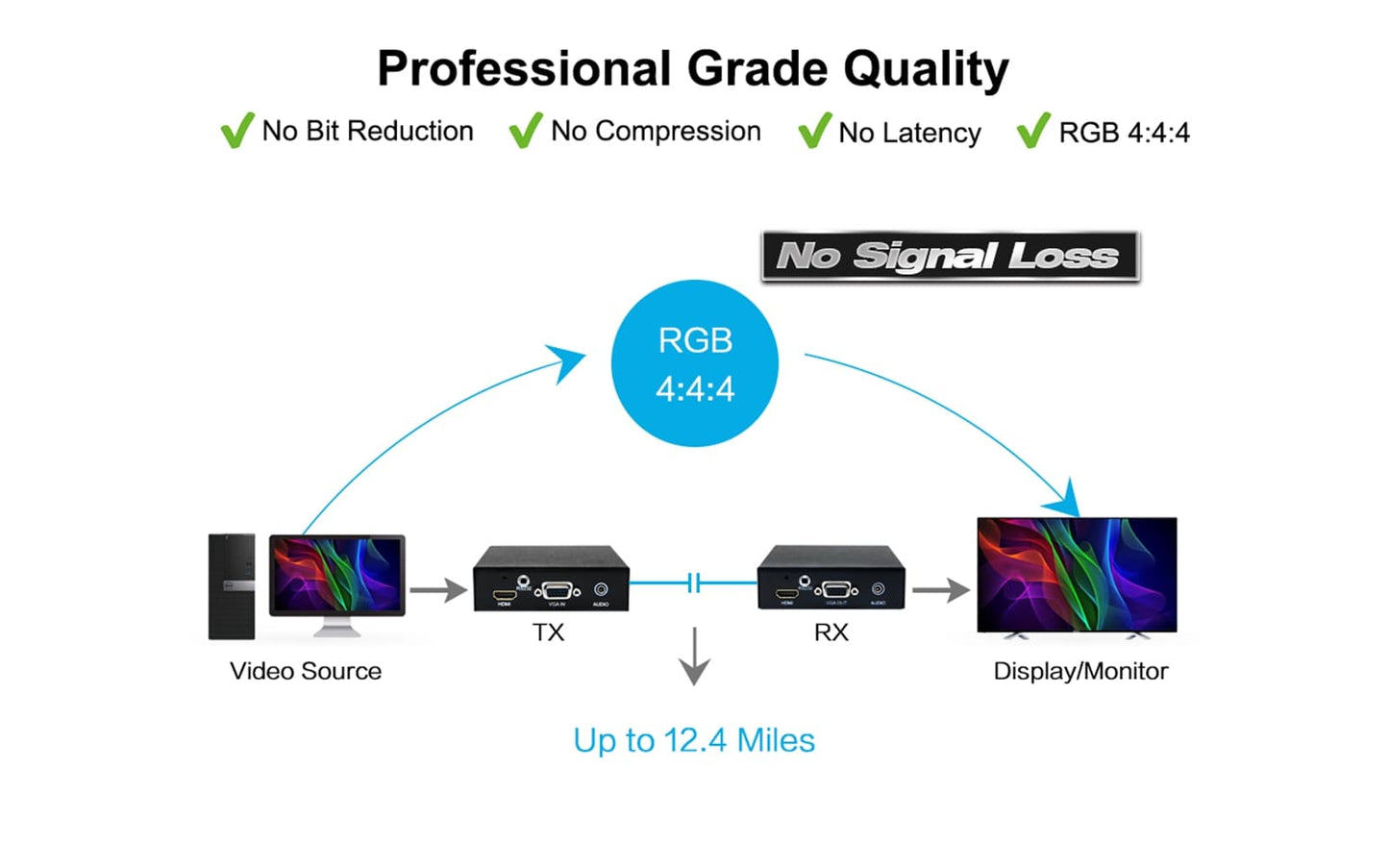

    Professional-Grade Quality

    Support 24/7 working. 100% quality control of every component. All our products are manufactured from high-grade materials to ensure the best performance.

    • Security system
    • Digital signage
    • Meeting room
    • Public and private exhibitions
    • Church projection systems
    • Pro AV systems and more




    Specifications

     Power Supply
    DC 12V, 2A Power Consumption 5W
    Storage Temperature -20~85℃ (-4~185℉) Operate Temperature -10~65℃ (14~149℉)
    Operate Humidity 10%-90%RH (non-condensing) Product Size 110mm(L)x94mm(W)x30mm(H)
    Singal Type HDMI(DVI compatible), HDCP 1.4 compliant, VGA Connector 1xHDMI type-a female connector, 1x15-pin D-sub connector
    Pixel Clock

    HDMI: 165MHz,

    VGA: 165MHz

    Bandwidth

    HDMI: 5Gbps,

    VGA: 500MHz(-3dB)

    Chroma Sampling RGB 4:4:4 Supported Resolution

    HDMI: up to 1920x1080@60Hz, 1920x1200@60Hz

    VGA: up to 1920x1080@60Hz

    Extension Range up to 20km(12.4miles) Audio Type

    Line-in analog audio

    Audio Connector 3.5mm ear-jack Control Method

    RS-232 serial port

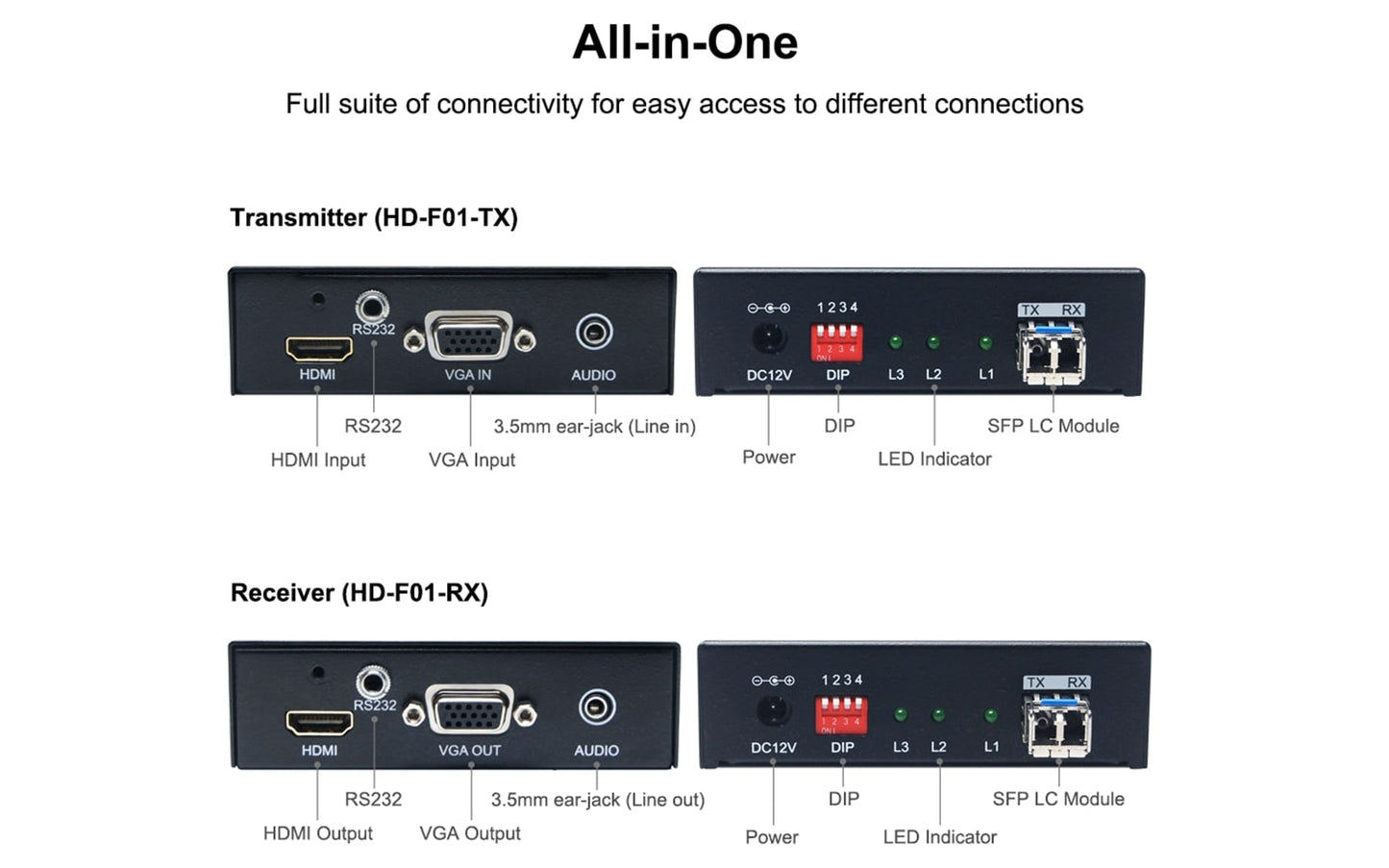

    TX Input 1xHDMI thype-A male, 1xVGA, 1x3.5mm analog line in, 1xRS232 TX Output

    1xoptic fiber out(LC single mode female)

    RX Input 1xoptic fibler in(LC singal mode female) RX Output

    1xHDMI type-A female, 1xVGA, 1x3.5mm analog line out, 1xRS232

    What's in the Box

    • 1×Transmitter (HD-F01-TX)
    • 1×Receiver (HD-F01-RX)
    • 2×DVI to HDMI Adapter
    • 2×DC Power Adapter (US)
    • 1×User Manual

    Reminder

    For the best video transmission performance, we recommend using high quality single-mode LC fiber optic cable.
