DDMALL HEM-2K H.265 H.264 2K Encoding Module & Starter Kit, OEM-ready Module
HEM-2K is a customized OEM-ready AV encoding module that supports various streaming media protocols based on various industry demands. It simplifies the overall system design, reduce product developing time and total cost of ownership. HEM-2K integrates standard hardware and software audio/video systems, supports H.265/H.264 high-efficiency encoding, supports almost main protocols such as RTP/RTSP/RTMP/RTMPS/UDP/TCP/HLS/SRT, provides all kinds of docking interfaces, supports third-party software docking and different hardware type dockings. Moreover, free upgrading service is available for special requirements on streaming media of different industries, and hardware and software customization are both supported. Its versatility, multi-functionality and customizability make the designers be more focused on the final application of the product. It adapts to all the products and help them realize audio and video long-distance transmission or live streaming.
Device Production
HEM-2K is a customized OEM-ready AV encoding module that supports various streaming media protocols based on various industry demands. It simplifies the overall system design, reduce product developing time and total cost of ownership. HEM-2K integrates standard hardware and software audio/video systems, supports H.265/H.264 high-efficiency encoding, supports almost main protocols such as RTP/RTSP/RTMP/RTMPS/UDP/TCP/HLS/SRT, provides all kinds of docking interfaces, supports third-party software docking and different hardware type dockings. Moreover, free upgrading service is available for special requirements on streaming media of different industries, and hardware and software customization are both supported. Its versatility, multi-functionality and customizability make the designers be more focused on the final application of the product. It adapts to all the products and help them realize audio and video long-distance transmission or live streaming.

Device Features
1, integration of standard software and hardware audio/video system.
2, compressed design—save space and ultra-low power consumption.
3, universal design—reduce product developing time and total cost.
4, support H.264/H.265 high-efficiency encoding.
5, support RTP/RTSP/RTMP/RTMPS/UDP/TCP/HLS/SRT etc. main stream protocols and provide free upgrading service for the special requirements of different industries on stream media.
6, UPnP+DDNS—Leveraging this function, users can realize intranet traversal, remotely control the encder through encoder’s domain name, and build video transmision on Public Internet.
7, provide all kinds of docking interfaces—support third-party software docking and docking of various hardware types.
8, support hardware customization—different hardware shapes can be designed with same standard.
9, support software customization




Starter Kit
To help customer quickly debug and use the funcstions of encoding module, and save total cost of ownership, DDMALL also developed corresponding debugging I/O board, which provides I/O interfaces for module audio and video link, network connection etc. Users can run all of functions of encoding module by embedding the module into the I/O interface on the debugging board. One I/O board can load 4 encoding modules simultaneously. Moreover, encoding module + I/O board can be put into use directly as a multi-channel audio and video encoding device.

1, integration of standard software and hardware audio/video system.
2, compressed design—save space and ultra-low power consumption.
3, universal design—reduce product developing time and total cost.
4, support H.264/H.265 high-efficiency encoding.
5, support RTP/RTSP/RTMP/RTMPS/UDP/TCP/HLS/SRT etc. main stream protocols and provide free upgrading service for the special requirements of different industries on stream media.
6, provide UPNP+DDNS function—realize traversal of local area network, remotely control encoding device through domain name and build a link for video transmission on wide area network.
7, provide all kinds of docking interfaces—support third-party software docking and docking of various hardware types.
8, support hardware customization—different hardware shapes can be designed with same standard.
9, support software customization
Hardware
Description | Parameters |
Sku | HEM-2K |
Expansion Interface | BH501P-030-R00200*2 |
Interfaces |
HDMI In Analog Audio In KEY_IN Network USB 2.0 UART |
Memory |
ROM: DDR3 256MB Flash: 32MB |
Size | 60x25mm |
Power supply | DC5V/1A |
Power consumption | 2.5W |
Software
Description | Parameters |
Operating System | Linux |
Video input format | 720P50/60,1080P23/24/25/30/59/60 |
Video codec |
H.264/H.265 1920x1080@30 +1280x720@30 VBR/CBR/FIX PQ/AVBR 128Kbps~16Mbps |
Audio codec |
AAC/32Kbps~256Kbps G711u |
Stream | RTP, RTSP, RTMP,RTMPS,UDP/TCP,HLS, SRT |
Transmission mode | Unicast/Multicast |
Control interface | UART/WEB UI |

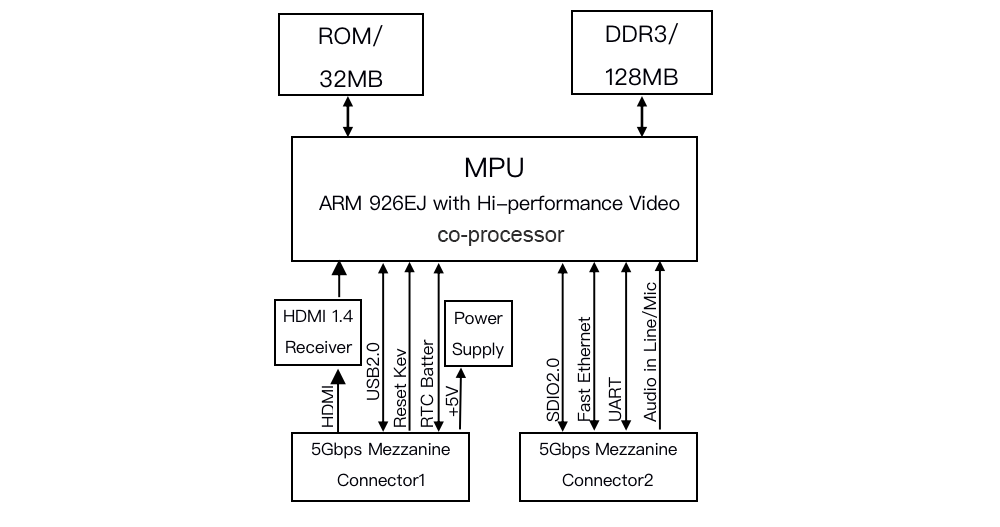

Hardware Frame Chart

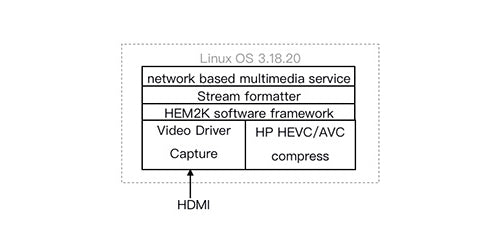

Software Frame Chart

Part of Connection Circuit Diagram
1、Connector signal definition


2、Network transformer connection
