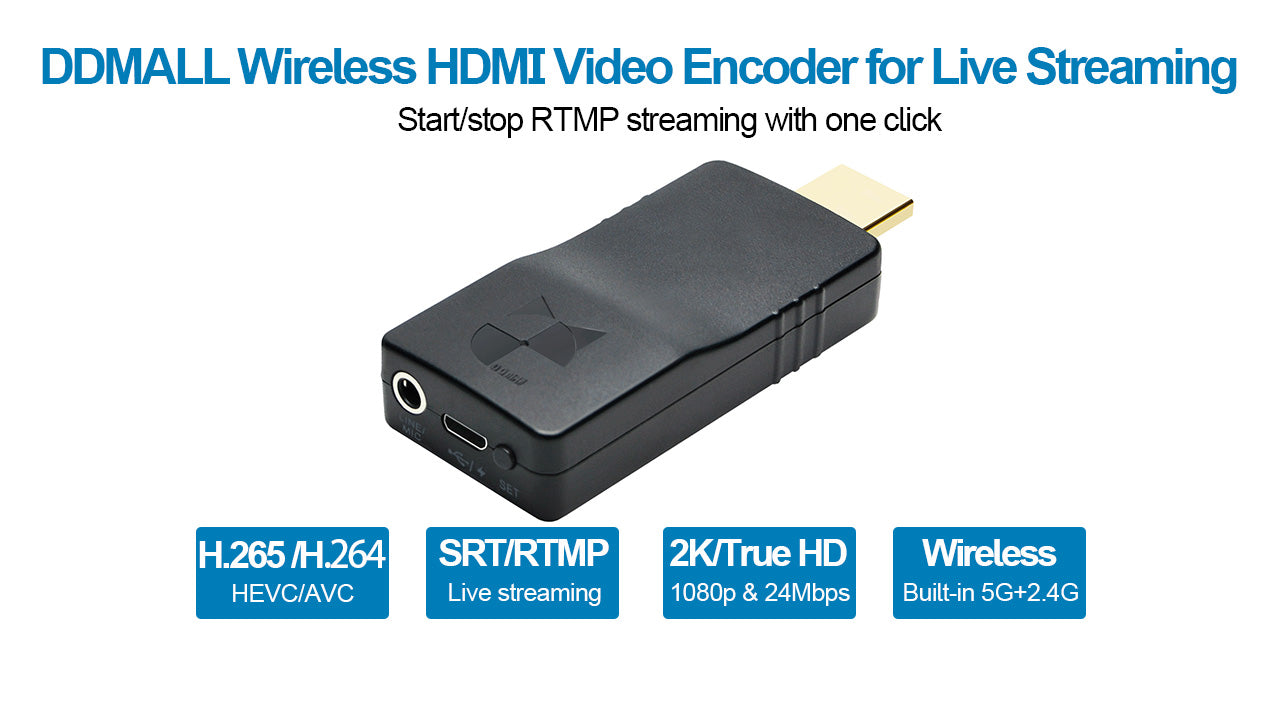

A wireless HDMI encoder that plugs into the camera and disappears. 25 g, 2.6 W over USB, 1080p60 in, 1080p30 out at 24 Mbps — no cable run, no transmitter pair, no power adapter.
【1080p60 In, 1080p30 Out】
Accepts HDMI up to 1080p60 and encodes to 1080p30 at up to 24 Mbps in H.265 (HEVC) or H.264 (AVC). 30 fps is the deliberate ceiling: it keeps the stream inside what a shared Wi-Fi link can carry reliably, so the feed stays clean instead of spiking and dropping. Frame rate and resolution are selectable down to 960×540 when the network is tight.
【25 g, One Hand】

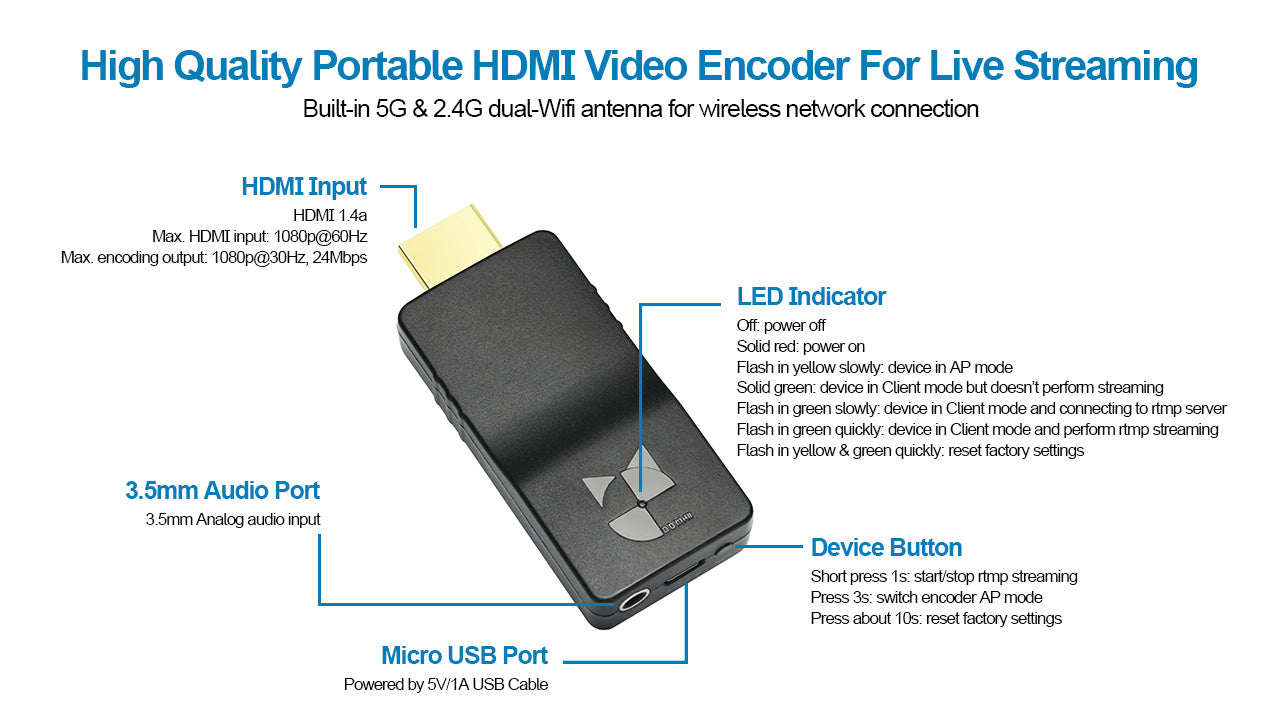

75 × 32 × 15 mm and 25 g, with a male HDMI type-A connector that plugs straight into the camera or switcher. Power comes from micro-USB at 5 V/1 A, 2.6 W — from the camera's USB port or a power bank. Nothing to mount, nothing to cable.
【Wi-Fi That Chooses Its Own AP】

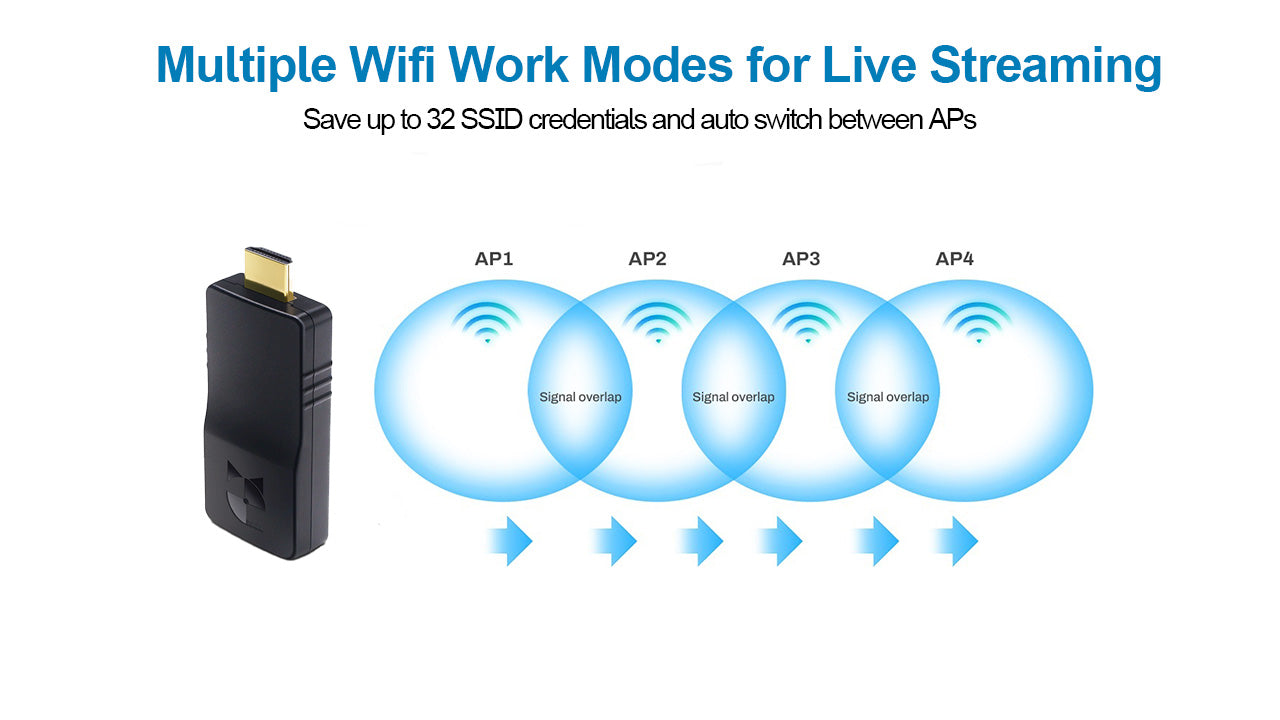

Dual-band 5 GHz + 2.4 GHz. The encoder stores up to 32 Wi-Fi credentials, measures the signal strength of each AP and moves to the strongest one automatically — no manual re-login when the camera rolls into the next room or the next side of the venue.
【One Button, Four Destinations】

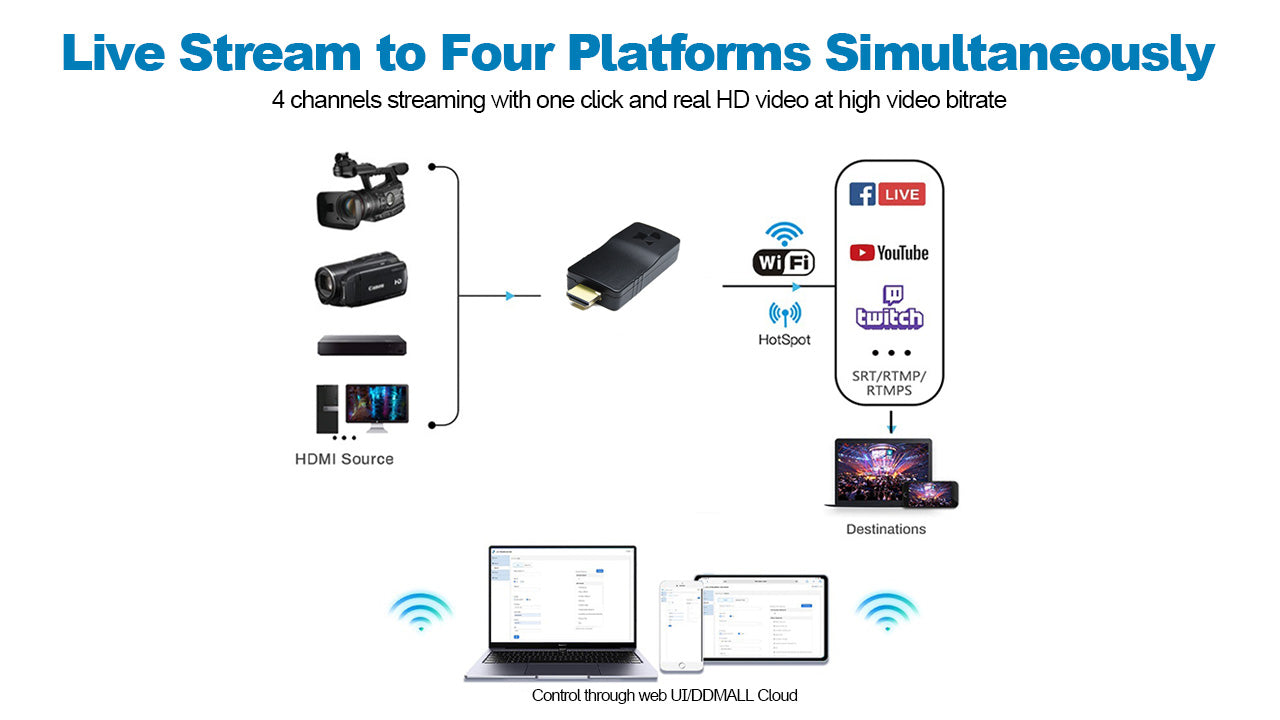

Press once to go live, press again to stop. Up to four HD streams go out at the same time to different platforms — YouTube, Facebook, Twitch, Wowza, Vimeo — plus SRT to your own server.
【NTP Frame Sync for Multi-Camera】
NTP frame sync keeps frames aligned across encoders, and a clock OSD stamps the stream. For multi-camera shoots, the cuts land where the editor expects them, and the footage is easy to trace afterwards.
【Cloud Control — or Your Own Cloud】

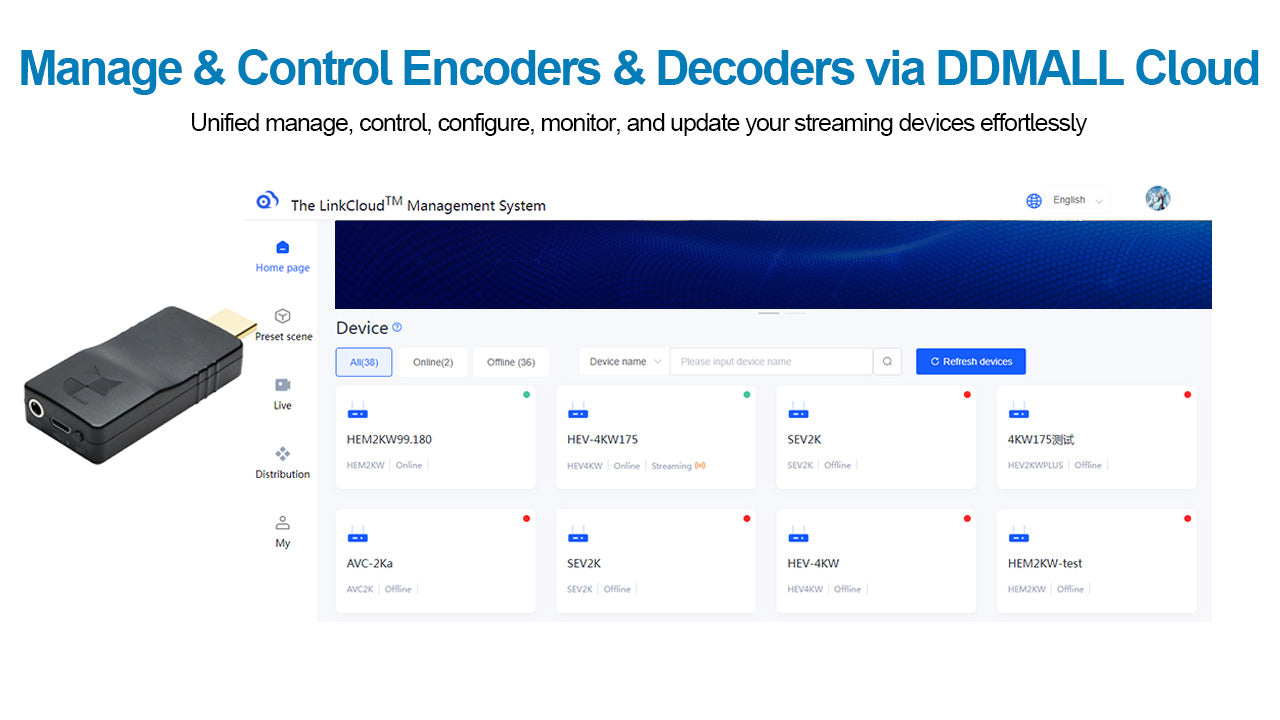

Register a DDMALL Cloud account and manage network, video, audio, streaming and OSD settings from anywhere with a connection. Integrators who need the data to stay in-house can have the OEM Cloud build running on their own server. Ask us for the deployment guide.
【Wi-Fi Only, By Design】
No RJ45 port — the encoder is built to be untethered. If the location has wired Ethernet, the CEV-2K does the same job at 1080p60 for a third of the price.

Typical Deployments
- Sport and events — handheld and roaming cameras on shared Wi-Fi
- Houses of worship — camera to platform with no cable run
- Corporate and conference — presenter laptop to multiple destinations
- Retail and venue — quick 1080p feed from a temporary position
- Education — classroom capture without pulling new cabling
- Multi-camera shoots — NTP frame sync across encoders



Specifications
|
Power Supply
|
5V/1 A (USB cable powered )
|
Power Consumption | 2.6W |
|
Work Temperature
|
-10~50℃ (14~122℉)
|
Storage Temperature | -20~85℃ (-4~185℉) |
|
Work Humidity
|
10%- 90%RH (Non-condensing)
|
Weight | 25g/0.055lbs |
|
Dimension
|
75mm(L)*32mm(W)*15mm(H)/ 2.95×1.26× 0.59in
|
MTBF(mean time between failures) | 30,000h |
|
Video Input Standard
|
HDMI 1.4a
|
Video Codec | H.265/HEVC and H.264/AVC |
|
Supported Protocols
|
SRT, HLS, RTP, RTSP, ONVIF, RTMP(S), UDP, TCP, Multicast and Unicast.
|
Supported Input Resolution | 1080p@60Hz, 720p@60Hz |
|
Supported Output Resolution
|
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
Frame rate is selectable
|
Video Bitrate | 128 kbps~24 Mbps |
|
Audio Input Standard
|
HDMI embedded audio, 3.5mm analog, Mic in, Line in
|
Audio Encoding Format | G.711u, AAC |
|
Audio Bitrate
|
32~256 kbps
|
Wireless Standard | 802.11a/n/ac 5GHz,802.11b/g/n 2.4GHz |
|
Control Method
|
Web UI/Cloud
|
AP Mode Wi-Fi Info. | SSID:HEV-2KW-Plus;password:12345678 |
|
AP Mode Default IP
|
192.168.1.252
|
Default Web UI Login Credentials | refer to user manual |
|
GOP
|
Tunable
|
Compression Profile | BaseLine, Main, High |
