Overview

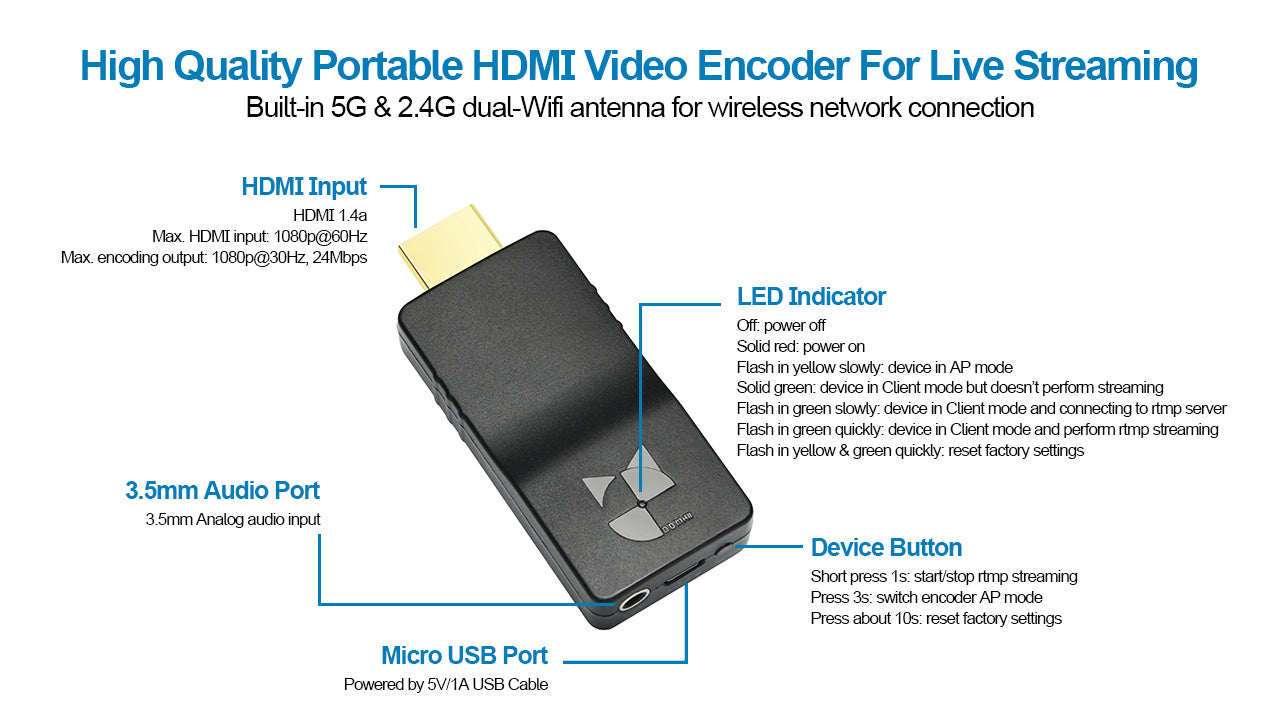

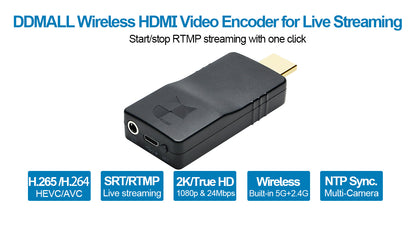

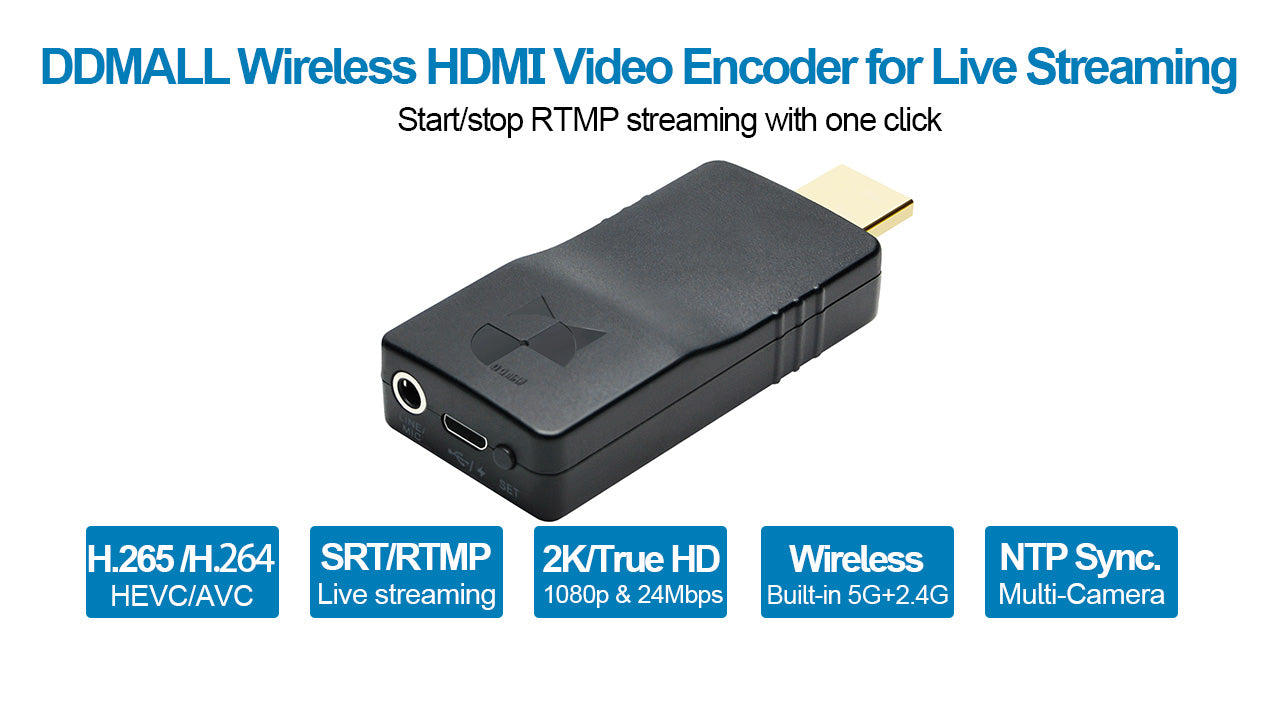

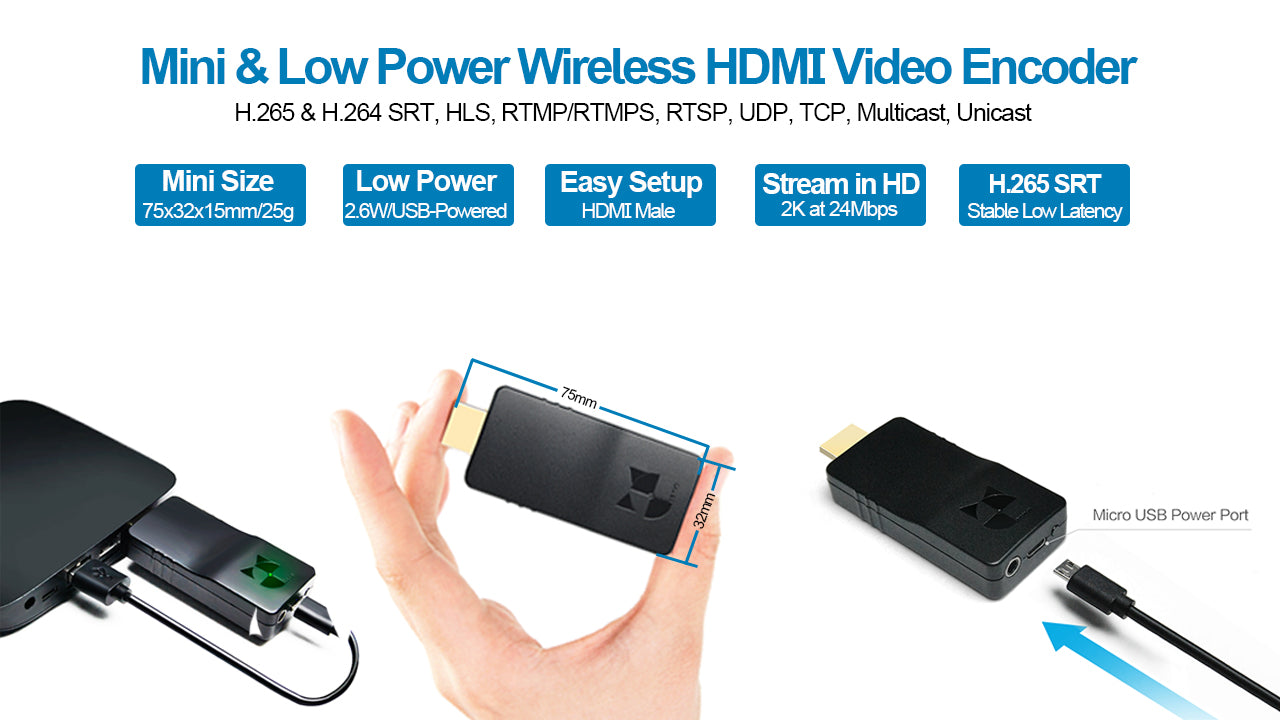

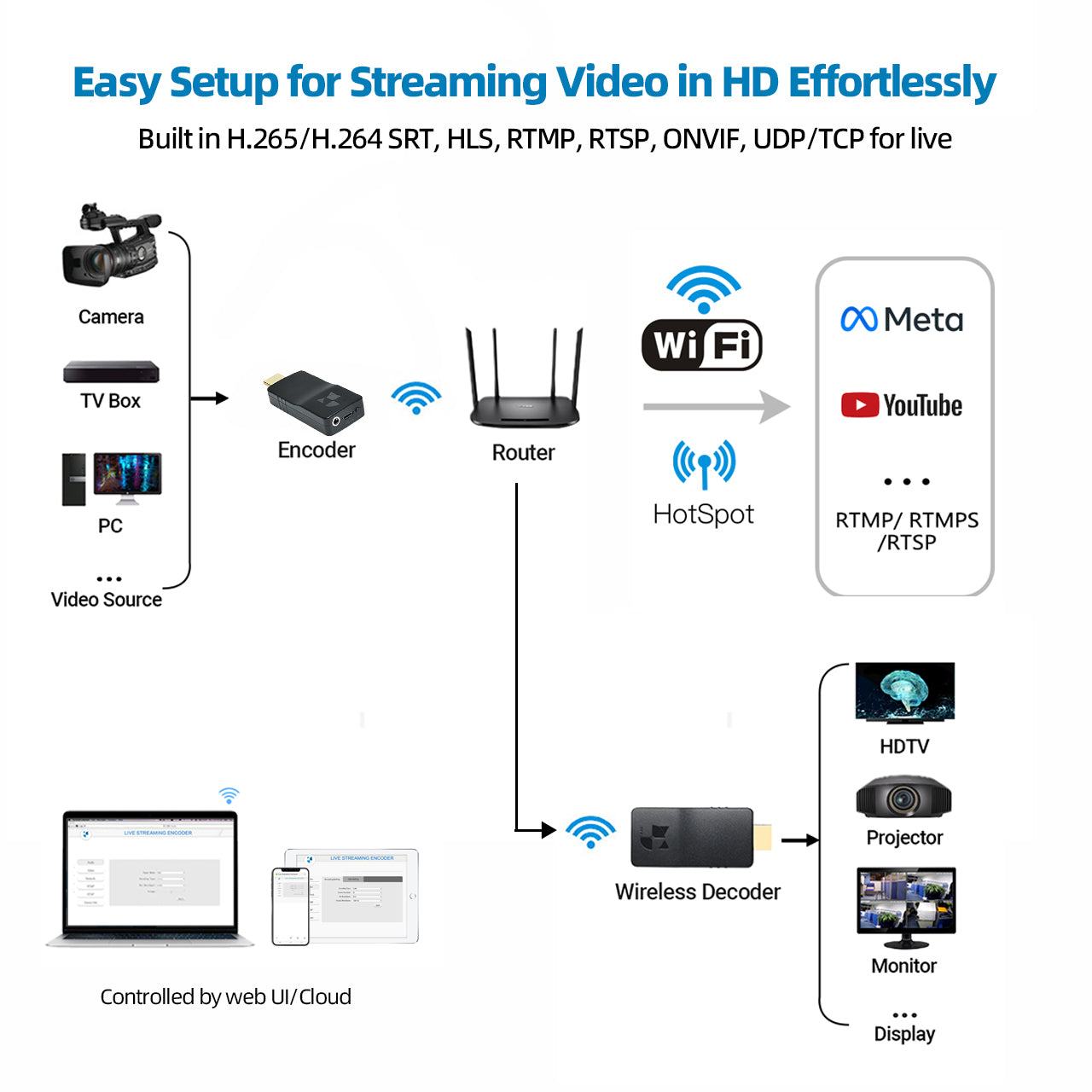

Portable & Energy-Efficient: Ultra-mini (75x32x15mm), ultra-lightweight(25g), ultra-low power consumption(2.6W) with USB-powered. Ideal for live streaming applications with frequent move or tiny installation space. Use a 4G/5G mobile phone to provide Wifi hotspot for network connection, and use a power bank to provide power juice, the wireless HDMI encoder can go live anywhere.
24Mbps Encoding Output: Max. HDMI input 1080p@60Hz, and Max. encoding output 1080p@30Hz at up to 24Mbps. Support H.265(HEVC) & H.264(AVC) SRT, HLS, RTMP/RTMPS, RTSP, UDP, TCP, RTP, Multicast, Unicast.
Low-Latency Wifi Encoder: It is a H.265 SRT encoder to deliver secure, reliable and high-quality video in low latency. Support H.265 HLS to playback high-definition video effortlessly.

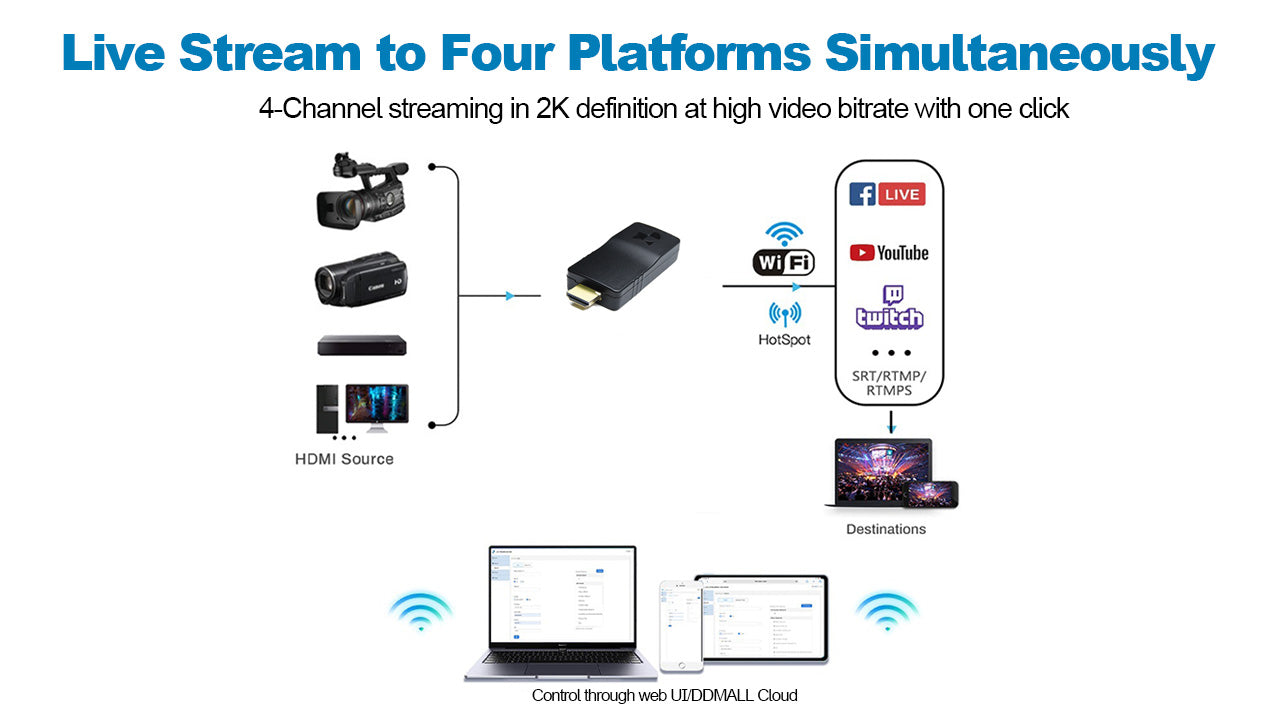

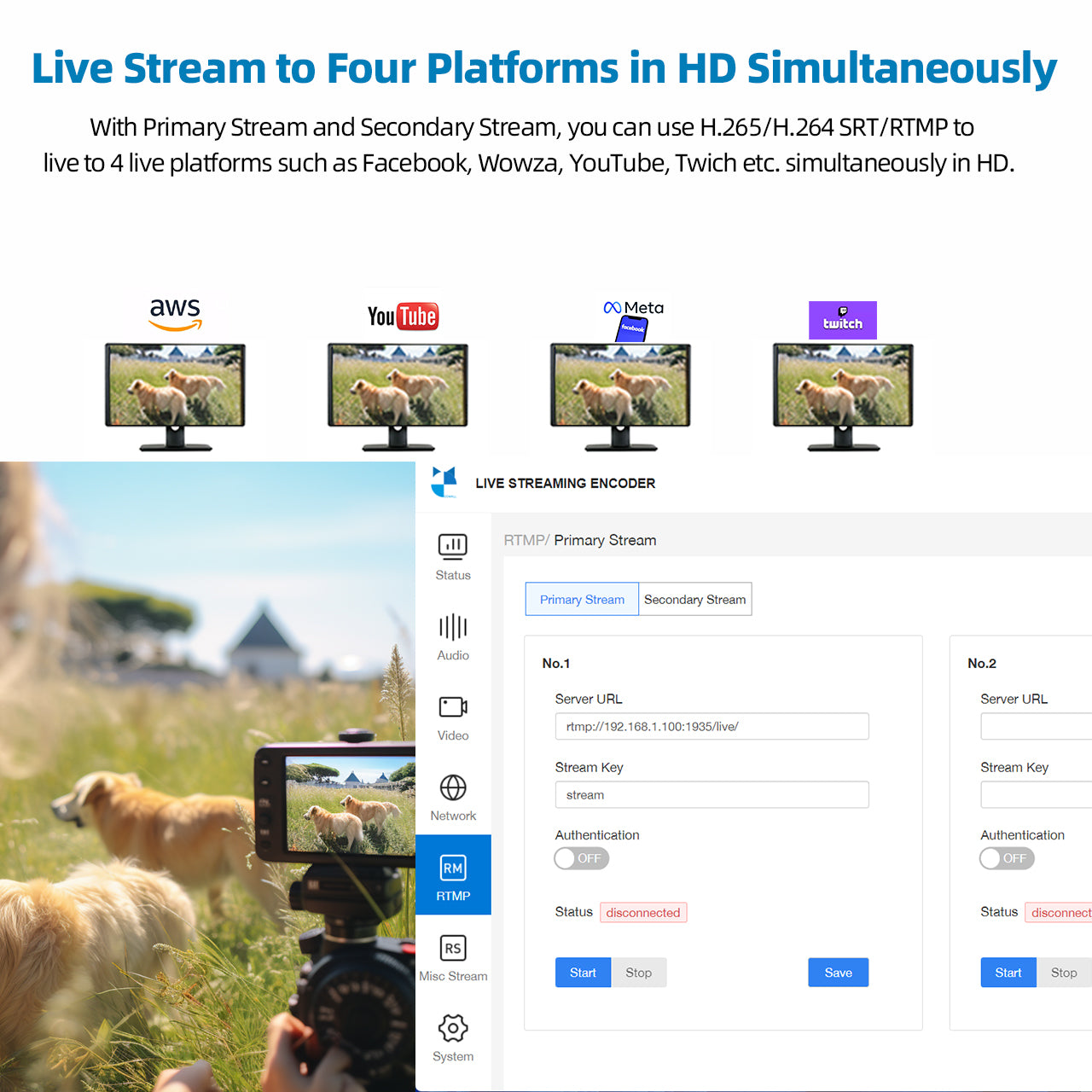

Click to Go Live: Start/stop live streaming with one click on device button. Support multi-channel streaming so you can push streams to 4 live platforms simultaneously like Facebook, YouTube, Twitch, Wowza, Vimeo etc.

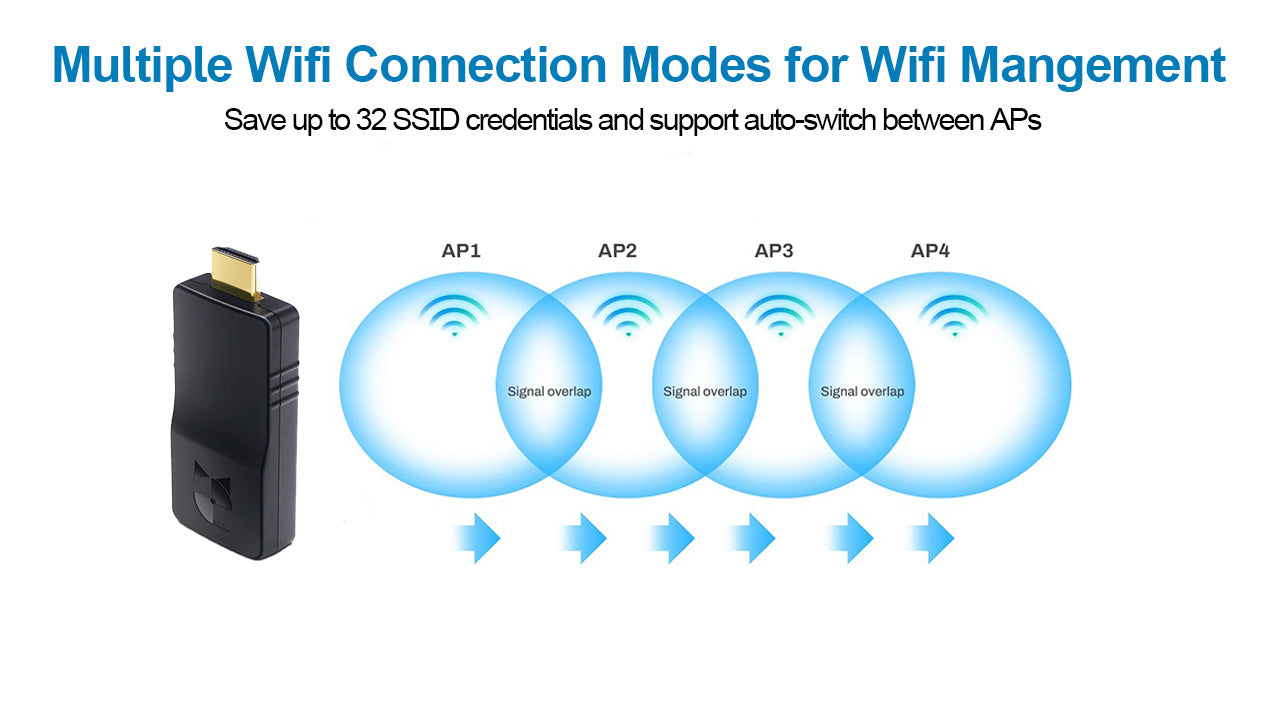

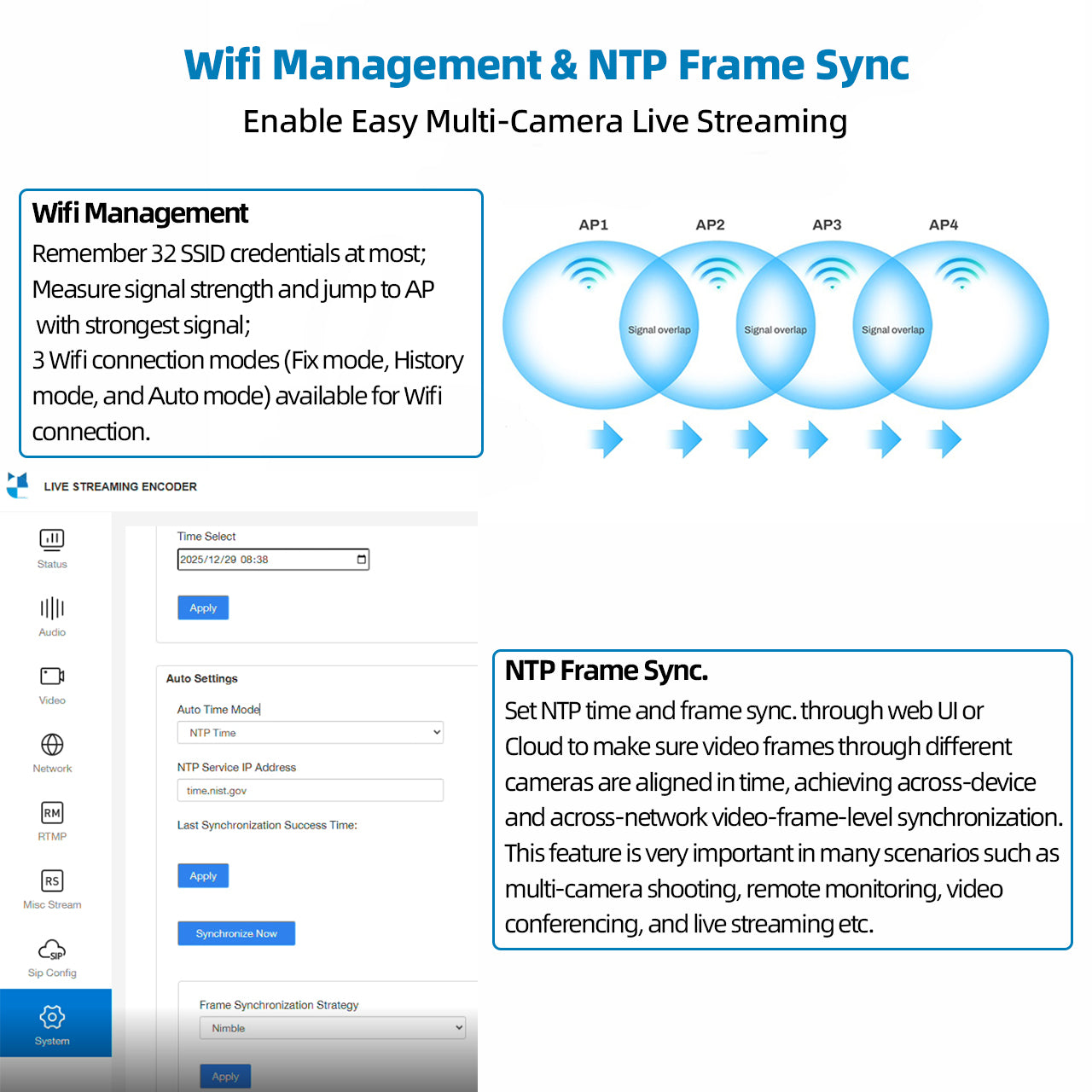

Wifi Management & NTP Sync: It can store 32 Wifi SSID credentials at most, measure signal strength and jump to stronger signal automatically in working; The ip encoder can synchronize NTP time, which is vital for multi-camera streaming.

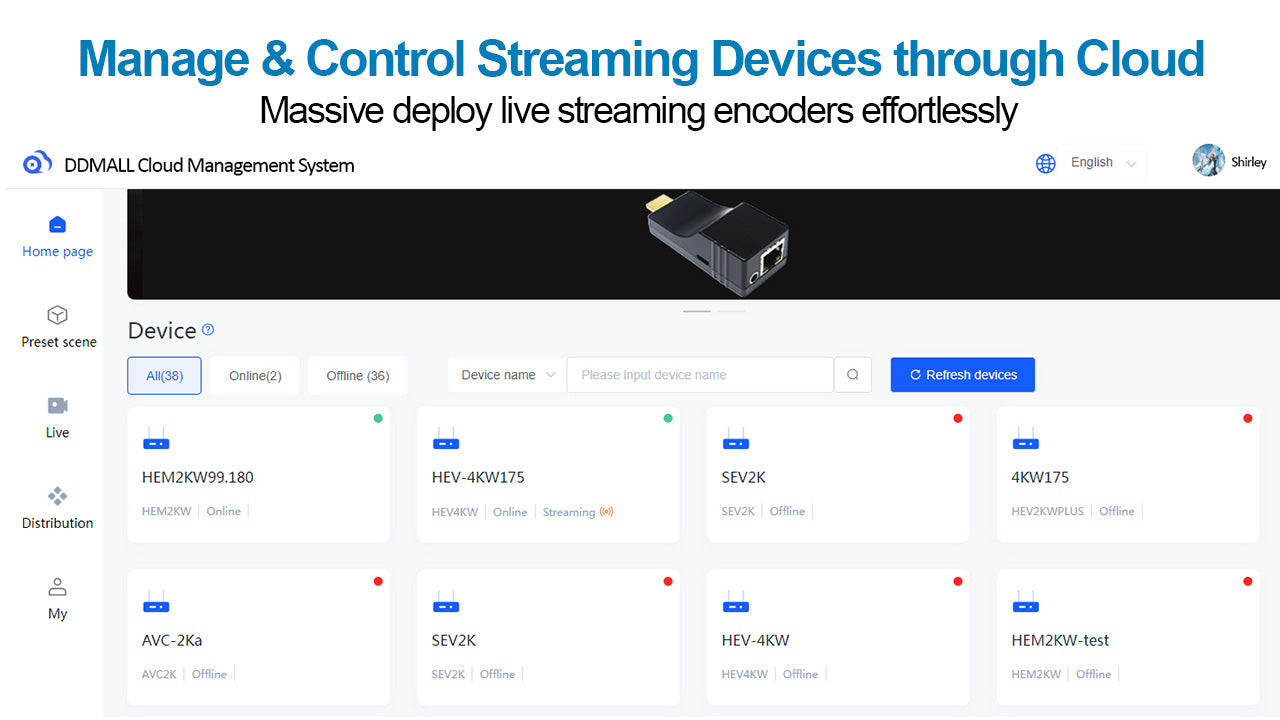

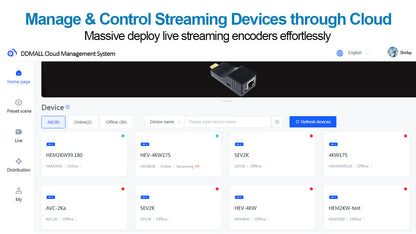

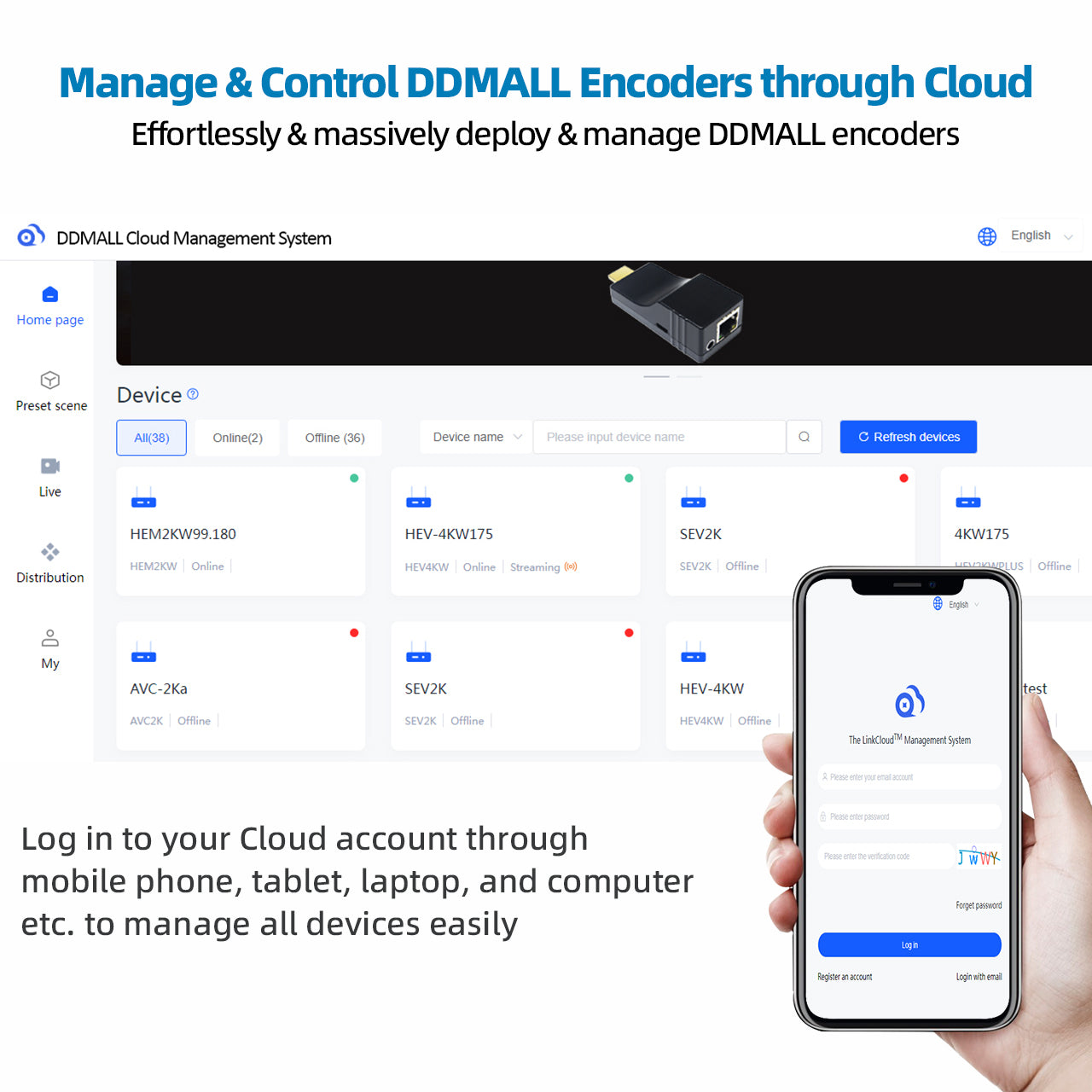

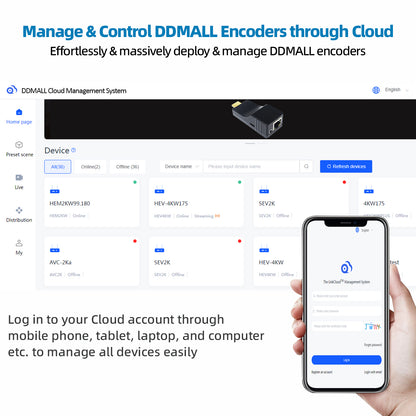

Cloud Supported Encoder: Support Cloud control. DDMALL provides business customers with Cloud protocols to help build private Cloud system on their own servers. Contact us to learn more.
Main Features
• Compact Low Power Encoder: Ultra-mini size (75x32x15mm), ultra-lightweight (25g), and ultra-low power consumption(2.6W). Easy to carry anywhere and set up tidy & neat.
• 1080p Wireless Streaming: HEVC(H.265) and AVC(H.264), built-in 5G+2.4G dual-band Wifi antenna. Stream 1080p high-definition video at 24Mbps. Support SRT, HLS, RTMP(S), RTSP, RTP, TCP, UDP, Multciast, Unicast.
• Multi-channel Live: Allows users to simultaneously stream on 4 platforms like YouTube, Facebook, Twitch, Wowza, IPTV, Livestreams, Microsoft stream and more.
• Auto Wifi Switching: Remember multiple wifi credentials, measure signal strength, and auto jump to stronger signal for stable network connection, perfect for live productions in motion.
• NTP Sync & Cloud Control: Synchronize NTP time & frame rate for multi-camera streaming applications. Support Cloud control so that massive deployment and management of the encoders can be effortlessly.

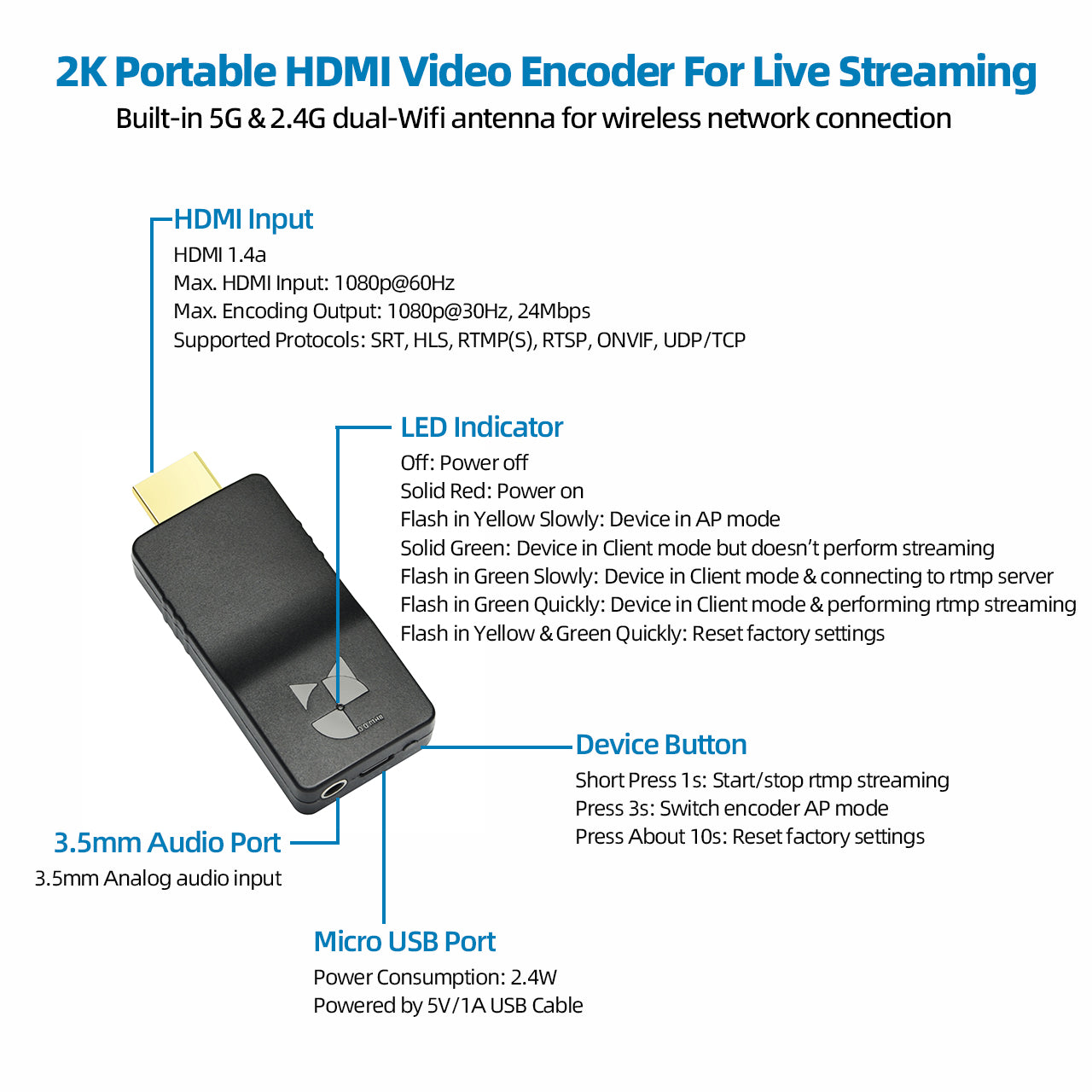

• More Features: One click to start/stop RTMP streaming; Real-time text/picture/time OSD; Video preview through web UI or Cloud.
Specifications
|
Power Supply
|
5V/1 A （USB cable powered ）
|
Power Consumption | 2.6W |
|
Work Temperature
|
-10~55℃ （14~149℉）
|
Storage Temperature | -20~85℃ （-4~185℉） |
|
Work Humidity
|
10%- 90%RH (Non-condensing)
|
Weight | 25g/0.055lbs |
|
Dimension
|
75mm(L)*32mm(W)*15mm(H)/ 3.94×1.26× 0.59in
|
MTBF(mean time between failures) | 30,000h |
|
Video Input Standard
|
HDMI 1.4A
|
Video Codec | H.265/HEVC and H.264/AVC |
|
Supported Protocols
|
SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.
|
Supported Input Resolution | 1080p@60Hz, 720p@60Hz |
|
Supported Output Resolution
|
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
Frame rate can be selected by yourself.
|
Video Bitrate | 128Kbps~24Mbps |
|
Audio Input Standard
|
HDMI, 3.5mm analog, Mic in, Line in
|
Audio Encoding Format | G.711u, AAC |
|
Audio Bitrate
|
32kbps~256Kbps
|
Wireless Standard | 802.11a/n/ac 5G，802.11b/g/n 2.4G |
|
Control Method
|
Web UI
|
AP Mode Wi-Fi Info. | SSID：HEV-2KW-Plus；password：12345678 |
|
AP Mode Default IP
|
192.168.1.252
|
Default Web UI Login Credentials | user/password: admin/admin |
|
GOP
|
Tunable
|
Compression Profile | BaseLine, Main, High |
