Overview

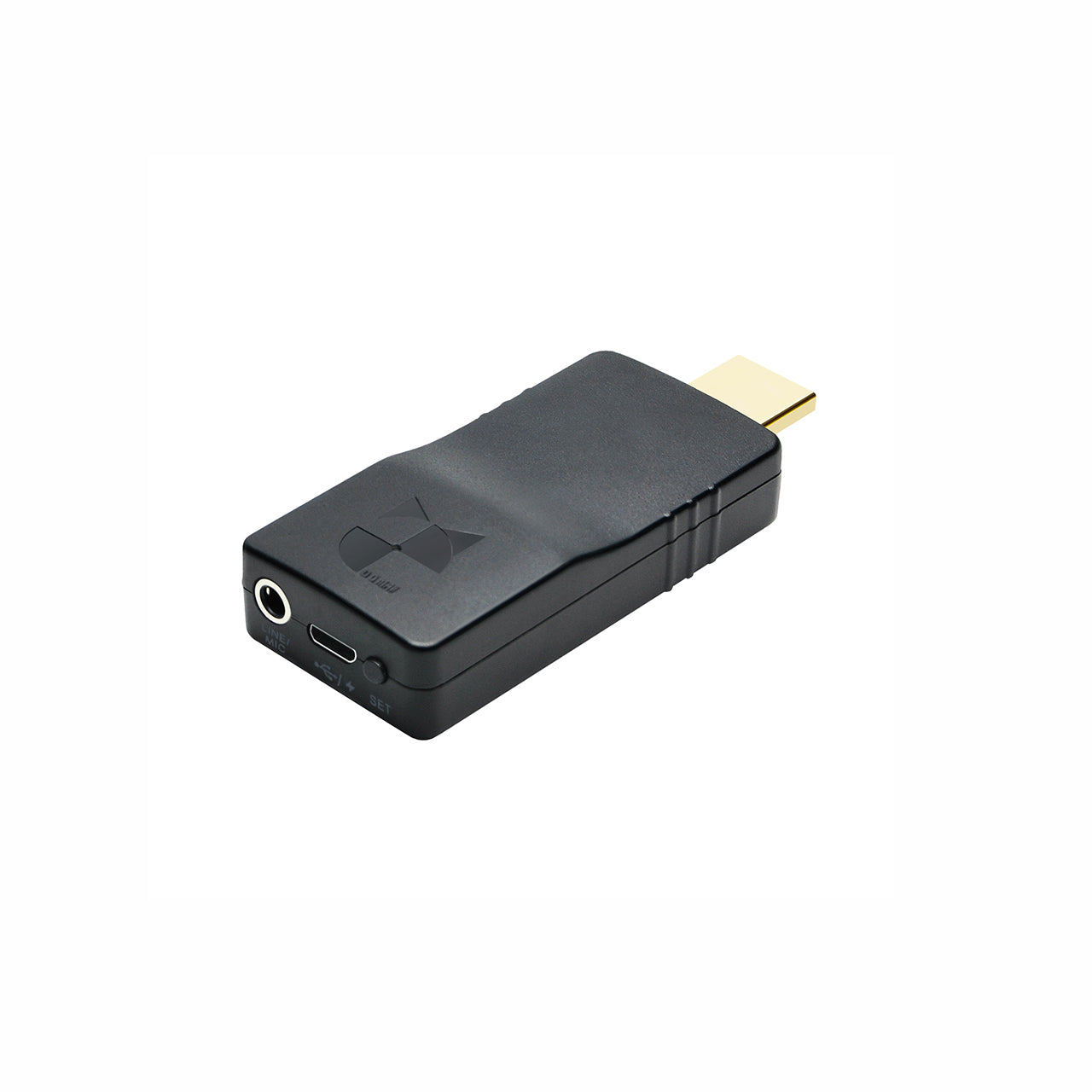

Portable & Energy-Efficient: Ultra-mini (75x32x15mm), ultra-lightweight(25g), ultra-low power consumption(2.6W) with USB-powered. Ideal for live streaming applications with frequent move or tiny installation space.

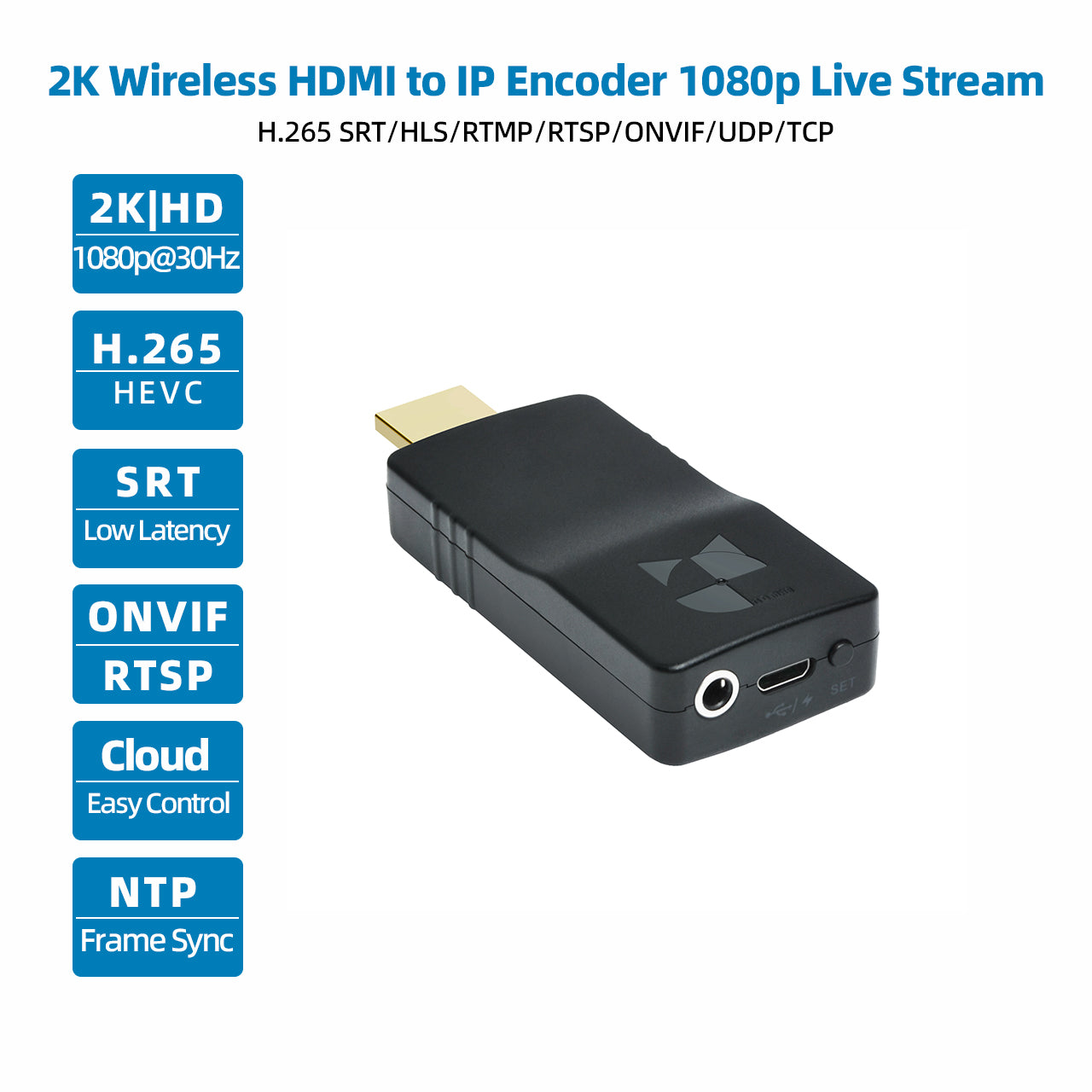

2K SRT/RTSP/ONVIF/RTMP: Max. HDMI input 1080p@60Hz, and max. encoding output 1080p@30Hz at up to 24Mbps. Support H.265(HEVC) & H.264(AVC) SRT, HLS, RTMP(S), RTSP/ONVIF, UDP, TCP, RTP, Multicast, Unicast. This wireless encoder delivers high-quality video in low latency.

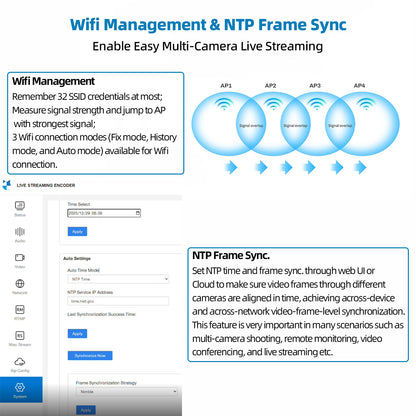

HDMI over Wifi Encoder: With built-in 5G+2.4G wifi antenna, it gets strong network connection. Support Wifi AP management that the encoder can store 32 Wifi SSID credentials at most, measure signal strength and jump to stronger signal automatically.

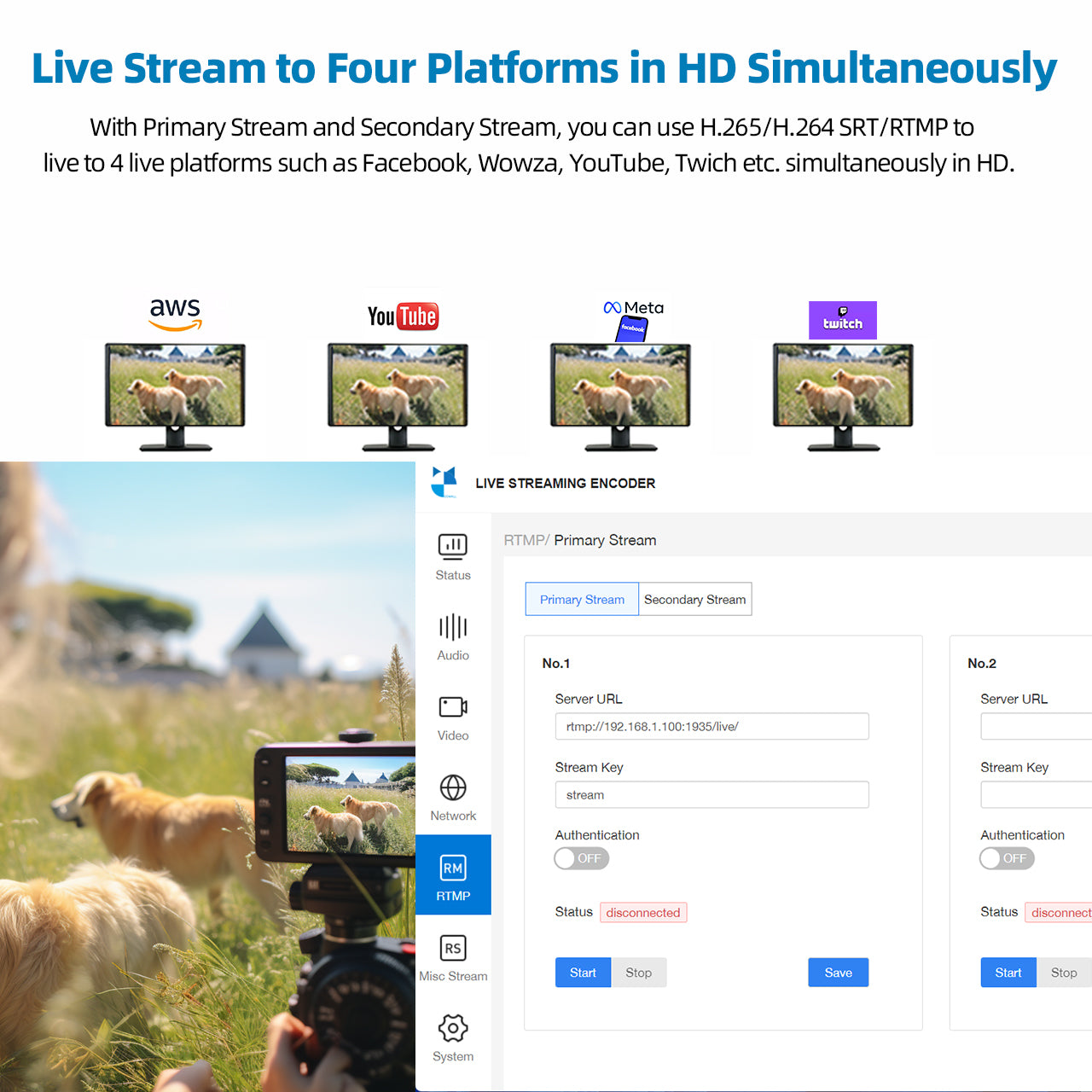

One Click to Go Live: Support one click to start/stop live streaming. Support multi-channel streaming so you can push streams to 4 live platforms simultaneously like Facebook, YouTube, Twitch, Wowza, Vimeo etc.
Frame Sync. & Time OSD: The HDMI to IP encoder supports NTP frame sync., which is vital for multi-camera streaming. At the same time, it supports NTP time sync. and clock OSD, which helps you track your live stream footage.

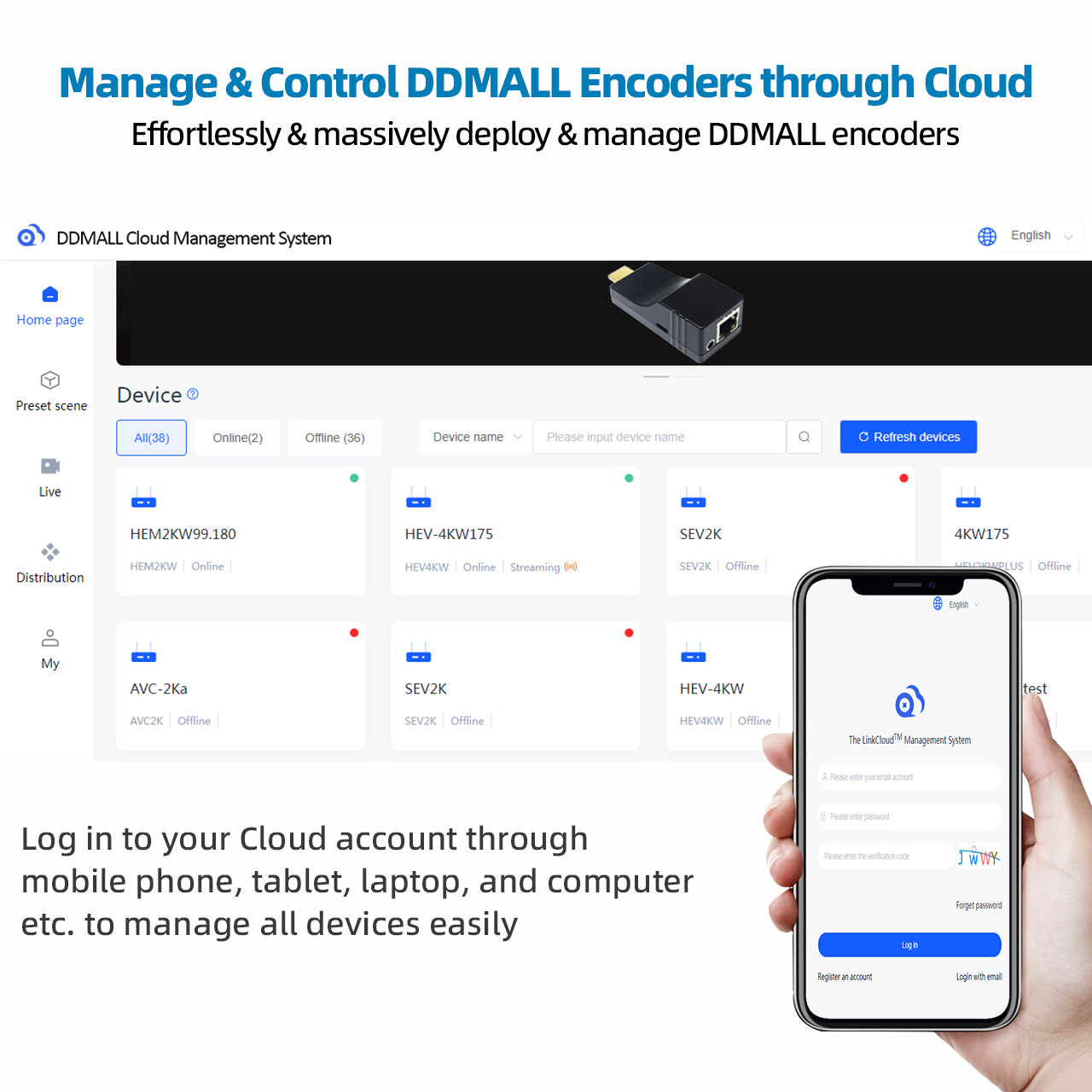

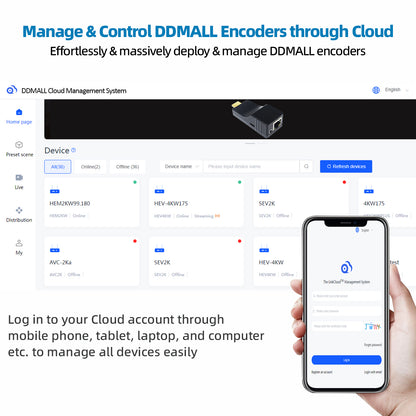

Cloud Control: Support Cloud control. Register a Cloud account to control your encoders (edit network, video, audio, stream, and protocol parameters, preview, and OSD settings) in public Internet effortlessly. DDMALL also provides business customers with Cloud protocols to help them build private Cloud system on their own servers. Contact us to learn more.
Main Features
• Compact Low-Power Encoder: Ultra-mini size (75x32x15mm), ultra-lightweight (25g), and ultra-low power consumption(2.6W). Easy to carry anywhere and set up tidy & neat.

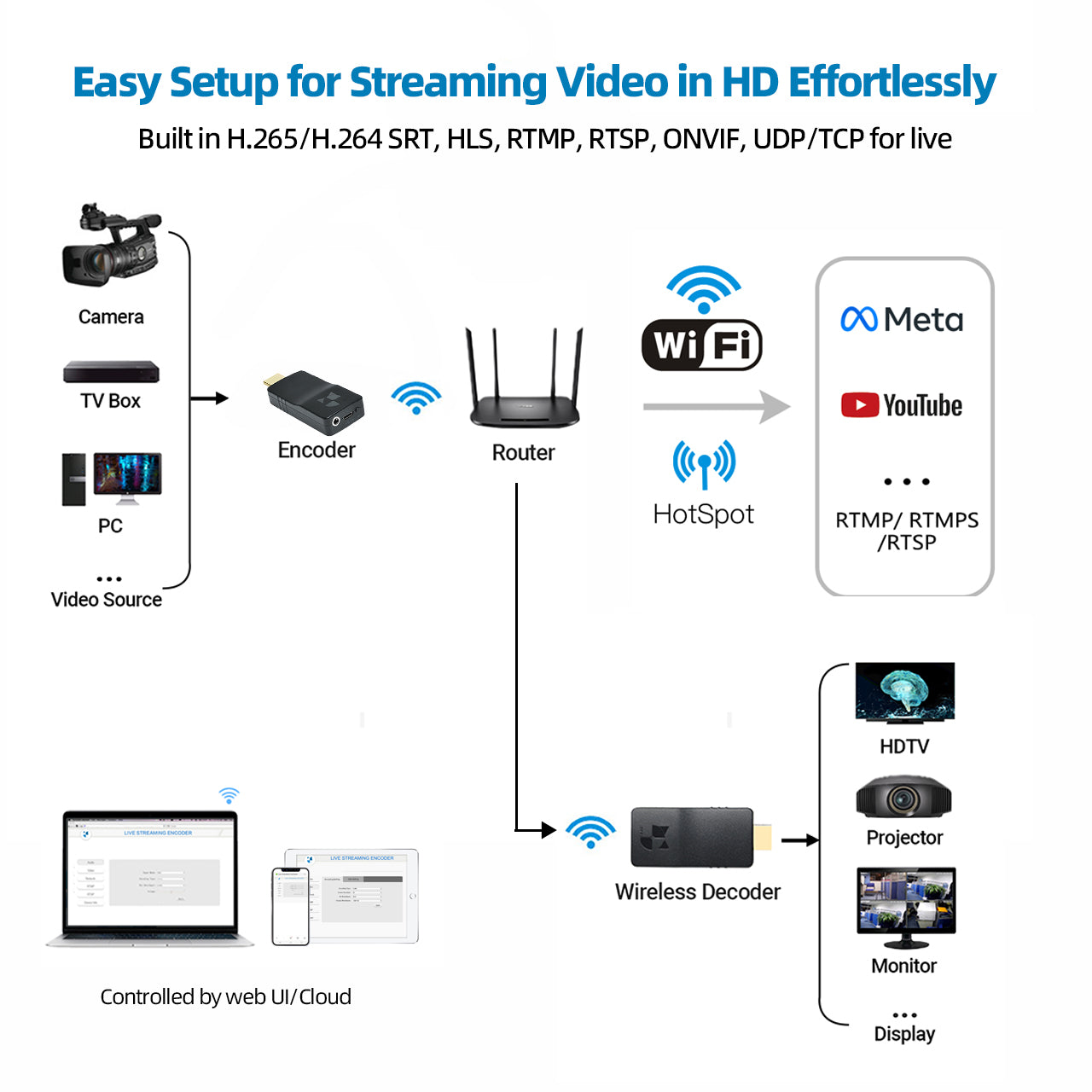

• 1080p Wireless Streaming: HEVC(H.265) and AVC(H.264), built-in 5G+2.4G dual-band Wifi antenna. Stream 1080p high-definition video at 24Mbps. Support SRT, HLS, RTMP(S), RTSP/ONVIF, RTP, TCP, UDP, Multciast, Unicast.
• Multi-Channel Live: Allow users to simultaneously stream on 4 platforms like YouTube, Facebook, Twitch, Wowza, IPTV, Livestreams, Microsoft stream and more.

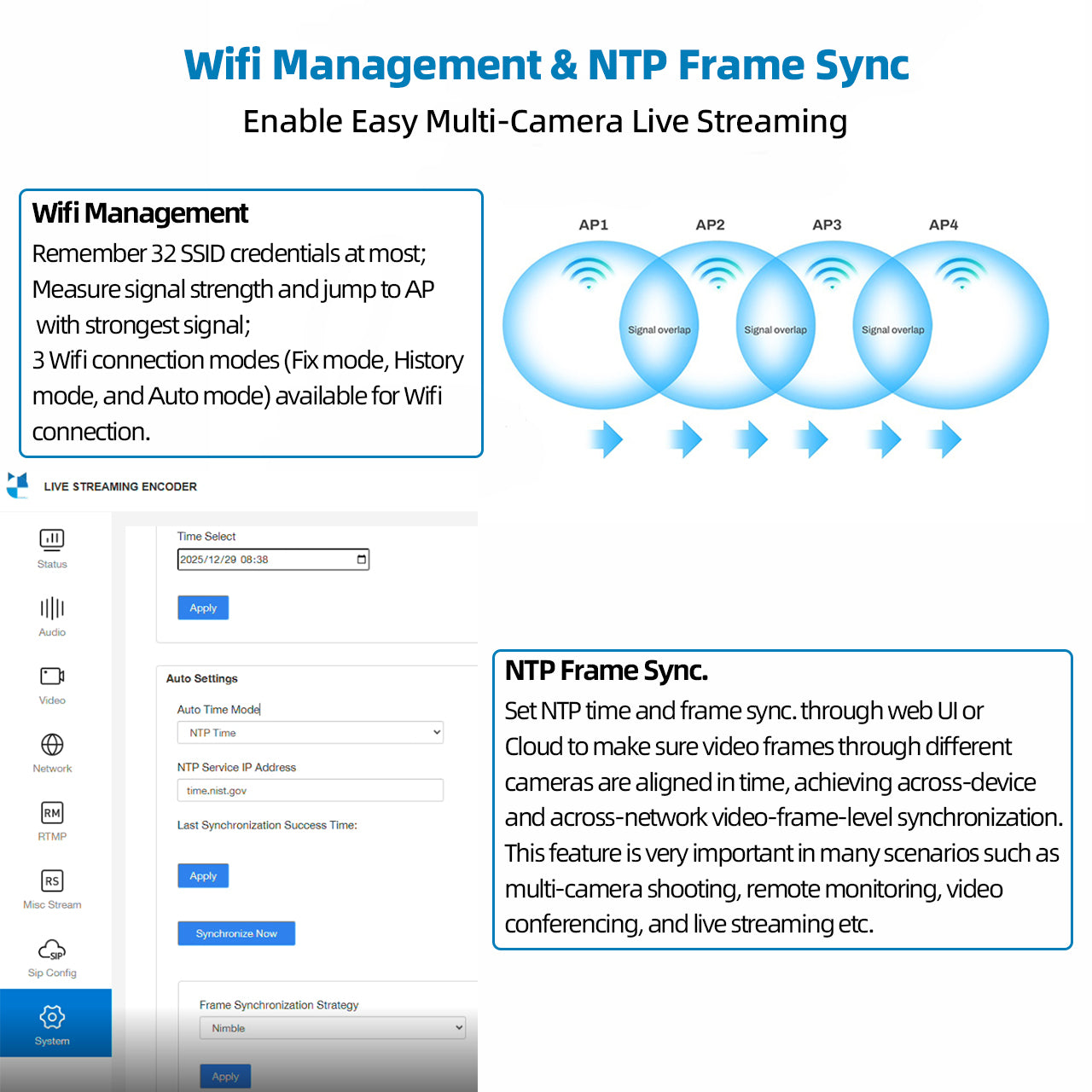

• Auto Wifi Jump: Remember multiple wifi credentials, measure signal strength, and auto jump to stronger signal for stable network connection, perfect for live productions in motion.
• Frame Sync & Cloud Control: Synchronize NTP time & frame for multi-camera streaming applications. Support Cloud control so that massive deployment and management of the encoders can be effortlessly. You can edit network, video, audio, protocol, system, and stream protocols, and preview video status, edit text/picture/time OSD through Cloud.

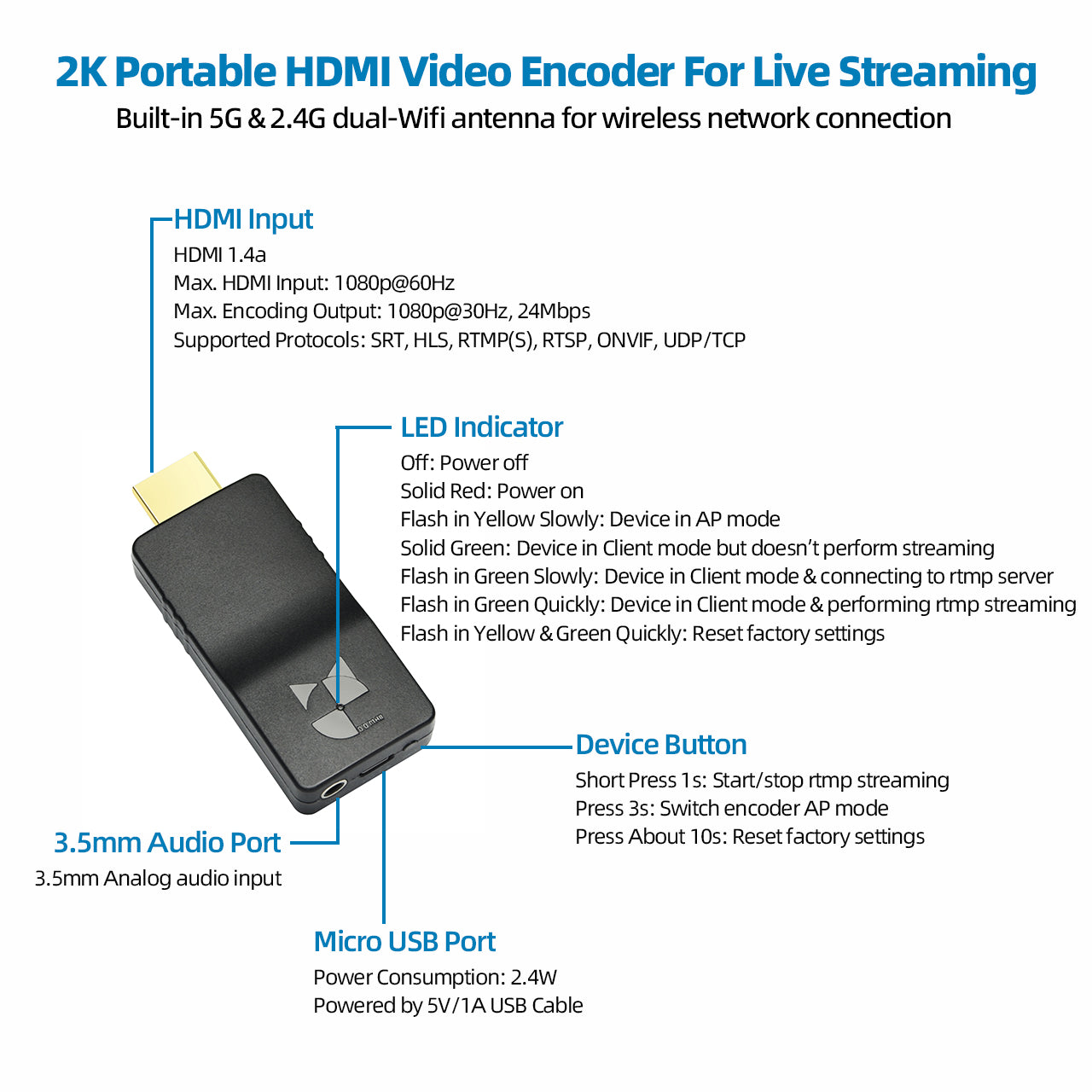

• More Features: One click to start/stop RTMP streaming; Real-time text/picture/time OSD; Video preview through web UI or Cloud.
Specifications
|
Power Supply
|
5V/1 A （USB cable powered ）
|
Power Consumption | 2.6W |
|
Work Temperature
|
-10~55℃ （14~149℉）
|
Storage Temperature | -20~85℃ （-4~185℉） |
|
Work Humidity
|
10%- 90%RH (Non-condensing)
|
Weight | 25g/0.055lbs |
|
Dimension
|
75mm(L)*32mm(W)*15mm(H)/ 3.94×1.26× 0.59in
|
MTBF(mean time between failures) | 30,000h |
|
Video Input Standard
|
HDMI 1.4A
|
Video Codec | H.265/HEVC and H.264/AVC |
|
Supported Protocols
|
SRT, HLS, RTP, RTSP, ONVIF, RTMP, RTMPS, UDP, TCP, Multicast and Unicast.
|
Supported Input Resolution | 1080p@60Hz, 720p@60Hz |
|
Supported Output Resolution
|
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
Frame rate can be selected by yourself.
|
Video Bitrate | 128Kbps~24Mbps |
|
Audio Input Standard
|
HDMI, 3.5mm analog, Mic in, Line in
|
Audio Encoding Format | G.711u, AAC |
|
Audio Bitrate
|
32kbps~256Kbps
|
Wireless Standard | 802.11a/n/ac 5G，802.11b/g/n 2.4G |
|
Control Method
|
Web UI/Cloud
|
AP Mode Wi-Fi Info. | SSID：HEV-2KW-Plus；password：12345678 |
|
AP Mode Default IP
|
192.168.1.252
|
Default Web UI Login Credentials | user/password: admin/admin |
|
GOP
|
Tunable
|
Compression Profile | BaseLine, Main, High |
