Overview

Pure FPGA: FGPA hardware technology & rack-mountable metal chassis, easy installation & industrial-gradge reliability.

Dual-Projection Image Edge Blending: 1* Dual-Link DVI input and 2* DVI outputs (Support DVI/HDMI).

Powerfulll Image Processing Capacity: Arbitrary warp engine for geometry alignment, luminance overlay, automatic color balance adjustment, edge blending parameter customization, light leakage compensation.

More Features: Window resizing, positioning, panning, zooming, overlap, input source group management, RS232, panel control, IR remote control.

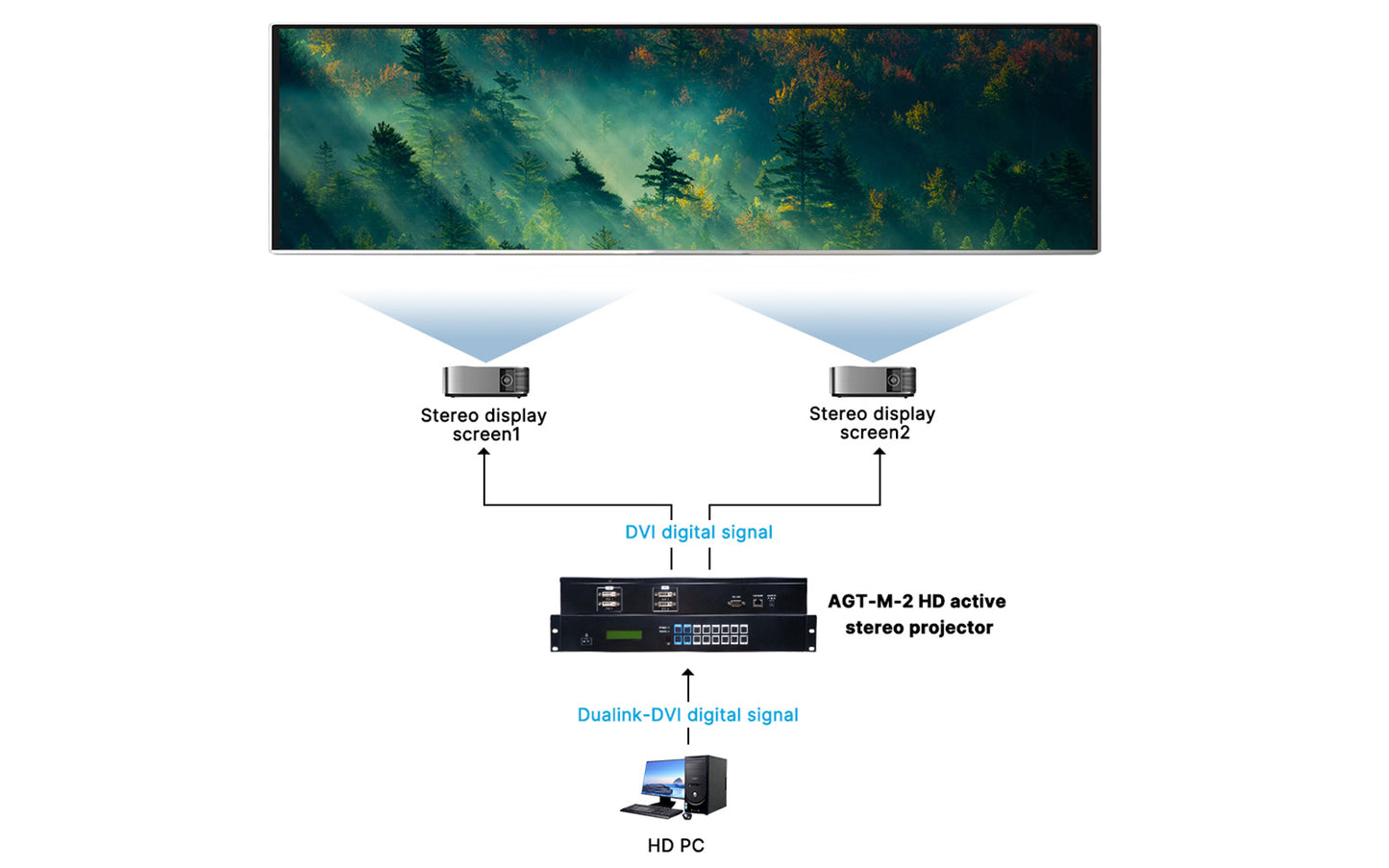

The AGT-M-2 edge blending processor features in integrated structure design in 1U rack-moutable chassis and advanced FPGA technology, making it high reliability and powerful image processing capability. The edge blending processor supports 1* Dual-Link input, and 2* DVI outputs, allowing image geometry warping, brightness overlay, automatic-color improvement, blend belt customization, brightness compensation, switching of 2D and 3Detc. It is compatible with various 3D formats, enabling active or passive 3D presentation system setup and dual-projection image blending display on large screen. Users can use TCP/IP control and RS232 control to perform it.

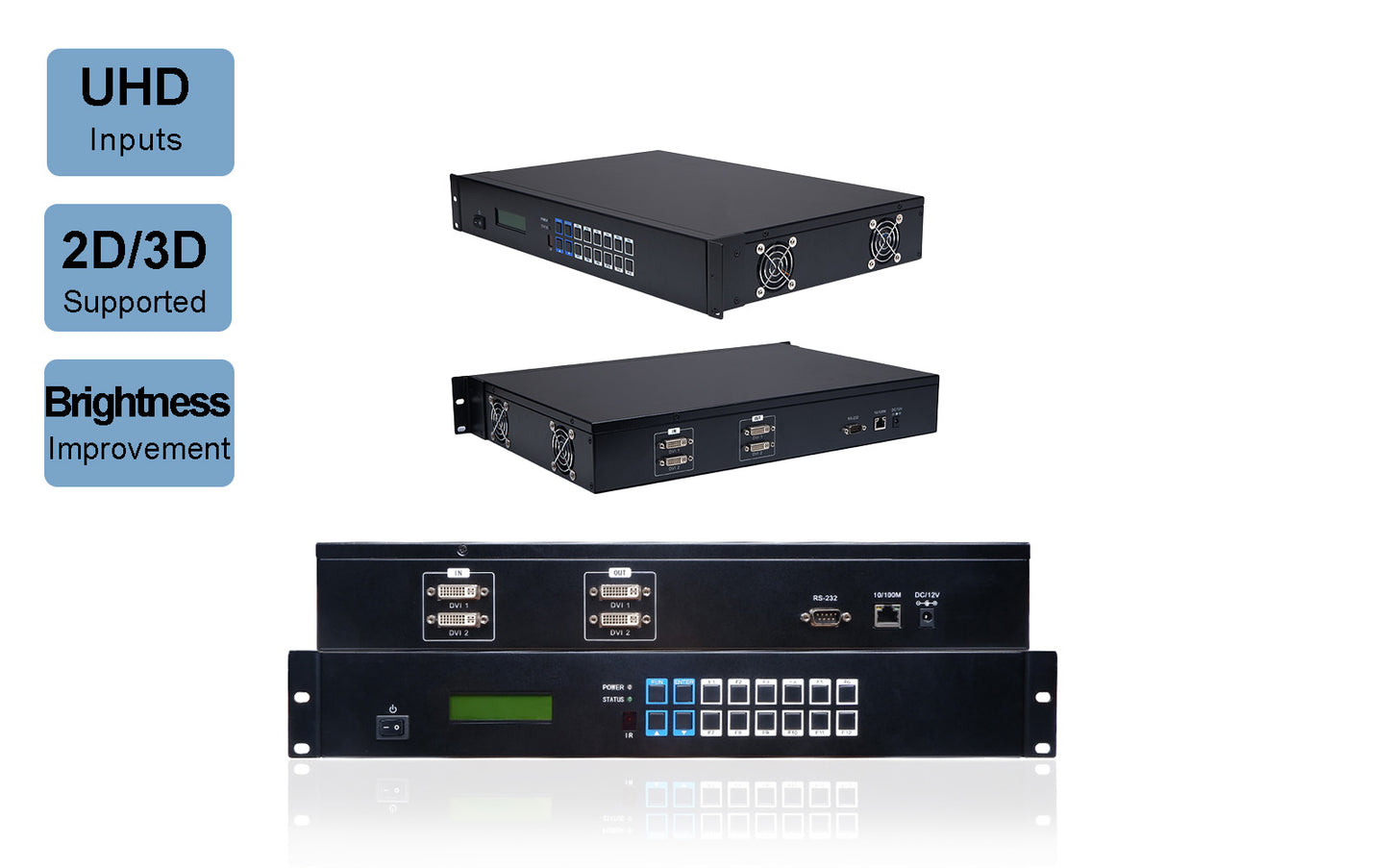

1) 1* Dual-Link UHD input, supports UHD 8K*1.2K, 4K*2K, 4K*1.2K and customized resolution input of graphics card

2) 2* DVI outputs, support up to 1920*1200@60Hz

3) 1* RS232 control point

4) 1* Network port control point

5) Power interface

6) Panel button, one-click to recall previous saved display scenes

7) IR receiver, pair with IR remote control to save and recall the display scene.

UHD Input Makes Image More Vivid

The Dual-Link input interface supports 8K*1.2K, 4K*2K, and 4K*1.2K UHD input with EDID automatic detection and identification function. It enables customized input graphic card resolution according to the pixel requirements of the output screen, such as the realization of point-to-point HD display of dual projections in 3840*1200@60HZ without losing any pixel. For the application of Triple-channel projection and Quad-channel projection, the AGT-M-4 is an ideal option to realize the presentation of point-to-point UHD display of Triple-projection screens in 5760*1200 and point-to-point UHD display of Quad-projection screens in 7680*1200 (or 3840*2160).

3D Presentation Presents the Realism

The AGT-M-2 comes with a variety of 3D source processing algorithms, which can realize active or passive stereo presentation of 3D source in various formats, such as Side-by-side 3D format, Top-and-bottom 3D format, 3D Vision Stereo format, etc., and supports a variety of stereo resolution input, such as 1280*720@120Hz, 1280*800@120Hz, 1920*1080@120Hz, 2560*720@120Hz, 2560*800@120Hz, etc., easily build a 3D cinema system and provide users with immersive realistic of being on the scene.

Dual-projection Overlay, Enhanced brightness

The AGT-M-2 supports luminance overlay of double projector to achieve the brighter effect projection screen, especially perfect for the environment with strong light, providing a presentation system with high brightness and high quality display effect.

Geometry Correction, Diverse Presentation

Image fine tune according to different environments, allowing geometric, non-geometric, regular, and irregular deformation settings for images in various resolutions, and correcting geometric errors in presentation. Meanwhile,images in different shapes can be saved as scenes to realize the dynamic changes of various graphics.

Proprietary Algorithm to Ensure Best Effect

Using advanced blending algorithm, it can compensate and improve the light leakage caused by various types of projection hardware such as DLP, LCD, LPT, LCOS, LED, etc., eliminating the light leakage in the edge blend and non-edge blend area, and ensuring the perfect presentation effect. Meanwhile, it supports debugging of the projector in high-brightness modes such as standard/dynamic, which minimizes the loss of brightness, makes the image display brighter, clearer, and more reproducible, giving users the best visual experience.

Storage & Recall Display Scenes with One Key

Support multi-data storage and recall, which can store 2D, left and right 3D, top and bottom 3D, passive 3D and other scene data simultaneously, and recall the scene data through the front panel button of the chassis or IR remote control quickly to realize the arbitrary switching of the display scenes.

Easy for Debugging

Using the guided graphical interface debugging software, the display debugging of projection fusion can be carried out through the adjustment of the software interface graphics, it supports the automatic debugging function of the edge blend area, and engineers can easily realize the debugging and setting of the fusion presentation system.

General Parameters

Video Input——Dual-link Input
QTY/ Signal Type 1* Dual-Link DVI Input
Connector DVI-I Female
Input Resolution

Common stereo resolutions:

1280*720@120Hz、1280*800@120Hz、1920*1080@120Hz、1896*768@120Hz、2240*720@120Hz、2240*800@120Hz、2560*720@120Hz、2560*800@120Hz

Common 2D resolutions:
1280*720@60Hz、1280*800@60Hz、1920*1080@60Hz、1896*768@60Hz、2240*720@60Hz、2240*800@60Hz、2560*720@60Hz、2560*800@60Hz、3072*768@60Hz、4352*800@60Hz、4K*2K、8K*1K

Standard DVI1.0
Fusion Output--DVI-I Output
QTY/ Signal Type 2* DVI Output (Support DVI/HDMI)
Connector DVI-I Female
Output Resolution 1920*1200@60Hz、1920*1080@60Hz/48Hz、1680*1050@60Hz、1600*1200@60Hz、1600*900@60Hz、1440*900@60Hz、1400*1050@60Hz、1366*768@60Hz、1360*768@60Hz、1280*1024@60Hz、1280*960@60Hz、1280*800@60Hz/120Hz、1280*768@60Hz、1280*720@60Hz/120Hz、1024*768@60Hz/120Hz、800*600@60Hz
Standard DVI1.0
Control Method
Serial Control RS-232 (9-pin DB Jack)
Network Control TCP/IP
Panel Control Panel Button
IR Control IR Remote Control
General Specifications
Operating Temperature -10~45 Celsius degree
Operating Humidity 15%~85% non-condensing
Running Noise less than 45dB
Power Supply DC 12V/4A
Power Consumption 20W
Net Weight 7kg
Dimension 441mm*300mm*67mm(L*W*H)

MTBF

30000 H

Other Models

Model AGT-M-2 AGT-M-4 AGT-KT  AGT-IT
Input Interface 1* Dual-link 1* Dual-link

1* 4K HDMI

1* Dual-link

1* 4K HDMI

1* Dual-link
Output Interface 2* DVI 4* DVI 2* DVI 4* DVI

Resolution of Input 1

/ / Support 4K*2K、4K*1K UHD and 2K HD Input up to 3840*2160@30Hz

Support 4K*2K、4K*1K UHD and 2K HD Input up to 3840*2160@30Hz

Resolution of Input 2

Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card.

Typical applications: Point-to-point display of Dual projections 3840*1200

Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card.

Typical applications: Point-to-point display of Quad projections 7680*1200、3840*2160

Point-to-point display of Triple projections 5760*1200

Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card.

Typical applications: Point-to-point display of Dual projections 3840*1200

Support 8K*1.2K, 4K*2K, 4K*1.2K UHD and 2K HD input, customized resolution input of graphics card.

Typical applications: Point-to-point display of Quad projections 7680*1200、3840*2160

Point-to-point display of Triple projections 5760*1200

Output Resolution 1920*1200@60Hz、1920*1080@60Hz/48Hz、1680*1050@60Hz、1600*1200@60Hz、1600*900@60Hz、1440*900@60Hz、1400*1050@60Hz、1366*768@60Hz、1360*768@60Hz、1280*1024@60Hz、1280*960@60Hz、1280*800@60Hz/120Hz、1280*768@60Hz、1280*720@60Hz/120Hz、1024*768@60Hz/120Hz、800*600@60Hz

1920*1200@60Hz、1920*1080@60Hz/48Hz、1680*1050@60Hz、1600*1200@60Hz、 1600*900@60Hz、        1440*900@60Hz      1400*1050@60Hz、 1366*768@60Hz、    1360*768@60Hz、  1280*1024@60Hz、 1280*960@60Hz、    1280*800@60Hz、    1280*768@60Hz、    1280*720@60Hz、    1024*768@60Hz、          800*600@60Hz

Control Method RS232、TCP/IP RS232、TCP/IP

RS232、TCP/IP

 RS232、TCP/IP
Output Mode

1*2, 2*1, 1*1*2

(luminance overlay or passive 3D)



1*4, 2*2, 4*1, 1*3, 3*1, 1*2*2

(luminance overlay or passive 3D)

1*2, 2*1, 1*1*2

(luminance overlay or passive 3D)

1*4, 2*2, 4*1, 1*3, 3*1, 1*2*2

(luminance overlay or passive 3D)

Support Scene

2D full screen, active 3D, passive 3D 2D full screen, active 3D, passive 3D 2D full screen, dual picture, picture-in-picture, passive 3D 2D full screen, dual picture, picture-in-picture, passive 3D

[Purchase Reminder]

For diffenerent application scenarios, almost DDMALL display processors need to be customized based on customer’s requirements. We would recommend you to contact us and tell us your using scenario or required technical parameters before order.

Meanwhile, technical background is a must to perform test and commissiong of DDMALL display processors. If you are not technical enough, we will recommend you to check in with us. Professional technical guide and free training will be offered to tackle the problems occured in your processing.

In the future, DDMALL will recruit a oversea expert team focusing on technical support and field installation services in local markets. If you are a technical stuff, who are willing to accept technical training for DDMALL products and are dedicated to provide professional technical service in your market, please contact us.
