Overview
Energy-Efficient & USB-Powered: ultra low power consumption (only 3.4W); the live streaming encoder accepts power from USB port of signal source or mobile power bank with power adapter-free.
True 4K Video Input & Loopout: HDMI inputs up to 4K@60Hz; 4K video local loopout in up to 4K@60Hz with zero delay. Stream outputs at up to 16Mbps in 1080p with H.265 or H.264; the HDMI video encoder supports protocols like SRT, HLS, RTMP, RTMPS, RTSP, RTP, TCP, UDP, DDNS, Multicast, Unicast.
One-Click to Go Live: support one-click to start or stop live streaming by pressing the set button on the HDMI IP encoder; it is vital to instantly start/stop the streaming at any time in many live broadcast events.
Remote Control & Stream on Internet: support DDNS; you can easily control the HDMI encoder via domain remotely on public Internet and setup video transmission without any third-party live platform get involved

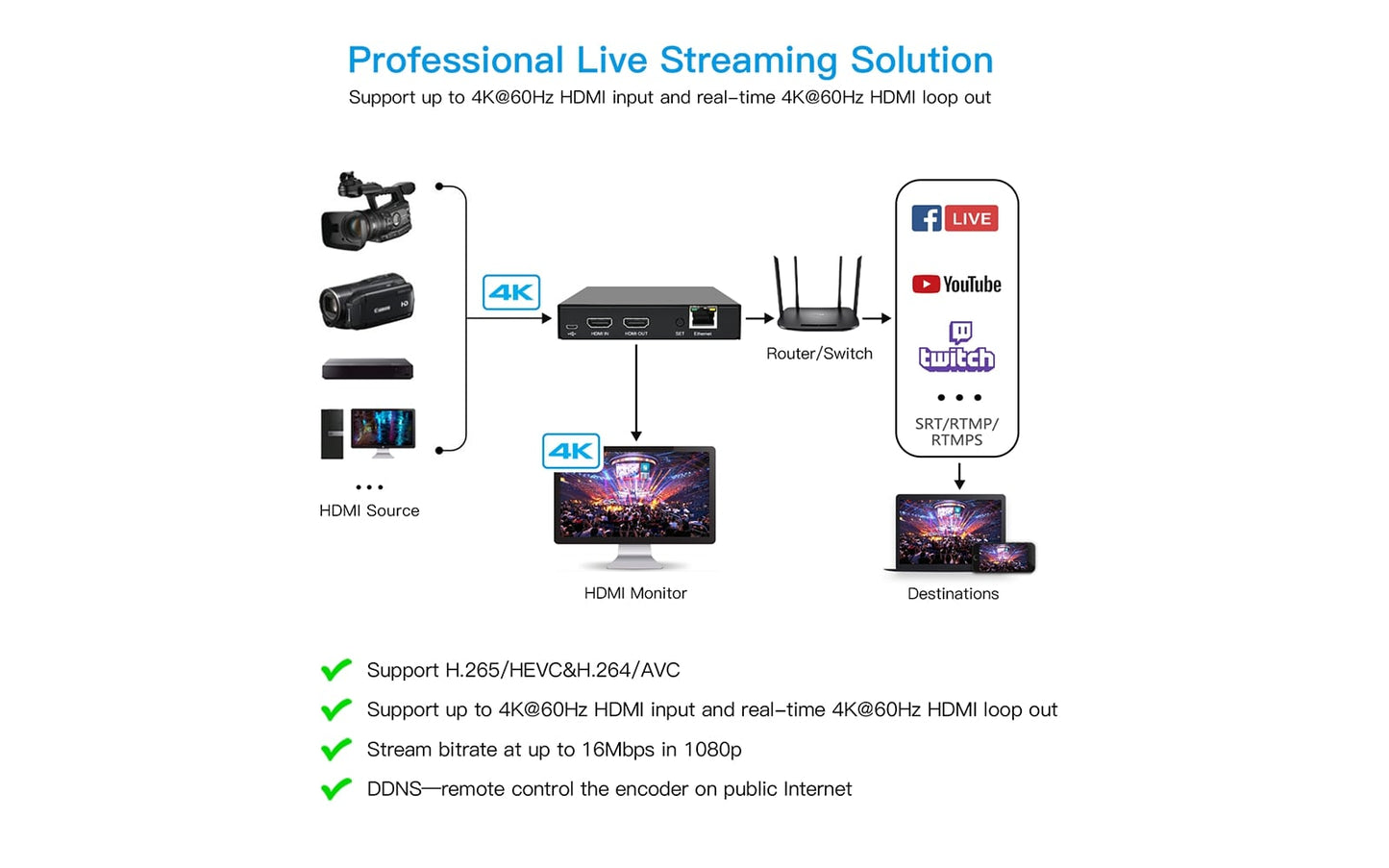

Stream Live on Multiple Platforms: the live video encoder allows to simultaneously go live on 4 platforms with RTMP, RTMPS, or SRT protocol; compatible with YouTube, Facebook, Twitch, Dacast, Microsoft stream, wowza, IPTV and more
NTP Sync & Clock OSD: The HEV-10 supports NTP time sync with a simple setting; You can also add time as an OSD label at any position of the screen. So that you can stay tuned with your streaming video.
SRT Encoder
HEV-10 is compact in size and USB-powered encoder, support SRT protocol, the live streaming encoder delivers secure, reliable and high-quality low latency video with HEVC H.265 or AVC H.264 SRT protocol. No matter how bad your network condition is, say "no" to packet loss, jitter and fluctuating bandwidth.
True 4K HDMI Input and Local Loopout
the HDMI encoder HDMI inputs up to 4K@60 and local loopout in 4K@60; experience true 4K high-quality clarity and monitor your video locally. the IP encoder encoding outputs at video bitrate up to 16Mbps. Enjoy your high quality video with ease.
One Click to Go Live
with the multi-function buttion, the live streaming encoder enables one-click to start/stop your streaming at any time you wish to. you can do you live video with ease and interact with your audience in the way you wish to.

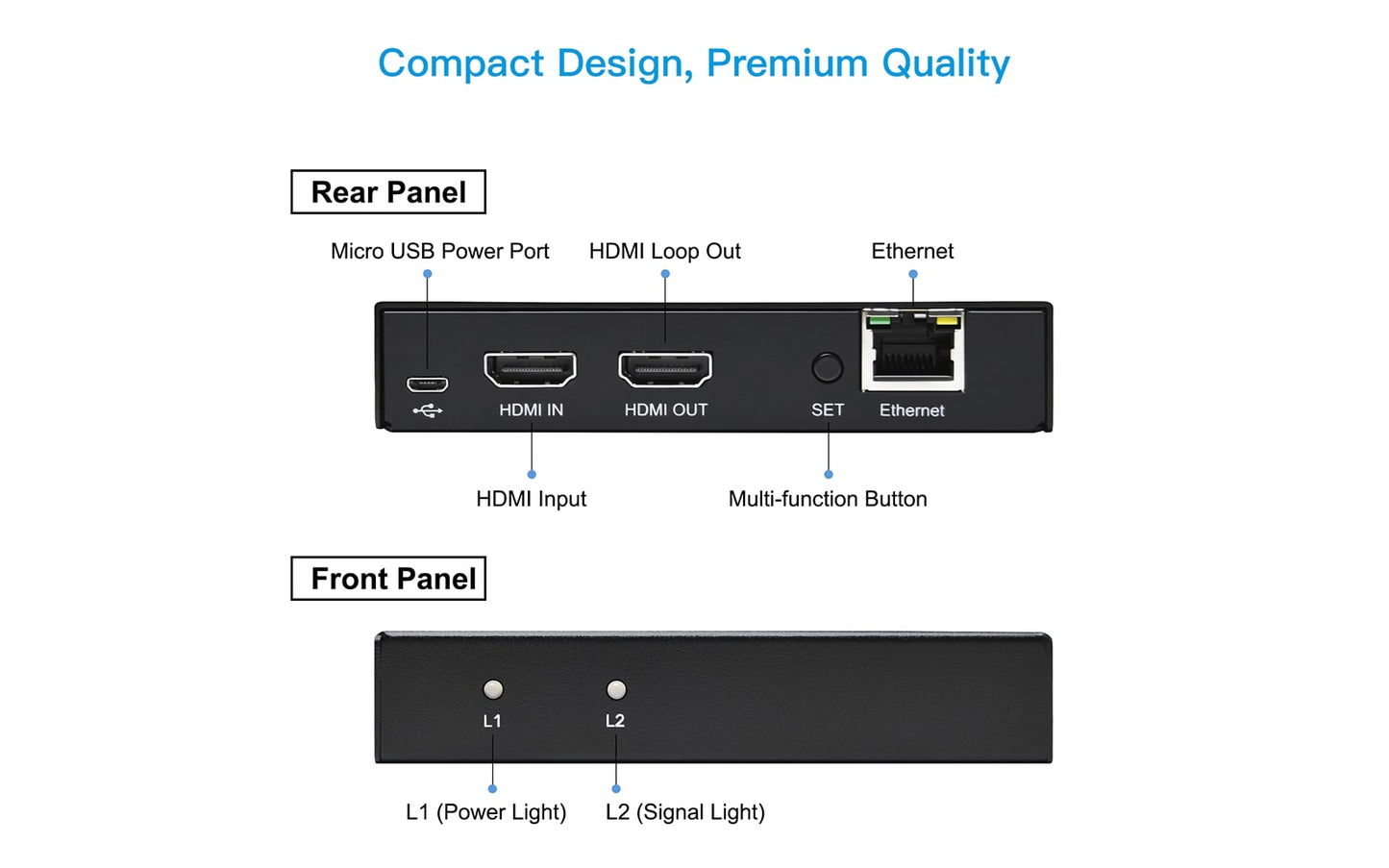

Set up the Encoder in a Breeze
The DDMALL HEV-10 H.265 H.264 Live Streaming Encoder is a professional-grade encoder. It features a 4K HDMI input, as well as 4K local loopout for real-time streaming of smooth video. This encoder is USB powered, easy to set up, and compact in size. Experience unrivaled streaming performance with the DDMALL HEV-10.

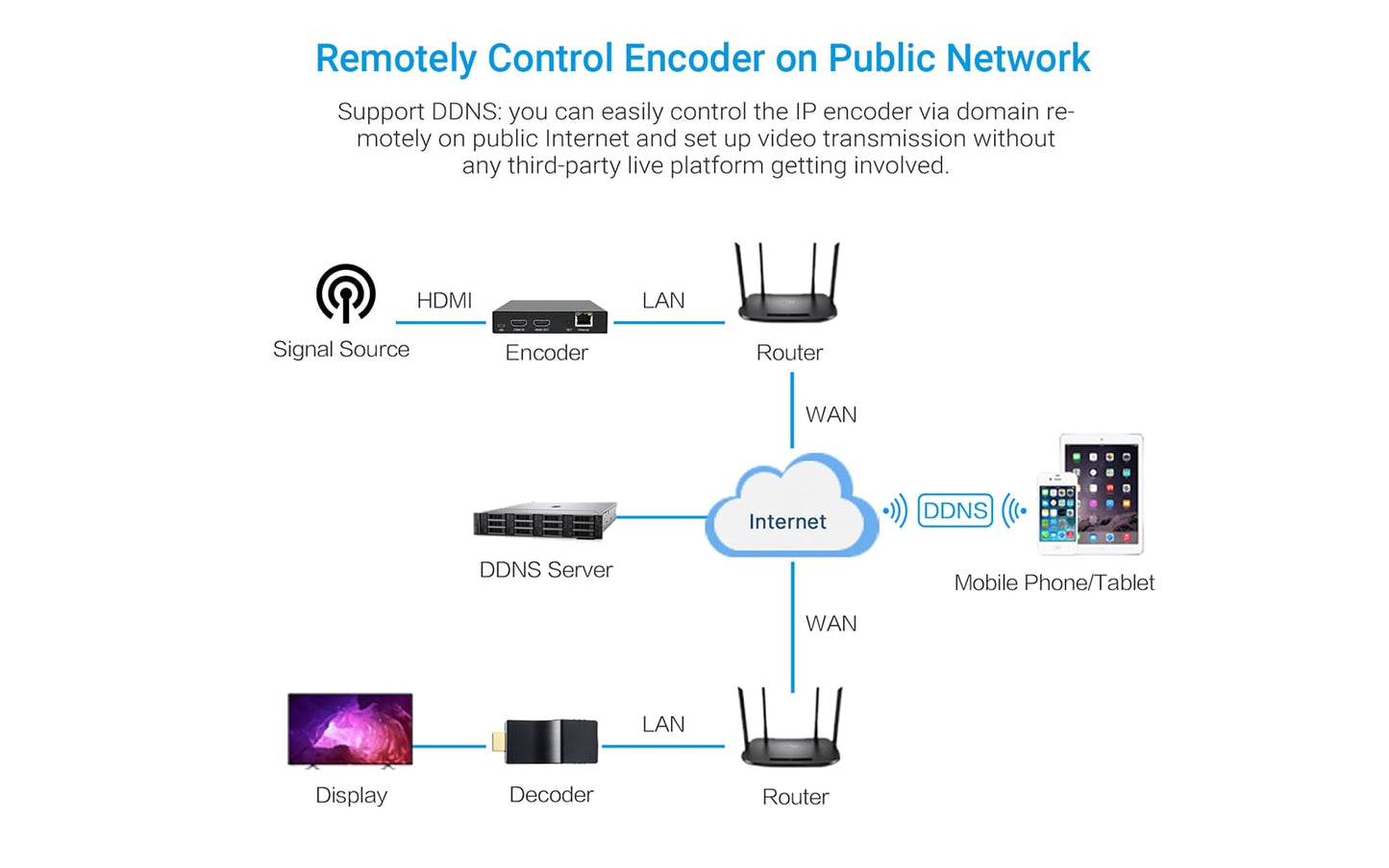

DDNS Function Enables Stream Everywhere
With DDNS function, the HEV-10 enables remote management capabilities, you can easily control and stream from anywhere in the world. Access to your encoder anywhere from the world with Internet connectivity.
Key Features
• H.265/HEVC and H.264/AVC HDMI video encoder.
• HDMI inputs up to 2160p60 and encoding outputs up to 1080p30 at up to 16Mbps.
• True 4K loopout: the streaming encoder supports HDMI loopout at up to 2160p60; you can easily monitor your video status locally.
• User-friendly web UI: you can load the configure the IP encoder by any web-enabled device. manage your encoder when you wish you.
• Reliable quality: the live encoder supports 24/7 working durance.

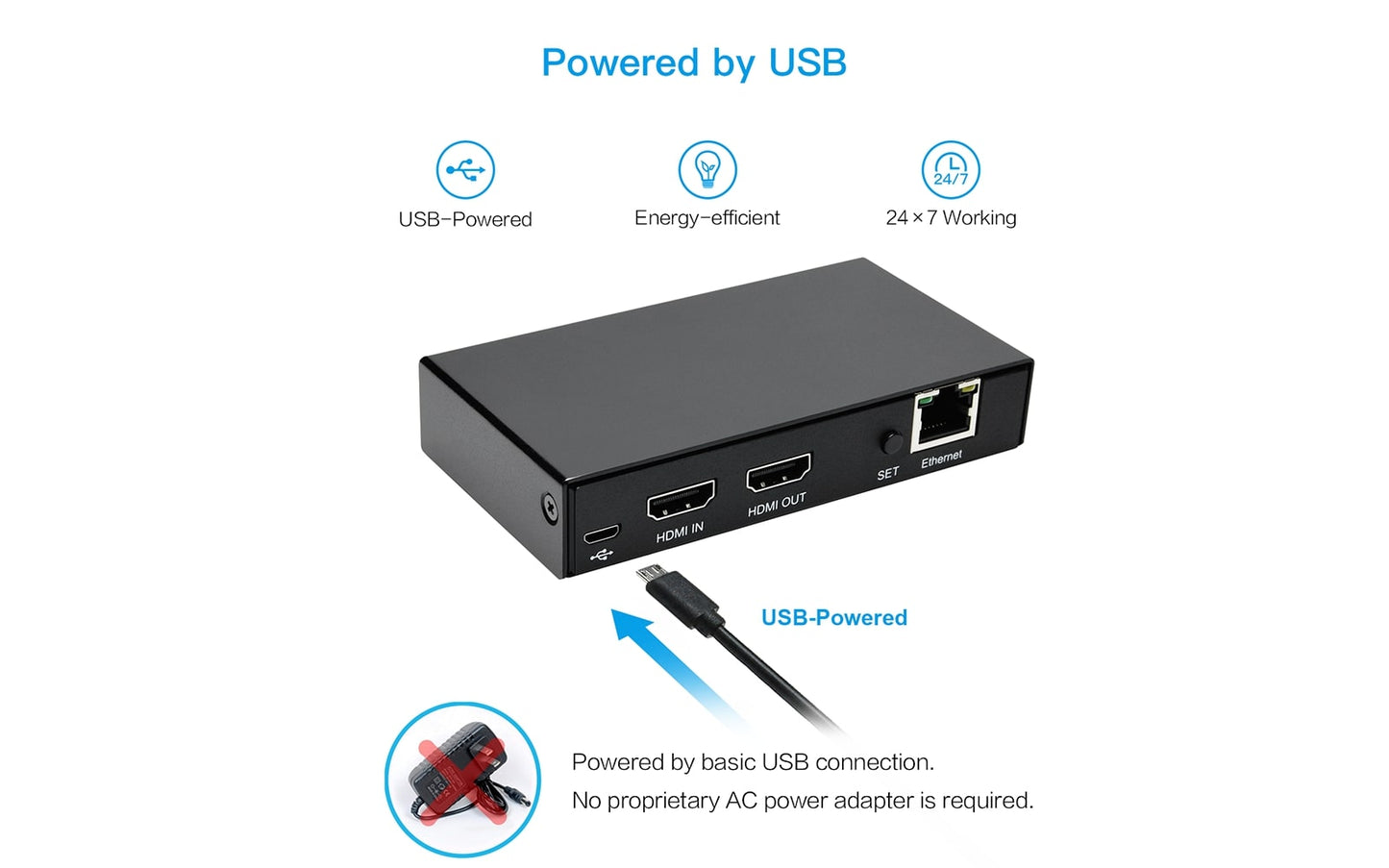

• Ultra-low power consumption of 3.4W—carbon footage reduced by universal USB connection for power supply. the live streaming encoder can work longer by same power consumption.
• Remote control and streams on Internet: you can remotely control the video encoder through domain, and setup video transmission on public Internet.
• OSD setting: add logo/text/image/time to any position of the video for output display.
• Streams to multiple platforms: simultaneously stream to up to 4 platforms like YouTbe, Facebook, Twitch, Wowza, Vimeo and more.

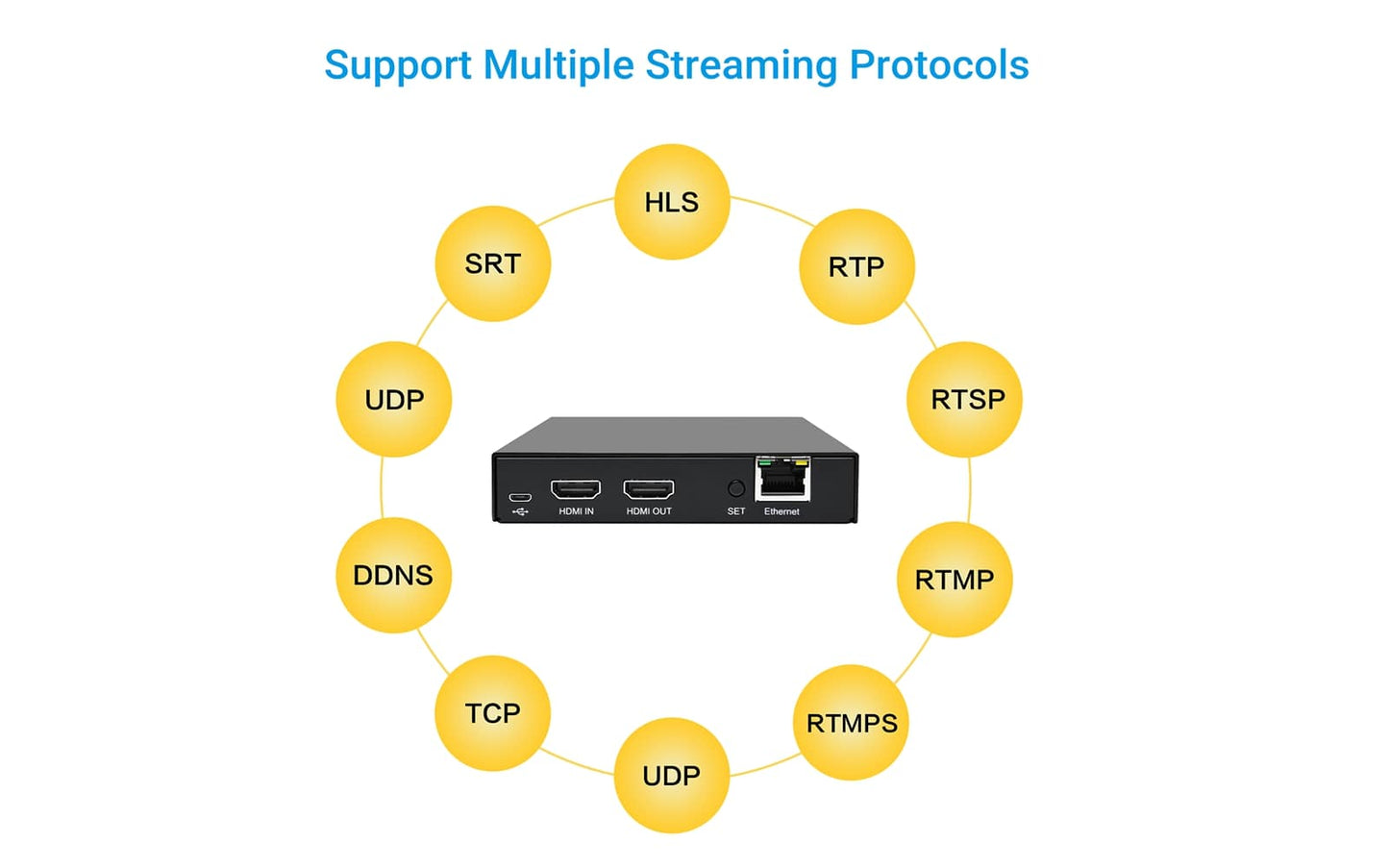

• Various protocols: SRT, HLS, RTMP, RTMPS, RTSP, RTP, UDP, TCP, Multicast and Unicast. when it works as a SRT encoder, it delivers secure, reliable, high quality video in low latency.
• One-click to go live: start/stop the streaming at any time as you wish. absolutely agile your streaming workflow greatly.
Parameters
Power Supply |
DC 5V 1A(USB-Powered) |
Power Consumption |
3.4W |
Operate Temperature |
10~55℃ (14~149℉) |
Storage Temperature |
-20~85℃ (-4~185℉) |
Operate Humidity |
10%- 90%RH (Non-condensing) |
HDMI & Loopout Standard |
HDMI 2.0 |
Video Input & Loopout Resolution |
1096x2160p@60/30Hz, 3840x2160p@60/30Hz, 1920x1080p@60/50/30Hz, 1920x1080i@60/50/30Hz, 1280x720p@60/50/30Hz |
Encoding Output Resolution |
1080p@30Hz, 720p@60Hz, 960x720@60Hz, 960x540@60Hz, 640x480@60Hz, 360x200@60Hz |
Video Codec |
H.265/HEVC & H.264/AVC |
Video Bit Rate |
128Kbps-16Mbps |
Bitrate Control |
CBR/VBR/AVBR/FixQP |
Audio Input |
HDMI |
Audio Format |
G.711u, AAC |
Audio Bit Rate |
32Kbps-256Kbps |
Transport Protocol |
SRT, HLS/HTTP, RTMP, RRTMPS, RTSP, RTP, TCP, UDP |
Work Mode |
Multicast, Unicast |
Network Mode |
Static IP, DHCP |
Control Method |
Web UI |
Dimension |
110mm(L)x60mm(W)x22mm(H) |
Weight |
96g |
