Overview

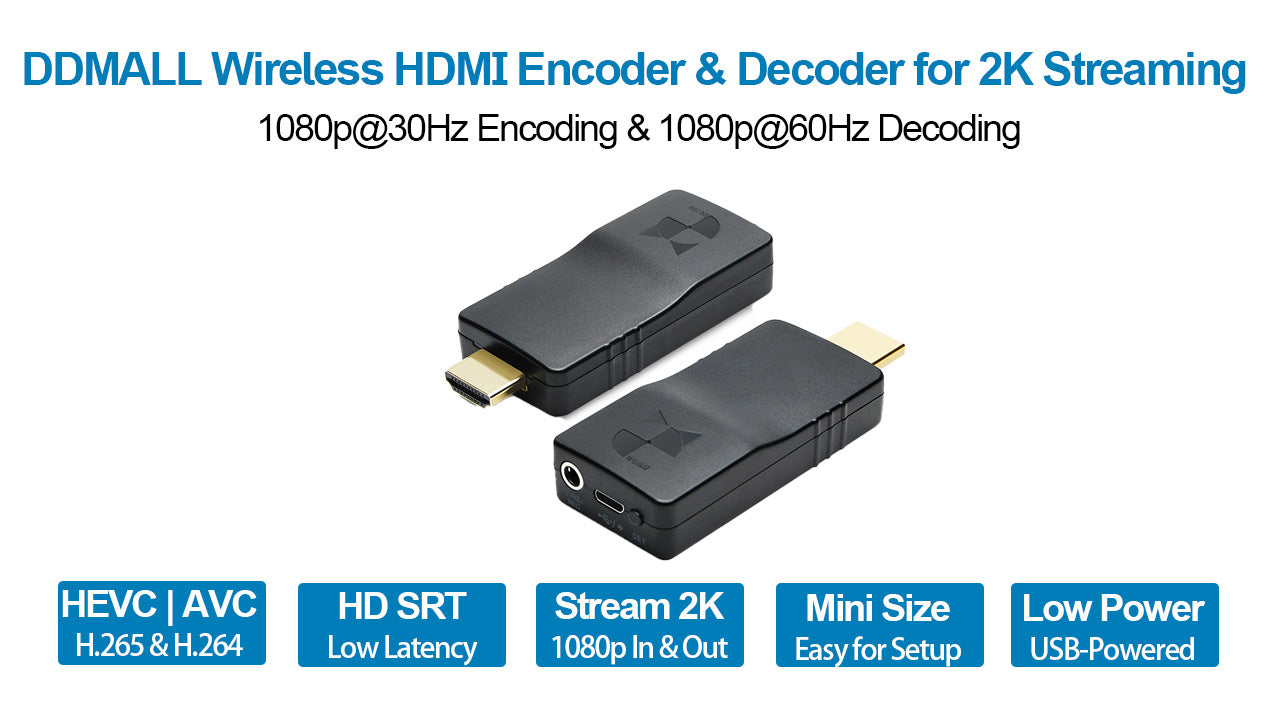

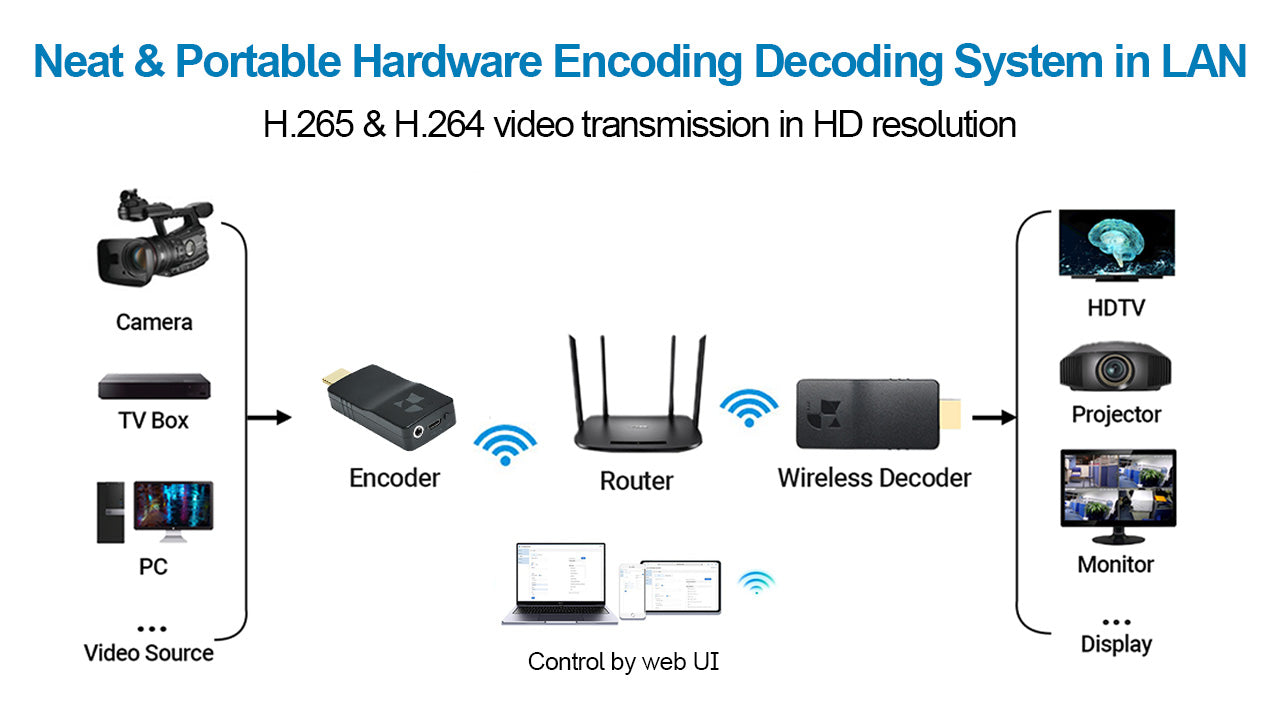

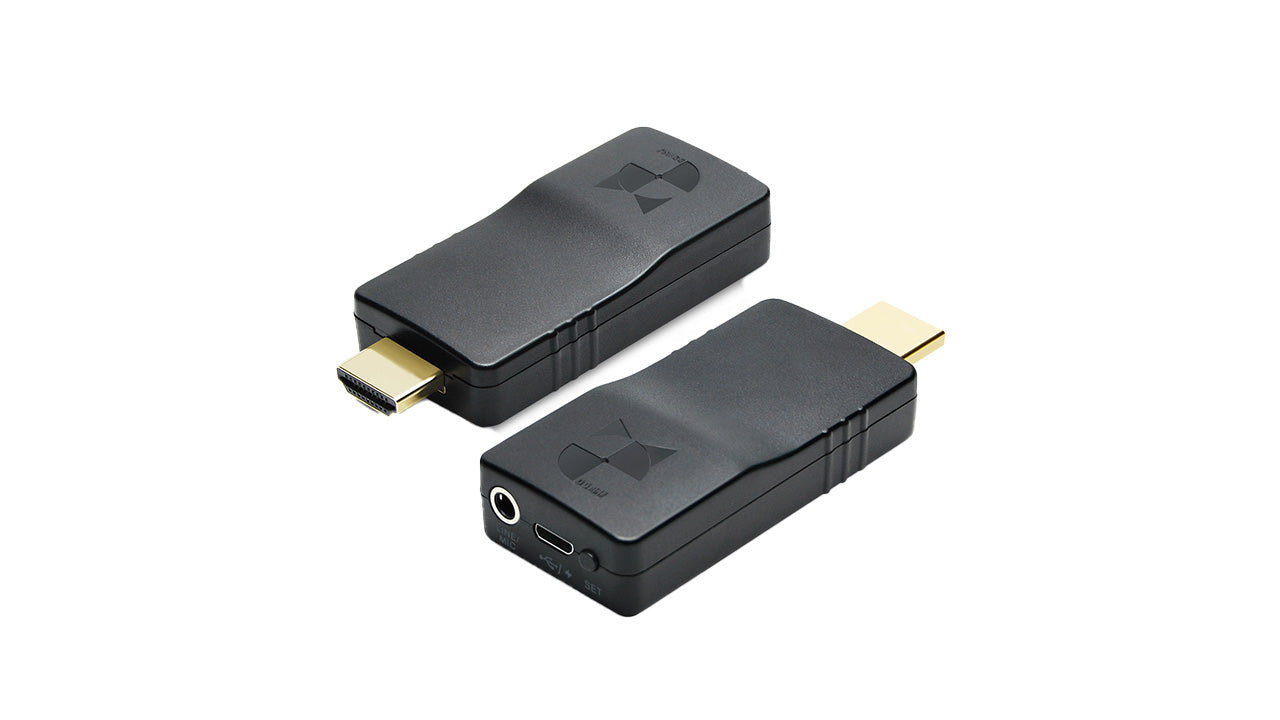

The DDMALL HEV-2KWPlus is a mini wireless HDMI encoder with H.265 & H.264 SRT, RTMP/RTMPS, HLS, RTSP, UDP, Multicast, Unicast etc., supporting encoding output up to 1080p@30Hz, 24Mbps; while the HDD-10W is the wireless HDMI video decoder with H.265 & H.264 SRT, RTSP, ONVIF, UDP etc., supporting encoding output up to 1080p@60Hz. Both the streaming encoder and decoder are IP-based in mini size and low power consumption. They support SRT protocol to enable low-latency, secure, high-quality end-to-end video transmission.
The HEV-2KWPlus Parameters
|
Power Supply
|
5V/1 A （USB cable powered ）
|
Power Consumption | 2.6W |
|
Work Temperature
|
-10~55℃ （14~149℉）
|
Storage Temperature | -20~85℃ （-4~185℉） |
|
Work Humidity
|
10%- 90%RH (Non-condensing)
|
Weight | 25g/0.055lbs |
|
Dimension
|
75mm(L)*32mm(W)*15mm(H)/ 3.94×1.26× 0.59in
|
MTBF(mean time between failures) | 30,000h |
|

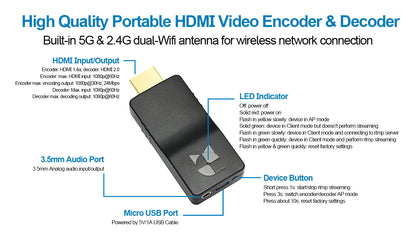

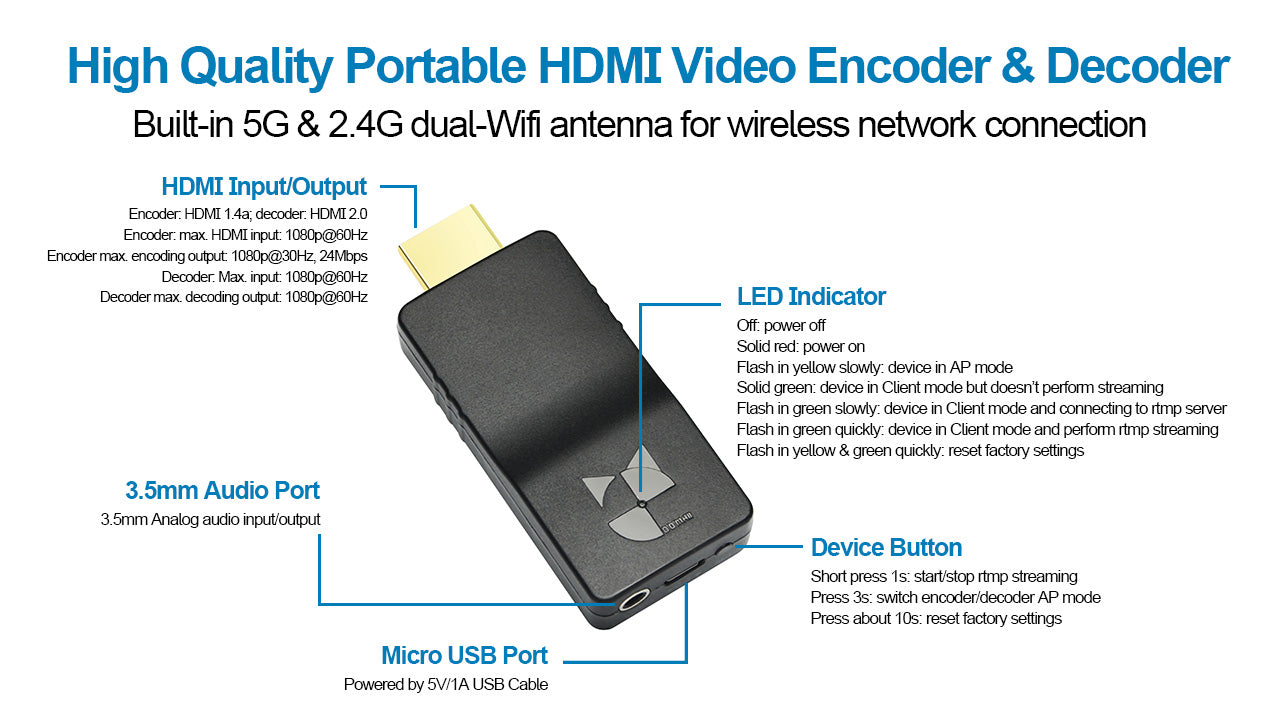

Video Input Standard
|
HDMI 1.4A
|
Video Codec | H.265/HEVC and H.264/AVC |
|
Supported Protocols
|
SRT, HLS, RTP, RTSP, RTMP, RTMPS, UDP, TCP, Low Latency, Multicast and Unicast.
|
Supported Input Resolution | 1080p@60Hz, 720p@60Hz |
|
Supported Output Resolution
|
1080p@30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
Frame rate can be selected by yourself.
|
Video Bitrate | 128Kbps~24Mbps |
|
Audio Input Standard
|
HDMI, 3.5mm analog, Mic in, Line in
|
Audio Encoding Format | G.711u, AAC |
|
Audio Bitrate
|
32kbps~256Kbps
|
Wireless Standard | 802.11a/n/ac 5G，802.11b/g/n 2.4G |
|
Control Method
|
Web UI
|
AP Mode Wi-Fi Info. | SSID：HEV-2KWPlus；password：12345678 |
|
AP Mode Default IP
|
192.168.1.252
|
Default Web UI Login Credentials | user/password: admin/admin |
|
GOP
|
Tunable
|
Compression Profile | BaseLine, Main, High |
The HDD-10W Parameters
| Power Supply | 5V/1 A （USB cable powered ) | Power Consumption | 2.6W |
| Work Temperature | 10~65℃ （14~149℉） | Storage Temperature |
-20~85℃ （-4~185℉） |
| Work Humidity | 10%- 90%RH (Non-condensing) | Product Weight | 25g/0.055lbs |
| Product Dimension | 75x32x15mm/2.95x1.26x0.59in | MTBF(mean time between failures) | 30,000h |
| Video Input Standard | HDMI 2.0 | Video Codec | H.265/HEVC and H.264/AVC |
| Supported Protocols | SRT, RTSP, ONVIF, UDP, TCP, | Supported Output Resolution |
1920*1080p@60/50/30/25/24Hz, 1920*1080i@60/50Hz, 1280*720p@60/50Hz, |
| Supported Stream Input Resolution |
1920*1080p@60/30Hz, 1280*720p@60/30Hz, |
Audio Input Standard | HDMI embedded audio input, 3.5mm analog |
| Audio Encoding Format |
G.711u, AAC |
Compression Level | BaseLine, Main, High |
| Control Method |
Web UI |
Default AP Mode IP | 192.168.2.250 |
