DDMALL AGC-P 4K UHD Video Wall Processor, LCD/DLP/LED Large Screen Image Processor

DDMALL AGC-P 4K UHD Video Wall Processor, LCD/DLP/LED Large Screen Image Processor

SKU:AGC-P

Normaler Preis $9,999.00 USD
Normaler Preis Verkaufspreis $9,999.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

Auf Lager

Vollständige Details anzeigen

Overview

FPGA Modular Design: With FPGA technology, the AGC-P image processor features in rack-mountable metal chassis. It is a fully modular videowall processor, allowing custom/expansion of the system by card insersion.

Digital & Networked: Support input signals including 8K*4K, 4K HDMI, 4K Dual-link, DVI, HDMI, SDI, Fiber, CAT, HDBaseT, VGA, CVBS, Ypbpr, IP etc. A single processor supports up to 8, 16, 36, 72, or 144 signals passing through & presentation on tiled/blended screen.

Industrial-grade Windowing Modes: Suitable for LCD, DLP, LED tiled widescreen with customizable windowing placements, allowing full-screen display, picture-in-picture display, window-overlay display, window-transparency display etc. Users are freely to zoom any image to emphasize on the most important information for decision.

Every Frame in True 60Hz: With 60Hz synchronization technology, the image processors enables to synchronize the images in true 60Hz, securing the images from signal source, processor to display at true 60Hz without upscaling.

Ture UHD: Providing standard 4K HDMI and 4K Duallink port, the AGC-P video wall processor supports up to 7620*4320@60Hz, 4096*2160@60Hz, or 3840*2160@60Hz.

Note: the titled price is only for reference. Please send us your requirements, and we will quote the price based on your needs.

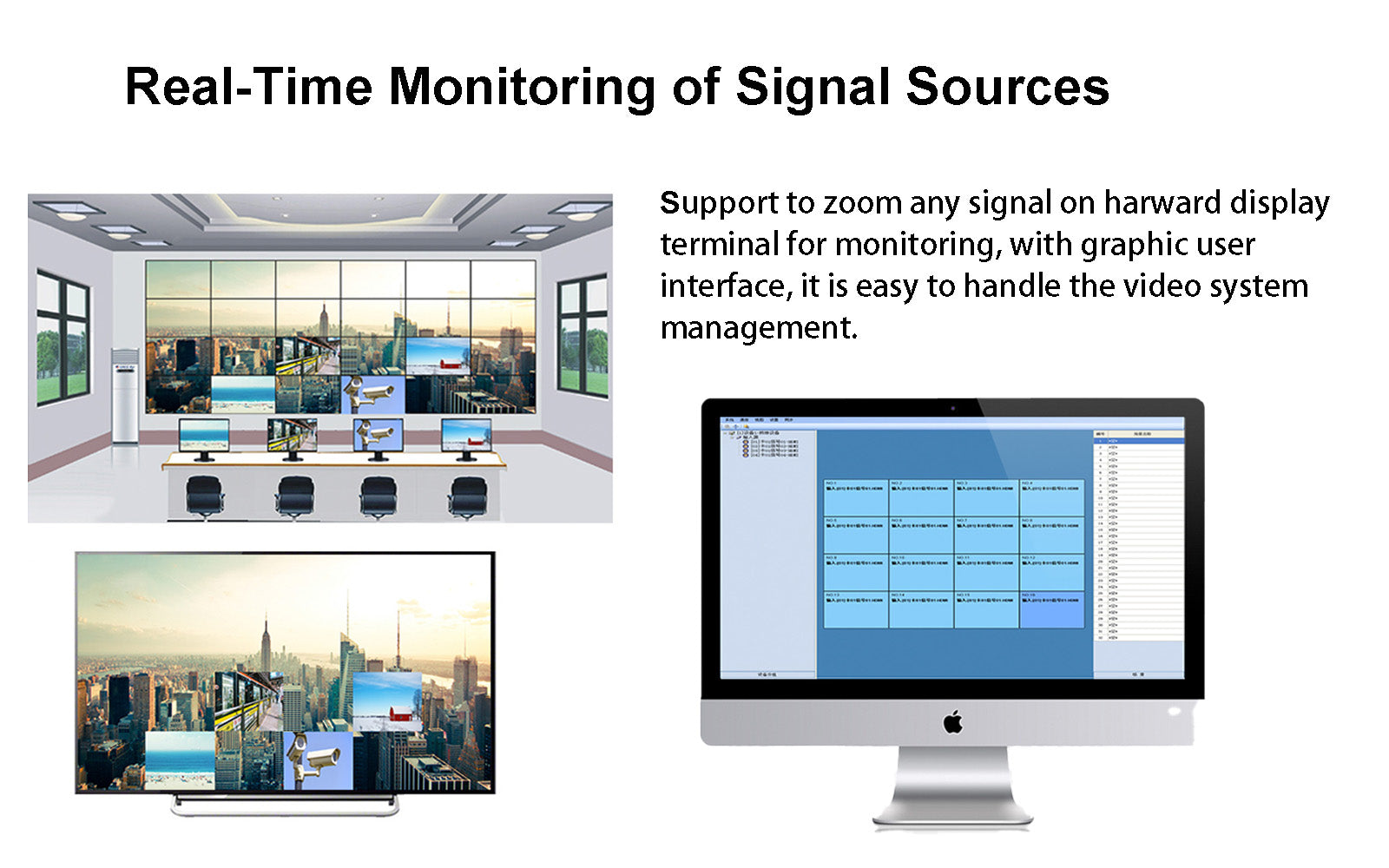

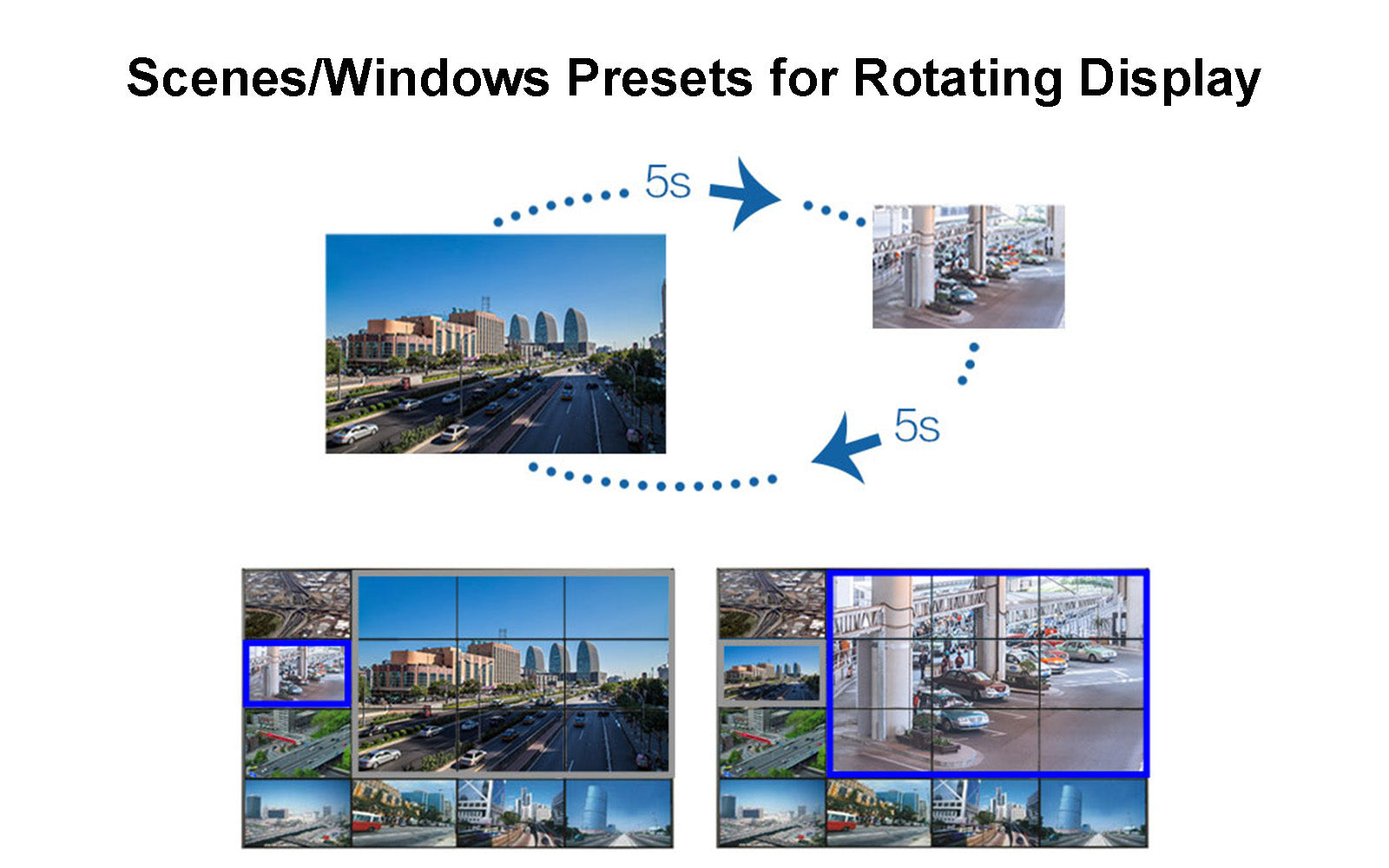

The AGC-P is a modular, card-inserted, digital, and networked UHD videowall image processor with FPGA technology at the core. It is an industrial-grade LCD/DLP/LED titled/blended widescreen image processor, supporting up to 8, 16, 36, 72, or 144 signals passing through for display on same large screen with wide range of signal types supported, such as 8K*4K, 4K HDMI, 4K Dual-link, DVI, HDMI, SDI, Fiber, CAT, HDBaseT, VGA, CVBS, Ypbpr, IP. Moreover, It empowers image MxN array display, PIP display, full-screen display, window-overlay display, or window transparency display, allowing scene presets for rotating display, remote real-time monitoring, web-base UI preview etc.

 TURE UHD Presents Accurate Colors & Fine Image Details

The AGC-P video wall processor provides standard 4K HDMI and 4K Dual-link input ports, seure the image sychronized and un-compressed display.

4K HDMI: support HMDI 1.4a, HDMI 2.0; HDCP 2.2, chroma sampling 4:4:4, 4:2:2, 4:2:0, and resolution up to 3840x2160@60/30/24Hz, 4096*2160@60/30/24Hz, 7680*4320@60/30/24Hz.

4K Dual-link: Support DVI 1.0, EDID, and resolution up to 800*600@60Hz--4096*4096@20Hz. Support resolution customization.

 Freedom of M*N Array Display, Secure Signals in Real 60Hz

The AGC-P enables screens MxN array for dislpay, users can customize the array shape on tiled/blended widescreen or curved screen. At the same time, with dedicated 60Hz synchronized image processing algorithm, It secures images from input sources, processing to display in real 60Hz without any upscaling, making the image more vivid in details while protecting audience eyesight.

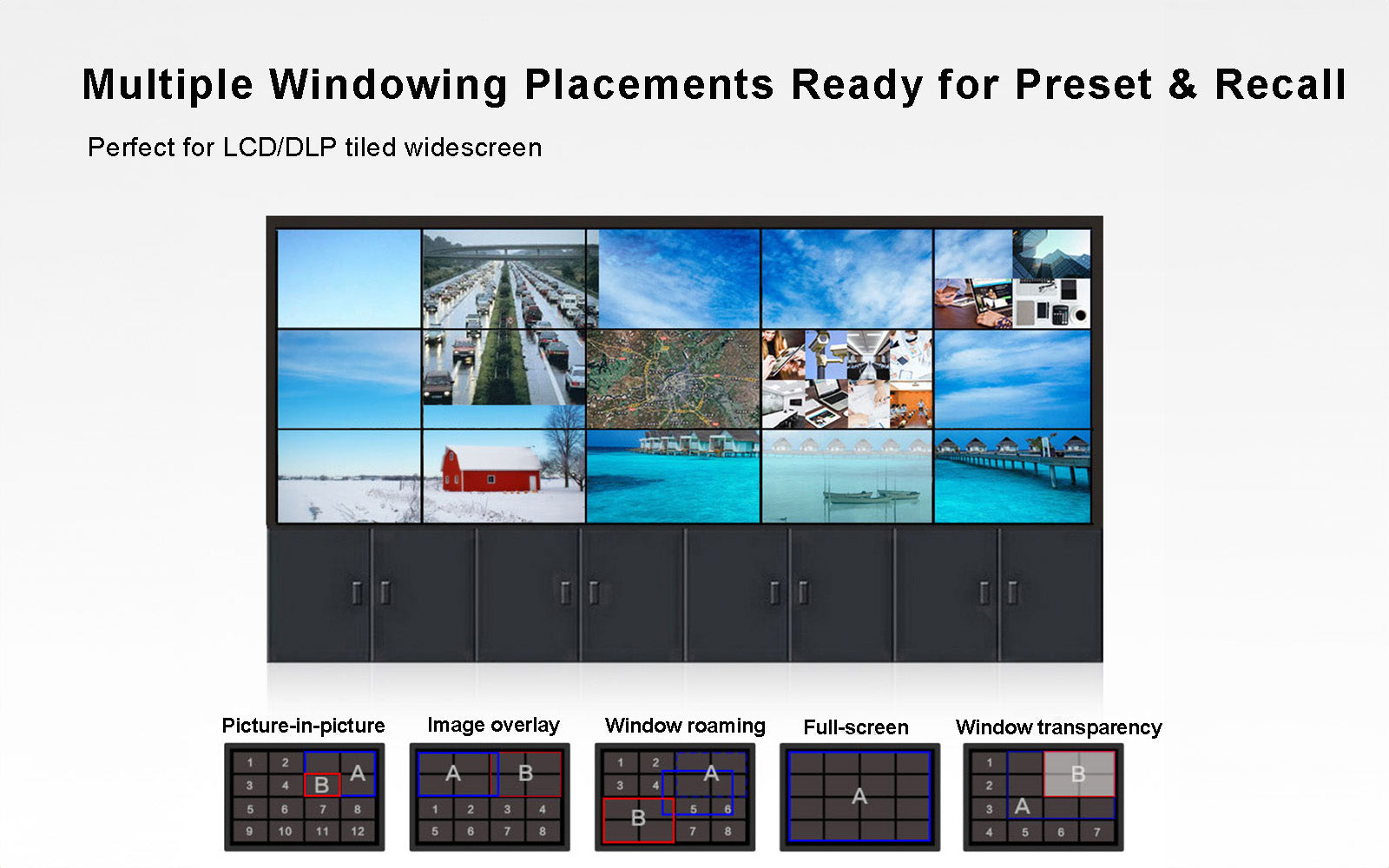

Multi-Windowing Placements & Fast Call of Scenes

 The AGC-P enables multi-window display. A single videowall supports up to 4/8/12/16 images independantly display or overlay, while each screen is allowed is select signal source, placement location etc. Users can custom the window placements and save it for fast call.



 Selectable Input Cards

 No. Input Card Type Interface Numbers Singal Type Input Resolution
1 1*4K dual-link 1*DVI Dual-link DVI Max. 8K*4K, 4K*2K, support down scaling and customize the graphic card resolution
2 1*4K@30 HDMI 1*HDMI HDMI 1.4a Max. 3840*2160@30Hz, support down scaling
3 1*4K@60 HDMI 1*HDMI HDMI 2.0 Max. 3840*2160@60Hz, support down scaling
4 4*2K HDMI 4*HDMI HDMI 1.4 Max. 1920*1200@60Hz, support down scaling
5 4*2K DVI 4*DVI DVI-D Max. 1920*1200@60Hz, support down scaling
6 4*2K DVI-C 4*DVI DVI-D Max. 1920*1200@60Hz, support down scaling; the card can be inserted into the output chassis to increase input numbers.
7 4*2K mixed  2*VGA+2*HDMI+2* ear jack VGA(YPbPr compatible), HDMI(DVI compatible), 3.5mm dual-channel audio Max. 1920*1200@60Hz, support down scaling
8 4*SDI 4*BNC SDI Max. 1080p@60Hz, support down scaling
9 4*VGA  4*VGA VGA Max. 1080p@60Hz, support down scaling
10 4*2K HDBaseT 4*RJ45 HDBaseT Max. 1920*1200@60Hz, support down scaling
11 4*2K RJ45 4*RJ45 Twisted-pair Max. 1920*1200@60Hz, support down scaling
12 4*Optic fiber 4*LC connector single mode single core fiber optic Max. 1920*1200@60Hz, support down scaling
13 8*CVBS 8*BNC CVBS NTSC, PAL
14 Decoding card 2*JR45+1*ear jack IP+3.5mm dual-channel audio 4*1080p H.265/H.264 decoding



Selectable Output Cards

 No. Output Card Type Interface Numbers Signal Type Output Resolution
1 2*DVI splitting 2*DVI-I DVI(VGA compatible) Max. 1920*1200@60Hz, support down scaling, support to customize the graphic card resolution; a single card supports 8 windows
2 4*2K HDMI splitting  4*HDMI HDMI 1.4 Max 1920*1200@60hZ, support down scaling; support to customize the output resolution, support large screen full-screen display; a single card supports 8 windows
3 8*2K HDMI splitting 8*HDMI HDMI 1.4 Max. 1920*1200@60Hz, support down scaling, support to customize output resolution; support large screen full-screen display; a single card supports 8 windows
4 8*2K RJ45 splitting 8*RJ45 Twisted-pair  Max. 1920*1200@60Hz, support down scaling; support large screen full-screen display; a single card supports 8 windows



Selectable Chassis Sizes

 No. Chassis Size Chassis Style Max. Input & Output Numbers
1 1.5U standard AGC-P-150-4K 2 input cards, 2 output cards (Max support 4, 8, or 16 signals display)
2 3U standard AGC-P-300-4K 5 input cards, 4 output cards(Max. support 8, 16, or 32 signals display)
3 3U standard AGC-P2-300-4K 4 input cards, 5 output cards(Max. support 10, 20, or 40 signals display)
4 8U standard AGC-P-800-4K 9 input cards, 9 output cards(Max. support 18, 36, or 72 signals display)
5 12U standard AGC-P-800 18 input cards, 18 output cards(Max. support 36, 72, or 144 signals display)



The AGC-P Image Processor Specifications

Operate Temperature -10-45℃ (14~113℉) Operate Humidity 15%-85% non-condensing
Operate Noise

<45dB

Power Supply 100-240 ac, 50/60Hz; (1+1 redundant power backup can be selectable for 3U, 8U and 12U
Rated Power 50-500W(varies based on different cards configuration) MTBF 30,000H
Installation Standard chassis Chassis Material Metal
Size

AGC-P-150-4K: 44cm(L)x30cm(D)x7cm(H);

AGC-P-300-4K: 44cm(L)x30cm(D)x13.5cm(H);

AGC-P2-300-4K: 44cm(L)x30cm(D)x13.5cm(H)

AGC-P-800-4K: 44cm(L)x43cm(D)x36cm(H);

AGC-P-1200-4K: 44cm(L)x43cm(D)x53.5cm(H)

Weight(full load)

AGC-P-150-4K: 7kgs;

AGC-P-300-4K: 11kgs;

AGC-P2-300-4K: 11kgs;

AGC-P-800-4K: 30kgs;

AGC-P-1200-4K: 42kgs

Control

Serial control: RS-232(9-pin DB connector,

Network control: TCP/IP;

Panel control: panel button shortcuts;

IR remote control: IR remote
