Overview

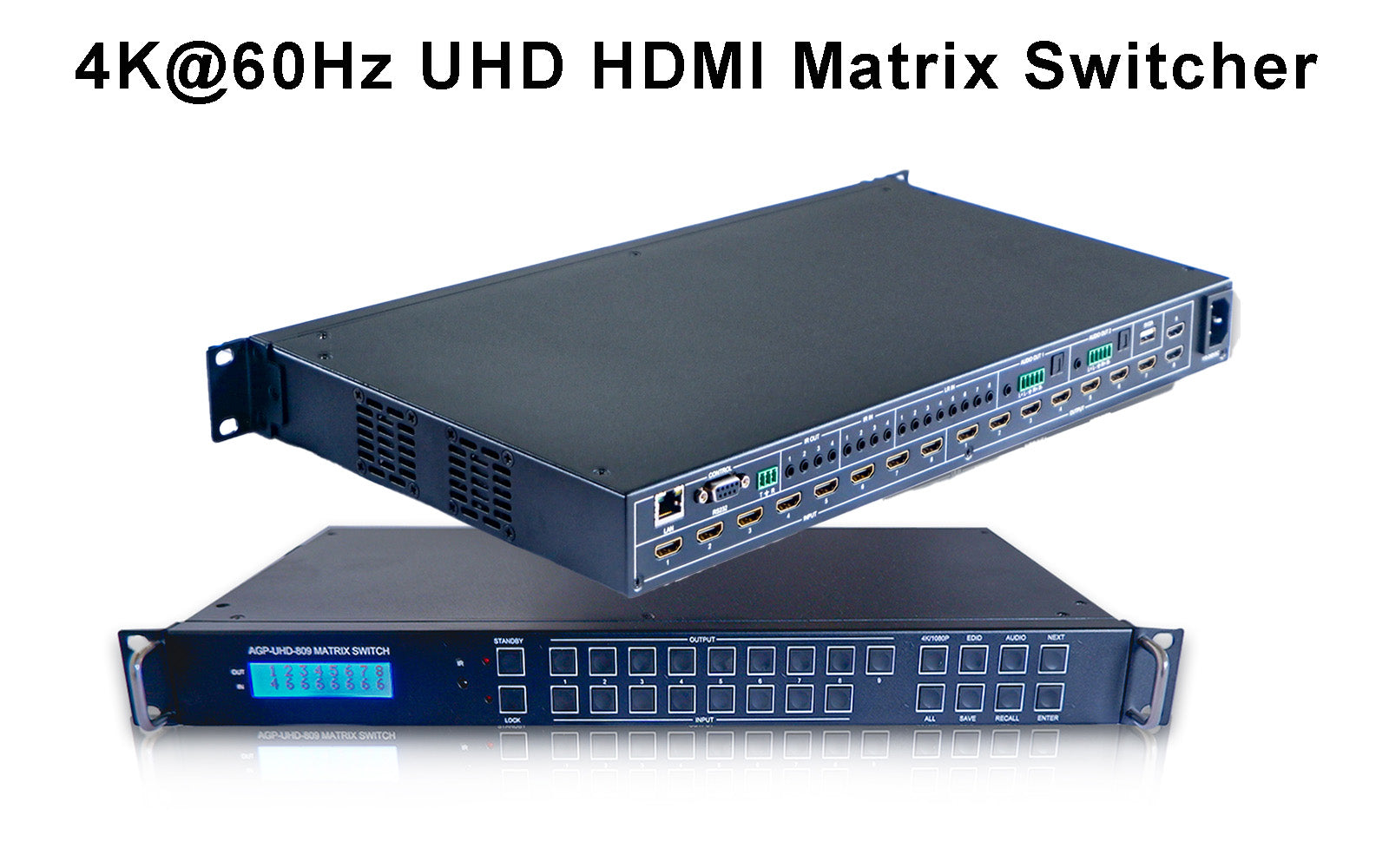

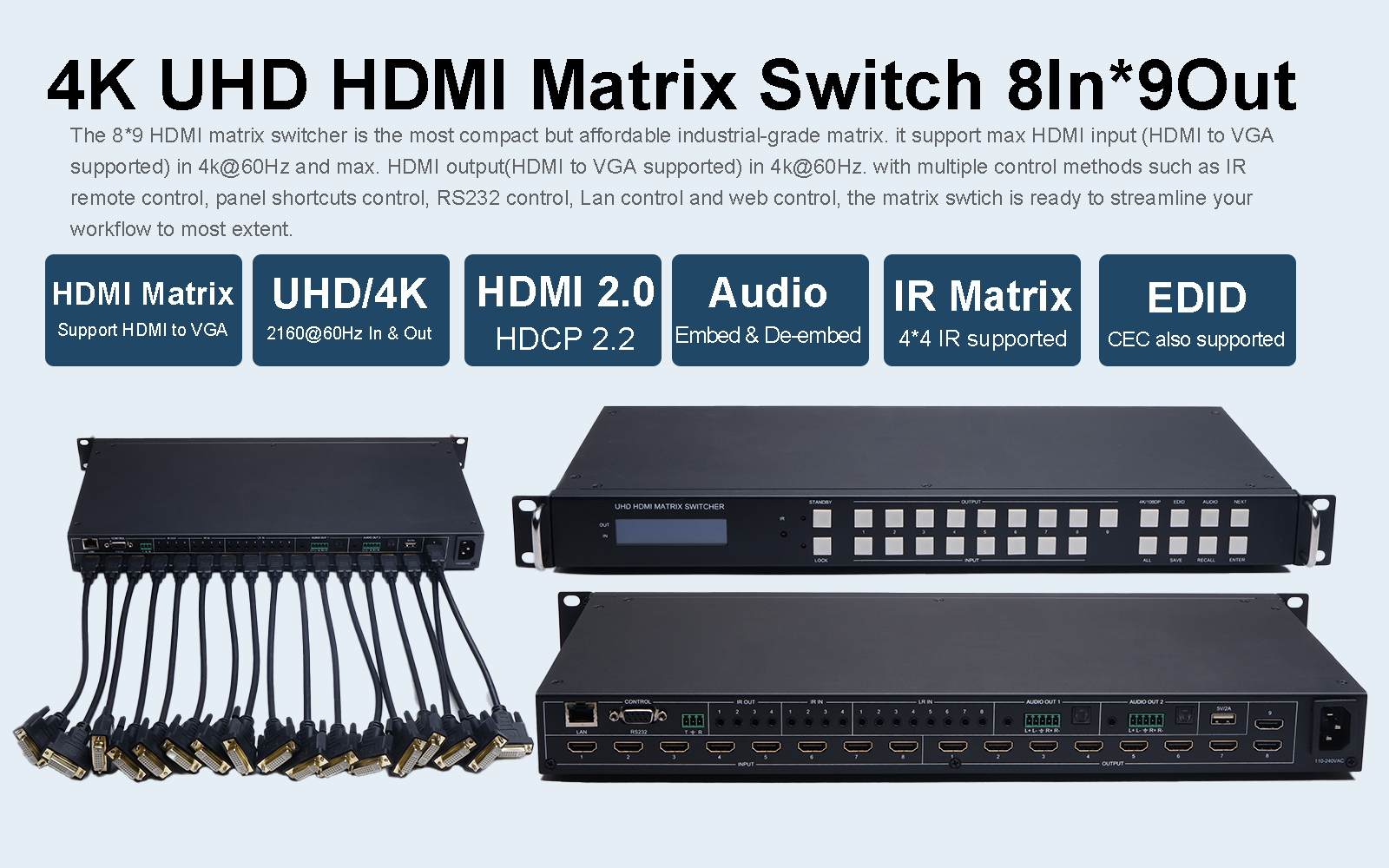

The AGP-UHD-8*9 is a high-quality UHD HDMI matrix switcher with 8 HDMI inputs and 9 HDMI outputs with signal resolution up to 4K@60Hz.
Key Features
- HDMI 2.0; HDCP 2.2
- HDMI audio extract
- External LR audio embedded on HDMI stream is supported.
- IR matrix (Only IN1-4 and OUT 1-4)
- EDID management
- CED management
- Support test pattern
- support 4K-HANDLE (4k/1080p) to match different displayers.
- Support output preview setting, always show the last valid picture.

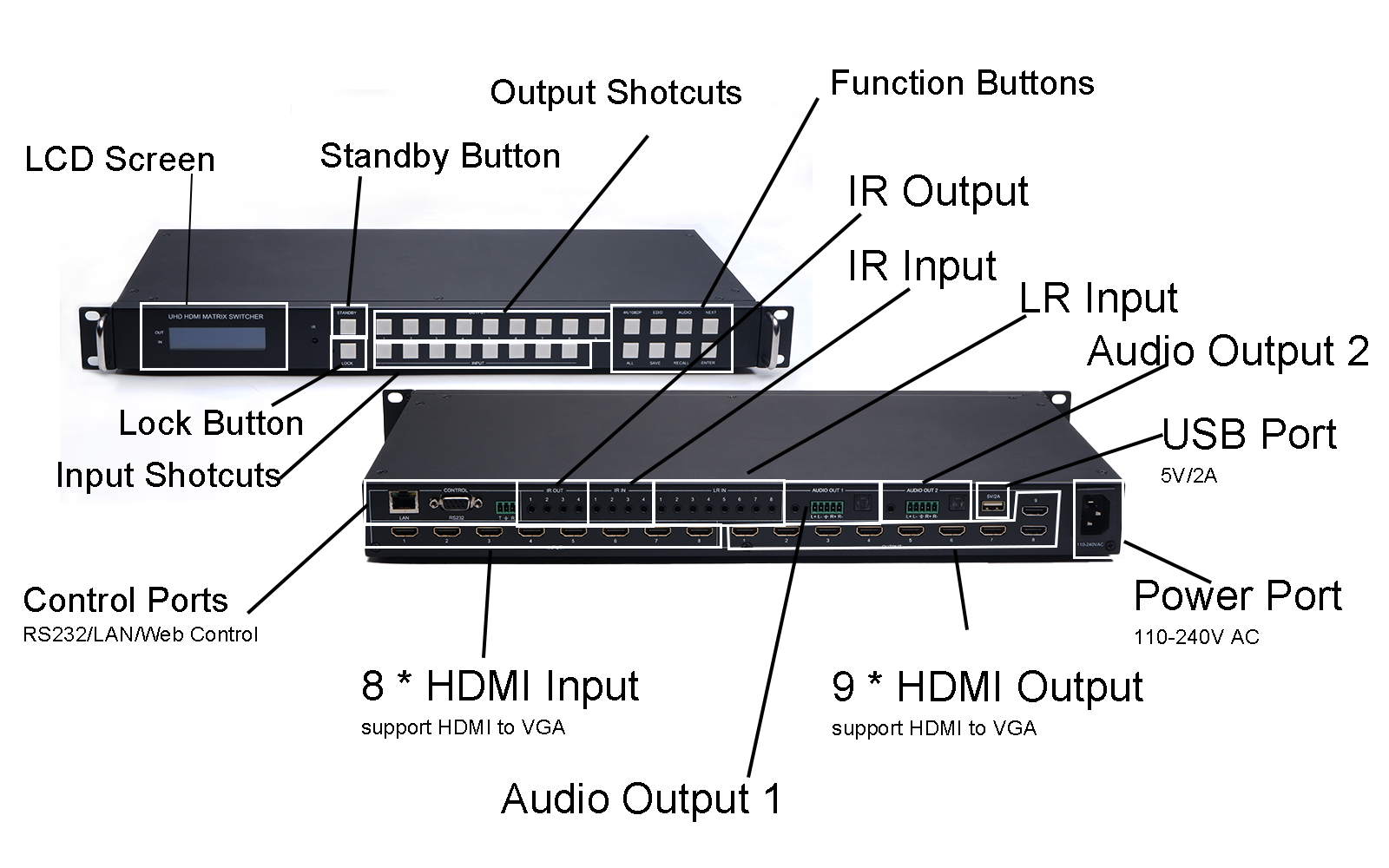

- Front panel/IR remote/RS232/Ethernet web UI control
Parameters

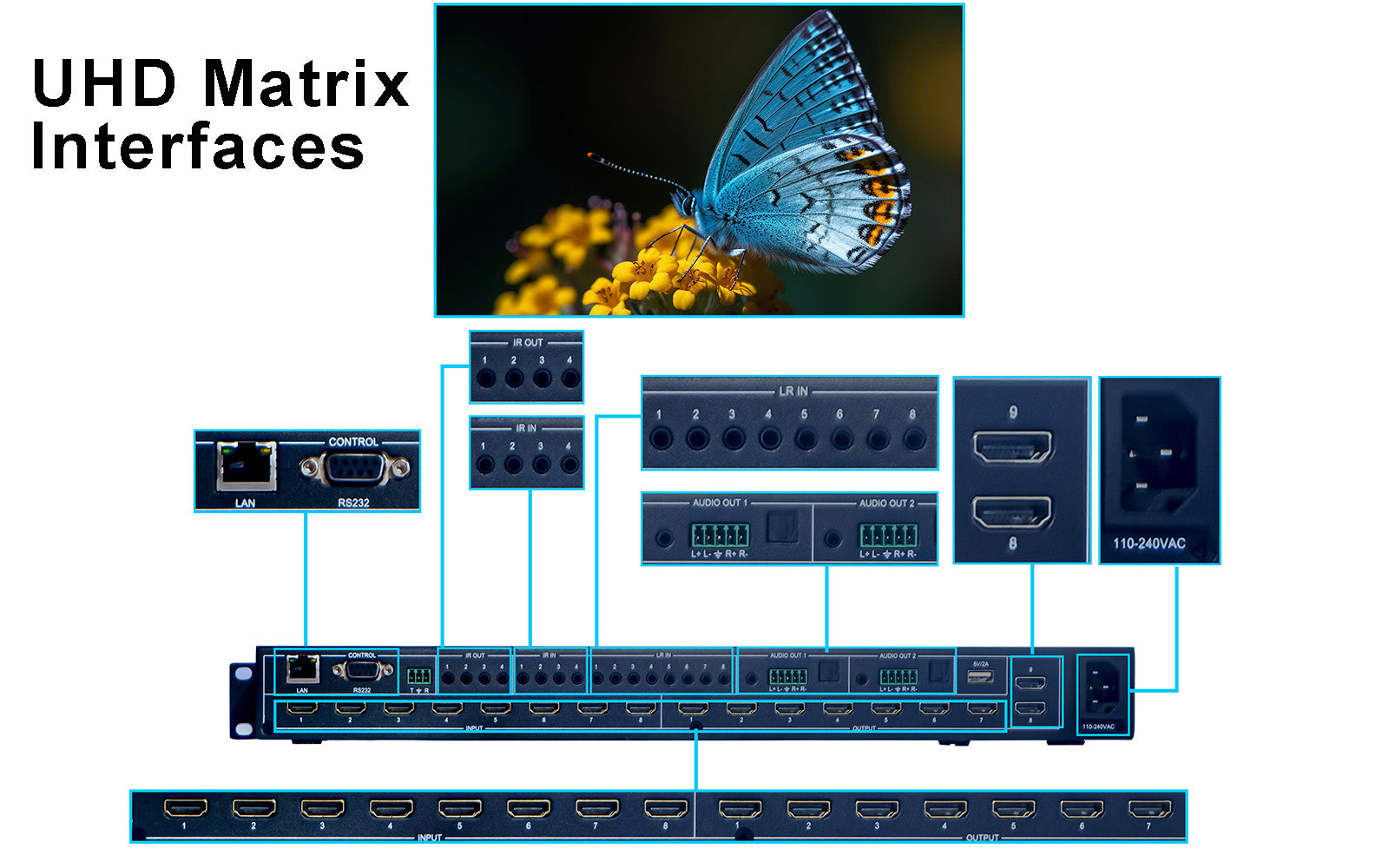

- Interface: HDMI-A
- HDMI standard: HDMI 2.0, HDCP 2.2
- Max. resolution: 2160P@60Hz
- Bandwidth: 18Gbps
- HDMI amplitude: T.M.D.S +/- 0.4Vpp
- Differential impedance: 100+/- 15ohm
- Baud rate: 9600, data bit: 8, stop bit: 1, no parity checking
- Ethernet: IE10.0+, HTML5
- Max power consumption: 60W, 110-240V AC
- Size: 43x30x4.4cm
- Weight: 5kgs
- Operating temperature: 0-40 celcius degrees
- Storage temperature: -20-70 celcius degrees
- Humidity: 10%-50%
