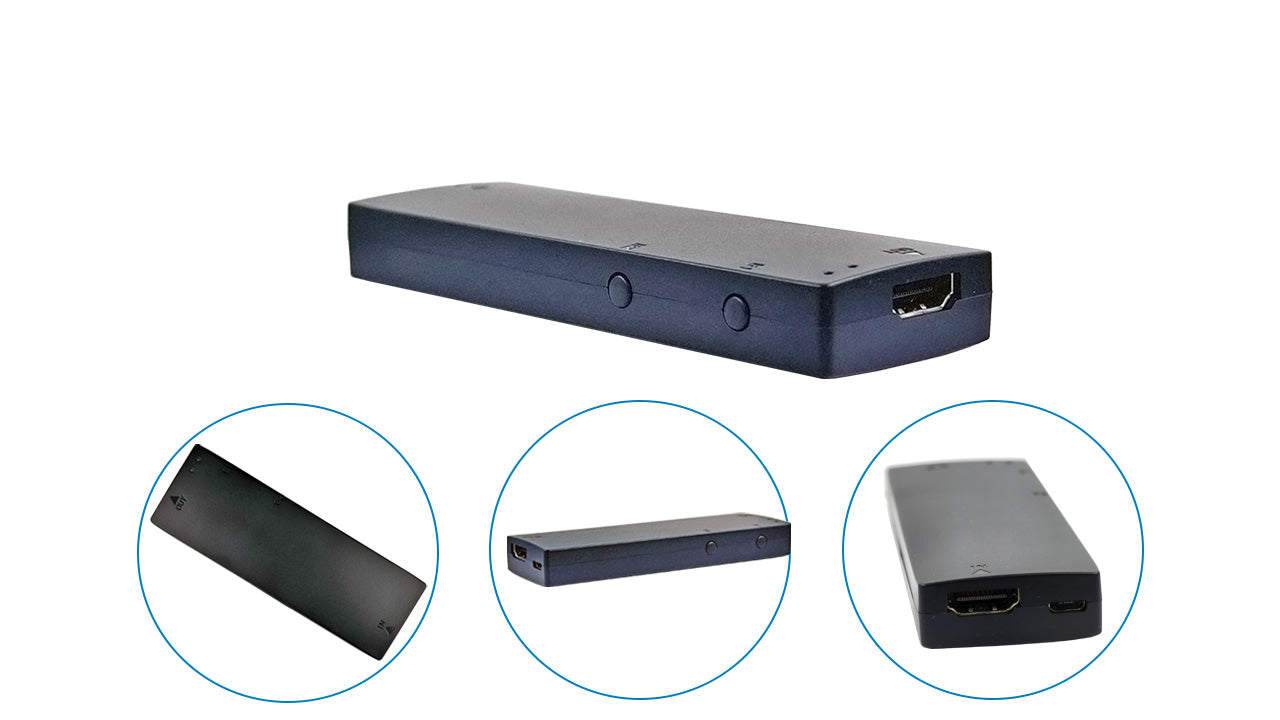

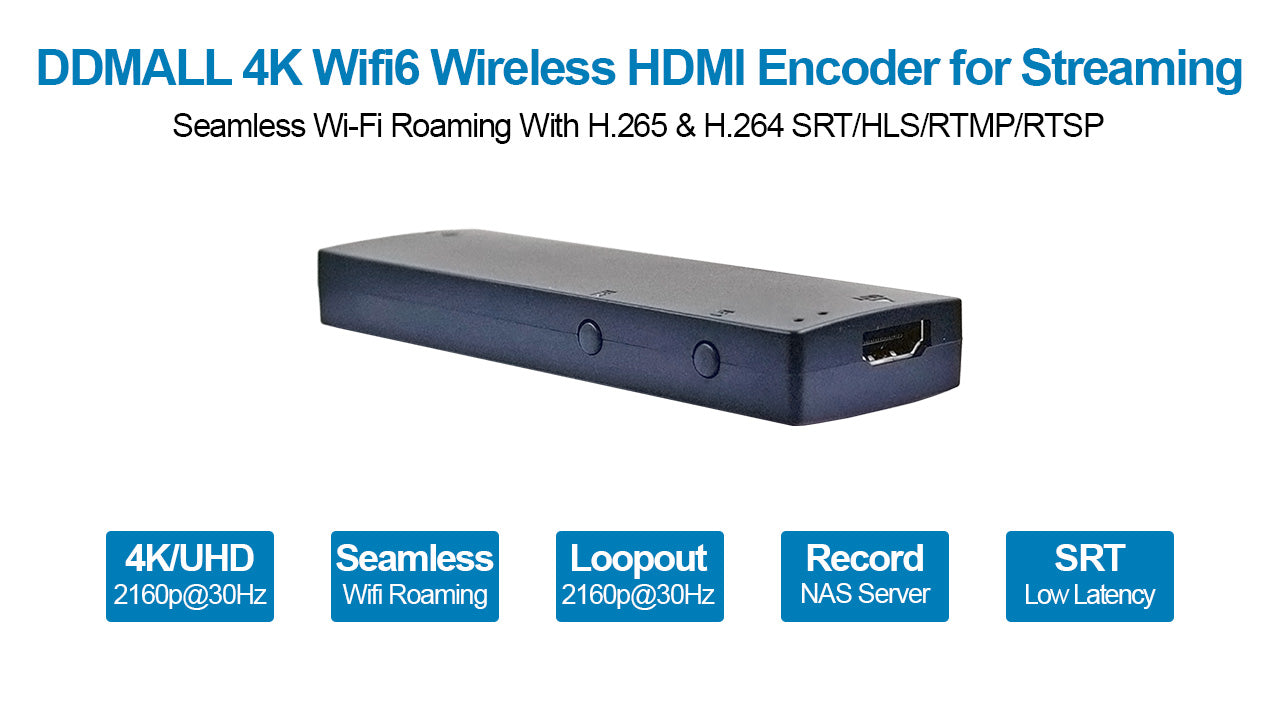

DDMALL HEC-20 4K Wi-Fi 6 HDMI Video Encoder with 4K Loop-Out

DDMALL HEC-20 4K Wi-Fi 6 HDMI Video Encoder with 4K Loop-Out

SKU:HEC-20

Normaler Preis $399.00 USD
Normaler Preis $599.00 USD Verkaufspreis $399.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet
Anzahl

19 auf Lager

Vollständige Details anzeigen

A 4K Wi-Fi encoder that gives the camera its own monitor feed. HDMI in at 2160p30, 4K loop-out to the on-set display, and the same 4K30 frame encoded to IP at 64 Mbps —one box, no splitter, no second cable run.

【4K In, 4K Loop-Out, 4K Out】
Input up to 2160p30. A dedicated HDMI loop-out passes 2160p30 straight through to a monitor or viewfinder, while the encoder streams 2160p30 at up to 64 Mbps in H.265 (HEVC) or H.264 (AVC). Camera operator sees the frame; the audience sees the same frame.

【46 g, Runs From a Power Bank】

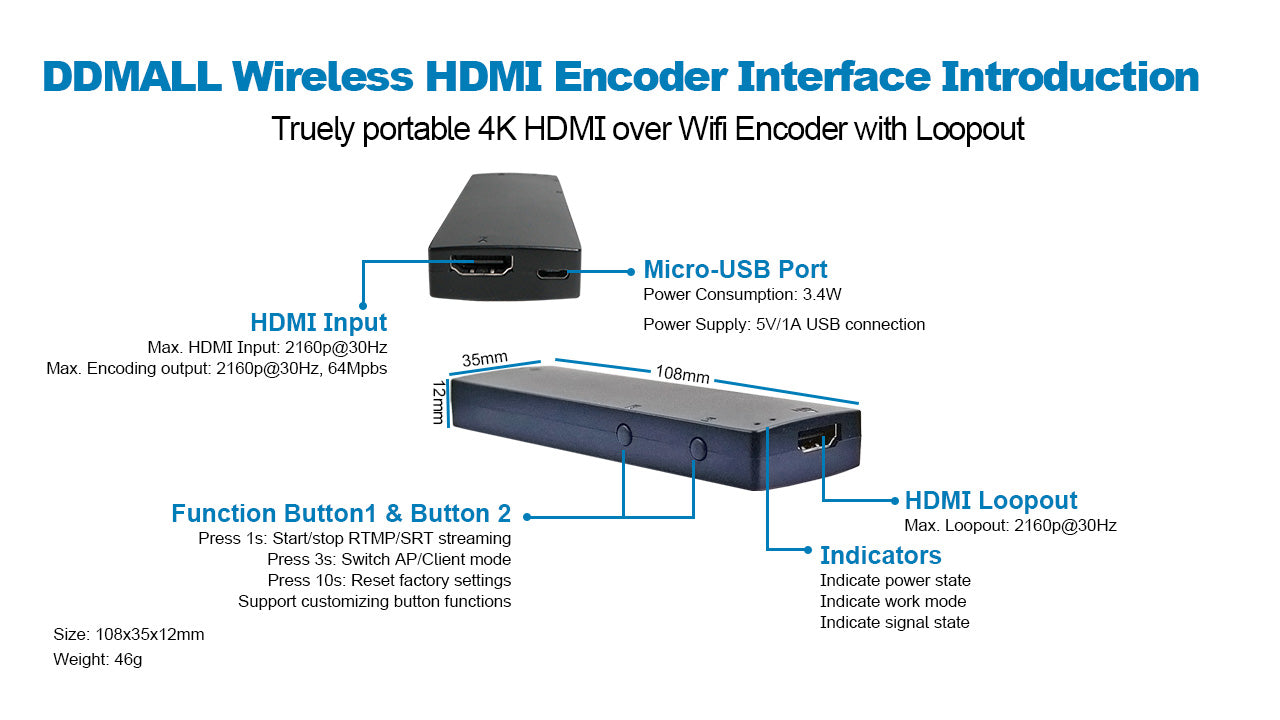

108 × 35 × 12 mm, 46 g, powered at 5 V/1 A over micro-USB. Clip it to the camera cage and run it from the camera's USB port or a power bank — 3.4 W is low enough that the rig does not need another battery plate.

【Dual-Band Wi-Fi 6, Fast Roaming】
Dual-band Wi-Fi 6 on 5 GHz and 2.4 GHz. Fast roaming lets the encoder measure AP signal strength continuously and move to the strongest access point as the camera travels — without interrupting the stream. For productions in motion: sport, events, multi-room.

【Four Destinations From One Source】
Primary stream up to 2160p30, secondary up to 1080p60, and the two can be distributed to multiple destinations at once — AWS, YouTube, Facebook, Twitch, Wowza, Dacast — each in HD. One HDMI source, four audiences, no re-encoding.

【Buttons You Can Reprogram】
Two physical buttons ship set to start/stop RTMP, switch AP mode, and reset to factory. Reassign them in the Web UI to start/stop SRT, RTSP or HLS, or toggle OSD — a usable control surface when the encoder is mounted where a laptop cannot reach.

【NAS Recording, OSD, NTP, Web Preview】
Record to a NAS while streaming. Add text, picture and time OSD in real time; keep multi-camera timestamps aligned with NTP; preview the input image in the Web UI; update firmware online.

【Back On Air After a Power Loss】
If power drops, the encoder reconnects to the network and resumes streaming by itself when power returns — no site visit, no re-configuration.

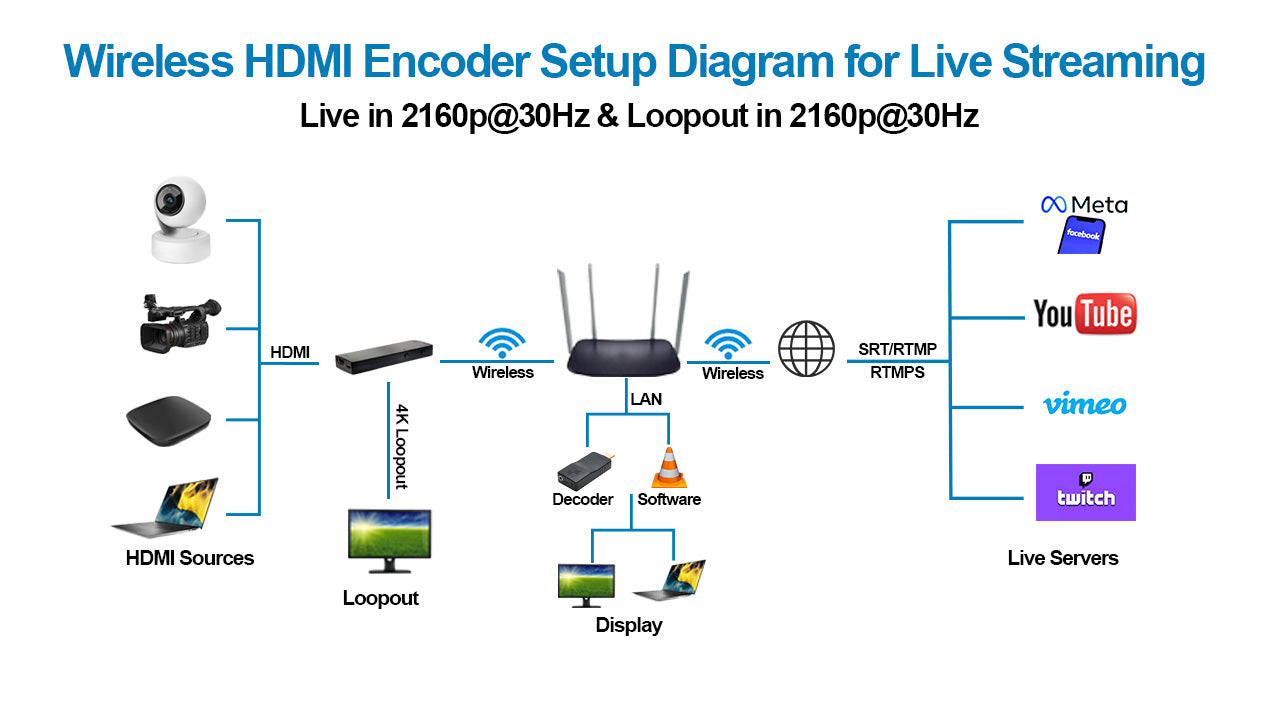

Typical Deployments

  • Sport and live events — roaming Wi-Fi 6, camera in motion
  • Houses of worship — 4K loop-out to the house screen, stream to the platform
  • Studio and rental — loop-out to the operator monitor, IP to the control room
  • Campus and auditorium — one source to multiple rooms over existing APs
  • Retail and venue — 4K signage without a cable run
  • Surveillance and UAV — 4K downlink to the control desk

Parameters

 General
 Power Supply  5V/1 A (USB-powered)
 Power Consumption  3.4 W
 Operating Temperature  -10~50℃ (14~122℉)
 Storage Temperature  -20~85℃ (-4~185℉)
 Operating Humidity  10%- 90%RH (Non-condensing)
 Weight  46g
 Dimension (L*W*H)  108x35x12mm
 MTBF  30,000 hours
 Video
 Input Standard HDMI 1.4a
 Video Codec H.265/HEVC and H.264/AVC
 Supported Protocols SRT, HLS, RTMP(S), RTSP, ONVIF, RTP, UDP, TCP, Multicast and Unicast.
 Supported Input Resolution 2160p@30/25/24Hz, 1080p@60/50/30/25/24Hz, 720p@60/50/30Hz
Supported Local Loop-Out 2160p@30/25/24Hz, 1080p@60/50/30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz.
 Supported Output Resolution

2160p@30/25/24Hz, 1080p@60/50/30Hz, 720p@60/50/30Hz, 960×720@60/50/30Hz, 960×540@60/50/30Hz, 640×480@60/50/30Hz, 360×200@60/50/30Hz. The frame rate can be selected by yourself. The primary stream up to 3840x2160@30Hz, and secondary stream up to 1080p@60Hz; Each stream has two channels to stream to 2 destinations.

 Video Bitrate

128 kbps~64 Mbps

 Audio
 Input Standard HDMI
 Audio Encoding Format G.711u, AAC
 Audio Bitrate 32~256 kbps
 System
 Control Method Web UI / DDMALL Cloud
 AP Mode Wi-Fi Info SSID:HED4KW;password:12345678
 AP Mode Default IP 192.168.1.252
 Default Web UI Login Credentials refer to user manual
 GOP Tunable
 Compression Profile Baseline, Main, High
