Overview

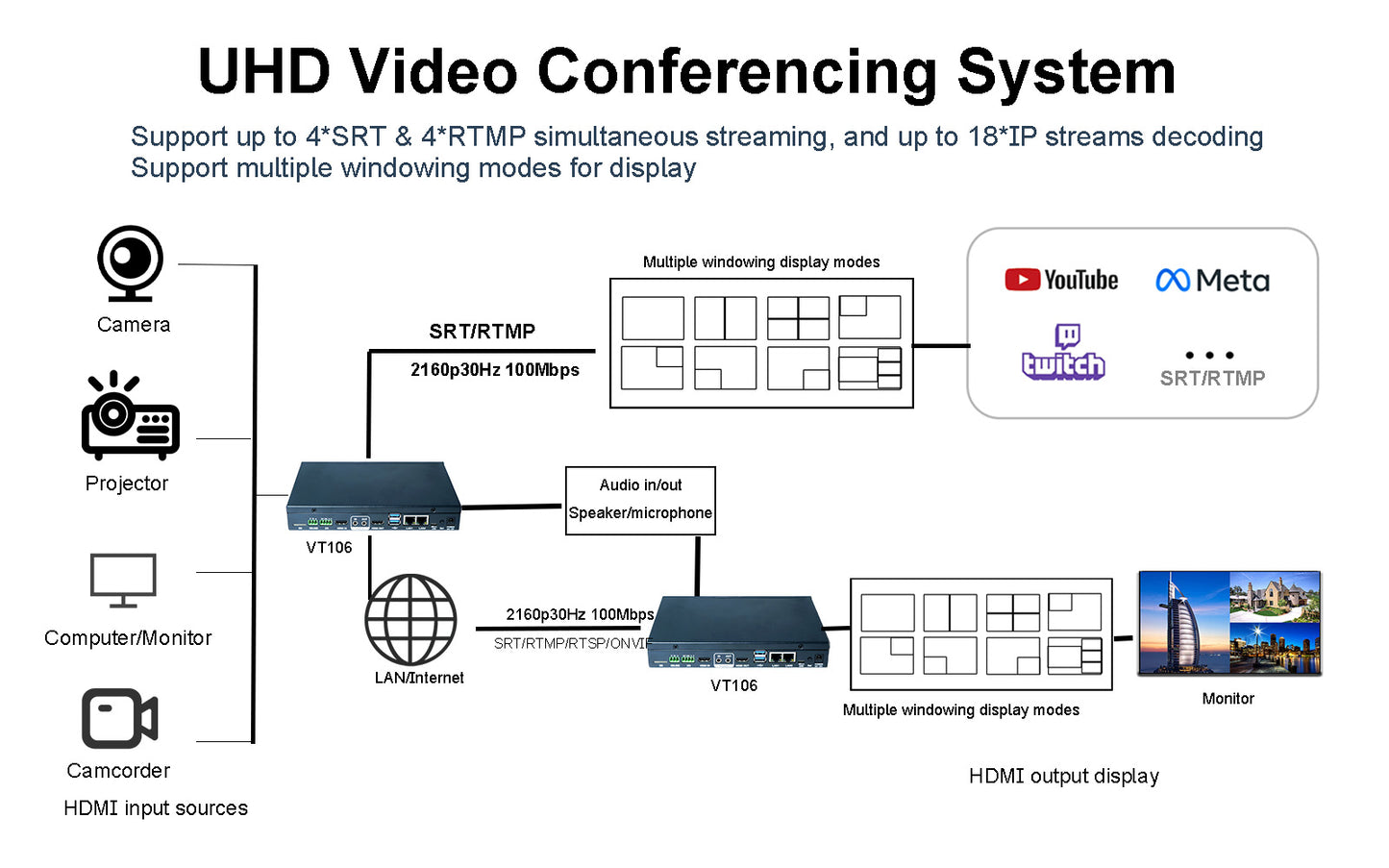

4K UHD Video Conferencing System: 1*HDMI input up to 2160p60Hz, 1*HDMI output up to 2160p60Hz, 1*3.5mm analog audio input, 1*3.5mm analog audio output. Secure input and output in 4K resolution.
Compact Integrated 4K Codec Streaming Device: Support simultaneous encoding 4 SRT streams and 4 RTMP streams in 2160p30Hz; while support simultaneous decoding up to 16 ip streams in 2160p30 for output. Support RTMP, RTSP, SRT and Onvif protocols.

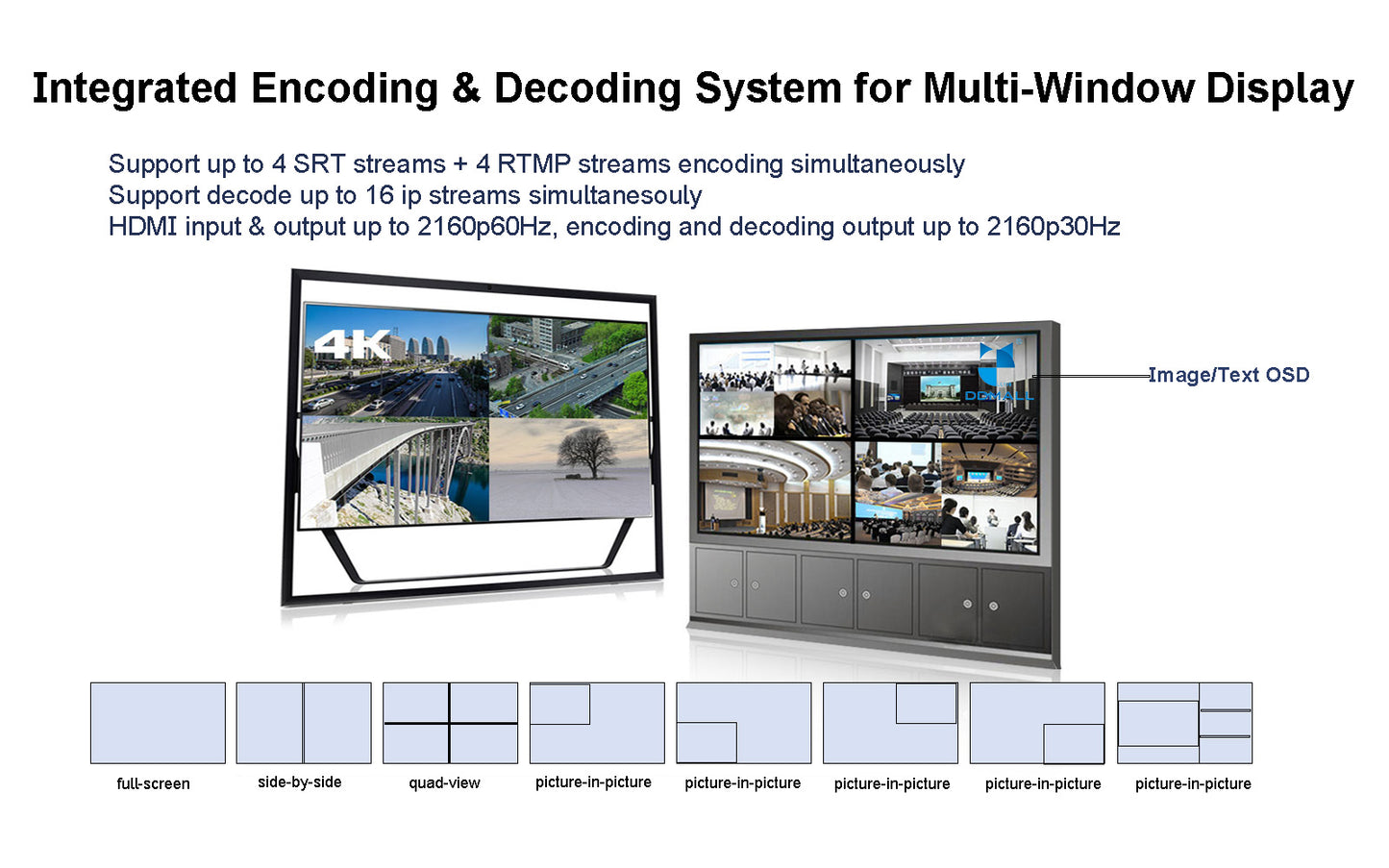

Multi-Window Display for Video Conference: Each device support full-screen, side-by-side, picture-in-picture, quad-view windowing modes. It satisfies the needs of multi-window display of your videos.
Powerful Recording Capability: With bulit-in hard disk, it is competent to record, store and playback all of the video conference contents.
Audio Mix for Easy Video Conference: 3.5mm analog audio input and output, 2*USB 3.0 interface for audio equipments, allowing audio mix so that discussion during the meeting will be easy.
DDMALL Intelligent Video Conferencing Platform VT106 is a powerful device integrated with an encoder, decoder, recorder, audio mixer, plus multi-viewer. It combines a host of powerful features to enhance remote collaboration and elevate the video conferencing experience: Offering up to 4 SRT and 4 RTMP streams simultaneously, and up to 16 IP streams simultaneously decoding capabilities, supporting encoding and decoding resolutions of up to 2160P@30Hz at bitrates of up to 100Mbps. Multiple protocols are supported, including RTSP, SRT, ONVIF, and RTMP. The built-in hard disk allows for real-time recording and storage, and on-demand video playback. Also ensures tailor your viewing experience to your preferences with versatile display options including full-screen, side-by-side, picture-in-picture, or quad-view, etc.
Key Features
- Simultaneous encoding and decoding: Support up to 4 SRT streams and 4 RTMP streams simultaneously at video bitrate up to 100Mbps, and up to 16 IP streams decoding simultaneously;
- Ultra-high-definition and Flexible Resolutions: Support HDMI input and output resolutions at Max. 2160P@60Hz, with flexible downscaling options of seamlessly adjusting to 1080P or 720P;
- Wide Protocol Compatibility: Multiple protocols are supported, including RTSP, SRT, ONVIF, and RTMP, providing flexibility and compatibility with various streaming setups.
- Real-time Recording and Playback: Built-in hard disk allows real-time recording & storage, on-demand playback, and supports fast recalling of storage images;
- Multi-viewer & Audio Mixer: Support images full-screen, side-by-side, PIP, quad-view, etc., windowing modes for display. Support audio equipment and audio mix for collaboration;
- Real-time OSD Setting: Allow to add 3 text labels, and 1 image to any position of streaming videos for local HDMI output and encoding output;
- Versatile Interfaces: Inputs including 1* HDMI 2.0 and 1* mic/line in audio input, outputs including 1* HDMI 2.0 and 1* 3.5mm analog audio output, 2x USB 3.0, can be connected to USB audio in and out equipment;
- Easy Control Options: Support both local control and LinkCloud control, allowing you to manage multiple devices simultaneously.

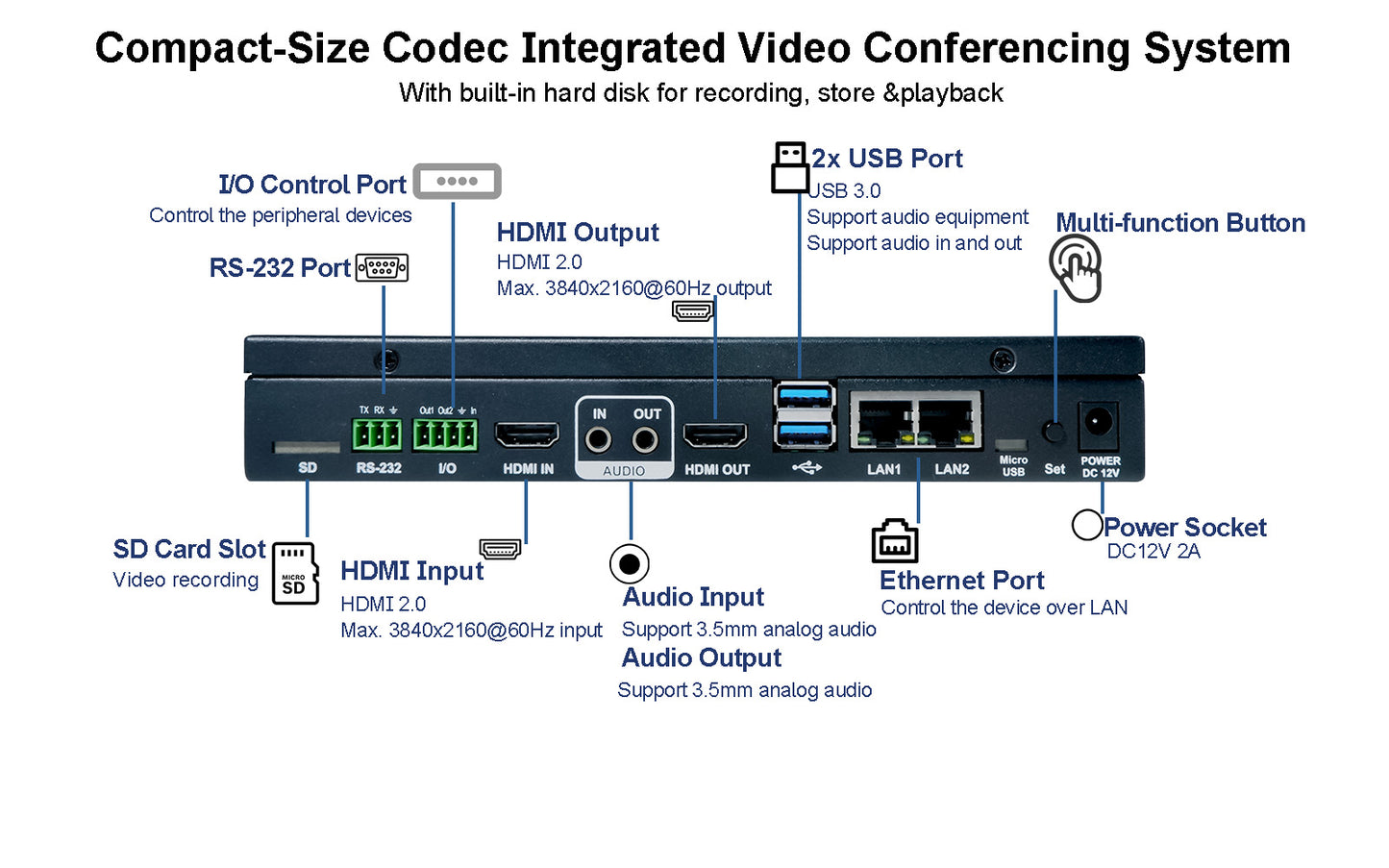

Hardware Appearance
HDMI IN: HDMI 2.0, support inputs up to 3840*2160@60Hz;
AUDIO IN: 3.5mm analog audio jack for audio in, support mic/line in audio input;
AUDIO OUT: 3.5mm analog audio jack for audio out, can be connected to headphones, speakers, and other equipment;
HDMI OUT: HDMI 2.0, support outputs up to 3840*2160@60Hz;
2x USB 3.0: Connect to USB audio equipment such as speakers, support audio in and out;
LAN1 & LAN2: Ethernet ports for controlling the network connection of the device;
POWER: Powered socket, connected to DC12V 2A power adapter;
SD Card Slot: SD card slot;
RS-232: Control ports for controlling the peripheral devices;
I/O: Control ports for controlling the peripheral devices.

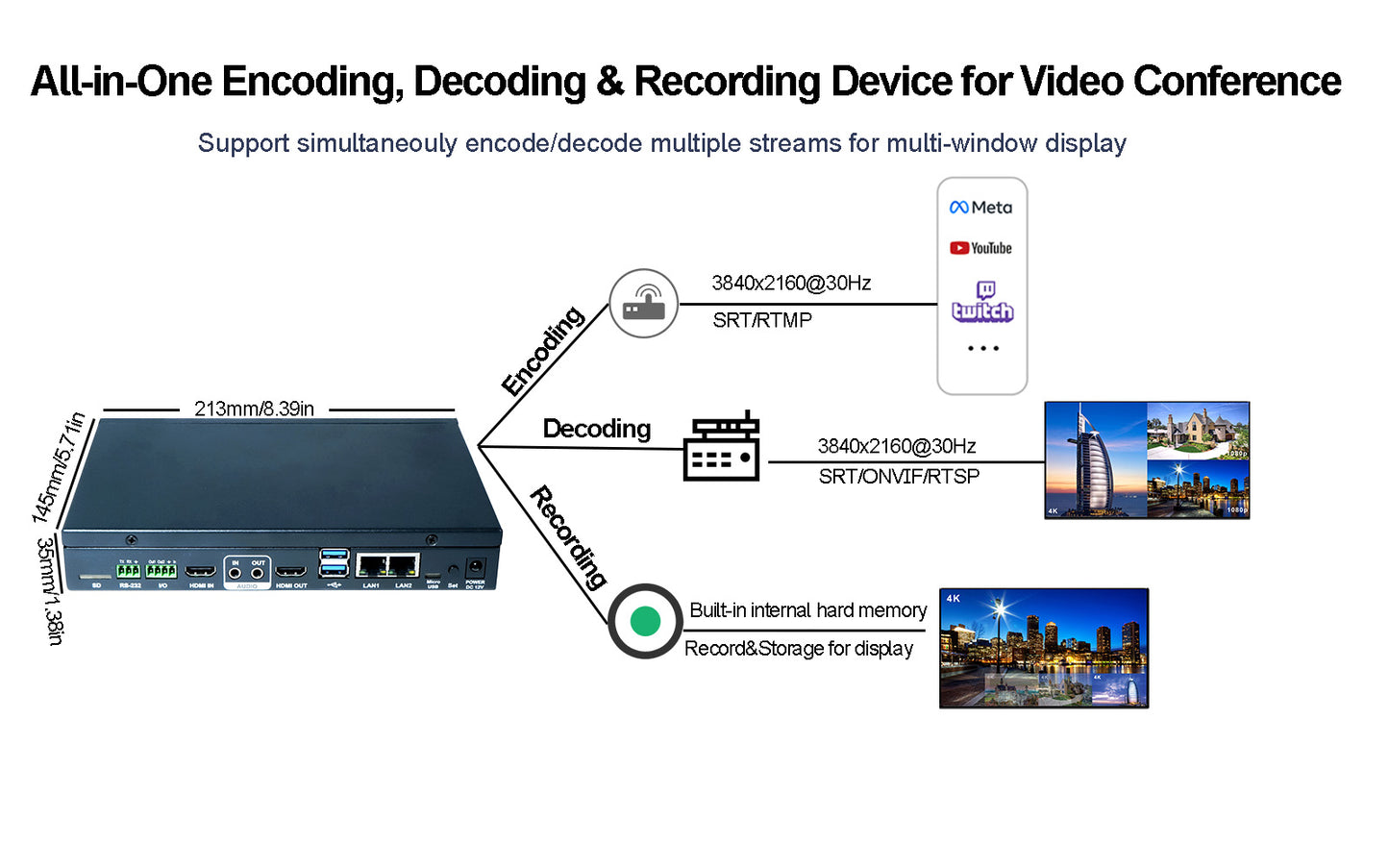

All-in-One Encoding, Decoding & Recording Device for Video Conference
Encoding
- Support simultaneous 4 SRT streams and 4 RTMP streams, multiple protocols are supported, including RTSP, SRT, and RTMP;
- Support encoding output up to 2160@30Hz, with flexible downscaling options of seamlessly adjusting to 1080P, and 720;
- Encoding outputs including HDMI, Line in, Mic, and USB options;
- Real-time OSD setting allows to add up to 1 image and 3 text labels to any position of streaming videos;
- Support recording, storage, and on-demand playback of multiple encoding outputs;
- Support images full-screen, side-by-side, PIP, quad-view etc., windowing modes for display;
Decoding
- Support multiple protocols, including RTSP, SRT, and ONVIF;
- Enable simultaneous 16 IP streams decoding;
- Support recording, storage, and on-demand playback of multiple video sources;
Recording
- Allow flexible adjustment of output resolutions within Max. 3840*2160@60Hz;
- Real-time OSD setting allows to add up to 1 image and 3 text labels to any position of streaming videos;
- Support multiple audio mix outputs;
- Support images full-screen, side-by-side, PIP, quad-view etc., windowing modes for display.
Parameters
General |
Power Supply | DC12v 4A |
Power Consumption | 9W |
Operation Temperature | -10~50℃(14~122℉) |
Storage Temperature | -20~85℃(-4~185℉) |
Operating Humidity | 10%- 90%RH (Non-condensing) |
Weight | 1129g |
Dimension | 213mm(L)*145mm(W)*35mm(H) |
BMTF | 30,000h |
Video |
Input Video | HDMI 2.0 |
Input Resolution |
2160P@24/25/30/50/60 1080P@23/24/30/50/60 720P@30/50/60 |
Video Compression Standard |
H.264 |
Encoding Resolution |
3840*2160@30Hz 1080p@30Hz 720p@30Hz The primary stream supports up to 3840*2160@30Hz, and the secondary stream supports up to 1080p@30Hz. |
Bitrate |
128Kbps~100Mbps |
System |
Transmission Protocol | SRT, RTSP, RTMP, ONVIF |
Control Method | Windows software, LinkCloud |
Default IP Address | LAN2:192.168.15.108 |
