196FT/60 Transmission Range: The HE-15 HDMI video extender extends HDMI A/V signals to up to 196ft/60m in full HD 1920*1200@60Hz over one cat6/cat7 cable. Experience high quality video easily.
Zero Delay & Zero Loss: The HE-15 HDMI transmitter receiver kit extends 1920*1200@60Hz video in zero delay without any loss of your video. It delivers your HD clear video in real time.
Plug and Play: The HE-15 HDMI extender kit over cat6 or cat7 can be easy set up. the TX transmitter and RX receiver can take power from most signal sources or display terminals. or they can be USB powered easily with power adapter-free. Plug and play.
Multiple Audio Types Supported: The HE-15 HDMI over cat extender kit supports full range of audio types like Dobly TrueHD, DTS-HD Master Audio and LPCM7.1/DTS/Dobly-AC3/DSD.
POC & EDID Supported: The HE-15 HDMI extender kit supports POC so you only need to power the TX transmitter or the RX receiver. With built-in auto-EDID emulation technology, the HDMI video transmitter allows to copy EDID information for the EDID compliant displays to ensure accurate display performance.

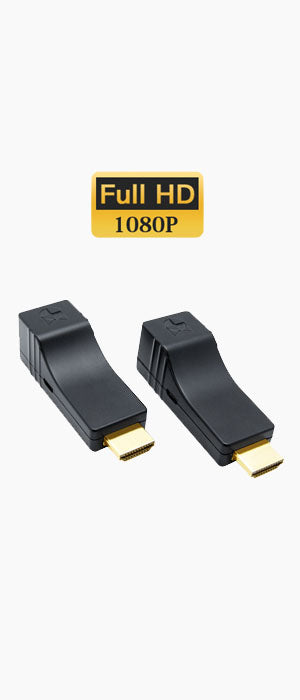

The HE-15 is one of DDMALL ultra-mini and ultra-lightweight HDMI over cat video extender. It extends video and audio from a HDMI signal source to a display at up to 196ft/60m with zero loss and zero delay over a single CAT5e/6 cable. Maximum resolution of the HDMI transmitter receiver kit is up to 1920×1200@60Hz. The HDMI extender kit supports full range of audio types in HD, including Dobly TrueHD, DTS-HD Master Audio, and LPCM7.1/DTS/Dobly-AC3/DSD. You will be amazed at how this mini extender show you the uull HD video/audio with super stability and reliability, even at 196ft/60m away from your source.
HDMI over Cat6/Cat7 Extender at Range 196ft/60m
The HE-15 HDMI video transmitter receiver extends a HDMI source to a display in HD over a single CAT6/7 cable.
Zero Signal Loss
The HDMI over cat extender delivers AV signals with no compression or signal loss over 196ft/60m in zero delay.
Compact size and USB-powered; the TX transmitter connects directly to your laptop, media player, projector, no extra HDMI cables is needed. The RX receiver can be hidden in the back of projector, TV and powered from the nearby USB port. No adapter is needed.
• Compact form factor: ultra-mini size and ultra-lightweight- super easy for setup.
• Transmission range is up to 196ft/60m in Full HD 1080p over a single CAT6/7 cable.
• Simply plug and play, no setup is required.
• No signal loss with zero compression in zero delay.
• POC is supported. only the transmitter or receiver need be powered by USB.
• USB-powered. No power adapter is needed.
• HDMI type-A male connector, easy to plug into the HDMI port, no extra HDMI cable is needed.
• Durable quality: Support 24/7 working.
Ultra-Compact Form Factor & Energy Efficient
Ultra-mini size and ultra-lightweight with size of 0.79×0.79×2.17in and weight of only 0.04lb. With ultra-low power consumption of only 1.7W, the mini extender kit is USB-powered and uses about 80% less power than traditional extenders. It supports POC (Power Over Cable), which means you'll only need to power either the TX transmitter or the RX receiver.
The HDMI video extender is compatible with various devices, such as set-top boxes, blu-ray players, Xbox, NVR systems, game consoles, laptops, TVs, projectors, HDMI monitors and more.
No Extra HDMI Cable is Needed
Featuring a small footprint and a built-in high speed HDMI Type-A male connector, the HDMI video extender connects directly to your devices, eliminating the need for additional HDMI cables. No extra cost and no more cable mess.
With built-in advanced Auto EDID Emulation technology, the HDMI video extender allows the extender to copy EDID information from EDID compliant displays and assures accurate display performance; no additional configuration is needed.
• Extension Range: Max. 196ft/60m in Full HD
• Max. Resolution: 1920×1200@60Hz
• HDMI 1.4 & HDCP 1.2
• Support HDMI High Definition audio for a full range of audio types like Dobly TrueHD, DTS-HD Master Audio, and LPCM7.1/DTS/Dobly-AC3/DSD.
• Support 3D, Deep Color (36 Bits)
• Auto EDID Management
1. For better picture quality and longer distance transmission, we would recommend you to use CAT6/CAT7 or above cable.
2. This extender kit transmits signal from point to point and comes with one Transmitter and one Receiver. It doesn't need to connect to routers or network switches.
